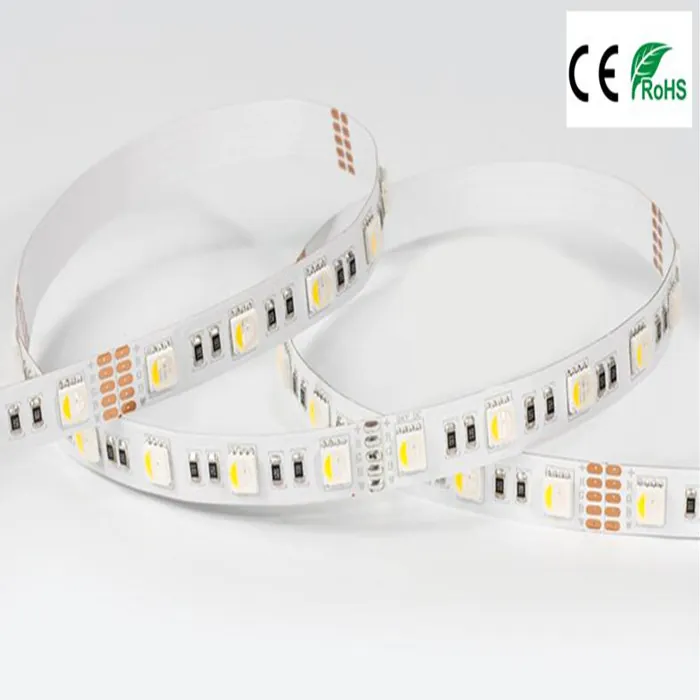

12V LED Strip Light
12V 4 in one 60P RGBW or RGBWW LED Strip light
12V 4 in one 60P RGBW or RGBWW LED Strip light is part of our 12V LED Strip Light range, produced on our own lines in Jiangmen, Guangdong. It runs on 12V / 24V DC, rated IP20, supplied with ETL / CE /RoHs documentation.
- Model
- BL-SMD-5050-60P-RGBW / RGBWW
- Input Voltage
- 12V / 24V DC
- LED Type
- Epistar
- Output
- 80-90LM/W
- Protection
- 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterpro…
- Warranty
- 1 to 3 years
Product Overview
12V 4 in one 60P RGBW or RGBWW LED Strip light is part of our 12V LED Strip Light range, produced on our own lines in Jiangmen, Guangdong. It runs on 12V / 24V DC, rated IP20, supplied with ETL / CE /RoHs documentation.
Key Benefits
Why Buyers Specify The 12V 4 in one 60P RGBW or RGBWW LED Strip light
Color Changing
This 4 in one RGB Led strip lights kit can change colors and speed automatically and periodically. It has not only RGB(Red, Green, Blue), 16 multicolored options, but also has DIY selection to create your great led mood lighting.
Premium LED Strips
Led strip lighting has 300 premium 5050 SMD RGB Leds in 5M/16.4ft. Can be dimming with dimmer and brightness controls. Can be indoor and outdoor service.
Superior & Safe Material
Using double layer copper on PCB board to keep the mixed colors more even. Low Voltage working, More safe.
Easy Installation and Use
Led tape lights is cuttable between every 3 leds. You can cut off extra strips to adjust to a proper length. 3M self-adhesive tape can be fit on any dry and flat surface. Flexible to install anywhere you want.
Worry-Free Warranty
BEAUTY STC led strip lights support 60 Days 100% Satisfaction Guarantee and 2 Year Warrany. Our friendly customer service is always stand behind our product and reply all email within 24 hours.
Specifications
Full published specification for 12V 4 in one 60P RGBW or RGBWW LED Strip light. Ask us on WhatsApp if you need a value confirmed against a specific production batch.
| Input Voltage | 12V / 24V DC |
|---|---|
| LED power | 4 in one 5050SMD |
| Power factory | >0.9 |
| Power per meter | 14.4W Per meter |
| LED Brand | Epistar |
|---|---|
| LED Type | 5050SMD |
| LED QTY | 60pcs LED per meter |
| LM / LED | 18-20LM each LED |
| LM/W | 80-90LM/W |
| Lumen per meter | 1000-1100LM/meter |
| Color Available | RGBW / RGBWW |
| Lens angle | 120° |
| PCB Width | Double side, white color 8MM PCB |
|---|---|
| Size | 10*5000MM |
| Cutting | Every 3pcs LED chip can be cutted |
| Lifespan | >50,000 hours |
|---|---|
| Waterproof rate |
|
| Operating temperature | -15℃ to +40℃ |
| Model number | BL-SMD-5050-60P-RGBW / RGBWW |
|---|---|
| Packing | 5 meters per roll |
| Warranty | 1 to 3 years |
| Certificates | ETL / CE /RoHs |
Product Detail Images
Photographs of the actual product as supplied from our Jiangmen factory.
Use Guide
Installation details that come straight from this model's own specification.
Cutting
Every 3pcs LED chip can be cutted
Waterproof Construction
- 1. Non-waterproof Bare plate IP20 with 3M adhesive paper
- 2. Waterproof Drop Glue IP65 with 3M adhesive paper
- 3. Waterproof Silicon tube IP66 with 3M adhesive paper
- 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper
Operating Temperature
-15℃ to +40℃
Packing
5 meters per roll
Compare With Other Models In This Range
Every value below is taken from the published datasheet of each model, so you can line up the differences before you ask for a quotation.
| 12V 4 in one 60P RGBW or RGBWW LED Strip light This product | 12/24V COB 480P LED Strip light | 12/24V COB 320P LED Strip light | 12/24V COB 252P LED Strip light | |
|---|---|---|---|---|
| Input Voltage | 12V / 24V DC | 12/24V DC | 12/24V DC | 12/24V DC |
| LED Type | 5050SMD | SMD | SMD | SMD |
| LED Density | 60pcs LED per meter | 480pcs LED per meter | 320pcs LED per meter | 252pcs LED per meter |
| Power | 4 in one 5050SMD | 0.1W each | 0.1W each | 0.1W each |
| Lumen | 1000-1100LM/meter | 1200-1300LM/meter | 1200-1300LM/meter | 1100-1200LM/meter |
| Protection | 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterproof Drop Glue IP65 with 3M adhesive paper | 3. Waterproof Silicon tube IP66 with 3M adhesive paper | 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper | 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterproof Drop Glue IP65 with 3M adhesive paper | 3. Waterproof Silicon tube IP66 with 3M adhesive paper | 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper | 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterproof Drop Glue IP65 with 3M adhesive paper | 3. Waterproof Silicon tube IP66 with 3M adhesive paper | 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper | 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterproof Drop Glue IP65 with 3M adhesive paper | 3. Waterproof Silicon tube IP66 with 3M adhesive paper | 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper |
| Size | 10*5000MM | 10*5000MM | 10*5000MM | 10*5000MM |
Manufacturing And Quality
How This Product Is Built And Checked
-
01
Material Inspection
Incoming material is carefully inspected and selected before it reaches the line.
-
02
Assembly
Our QC team follows every unit along the assembly line on our 6 production lines in Jiangmen.
-
03
Aging Test
Aging test of more than 24.5 hours is run before shipping.
-
04
Final Inspection
Load test, high-voltage test, grounding conduction test and install test on the finished light.
Customization Options
Beauty STC Lighting has concentrated on commercial LED light manufacturing for over 15 years and offers professional R&D, patented design and manufacturing experience for customised products.
- OEM and ODM production with your brand, packaging and carton artwork.
- Patented design and manufacturing experience from our own R&D team.
- Colour options: RGBW / RGBWW.
- Packing and length: 5 meters per roll. Other lengths can be produced to order.
- Certification documents issued against your model number where the construction allows.
Certifications For This Range
This model is supplied with ETL / CE /RoHs documentation.
