MRHQ Series Rotary Gripper is listed in the air grippers section of the Betre catalogue under the MH Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

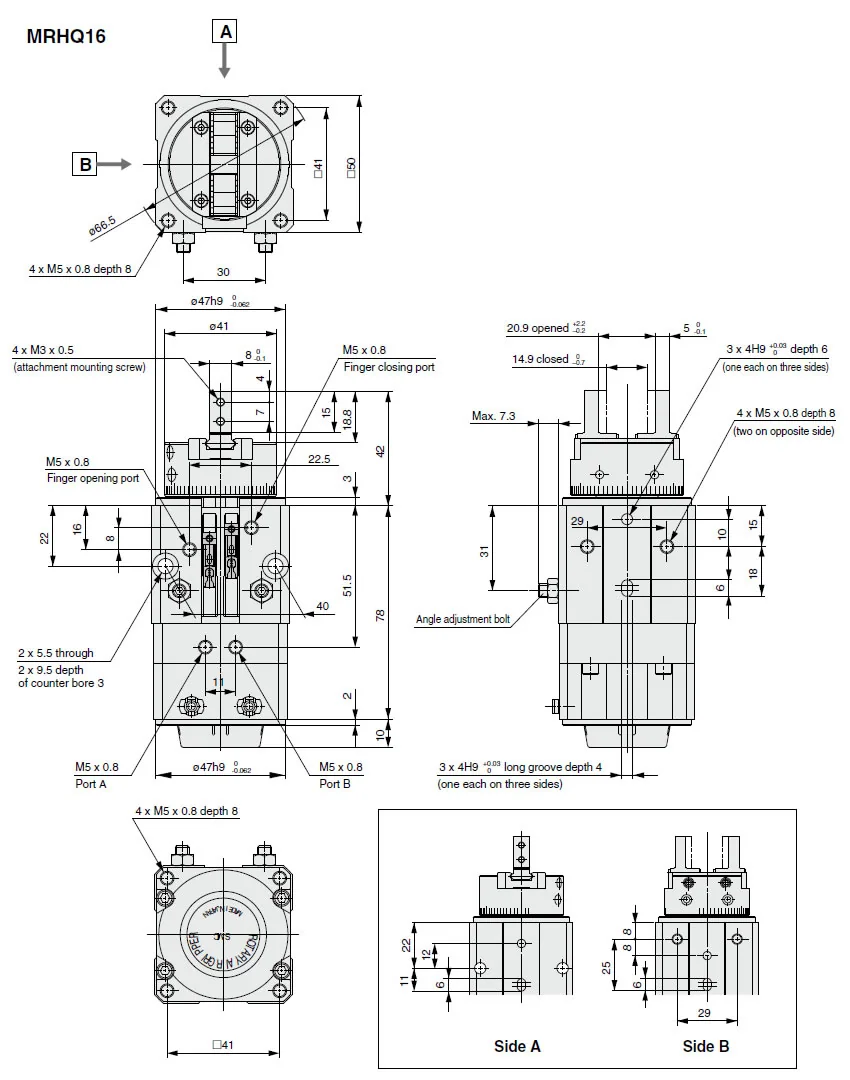

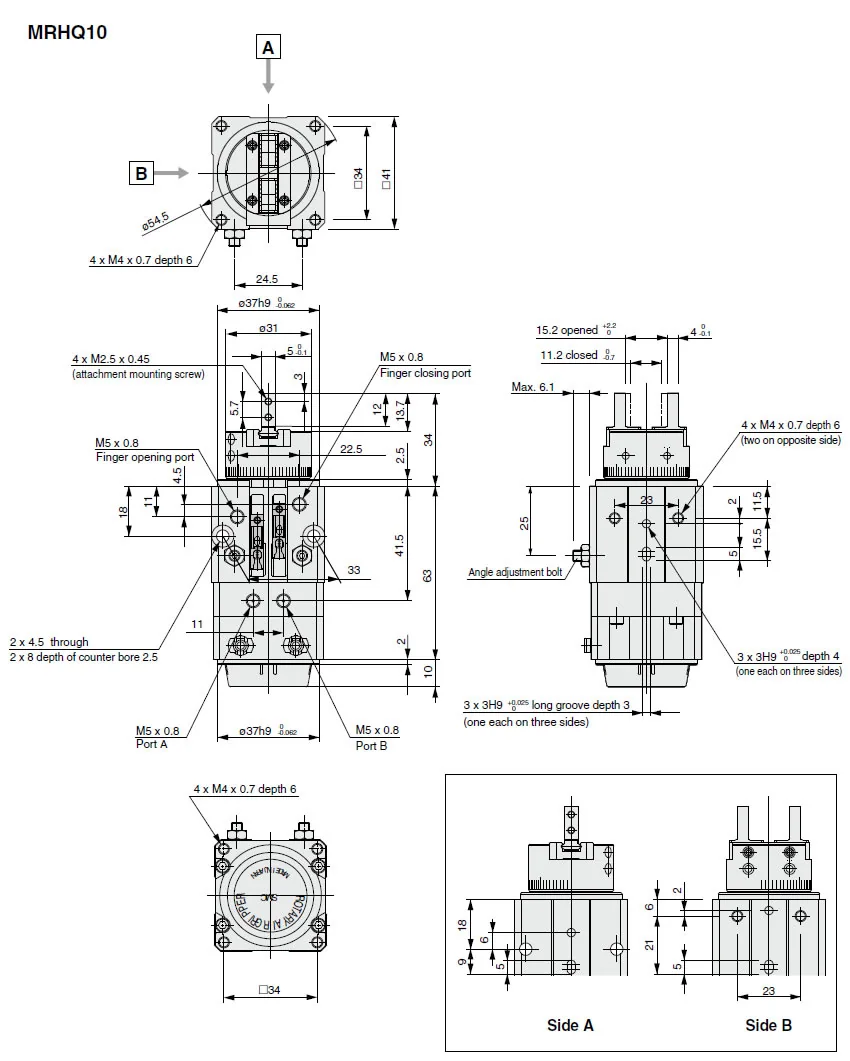

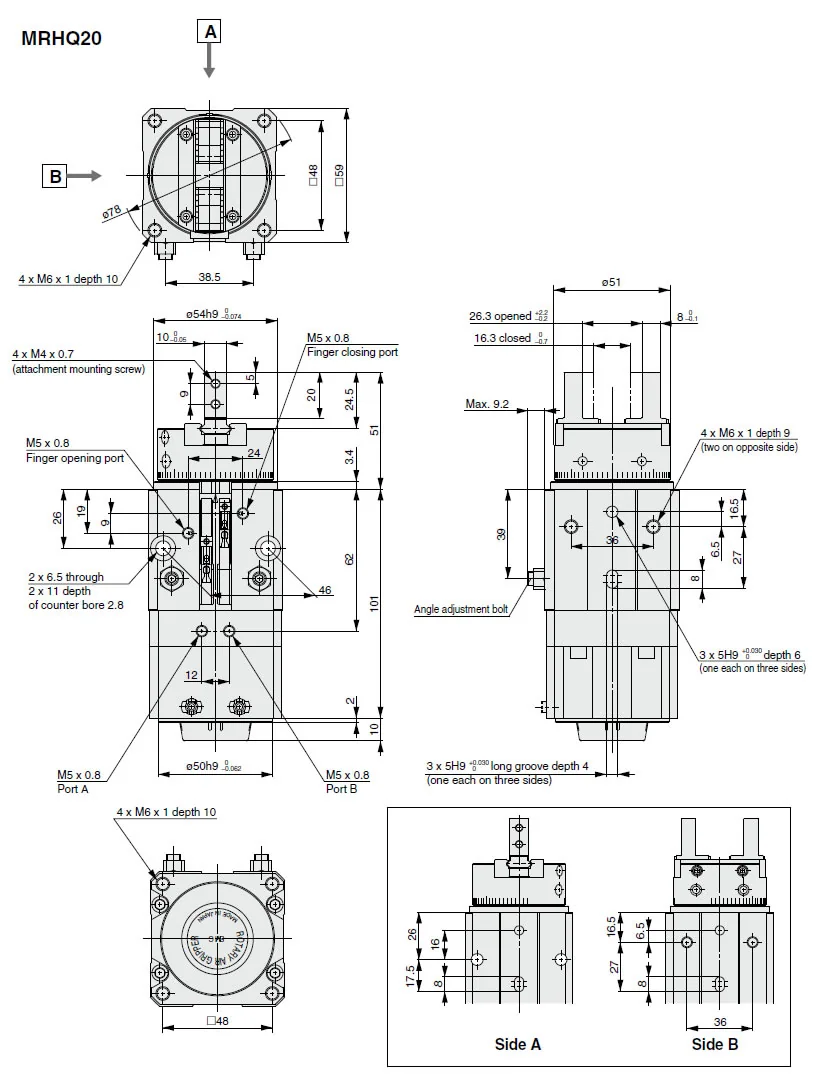

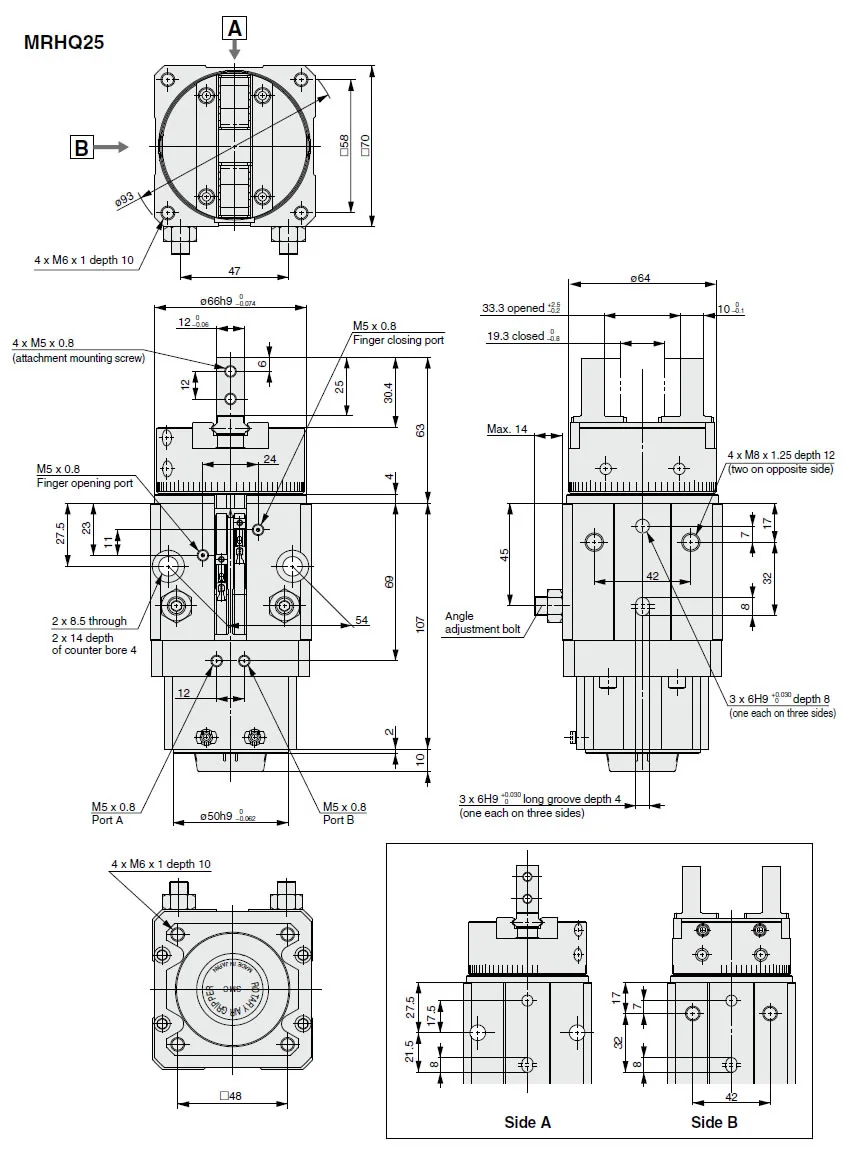

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | MRHQ10 | MRHQ16 | MRHQ20 | MRHQ25 | |||
| Fluid | Air | ||||||
|
Operating pressure (Mpa) |
Rotary unit | 0.25~0.7 | 0.25~1.0 | ||||
| Gripper unit | Double acting | 0.25~0.7 | 0.1~0.7 | ||||
| Single acting | 0.35~0.7 | 0.25~0.7 | |||||
| Rotation angle | 90° ±10°, 180° ±10° (Both ends of vibration ±5° adjustable) | ||||||
| Gripper action | Double acting, Single acting | ||||||
| Finger opening/closing repeatability | ±0.01mm | ||||||
| Gripper maximum operating frequency | 180 c.p.m | ||||||
| Ambient and fluid temperature | 5 to 60°C | ||||||
| Adjustable rotation time range * | 0.07 to 0.3 s/90° (at 0.5 MPa) | ||||||
| Allowable kinetic energy | 0.0046 J | 0.014 J | 0.034 J | 0.074 J | |||
| Auto switch | Rotary unit | Solid state auto switch (2-wire, 3-wire) | |||||
| Gripper unit | Solid state auto switch (2-wire, 3-wire) | ||||||
