MHY2 Series Air Gripper 180° Angular Style is listed in the air grippers section of the Betre catalogue under the MH Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

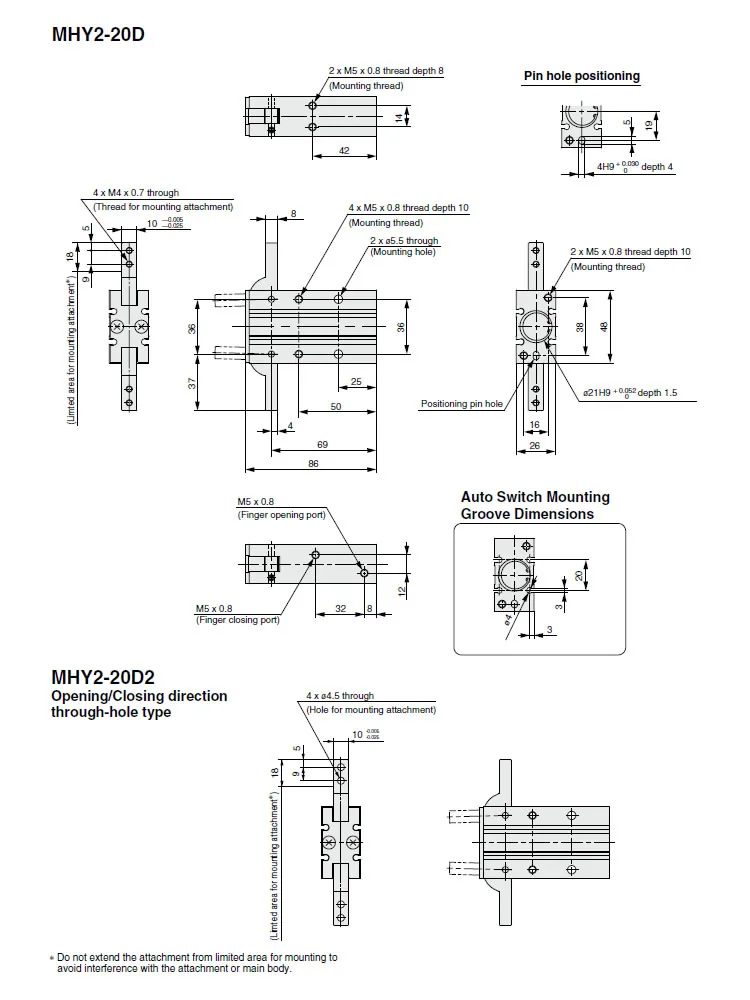

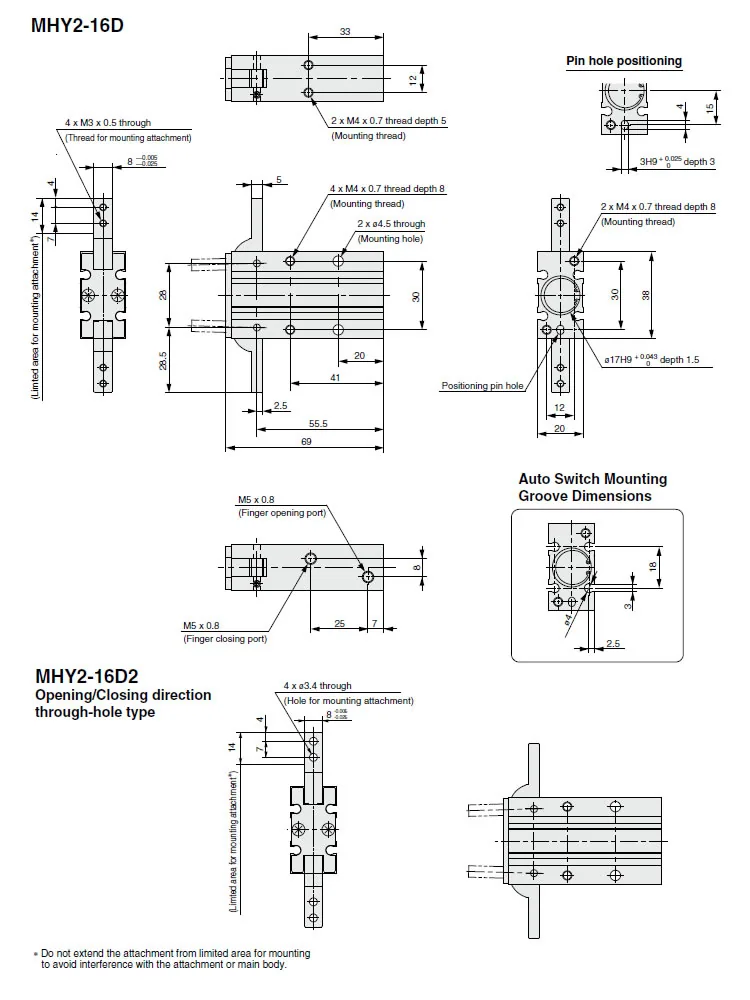

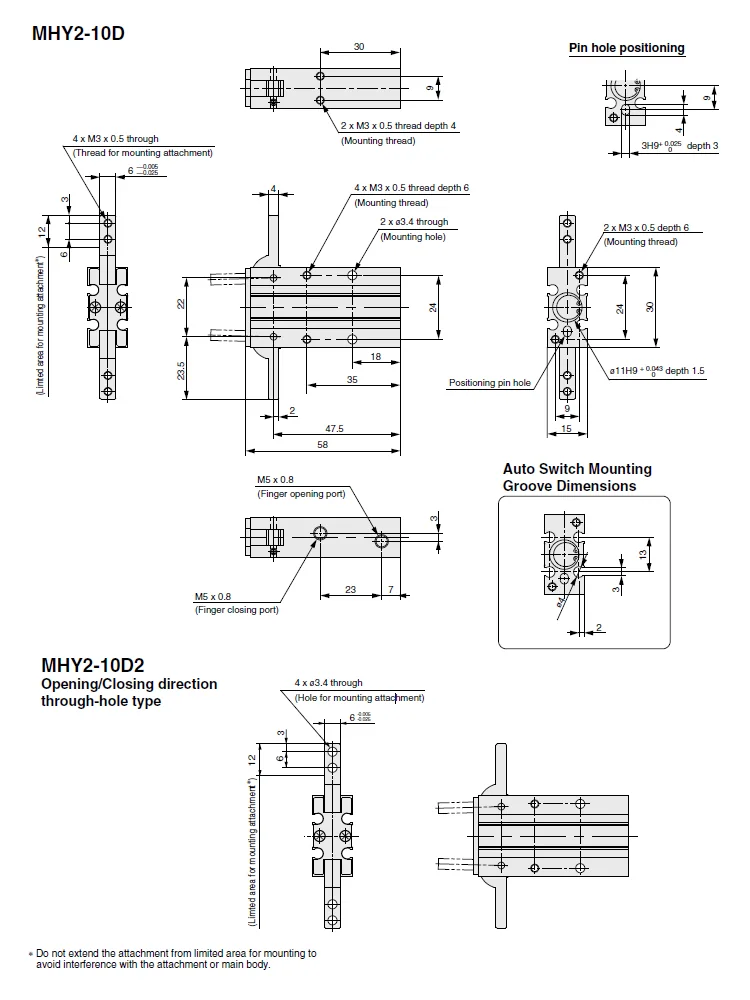

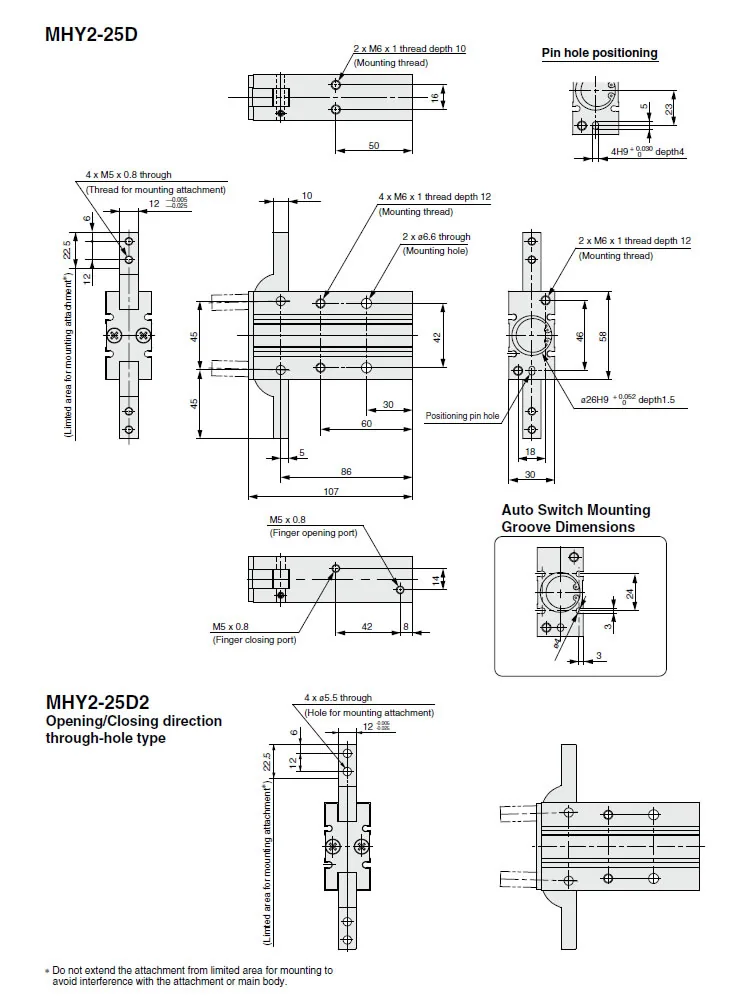

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Fluid | Air | |||||
| Operating pressure | 0.1 to 0.6 MPa | |||||
| Ambient and fluid temperature | -10 to 60°C | |||||
| Repeatability | ±0.2 mm | |||||
| Max. operating frequency | 60 c.p.m. | |||||
| Lubrication | Not required | |||||
| Action | Double acting | |||||
| Auto switch (Option) | Solid state auto switch (3-wire, 2-wire) | |||||
| Model | Bore size (mm) | Effective gripping force (1)(N·m) | Opening/Closing angle (Both sides) | Weight (2) Opening (g) | ||||||
| Opening side | Closing side | |||||||||
| MHY2-10D | 10 | 0.16 | 180° | -3° | 70 | |||||
| MHY2-16D | 16 | 0.54 | 150 | |||||||
| MHY2-20D | 20 | 1.1 | 320 | |||||||
| MHY2-25D | 25 | 2.28 | 560 | |||||||
