MHT2 Series Toggle Type Air Gripper is listed in the air grippers section of the Betre catalogue under the MH Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

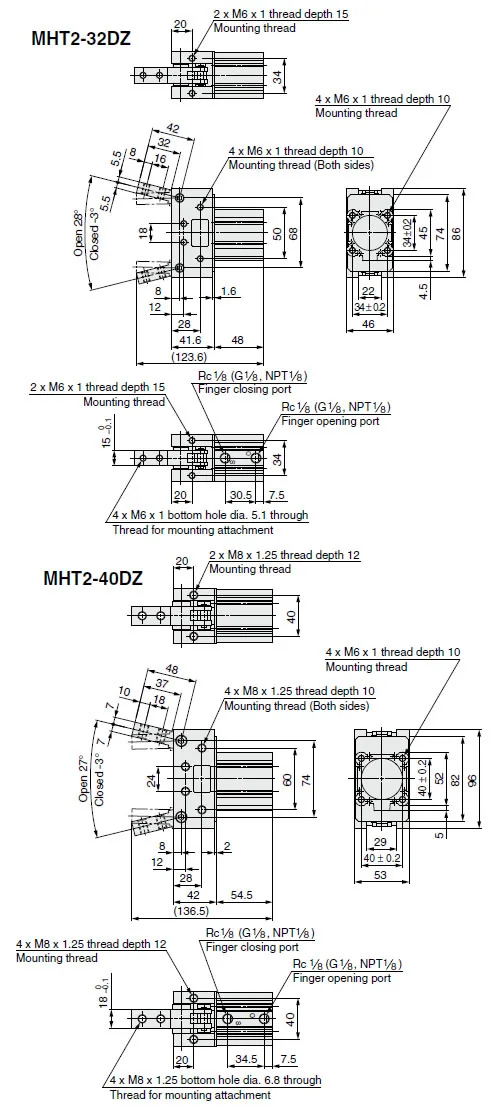

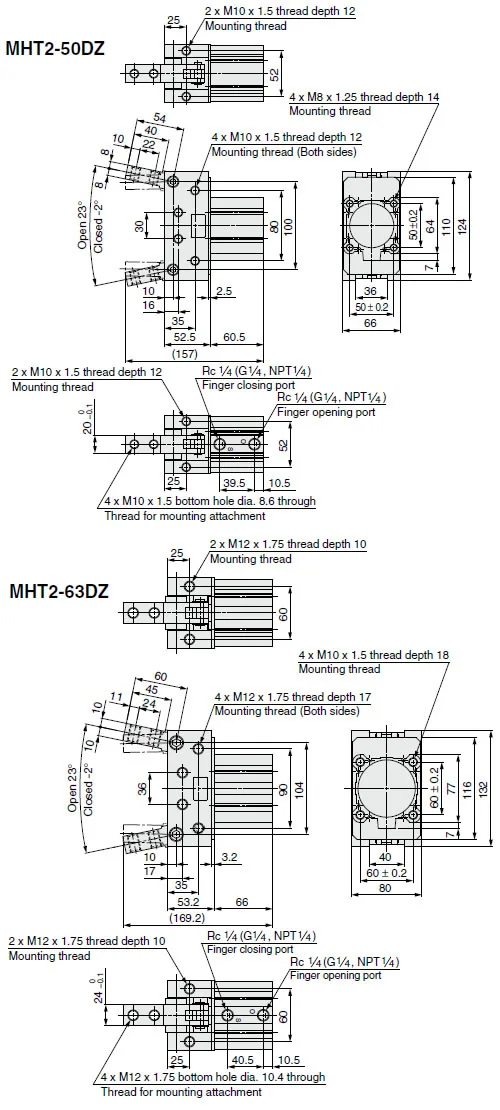

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | MHT2-32DZ | MHT2-40DZ | MHT2-50DZ | MHT2-63DZ | ||
| Bore size (mm) | 32 | 40 | 50 | 63 | ||
| Action | Double acting | |||||
| Fluid | Air | |||||
| Operating pressure | 0.1 to 0.6 MPa | |||||
| Ambient and fluid temperature | 5 to 60°C | |||||
| Lubrication | Not required | |||||
| Finger opening angle (Total) | -3° to 28° | -3° to 27° | -2° to 23° | -2° to 23° | ||
| Weight (g) | 790 | 1070 | 1890 | 2720 | ||
| Gripping moment Note) (Effective value) (N·m) | 12.4 | 36 | 63 | 106 | ||
