MHS3 Series Air Gripper/3-Finger Type is listed in the air grippers section of the Betre catalogue under the MH Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

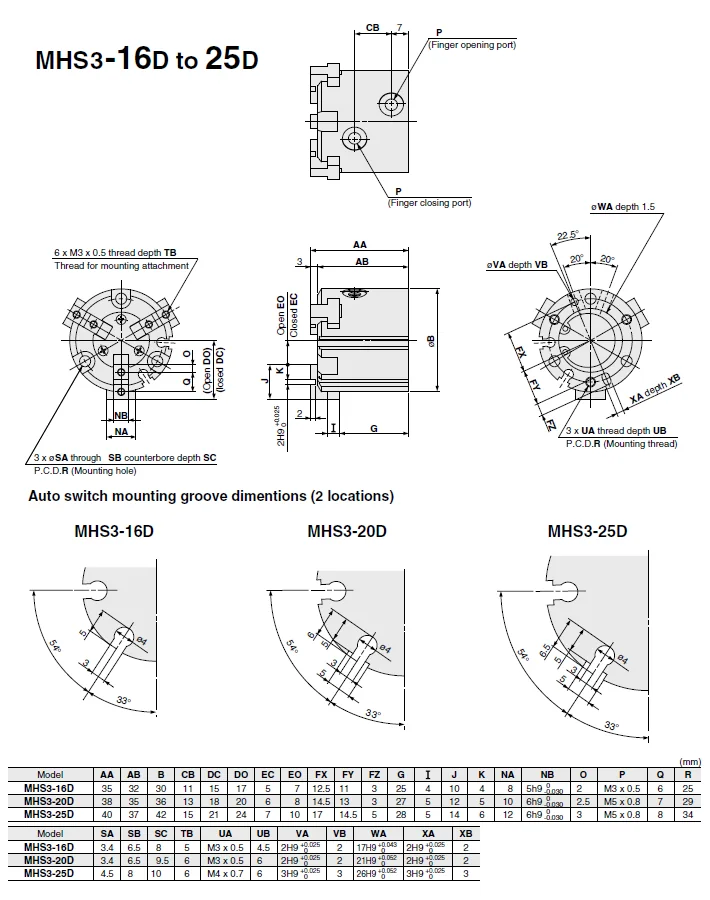

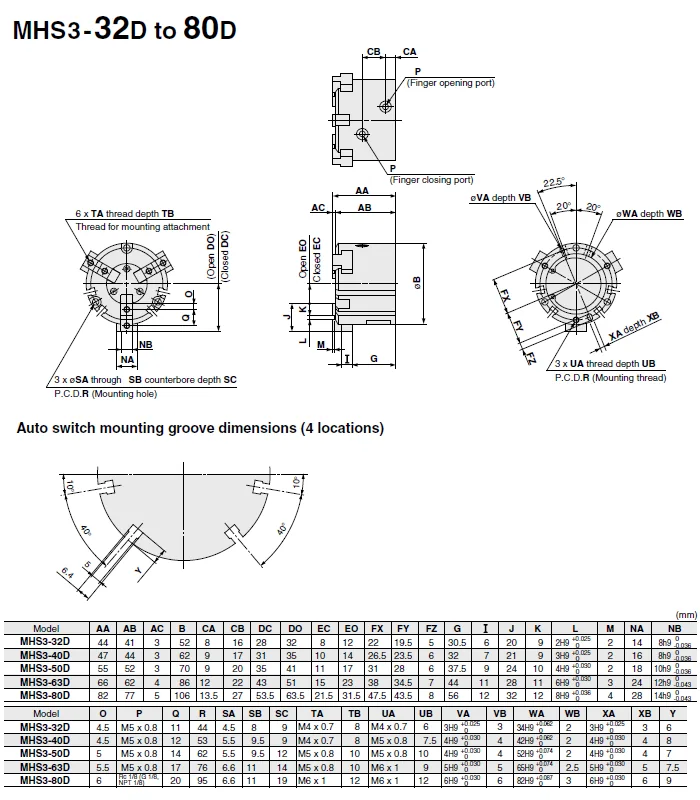

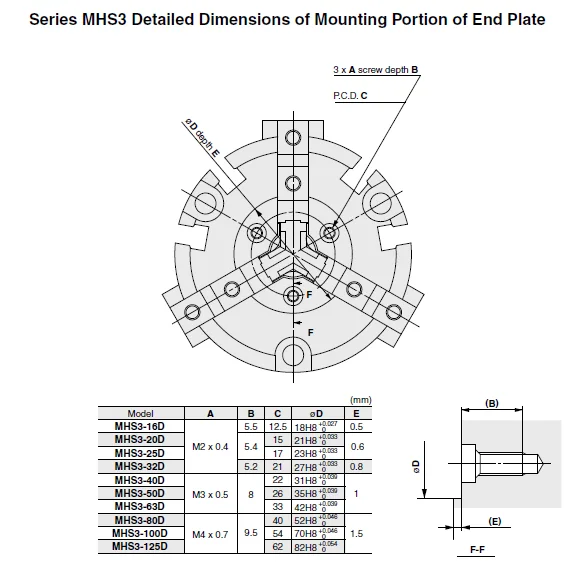

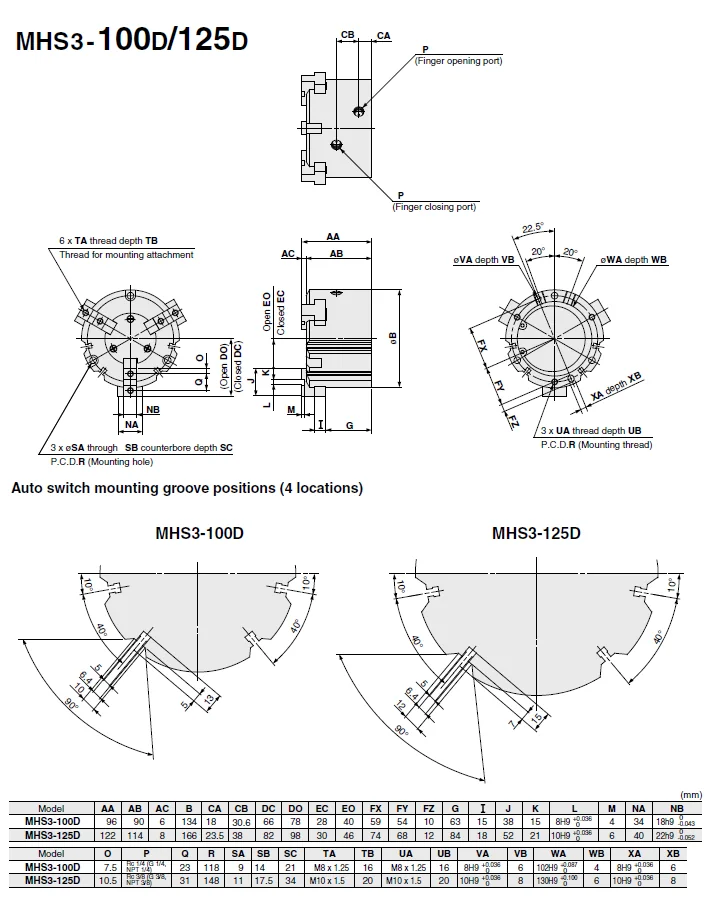

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | MHS3-16D | MHS3-20D | MHS3-25D | MHS3-32D | MHS3-40D | MHS3-50D | MHS3-63D | MHS3-80D | MHS3-100D | MHS3-125D | ||||
| Cylinder Bore size (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | ||||
| Fluid | Air | |||||||||||||
| Operating pressure (MPa) | 0.2 to 0.6 | 0.1 to 0.6 | ||||||||||||
| Ambient and fluid temperature (°C) | -10 to 60 | |||||||||||||
| Repeatability (mm) | ±0.01 | |||||||||||||
| Max. operating frequency (c.p.m.) | 120 | 60 | 30 | |||||||||||
| Lubrication | Not required | |||||||||||||
| Action | Double acting | |||||||||||||
| Effective gripping force (N) at 0.5 MPa Note) | External grip | 14 | 25 | 42 | 74 | 118 | 187 | 335 | 500 | 750 | 1,270 | |||
| Internal grip | 16 | 28 | 47 | 82 | 130 | 204 | 359 | 525 | 780 | 1,320 | ||||
| Opening/Closing stroke (Both sides) (mm) | 4 | 4 | 6 | 8 | 8 | 12 | 16 | 20 | 24 | 32 | ||||
| Weight (g) | 60 | 100 | 140 | 237 | 351 | 541 | 992 | 1,850 | 3,340 | 6,460 | ||||
