MHC2 Series Angular Style Air Gripper is listed in the air grippers section of the Betre catalogue under the MH Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

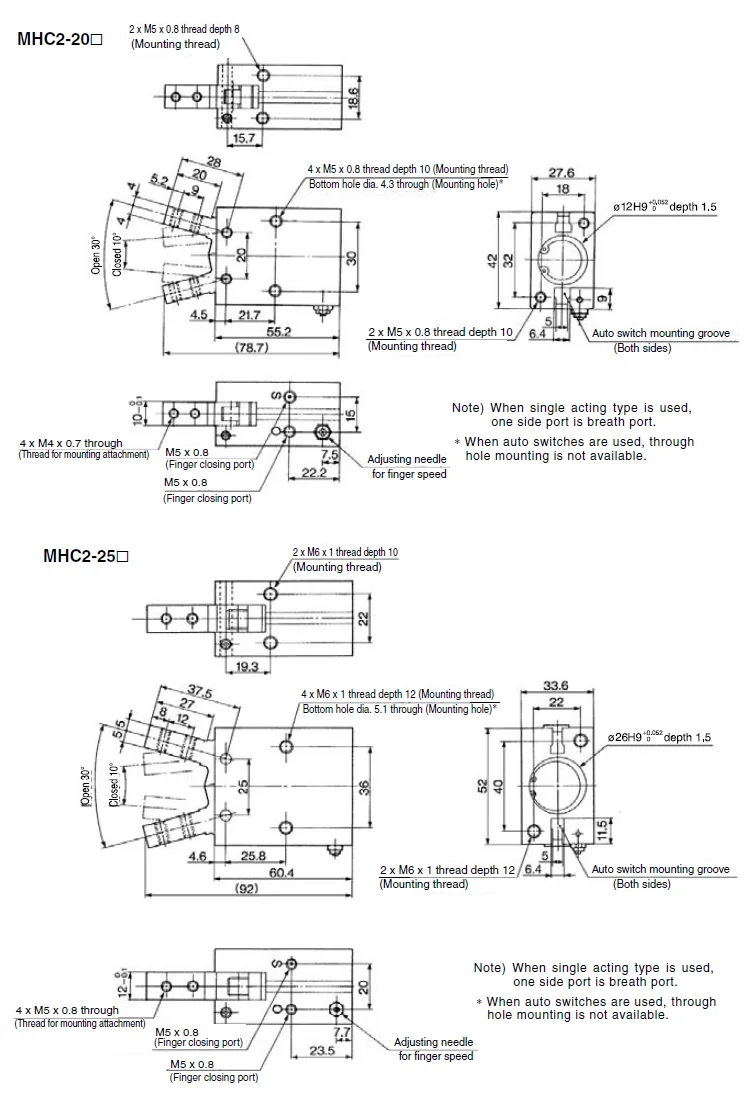

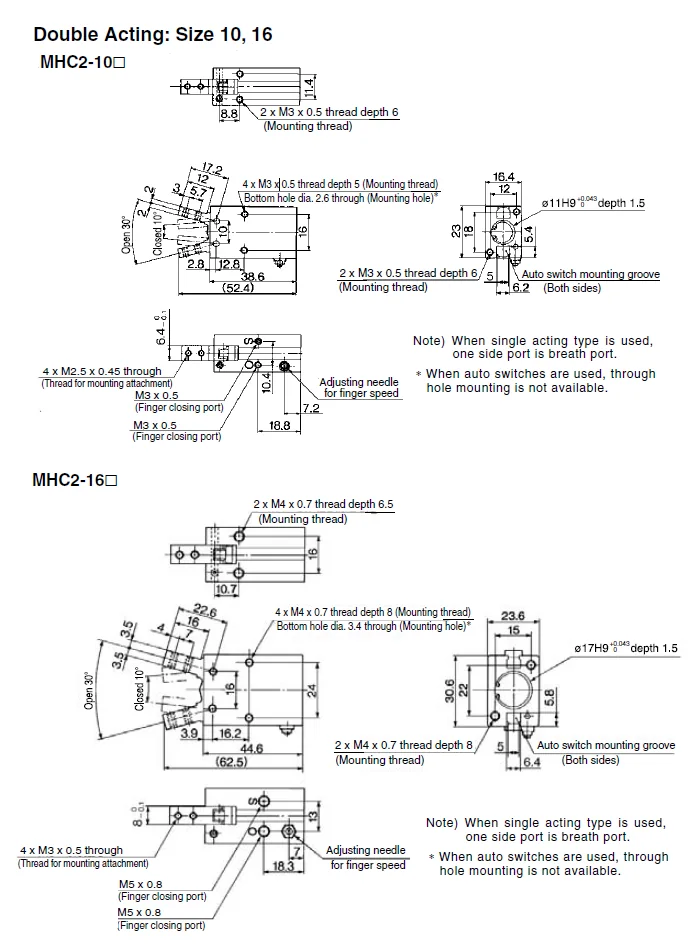

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Fluid | Air | ||||||
| Operating pressure | Double acting | 0.1 to 0.6 MPa | |||||
| Single acting | 0.25 to 0.6 MPa | ||||||
| Ambient and fluid temperature | -10 to 60°C | ||||||
| Repeatability | ±0.01 mm | ||||||
| Max. operating frequency | 180 c.p.m | ||||||
| Lubrication | Not required | ||||||
| Action | Double acting, Single acting | ||||||
| Auto switch (Option) | Solid state auto switch (3-wire, 2-wire) | ||||||
| Action | Model | Bore size (mm) |
Gripping moment (N·m) (Effective value) (1) |
Opening/closing angle (Both sides) | Weight(2)(g) | ||||
| Double acting | MHC2-10D | 10 | 0.1 | 30° to -10° | 39 | ||||
| MHC2-16D | 16 | 0.39 | 91 | ||||||
| MHC2-20D | 20 | 0.7 | 180 | ||||||
| MHC2-25D | 25 | 1.36 | 311 | ||||||
| Single acting | MHC2-10S | 10 | 0.07 | 39 | |||||
| MHC2-16S | 16 | 0.31 | 92 | ||||||
| MHC2-20S | 20 | 0.54 | 183 | ||||||
| MHC2-25S | 25 | 1.08 | 316 | ||||||
