MHF2 Series Low Profile Air Gripper is listed in the air grippers section of the Betre catalogue under the MH Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

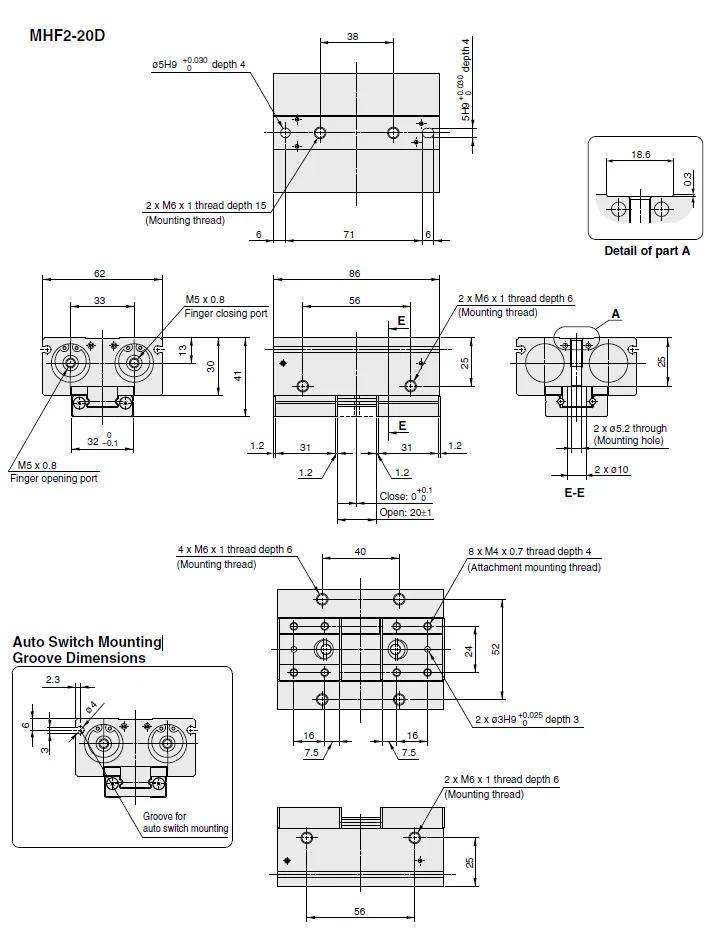

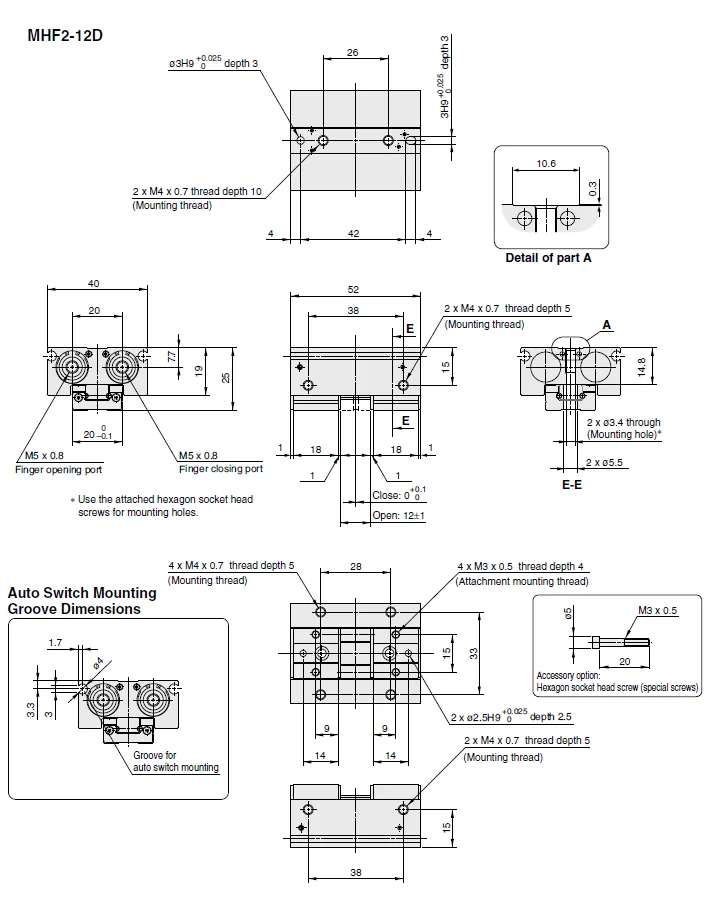

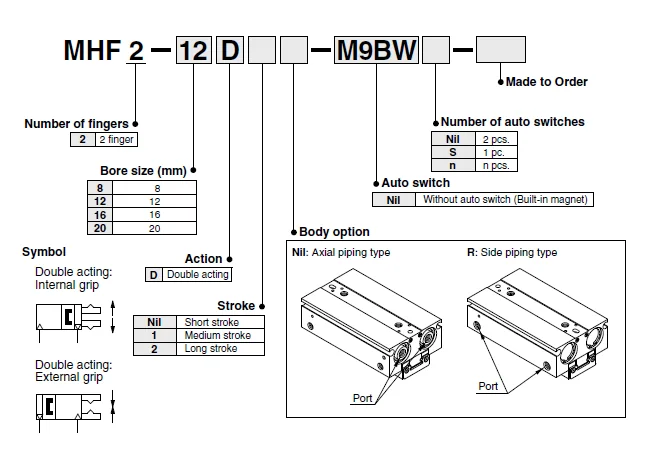

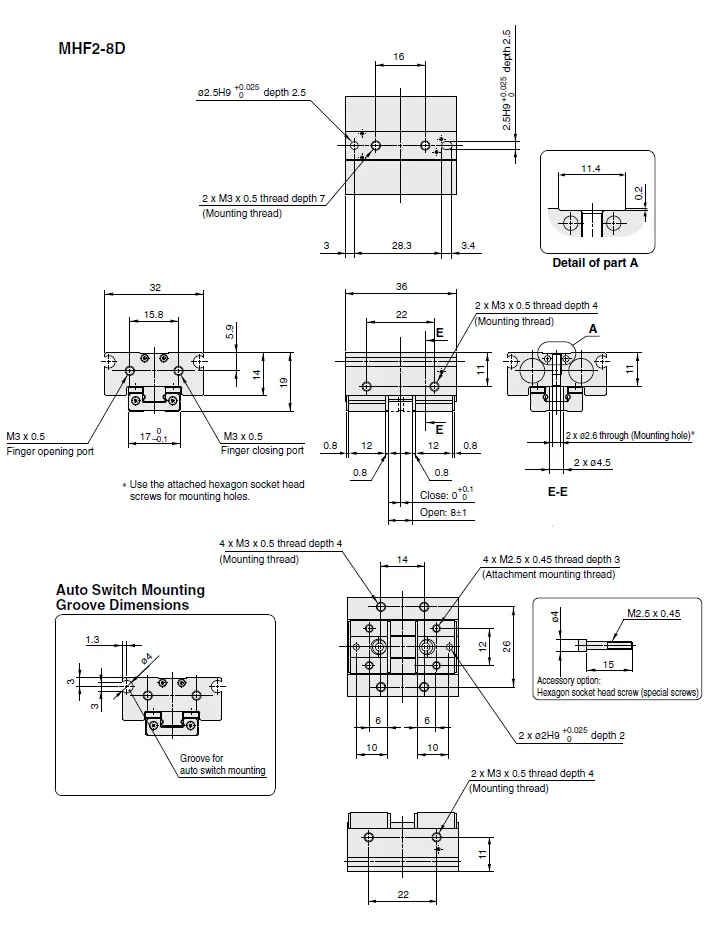

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Fluid | Air | |||||
| Operating pressure | ø8: 0.15 to 0.7 MPa | |||||
| ø12 to 20: 0.1 to 0.7 MPa | ||||||
| Ambient and fluid temperature | –10 to 60C (with no condensation) | |||||
| Repeatability | ±0.05 mm Note 1) | |||||
| Maximum operating frequency | Short stroke | 120 c.p.m. | ||||
| Medium stroke | 120 c.p.m. | |||||
| Long stroke | 60 c.p.m. | |||||
| Lubrication | Not required | |||||
| Action | Double acting | |||||
| Auto switch (Option) Note 2) | Solid state auto switch (3-wire, 2-wire) | |||||
| Action | Model | Cylinder bore (mm) | Gripping force Note1) |
Opening/closing stroke (Both sides) mm |
Note 2)Weight (g) |
Unobstructed capacity(cm³) | ||||||
|
Effective gripping force per finger N |
Finger open side | Finger close side | ||||||||||
| Double acting | MHF2-8D | 8 | 19 | 8 | 65 | 0.7 | 0.6 | |||||
| MHF2-8D1 | 16 | 85 | 1.1 | 1 | ||||||||
| MHF2-8D2 | 32 | 120 | 2 | 1.9 | ||||||||
| MHF2-12D | 12 | 48 | 12 | 155 | 1.9 | 1.6 | ||||||
| MHF2-12D1 | 24 | 190 | 3.3 | 3 | ||||||||
| MHF2-12D2 | 48 | 275 | 6.1 | 5.8 | ||||||||
| MHF2-16D | 16 | 90 | 16 | 350 | 4.9 | 4.1 | ||||||
| MHF2-16D1 | 32 | 445 | 8.2 | 7.4 | ||||||||
| MHF2-16D2 | 64 | 650 | 14.9 | 14 | ||||||||
| MHF2-20D | 20 | 141 | 20 | 645 | 8.7 | 7.3 | ||||||
| MHF2-20D1 | 40 | 850 | 15.1 | 13.7 | ||||||||
| MHF2-20D2 | 80 | 1,225 | 28 | 26.6 | ||||||||
