MHZ2 Series Air Gripper is listed in the air grippers section of the Betre catalogue under the MH Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

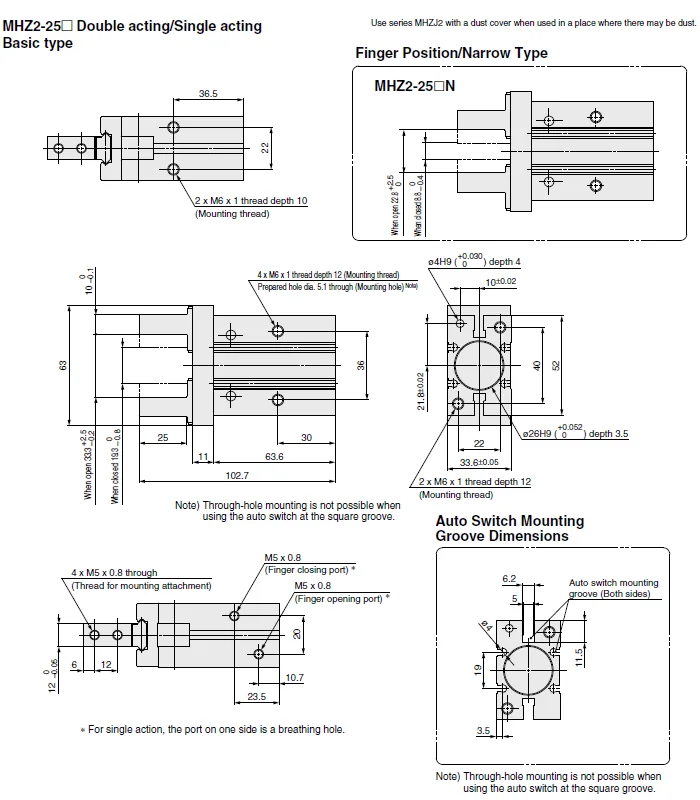

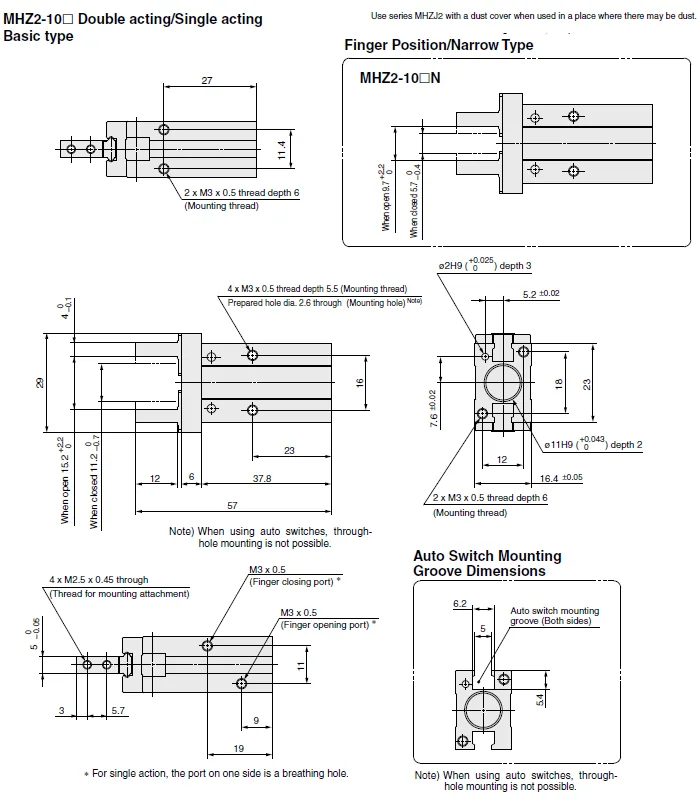

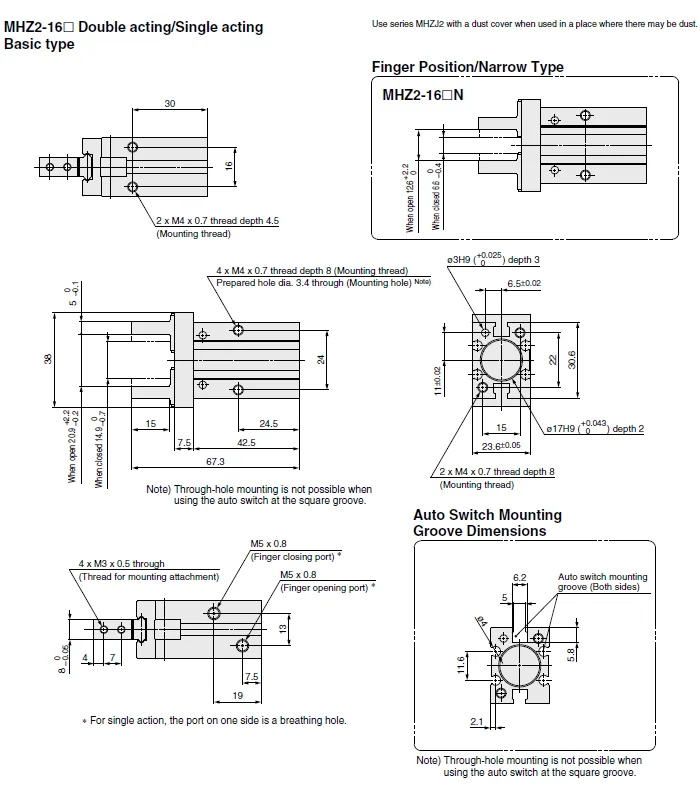

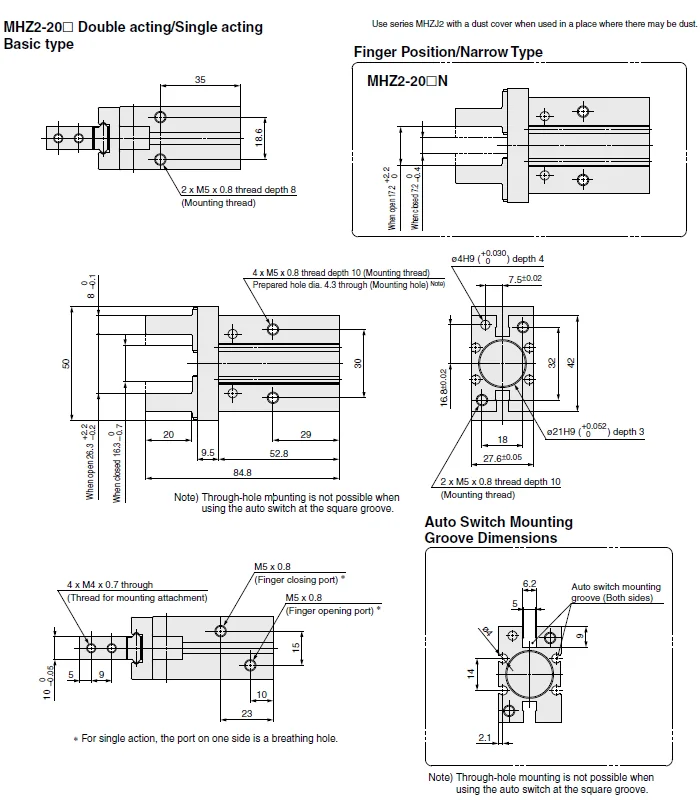

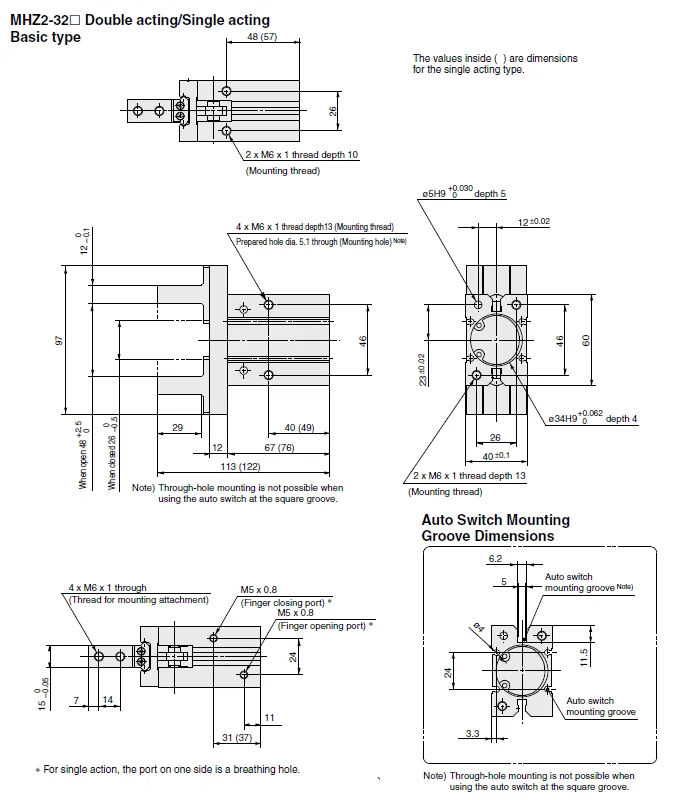

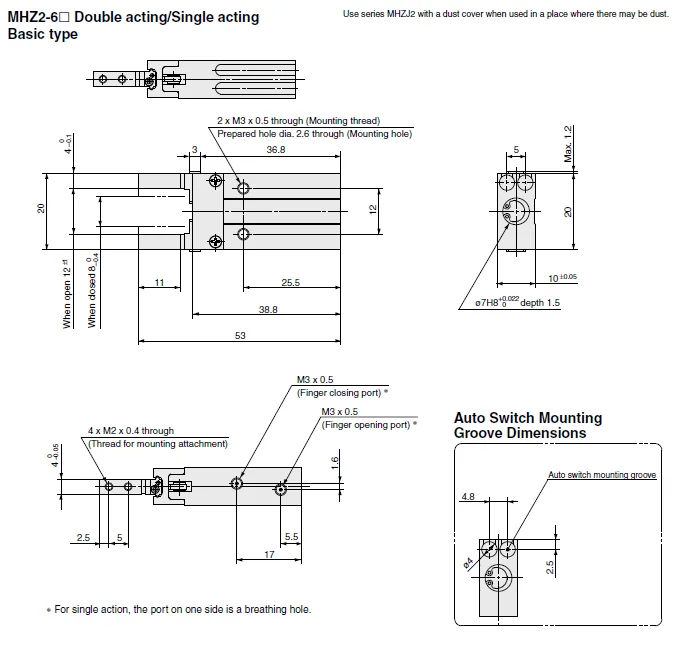

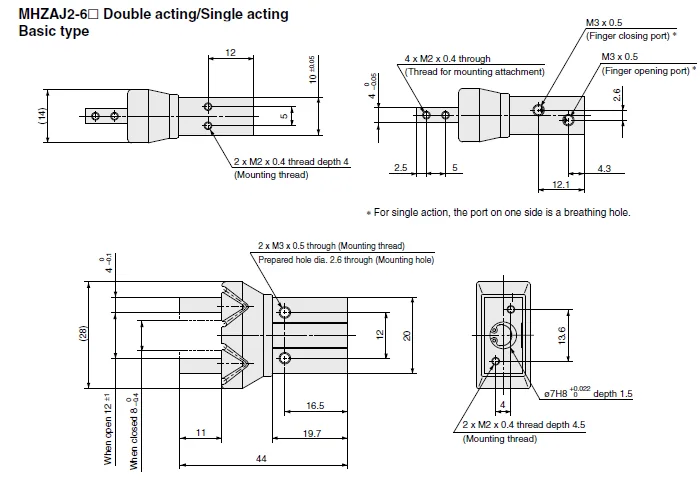

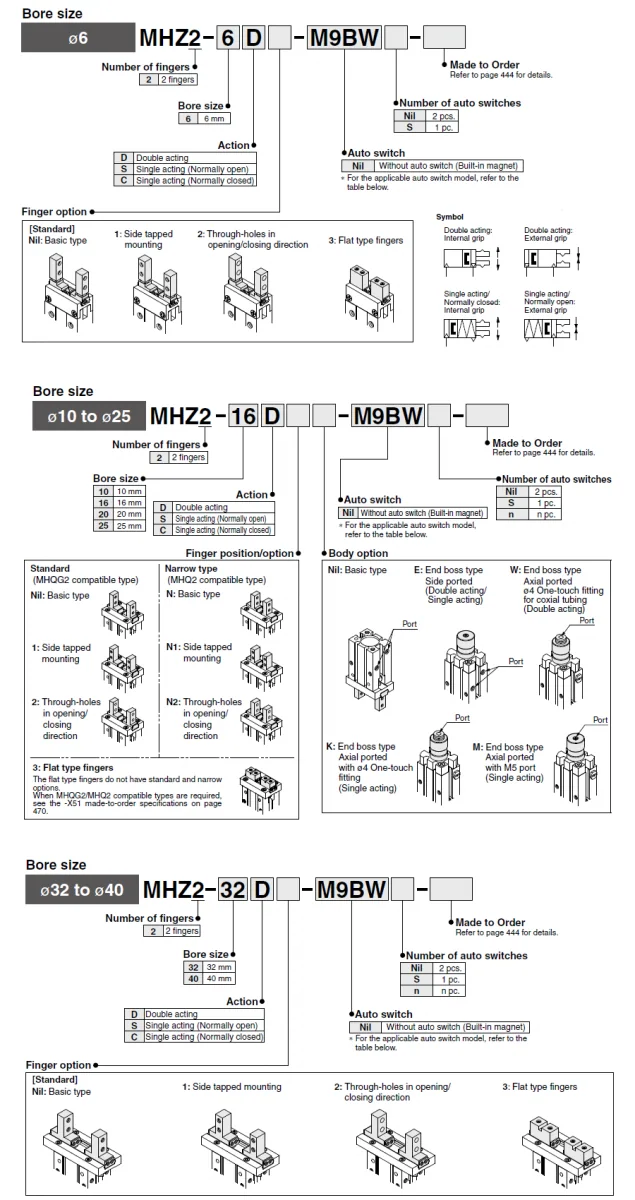

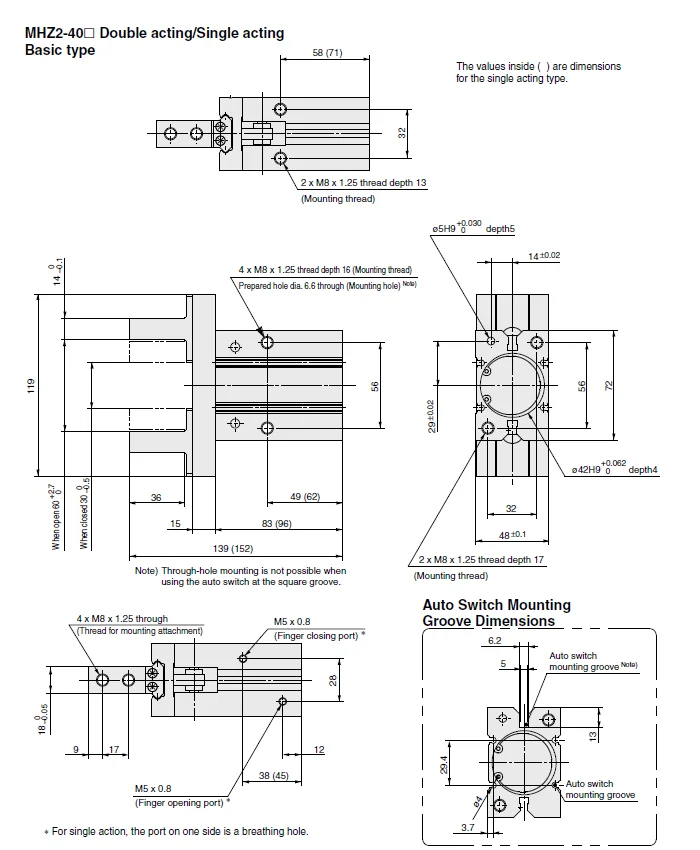

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Fluid | Air | ||||||
| Operating pressure | Double acting |
ø6: 0.15 to 0.7 MPa ø10: 0.2 to 0.7 MPa ø16 to ø40: 0.1 to 0.7 Mpa |
|||||
| Single acting | Normally open |
ø6: 0.3 to 0.7 MPa ø10: 0.35 to 0.7 MPa ø16 to ø40: 0.25 to 0.7 Mpa |
|||||
| Normally closed | |||||||
| Ambient and fluid temperature | –10 to 60°C | ||||||
| Repeatability |
ø6 to ø25: ±0.01 mm ø32, ø40: ±0.02 mm |
||||||
| Max. operating frequency |
ø6 to ø25: 180 c.p.m. ø32, ø40: 60 c.p.m. |
||||||
| Lubrication | Not required | ||||||
| Action | Double acting/Single acting | ||||||
| Auto switch (Option) | Solid state auto switch (3-wire, 2-wire) | ||||||
| Action | Model | Bore size (mm) | Gripping force Note) |
Opening/ Closing (Both sides) (mm) |
Weight (g) |

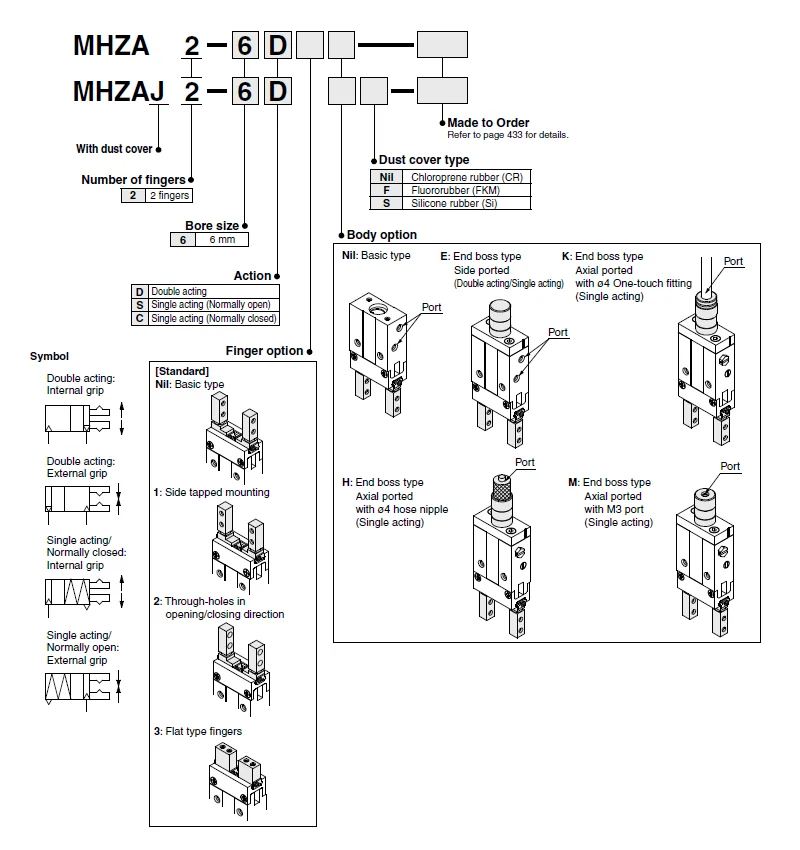

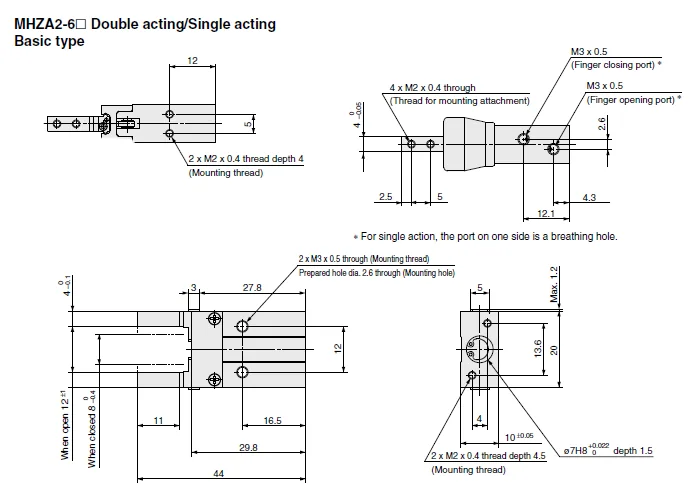

||
| Gripping force per finger Effective value (N) | |||||||
| External | Internal | ||||||
| Double Acting | MHZ2-6D | 6 | 3.3 | 6.1 | 4 | 27 | |
| MHZ2-10D(N) | 10 | 11 | 17 | 4 | 55 | ||
| MHZ2-16D(N) | 16 | 34 | 45 | 6 | 115 | ||
| MHZ2-20D(N) | 20 | 42 | 66 | 10 | 230 | ||
| MHZ2-25D(N) | 25 | 65 | 104 | 14 | 420 | ||
| MHZ2-32D | 32 | 158 | 193 | 22 | 715 | ||
| MHZ2-40D | 40 | 254 | 318 | 30 | 1275 | ||
| Single Acting | Normally open | MHZ2-6S | 6 | 1.9 | - | 4 | 27 |
| MHZ2-10S(N) | 10 | 7.1 | 4 | 55 | |||
| MHZ2-16S(N) | 16 | 27 | 6 | 115 | |||
| MHZ2-20S(N) | 20 | 33 | 10 | 235 | |||
| MHZ2-25S(N) | 25 | 45 | 14 | 425 | |||
| MHZ2-32S | 32 | 131 | 22 | 760 | |||
| MHZ2-40S | 40 | 217 | 30 | 1370 | |||
| Normally closed | MHZ2-6C | 6 | - | 3.7 | 4 | 27 | |
| MHZ2-10C(N) | 10 | 13 | 4 | 55 | |||
| MHZ2-16C(N) | 16 | 38 | 6 | 115 | |||
| MHZ2-20C(N) | 20 | 57 | 10 | 235 | |||
| MHZ2-25C(N) | 25 | 83 | 14 | 425 | |||
| MHZ2-32C | 32 | 161 | 22 | 760 | |||
| MHZ2-40C | 40 | 267 | 30 | 1370 | |||
| Fluid | Air | |||||
| Operating pressure | Double acting | 0.15 to 0.7 MPa | ||||
| Single acting | Normally open | 0.3 to 0.7 MPa | ||||
| Normally closed | ||||||
| Ambient and fluid temperature | –10 to 60°C | |||||
| Repeatability | ±0.01 mm | |||||
| Max. operating frequency | 180 c.p.m. | |||||
| Lubrication | Not required | |||||
| Action | Double acting/Single acting | |||||
| Action | Model | Bore size (mm) | Gripping force Note) |
Opening/ Closing (Both sides) (mm) |
Weight (g) |
||
| Gripping force per finger Effective value (N) | |||||||
| External | Internal | ||||||
| Double acting | MHZA2-6D | 6 | 3.3 | 6.1 | 4 | 26 | |
| MHZAJ2-6D | 6 | 4 | 27 | ||||
|
Single acting |
Normally open | MHZA2-6S | 6 | 1.9 | - | 4 | 26 |
| MHZAJ2-6S | 6 | 4 | 27 | ||||
| Normally closed | MHZA2-6C | 6 | - | 3.7 | 4 | 26 | |
| MHZAJ2-6C | 6 | 4 | 27 | ||||
