MAL Series Mini Cylinder
MAL

MAL Series Mini Cylinder

MAL Series Mini Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Mini Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

Category
Pneumatic Cylinders
Series
Mini Cylinder
Manufacturer
YUEQING BETRE AUTOMATION CO., LTD.
Made In
Yueqing, Zhejiang, China
Production Since
2002
Request A Quote Talk To An Engineer Request A Sample

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Mini Cylinder (Aluminum Barrel) MAL Series


Specification


Bore size(mm) 20 25 32 40
Acting type MSAL,MTAL Single acting
Others Double acting
Fluid Air(to be filtered by 40μm filter element)
Operating pressure Double acting 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Single acting 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature -20~70℃
Speed range Double acting:30~800 Single acting:50~800
Stroke tolerance           0~150 +1.0               0                         ＞150 +1.4
0
Cushion type Bumper
Port size 1) 1/8" 1/4"
1)PT thread,NPT thread and G thread are available.

Stroke


Bore size(mm) Standard stroke(mm) Max. std stroke Max. stroke
MAL 20 25,50,75,80,100,125,150,160,175,200,250,300 500 800
25 25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500 800 1200
32 25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500 800 1200
40 25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500 1200 1500
MSAL 20 '25,50,75,80,100,125,150 150 -
25 '25,50,75,80,100,125,150 150 -
32 '25,50,75,80,100,125,150 150 -
40 25,50,75,80,100,125,150 150 -
MTAL 20 '25,50,75,80,100 100 -
25 '25,50,75,80,100 100 -
32 '25,50,75,80,100 100 -
40 '25,50,75,80,100 100 -
MALD
MALJ		 20 25,50,75,80,100,125,150,160,175,200 200 300
25 25,50,75,80,100,125,150,160,175,200,250 250 300
32 25,50,75,80,100,125,150,160,175,200,250 250 300
40 25,50,75,80,100,125,150,160,175,200,250 250 300
Note) Consult us for non-standard stroke.

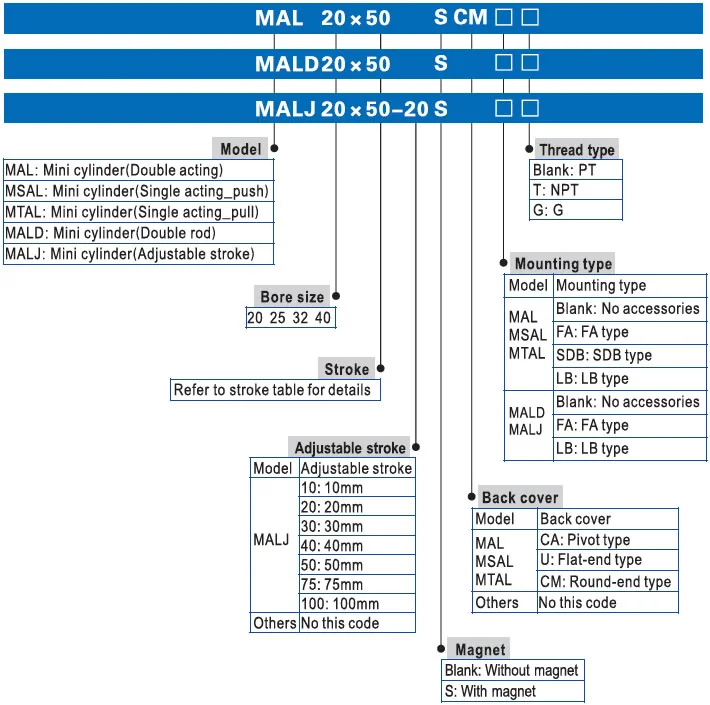

Ordering Information

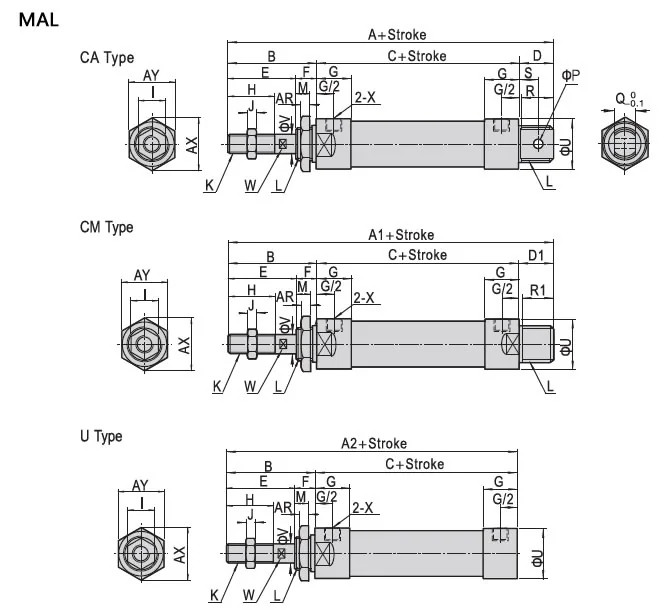

Dimension drawing

Dimensions


Dimension drawing
Bore size A A1 A2 B C D D1 E F G H I J K
20 131 122 110 40 70 21 12 28 12 16 20 12 6 M8×1.25
25 135 128 114 44 70 21 14 30 14 16 22 17 6 M10×1.25
32 141 128 114 44 70 27 14 30 14 16 22 17 6 M10×1.25
40 165 152 138 46 92 27 14 32 14 22 24 17 7 M12×1.25

Bore size L M P Q R R1 S U V W X AR AX AY
20 M22×1.5 10 8 16 19 10 12 29 8 6 1/8" 7 33 29
25 M22×1.5 12 8 16 19 12 12 34 10 8 1/8" 7 33 29
32 M24×2.0 12 10 16 25 12 15 39.5 12 10 1/8" 8 37 32
40 M30×2.0 12 12 20 25 12 15 49.5 16 14 1/4" 9 47 41
Remark: The dimensions of magnet type cylinder are the same as non-magnet type cylinder.

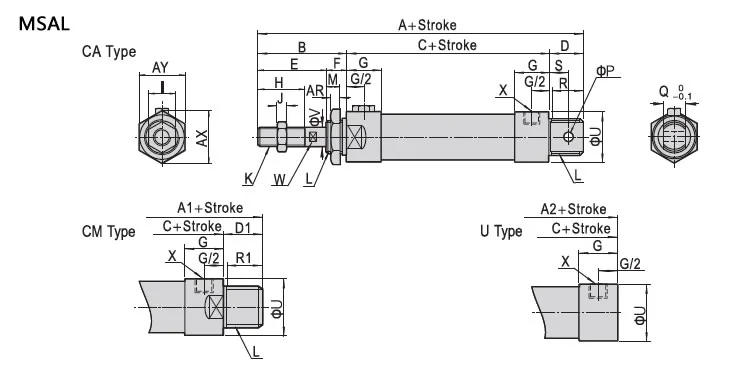

Dimension drawing
Item A A1 A2 B C D D1 E F G
Bore size\Stroke ≤50 51~100 ≥101 ≤50 51~100 ≥101 ≤50 51~100 ≥101 ≤50 51~100 ≥101
20 156 181 206 147 172 197 135 172 197 40 95 120 145 21 12 28 12 16
25 160 185 210 153 178 203 139 178 203 44 95 120 145 21 14 30 14 16
32 166 191 216 153 178 203 139 178 203 44 95 120 145 27 14 30 14 16
40 190 215 240 177 202 227 163 202 227 46 117 142 167 27 14 32 14 22

Item H I J K L M P Q R R1 S U V W X AR AX AY
Bore size
20 20 12 6 M8×1.25 M22×1.5 10 8 16 19 10 12 29 8 6 1/8" 7 33 29
25 22 17 6 M10×1.25 M22×1.5 12 8 16 19 12 12 34 10 8 1/8" 7 33 29
32 22 17 6 M10×1.25 M24×2.0 12 10 16 25 12 15 39.5 12 10 1/8" 8 37 32
40 24 17 7 M12×1.25 M30×2.0 12 12 20 25 12 15 49.5 16 14 1/4" 9 47 41
Remark: The dimensions of magnet type cylinder are the same as non-magnet type cylinder.
Dimension drawing

Related Models

Other parts from the same Mini Cylinder range, usually quoted alongside this one.

CG1 Series Mini CylinderCG1CG1 Series Mini CylinderCJ2B Series Mini CylinderCJ2BCJ2B Series Mini CylinderMini Cylinder CJ2 SeriesMiniMini Cylinder CJ2 SeriesCM2 Series Mini CylinderCM2CM2 Series Mini CylinderCUJ Series Mini Free Mount CylinderCUJCUJ Series Mini Free Mount CylinderDSN Series Stainless Steel Mini CylinderDSNDSN Series Stainless Steel Mini CylinderMA Series Mini CylinderMAMA Series Mini CylinderMAJ Series Mini CylinderMAJMAJ Series Mini Cylinder

All Pneumatic Cylinders Models

Questions About MAL

Which Category Does MAL Belong To

MAL Series Mini Cylinder sits in the Pneumatic Cylinders category of the Betre catalogue, under the Mini Cylinder series.

Can MAL Be Made To A Custom Specification

Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.

How Do I Order MAL

Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.

Are Products Inspected Before Shipping

Yes. We do the inspection for all the products before delivery.

Which Markets Do You Supply

Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.

Get Pricing For MAL

Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
