CUJ Series Mini Free Mount Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Mini Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

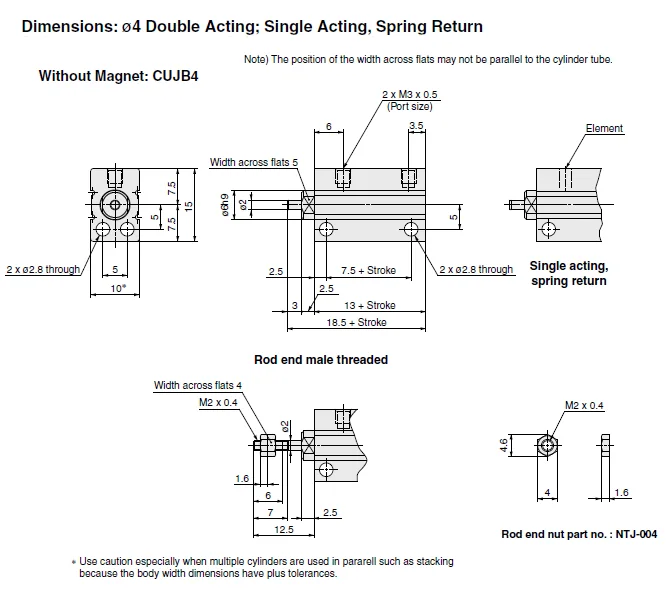

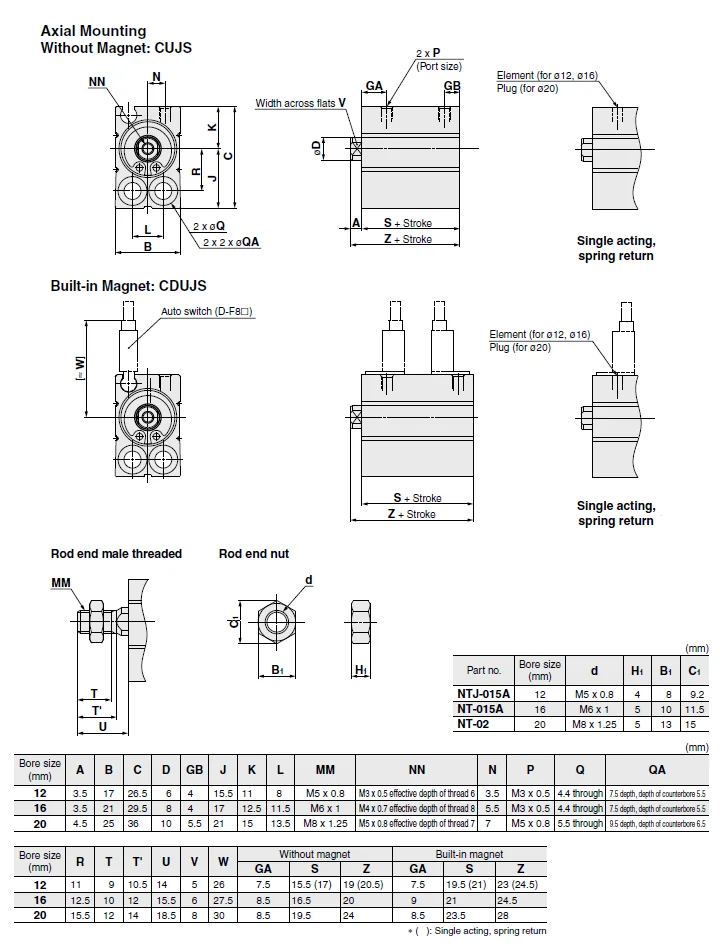

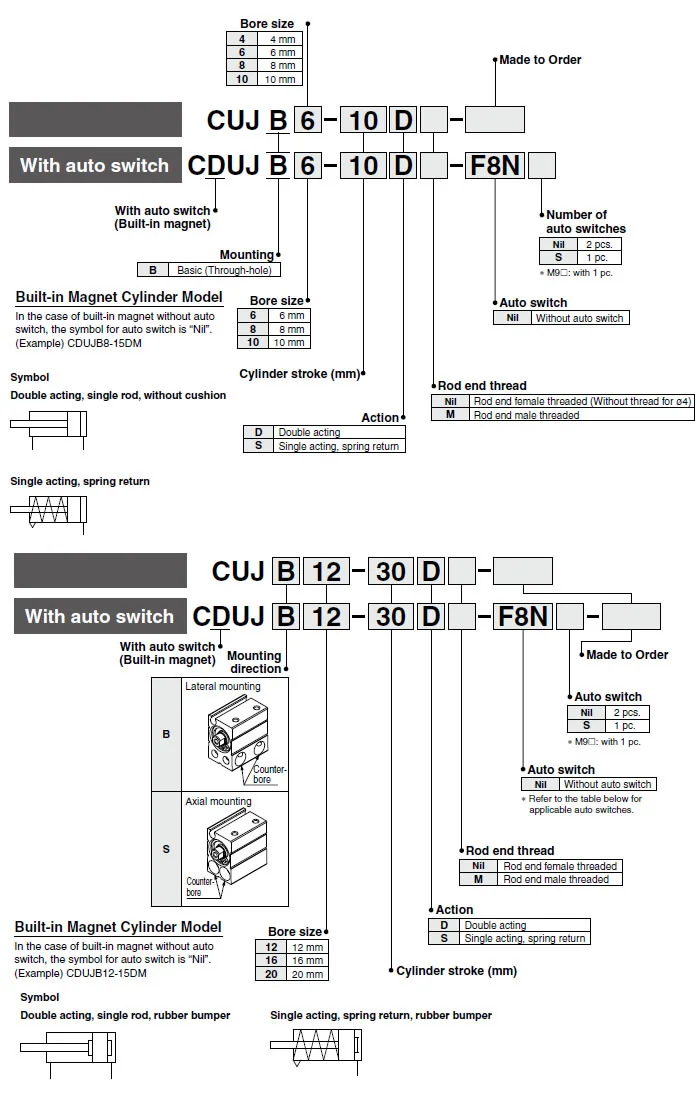

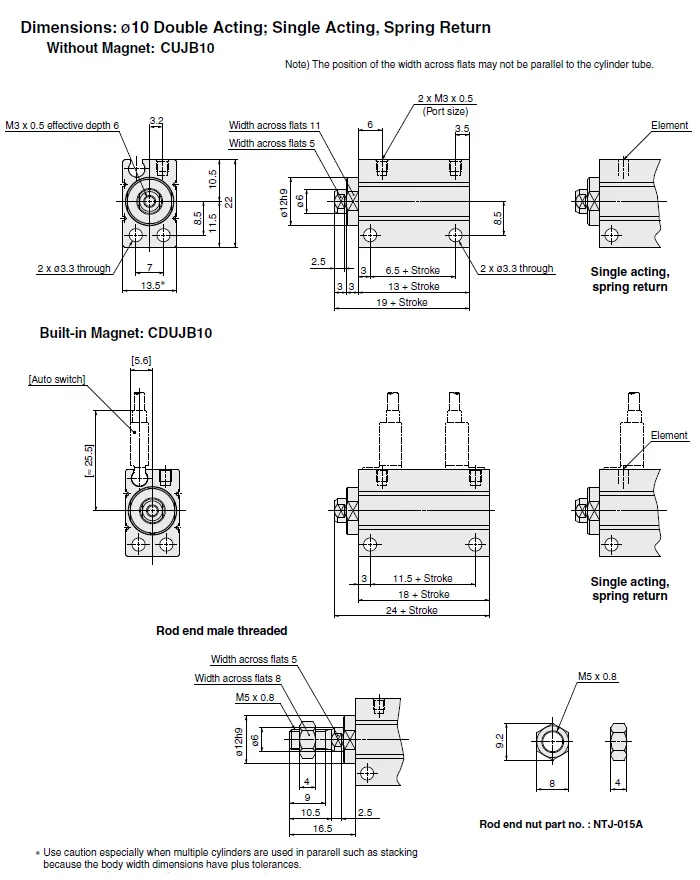

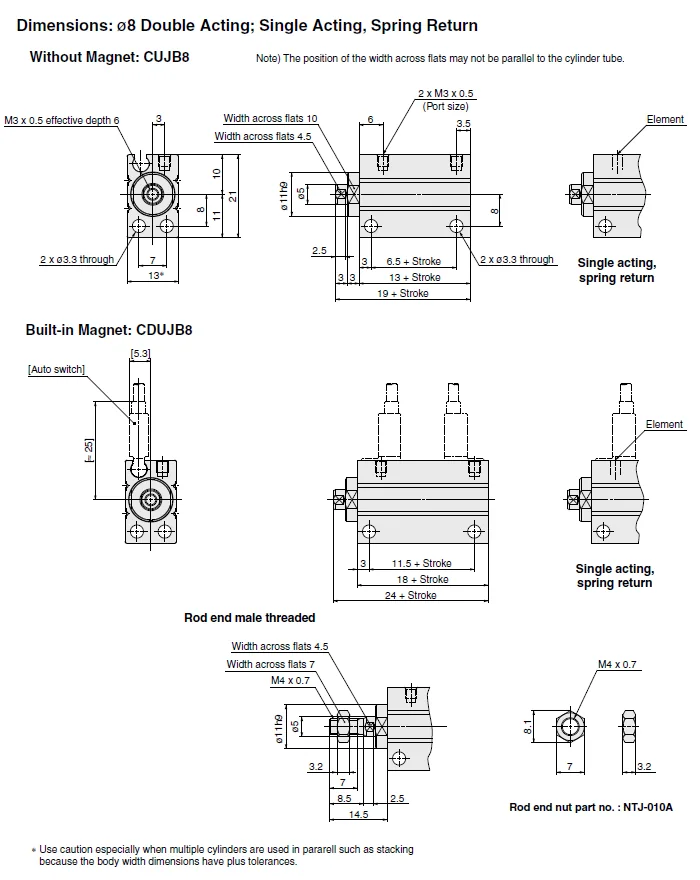

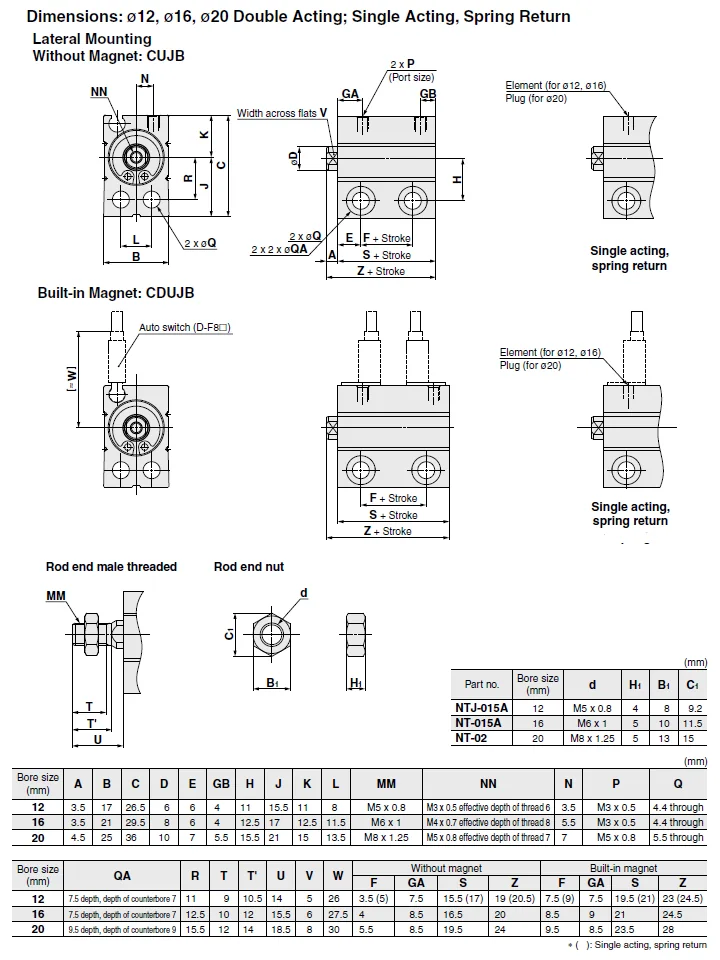

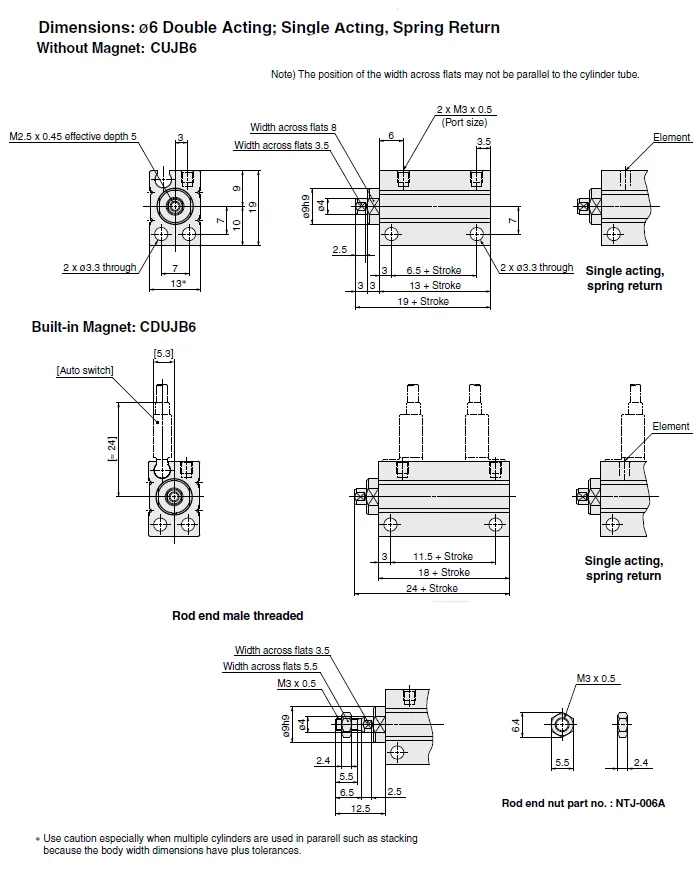

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore size(mm) | 4 | 6 | 8 | 10 | |||
| Action | Double acting; Single acting, spring return | ||||||
| Fluid | Air | ||||||
| Proof pressure | 1.05 MPa | ||||||
| Minimum operating pressure | Double acting | 0.15 MPa | 0.1 MPa | ||||
| Single acting, spring return | 0.35 MPa | 0.3 MPa | 0.2 MPa | ||||
| Maximum operating pressure | 0.7 Mpa | ||||||
| Ambient and fluid temperature |
Without auto switch: –10 to 70°C With auto switch: –10 to 60°C (No freezing) |
||||||
| Cushion | None | ||||||
| Lubrication | Non-lube | ||||||
| Piston speed | 50 to 500 mm/s | ||||||
| Stroke length tolerance | +0.5~0 | ||||||
| Mounting | Through-hole | ||||||
| Bore size(mm) | 12 | 16 | 20 | ||||||
| Action | Double acting; Single acting, spring return | ||||||||
| Fluid | Air | ||||||||
| Proof pressure | 1.05 MPa | ||||||||
| Minimum operating pressure | Double acting | 0.07 MPa | 0.05 MPa | ||||||
| Single acting, spring return | 0.25 MPa | 0.18 MPa | |||||||
| Maximum operating pressure | 0.7 MPa | ||||||||
| Ambient and fluid temperature |
Without auto switch: –10 to 70°C With auto switch: –10 to 60°C (No freezing) |
||||||||
| Cushion | Rubber bumper | ||||||||
| Lubrication | Non-lube | ||||||||
| Piston speed | 50 to 500 mm/s∗ | ||||||||
| Stroke length tolerance | +1.0~0 | ||||||||
| Mounting |
CUJB: Through-hole (lateral, axial direction: 2 locations each) CUJS: Through-hole (axial direction: 2 locations) |
||||||||
Other parts from the same Mini Cylinder range, usually quoted alongside this one.
CUJ Series Mini Free Mount Cylinder sits in the Pneumatic Cylinders category of the Betre catalogue, under the Mini Cylinder series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
