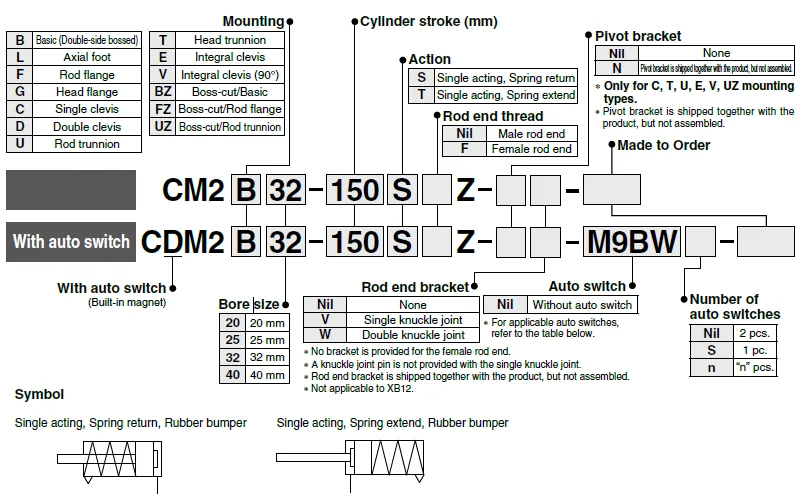

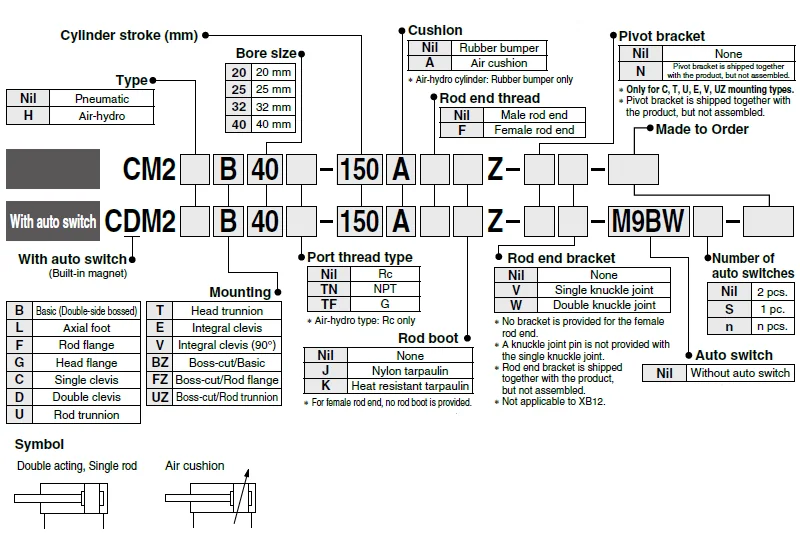

Ordering Information

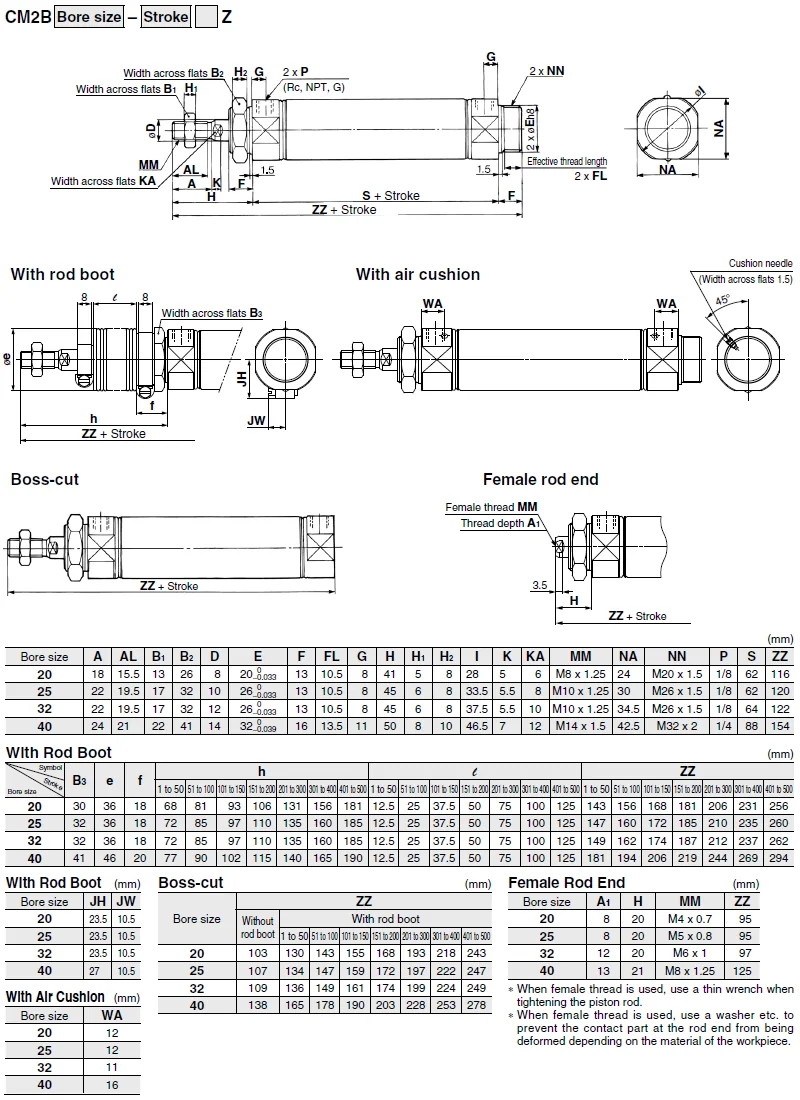

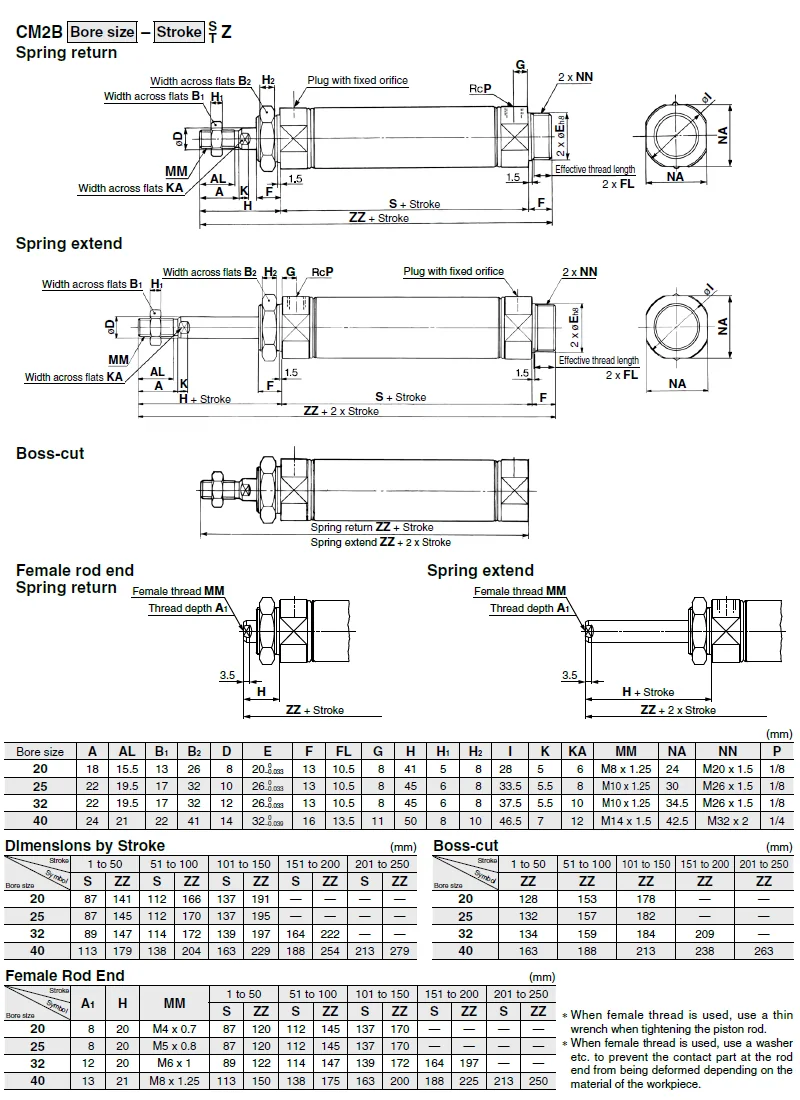

Dimension

Specification

Strokes

Name: CM2 Series Mini Cylinder
Brand: BETRE
SKU: CM2

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Bore Size(mm)			20	25	32	40
Type			Pneumatic
Action			Double acting, Single rod
Fluid			Air
Proof pressure			1.5 MPa
Maximum operating pressure			1.0 MPa
Minimum operating pressure			0.05 MPa
Ambient and fluid temperature			Without auto switch: −10°C to 70°C With auto switch: −10°C to 60°C (No freezing)


Lubrication			Not required (Non-lube)
Stroke length tolerance			(+1.4~0) mm
Piston speed			50 to 750 mm/s
Cushion			Rubber bumper, Air cushion
Allowable kinetic energy	Rubber bumper	Male thread	0.27 J	0.4 J	0.65 J	1.2 J
		Female thread	0.11 J	0.18 J	0.29 J	0.52 J
	Air cushion (Effective cushion length (mm))	Male thread	0.54 J (11.0)	0.78 J (11.0)	1.27 J (11.0)	2.35 J (11.8)

		Female thread	0.11 J	0.18 J	0.29 J	0.52 J

* Operate the cylinder with in the allowable kinetic energy.

Note 1) Intermediate strokes not listed above are produced upon receipt of order. Manufacture of intermediate strokes in 1 mm intervals is possible. (Spacers are not used.) Note 2) Applicable strokes should be confirmed according to the usage. For details, refer to “Air Cylinders Model Selection” on front matter pages of the Best Pneumatics No. 2 or the WEB catalog. In addition, the products that exceed the standard stroke might not be able to fulfill the specifications due to the deflection etc.

Bore Size(mm)			20	25	32	40
Action			Single acting, Spring return Single acting, Spring extend

Type			Pneumatic
Fluid			Air
Proof pressure			1.5 MPa
Maximum operating pressure			1.0 MPa
Minimum operating pressure	Single acting, Spring return		0.18MPa
	Single acting, Spring extend		0.23 MPa
Ambient and fluid temperature			Without auto switch: −10°C to 70°C With auto switch: −10°C to 60°C (No freezing)


Lubrication			Not required (Non-lube)
Stroke length tolerance			(+1.4~0) mm
Piston speed			50 to 750 mm/s
Allowable kinetic energy		Male thread	0.27 J	0.4 J	0.65 J	1.2 J
		Female thread	0.11 J	0.18 J	0.29 J	0.52 J

Bore size
(mm)

Standard stroke (mm) Note 1)

Maximum manufacturable
stroke (mm)

25, 50, 75, 100, 125, 150, 200, 250, 300

Bore size (mm)	Standard stroke (mm) Note 1)

20	25, 50, 75, 100, 125, 150
25	25, 50, 75, 100, 125, 150
32	25, 50, 75, 100, 125, 150, 200
40	25, 50, 75, 100, 125, 150, 200, 250

Note 1) Other intermediate strokes can be manufactured upon receipt of order.Manufacture of intermediate strokes at 1 mm intervals is possible. (Spacers are not used.) Note 2) Applicable strokes should be confirmed according to the usage. For details, refer to “Air Cylinders Model Selection” on front matter pages of the Best Pneumatics No. 2 or the WEB catalog. In addition, the products that exceed the standard stroke might not be able to fulfill the specifications due to the deflection etc.
