DSN Series Stainless Steel Mini Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Mini Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

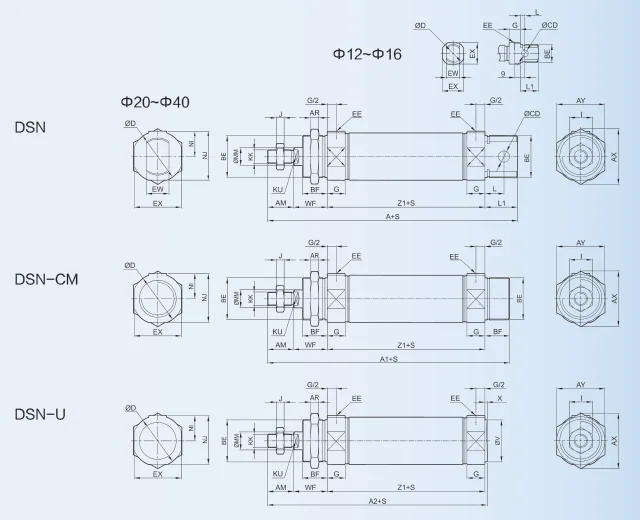

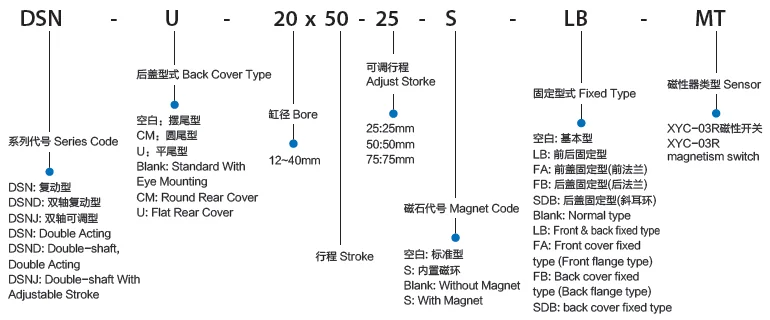

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore Size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | |||
| Motion Pattern | Double Acting or Single Acting | ||||||||
| Working Medium | Air | ||||||||
| Fixed Type | Normal type LB/Type FA/Type FB/Type SDB | ||||||||
| Working Pressure Range | 1～9.0 Kgf/cm² | ||||||||
| Ensured Pressure Resistance | 13.5 Kgf/cm² | ||||||||
| Operating Speed Range | 0～70℃ | ||||||||
| Operating Temperature Range | 50～800mm/s | ||||||||
| Buffer | Gasket Buffer | Adjustable Buffer | |||||||
| Port Size | M5x0.8 | G1/8″ | |||||||
| Bore | Standard Stroke | Max. Stroke | Permissible Stroke | |||||||
| 12 | 25,50,75,80,100,125,150,160,175,200 | 300 | 500 | |||||||
| 16 | 25,50,75,80,100,125,150,160,175,200 | 300 | 500 | |||||||
| 20 | 25,50,75,80,100,125,150,160,175,200,250,300 | 500 | 650 | |||||||
| 25 | 25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500 | 500 | 650 | |||||||
| 32 | 25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500 | 500 | 650 | |||||||
| 40 | 25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500 | 500 | 650 | |||||||
| Bore Size | A | A1 | A2 | AM | BE | BF | CD | D | EE | EX | EW | G | KK | KU |
| 12 | 103 | 103 | 87 | 16 | M161.5 | 16 | 6 | 21 | M5 | 19 | 12 | 10 | M6x1.0 | 5 |
| 16 | 112 | 112 | 96 | 16 | M16x1.5 | 16 | 6 | 21 | M5 | 19 | 12 | 10 | M61.0 | 5 |
| 20 | 125 | 121 | 105 | 20 | M22x1.5 | 18 | 8 | 30 | G1/8 | 27 | 16 | 15 | M8x1.25 | 7 |
| 25 | 136 | 134 | 116 | 22 | M22x1.5 | 20 | 8 | 30 | G1/8 | 27 | 16 | 16 | M10x1.25 | 9 |
| 32 | 150 | 143 | 125 | 23 | M27x2.0 | 20 | 10 | 38 | G1/8 | 35 | 20 | 16 | M10x1.25 | 10 |
| 40 | 150 | 143 | 125 | 23 | M33x2.0 | 20 | 10 | 45 | G1/8 | 42 | 20 | 16 | M14x1.5 | 14 |
| Bore Size | V | L | L1 | MM | NI | NJ | WF | Z1 | X | J | AR | I | AX | AY |
| 12 | - | 4 | 16 | 6 | - | - | 22 | 49 | - | 5 | 6 | 10 | 24 | 27.5 |
| 16 | - | 9 | 16 | 6 | - | - | 22 | 58 | - | 5 | 6 | 10 | 24 | 27.5 |
| 20 | 22 | 12 | 22 | 8 | 15 | 28.5 | 24 | 59 | 2 | 6 | 7 | 12 | 33 | 29 |
| 25 | 22 | 12 | 22 | 10 | 15 | 28.5 | 28 | 64 | 2 | 6 | 7 | 17 | 33 | 29 |
| 32 | 27 | 15 | 27 | 12 | 19 | 36.5 | 28 | 72 | 2 | 6 | 12 | 17 | 41 | 36 |
| 40 | 33 | 15 | 27 | 16 | 22.5 | 43.5 | 28 | 72 | 2 | 8 | 11.5 | 22 | 51 | 45 |
