CG1 Series Mini Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Mini Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

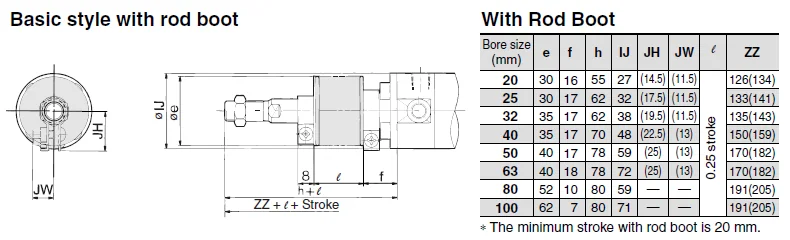

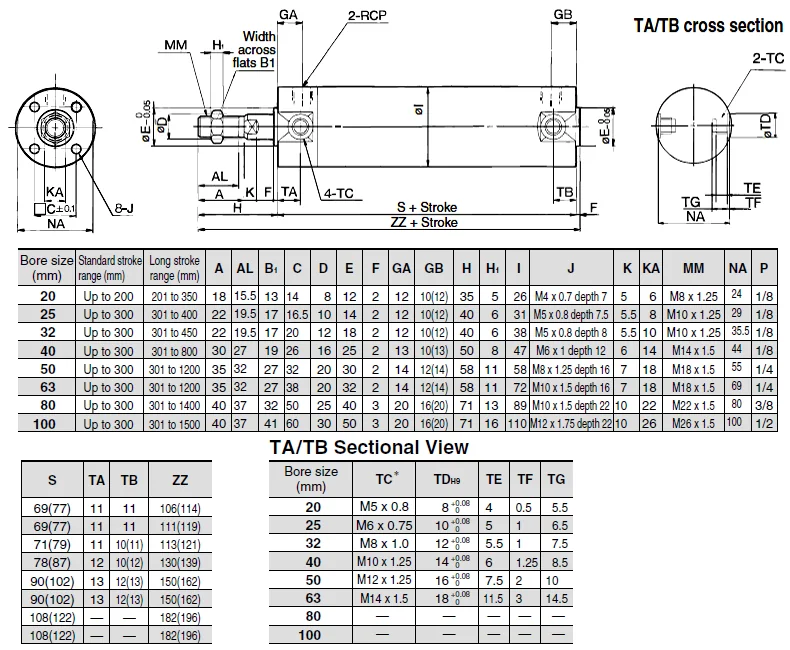

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore Size(mm) | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |||
| Action | Double acting, Single rod | ||||||||||
| Type | Non-lube | ||||||||||
| Fluid | Air | ||||||||||
| Proof pressure | 1.5 MPa | ||||||||||
| Maximum operating pressure | 1.0 MPa | ||||||||||
| Minimum operating pressure | 0.05 MPa | ||||||||||
| Ambient and fluid temperature |
Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
||||||||||
| Piston speed | 50 to 1000 mm/s | 50 to 700 mm/s | |||||||||
| Stroke length tolerance | Up to 1000(st+1.4~0) mm, Up to 1200(st+1.8~0) mm | Up to 1000 (st+1.4~0) mm, Up to 1500 (st+1.8~0) mm | |||||||||
| Thread tolerance | JIS Class 2 | ||||||||||
| Cushion | Rubber bumper, Air cushion | ||||||||||
| Mounting |
Basic style, Axial foot style, Rod side flange style,Head side flange style, Rod side trunnion style,Head side trunnion style, Clevis style (Used for changing the port location by 90°.) |
||||||||||
| Bore size | Standard stroke(1) | Long stroke | Maximum manufacturable stroke | ||||||
| 20 | 25, 50, 75, 100, 125, 150, 200 | 201 to 350 | 1500 | ||||||
| 25 |
25, 50, 75, 100, 125, 150, 200, 250, 300 |
301 to 400 | |||||||
| 32 | 301 to 450 | ||||||||
| 40 | 301 to 800 | ||||||||
| 50, 63 | 301 to 1200 | ||||||||
| 80 | 301 to 1400 | ||||||||
| 100 | 301 to 1500 | ||||||||
Other parts from the same Mini Cylinder range, usually quoted alongside this one.
CG1 Series Mini Cylinder sits in the Pneumatic Cylinders category of the Betre catalogue, under the Mini Cylinder series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
