MAJ Series Mini Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Mini Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

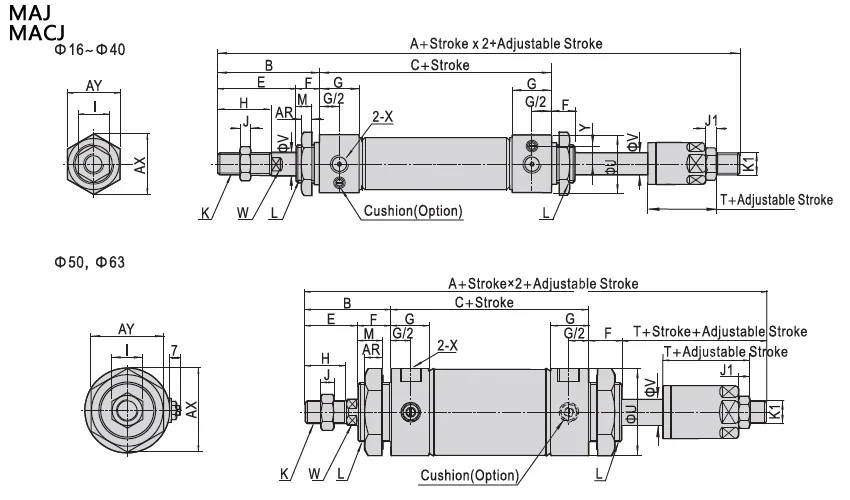

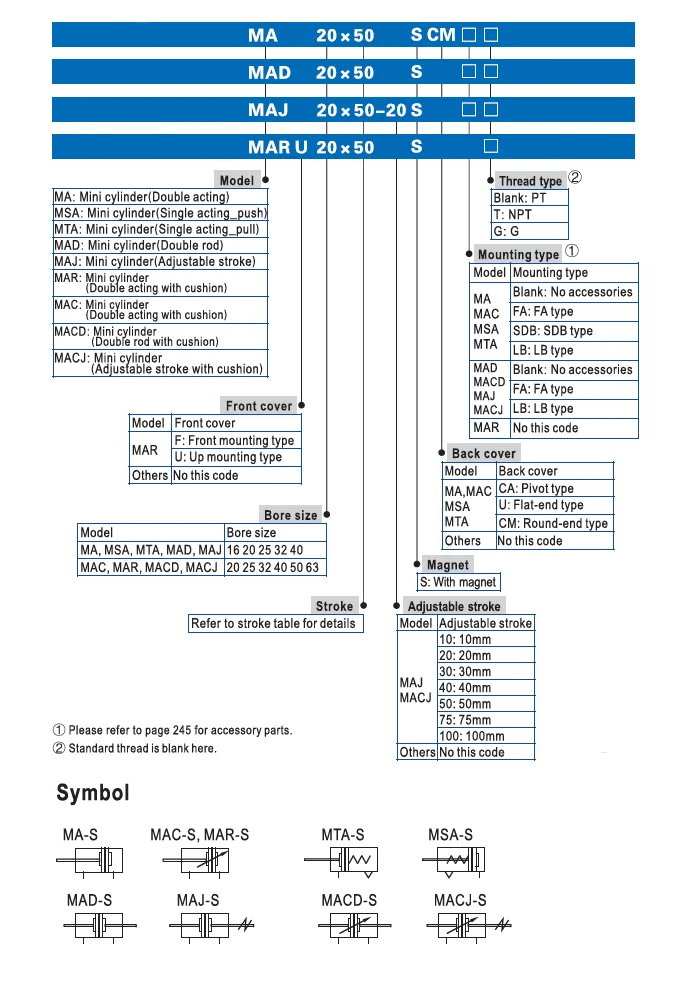

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | ||
| Acting type | MSA,MTA | Single acting | - | ||||||
| MA,MAD,MAJ | Double acting | - | |||||||
| MAR | - | Double acting | |||||||
| MAC,MACD,MACJ | - | Double acting with cushion | |||||||
| Fluid | Air (to be filtered by 40μm filter element) | ||||||||
| Operating pressure | Double acting | 0.1~1.0MPa (15~145psi)(1.0~10.0bar) | |||||||
| Single acting | 0.2~1.0MPa (28~145psi)(2.0~10.1bar) | ||||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | ||||||||
| Temperature | -20~70℃ | ||||||||
| Speed range | Double acting:30~800mm/s Single acting: 50~800mm/s | ||||||||
| Stroke tolerance | 0~150 | +1.0 | ＞ | 150 | +1.4 | ||||
| 0 | 0 | ||||||||
| Cushion type | MAC、MACD、MACJ、Series:Adjustable cushion Other Series:Bumper | ||||||||
| Port size Note1) | M5×0.8 | 1/8" | 1/4" | ||||||
| Bore size(mm) | Standard stroke(mm) | Max. std stroke | Max.stroke | ||||||||
|
MA MAC |
16 | 25,50,75,80,100,125,150,160,175,200 | 200 | 500 | |||||||
| 20 | 25,50,75,80,100,125,150,160,175,200,250,300 | 300 | 600 | ||||||||
| 25,32,40,50,63 | 25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500 | 500 | 700 | ||||||||
| MAR | 20 | 25,50,75,80,100,125,150,160,175,200,250,300 | 300 | 600 | |||||||
| 25,32,40,50,63 | 25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500 | 500 | 700 | ||||||||
| MSA | 16 | 25,50,75,80,100 | - | - | |||||||
| 20,25,32,40 | 25,50,75,80,100,125,150 | - | - | ||||||||
| MTA | 16,20,25,32,40 | 25,50,75,100 | - | - | |||||||
|
MAD MACD MAJ MACJ |
16 | 25,50,75,80,100,125,150,160 | - | - | |||||||
| 20 | 25,50,75,80,100,125,150,160,175,200 | - | - | ||||||||
| 25,32,40,50,63 | 25,50,75,80,100,125,150,160,175,200,250 | - | - | ||||||||
| Stroke | A | B | C | E | F | G | H | I | J | J1 | K | K1 | L | M | U | V | W | X | AR | AX | AY | Y | T | |
| Bore size(mm) | ||||||||||||||||||||||||
| 16 | 135 | 38 | 60 | 22 | 16 | 10 | 16 | 10 | 5 | 5 | M6×1.0 | M6×1.0 | M16×1.5 | 14 | 21 | 6 | 5 | M5×0.8 | 6 | 25 | 22 | - | 21 | |
| 20 | 153 | 40 | 76 | 28 | 12 | 16 | 20 | 12 | 6 | 6 | M8×1.25 | M8×1.25 | M22×1.5 | 10 | 27 | 8 | 6 | 1/8" | 7 | 33 | 29 | 8.7 | 25 | |
| 25 | 161 | 44 | 76 | 30 | 14 | 16 | 22 | 17 | 6 | 6 | M10×1.25 | M10×1.25 | M22×1.5 | 12 | 30 | 10 | 8 | 1/8" | 7 | 33 | 29 | 10.2 | 27 | |
| 32 | 161 | 44 | 76 | 30 | 14 | 16 | 22 | 17 | 6 | 6 | M10×1.25 | M10×1.25 | M24×2.0 | 12 | 35 | 12 | 10 | 1/8" | 8 | 37 | 32 | 12 | 27 | |
| 40 | 164 | 46 | 76 | 32 | 14 | 16.7 | 24 | 17 | 7 | 7 | M12×1.25 | M12×1.25 | M30×2.0 | 12 | 41.6 | 16 | 14 | 1/8" | 9 | 47 | 41 | 15 | 28 | |
| 50 | 195 | 52 | 95 | 32 | 20 | 23 | 24 | 19 | 8 | 7 | M14×1.5 | M12×1.25 | M36×2.0 | 15 | 53 | 16 | 14 | 1/4" | 11 | 53 | 46 | - | 28 | |
| 63 | 195 | 52 | 95 | 32 | 20 | 23 | 24 | 19 | 8 | 7 | M14×1.5 | M12×1.25 | M36×2.0 | 15 | 67 | 16 | 14 | 1/4" | 11 | 53 | 46 | - | 28 | |
