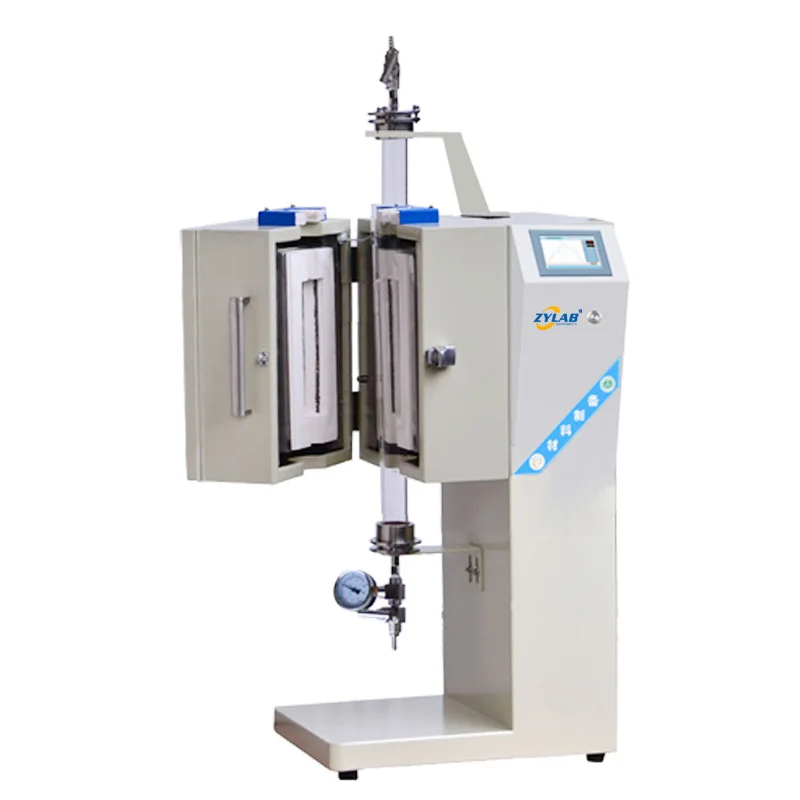

1200.C Vertical Tube Furnace
The vertical tube furnace adopts a structure design with the furnace tube vertically placed and the furnace heating wire distributed in a ring shape. It can be applied to the quenching, annealing, and tempering heat treatment of small steel parts, as well as vertical CVD coating, etc. It can be operated under...
Introduction
The vertical tube furnace adopts a structure design with the furnace tube vertically placed and the furnace heating wire distributed in a ring shape. It can be applied to the quenching, annealing, and tempering heat treatment of small steel parts, as well as vertical CVD coating, etc.
It can be operated under atmosphere and vacuum conditions, and can also be used as an ordinary tube furnace, suitable for university laboratories and scientific research institutes.
Main Features
1.High pure quartz tube as furnace tube, max. temperature 1200.C(<1hour), continue working temperature Rt –1100.C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and PID auto control.
4. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
5. By using special lining import from Japan and top quality resistance wire heating elements, to ensure excellent heating and long using life.
6. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
7.Ring heating, open and vertical structure, convenient observation for operator, able to meet rapid sintering of small sample
8. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for material research labs, also used in factory for small production.
Which Kinds of Industry Can Use This Vertical Tube Furnace?
College & Universities, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications
It can be applied to the quenching, annealing, and tempering heat treatment of small steel parts, as well as vertical CVD coating, etc.
Can be operated under atmosphere and vacuum conditions, and can also be used as an ordinary tube furnace, suitable for university laboratories and scientific research institutes.

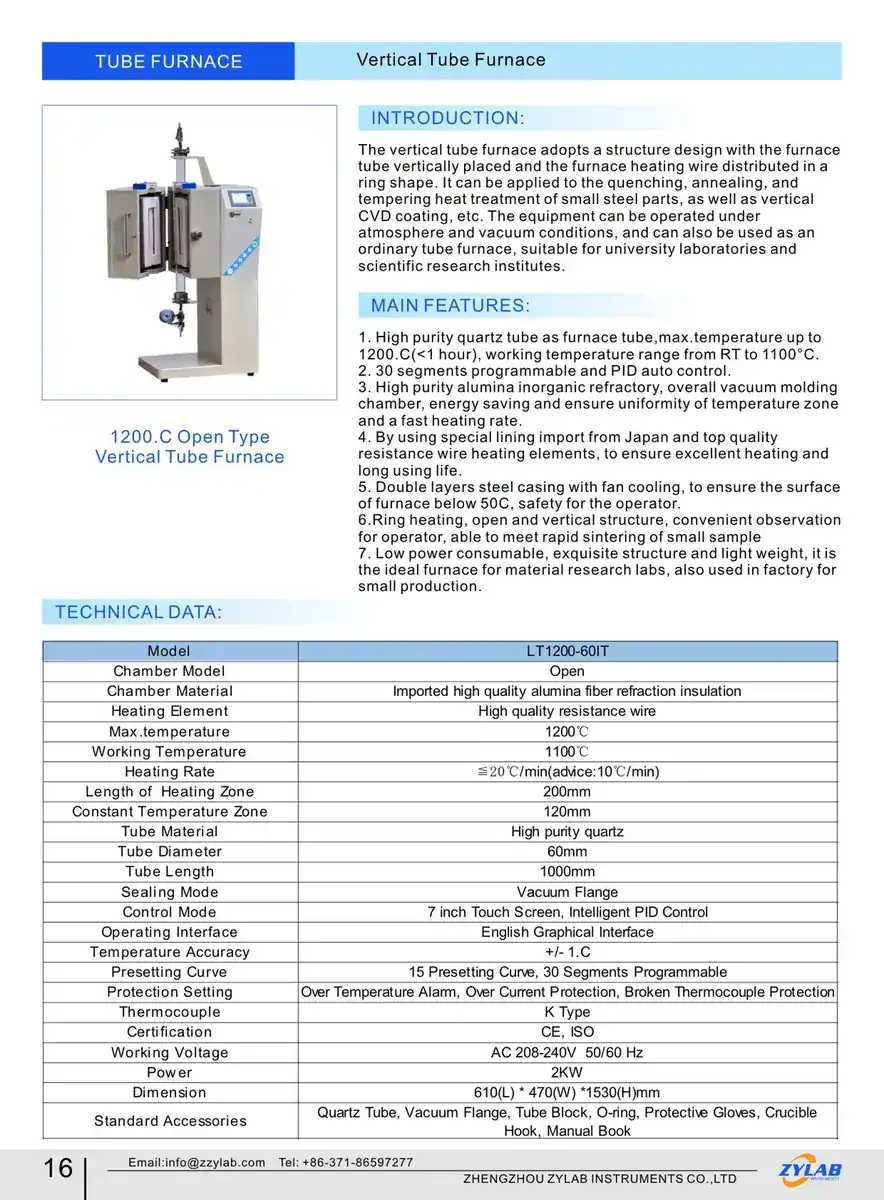

Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Max.temperature | 1200℃ |
|---|---|
| Working Temperature | ≤1100℃ |
| Heating Rate | ≤20℃/min(advice:10℃/min) |
| Heating Zone | Single |
| Length of Heating Zone | 200mm |
| Constant Temperature Zone | 120mm |

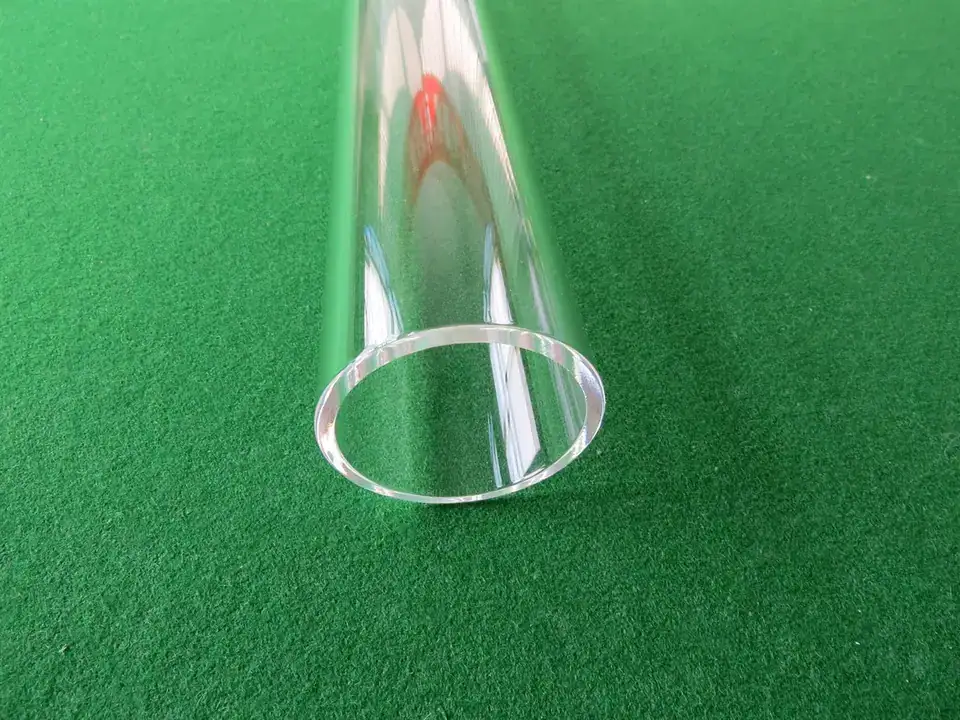

| Tube Material | High purity quartz |
| Tube Diameter | 60mm |
| Tube Length | 1000mm |
| Sealing Mode | Vacuum Flange |
| Vacuum | ≤10pa |
| Control Mode | 7 inch Touch Screen, Intelligent PID Control |
| Operating Interface | English Graphical Interface |
| Temperature Accuracy | +/- 1.C |
| Presetting Curve | 15 Presetting Curve, 30 Segments Programmable |
| Protection Setting | Over Temperature Alarm, Over Current Protection, Broken Thermocouple Protection |
| Thermocouple | K Type |
| Certification | CE, ISO |
| Working Voltage | AC 208-240V 50/60 Hz |
| Power | 2KW |
| Dimension | 610(L) * 470(W) *1530(H)mm |
| Standard Accessories | Quartz Tube, Vacuum Flange, Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |
| Warranty | 18 months(not including consumable parts, such as quartz tube, heating elements, thermocouple), lifetime support. |
1200.C Vertical Tube Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Fluidized Bed Calcination Furnace for Powder and Fine Particle Materials
1200°C Dual-Zone Vertical Fluidized Bed CVD (FBCVD) Furnace with Automatic Feeding and Discharging System
Vertical High Temperature Tube Furnace – 1500°C / 1700°C for Laboratory and R&D
Vacuum Atmosphere Hybrid Box/Tube Furnace for Precision Heat Treatment
1200°C Hydrogen Rotary Tube Furnace for Metallurgical Research
Advanced Continuous Pyrolyzers for Biomass and Organic Solid Waste Thermal Processing & Sintering
1700°C Vertical Atmosphere Controlled Quenching Furnace for High-Performance Heat Treatment
Customizable Tube Furnace with Gas Control System – Precision Atmosphere Processing
Ordering 1200.C Vertical Tube Furnace
What is 1200.C Vertical Tube Furnace typically used for?
The vertical tube furnace adopts a structure design with the furnace tube vertically placed and the furnace heating wire distributed in a ring shape. It can be applied to the quenching, annealing, and tempering heat treatment of small steel parts, as well as v
How quickly can 1200.C Vertical Tube Furnace be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship 1200.C Vertical Tube Furnace within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Can 1200.C Vertical Tube Furnace be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with 1200.C Vertical Tube Furnace?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering 1200.C Vertical Tube Furnace?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Quote For 1200.C Vertical Tube Furnace
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
