Laboratory Pilot Scale Top Discharge Centrifuge
The ZYLAB Top Discharge Centrifuge is a fully enclosed, manually loaded and top-discharged filter centrifuge designed in accordance with GMP requirements and environmental protection standards. It is suitable for a wide range of solid-liquid separation applications and is particularly effective for...
Overview
The ZYLAB Top Discharge Centrifuge is a fully enclosed, manually loaded and top-discharged filter centrifuge designed in accordance with GMP requirements and environmental protection standards. It is suitable for a wide range of solid-liquid separation applications and is particularly effective for difficult-to-separate suspensions with high temperature, high viscosity, fine particles, or fibrous materials.
With a minimum separable particle size of approximately 1 μm, this filter centrifuge provides efficient solid-liquid separation while maintaining good product quality. Depending on the process requirements, the centrifuge can perform filtration, cake washing, displacement washing, dewatering, and final drying before manual or mechanical discharge.
The fully enclosed design, optional explosion-proof configuration, CIP/online cleaning system, and various material options make the ZYLAB Top Discharge Centrifuge suitable for applications requiring high cleanliness, corrosion resistance, and safe operation.
Key Applications
- Solid-liquid separation
- Filtration and dewatering
- Fine particle separation
- Fibrous material separation
- Filter cake washing
- High-viscosity suspension separation
- High-temperature material processing
- Pharmaceutical and chemical processing
- Fine chemical production
- Food and other GMP-sensitive applications
1. Hygienic and GMP-Oriented Design
The centrifuge features a rational structural design that minimizes dead zones and areas where material can accumulate. Internal transitions are smoothly designed, and relevant surfaces can be polished to meet cleanliness requirements.
The external structural components, fasteners, and centrifuge basket can be manufactured from stainless steel. The hinged cover allows convenient access to the space between the housing and centrifuge basket for thorough cleaning.
2. Heavy-Duty Welded Construction
The machine base and housing feature an integrated welded structure, providing high mechanical strength and stable operation during high-speed centrifugal separation.
3. Compact Flat-Base Design
The flat-base structure lowers the machine’s center of gravity and reduces installation space requirements. The flat base can also serve as a convenient operating platform, improving accessibility during operation and maintenance.
4. Hydraulic Damping Vibration Isolation
A liquid damping vibration isolation system effectively reduces vibration during centrifuge operation and simplifies routine maintenance.
5. Optional Online Cleaning System
The hinged cover can be equipped with a feed pipe, washing pipe, sight glass, and lighting port. An optional GMP online cleaning system can clean difficult-to-access internal areas.
6. Simple Operation and Maintenance
The centrifuge features a relatively simple structure, making it easy to operate, inspect, maintain, and service.
7. Wide Material Compatibility
The Top Discharge Centrifuge has a wide range of applications. It can be used for separating suspensions containing granular solids, as well as fibrous materials and other difficult-to-filter products.
8. Variable-Frequency Drive and Explosion-Proof Options
The centrifuge can be equipped with a variable-frequency drive (VFD) for smooth acceleration and adjustable centrifugal separation factors.
9. Reduced Crystal Breakage
The centrifuge is designed to provide gentle handling of crystalline products, helping reduce crystal breakage and product damage during the separation process.

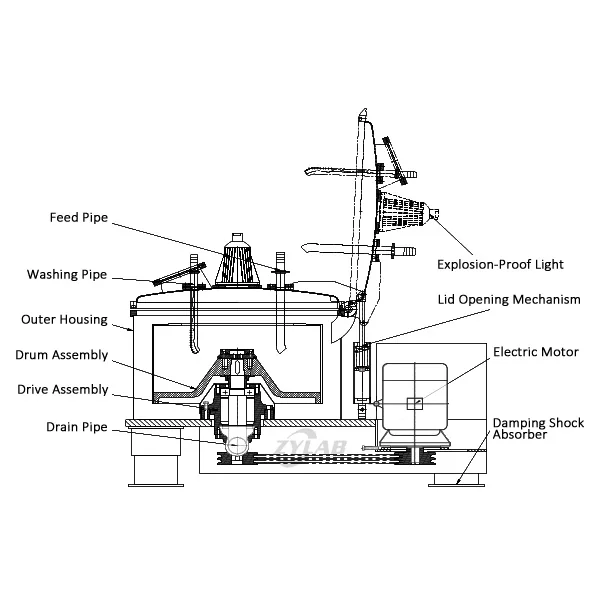

Working Principle
During operation, the suspension, liquid-containing material, or items requiring dewatering are introduced into the perforated centrifuge basket lined with a suitable filter medium.
Under the action of centrifugal force, the suspension moves toward the basket wall. The solid particles are retained by the filter medium and gradually form a filter cake, while the liquid and finer particles pass through the filter medium and cake layer before being discharged through the openings in the centrifuge basket.
After the filter cake has formed, washing or displacement liquid can be introduced according to the separation process. The filter cake can then be washed and displaced before the final spinning and dewatering stage.
Once the required separation and moisture level have been achieved, the centrifuge is slowed down or stopped. The filter cake is then removed from the basket by manual or mechanical discharge.
Applications
- Pharmaceuticals – filtration, washing, and dewatering of pharmaceutical intermediates and APIs
- Fine Chemicals – separation of fine chemical products and intermediates
- Chemical Industry – solid-liquid separation of chemical suspensions
- Food Processing – filtration and dewatering of selected food products
- Minerals and Inorganic Materials – separation of fine particulate suspensions
- Specialty Chemicals – processing of high-viscosity or difficult-to-filter materials
- Fibrous Materials – solid-liquid separation of fiber-containing materials
- GMP Production – enclosed filtration processes requiring hygienic and cleanable equipment
Material Options
Available construction materials include:
- Stainless steel 304
- Stainless steel 316L
- Plastic-lined construction
- PTFE-lined construction
- Duplex stainless steel 2205
- Titanium alloy
- Hastelloy
- Zirconium
- Other special corrosion-resistant materials
Filter Media Options
Different filter bag materials and mesh sizes are available, including:
- Polypropylene (PP)
- Polyester (PET)
- Nylon
- Customized filtration mesh
Connection Options
- Tri-clamp / sanitary connection
- Flange connection
Motor and Electrical Options
- Different motor brands
- Different motor efficiency classes
- Explosion-proof motors
- Explosion-proof electrical cabinets
- Variable-frequency drives
- Customized electrical component brands
Cover Opening Options
The centrifuge cover can be configured with different opening mechanisms:
- Spring cylinder
- Hydraulic cylinder
- Pneumatic cylinder
Optional Safety and Process Systems
- GMP online cleaning system
- Vibration protection
- Cover opening protection
- Oxygen concentration monitoring
- Nitrogen purging and protection system
- Explosion-proof field control buttons
- Customized safety interlock systems
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | Basket Diameter (mm) | Max. Speed (r/min) | Separation Factor | Basket Volume (L) | Max. Loading Capacity (kg) | Motor Power (kW) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| B600 | 600 | 1500 | 756 | 42 | 60 | 3 | 1000 | 1400 × 900 × 1050 |
| B800 | 800 | 1200 | 645 | 100 | 140 | 5.5 | 1500 | 1800 × 1200 × 1350 |
| B1000 | 1000 | 1000 | 560 | 140 | 200 | 7.5 | 2000 | 2000 × 1500 × 1400 |
| B1250 | 1250 | 970 | 645 | 370 | 500 | 11 | 3000 | 2300 × 1700 × 1500 |
| B1500 | 1500 | 860 | 621 | 695 | 830 | 22 | 4500 | 2600 × 2200 × 1850 |
