Rapid Thermal Processing Furnace
Rapid Thermal Processing Furnace is referred to as RTP furnace, which not only has a very fast heating rate, but also can directly move the sample to room temperature after the sintering process is completed to achieve rapid cooling in the physical state. The equipment adopts the gas path structure of the inner tube...
Introduction

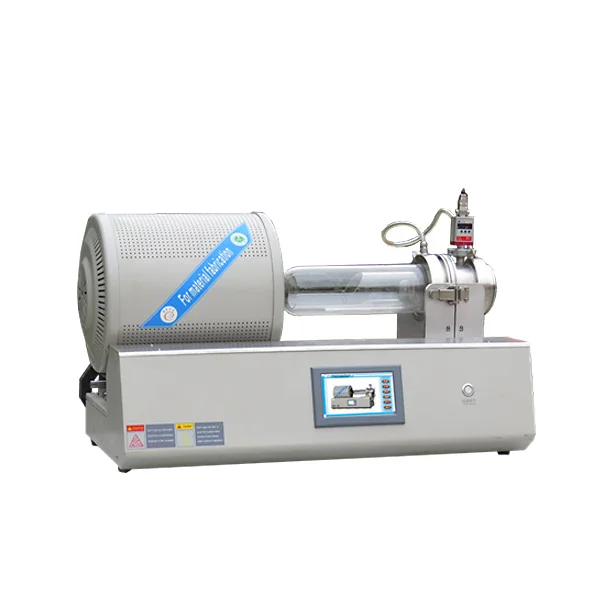

Rapid Thermal Processing Furnace is referred to as RTP furnace, which not only has a very fast heating rate, but also can directly move the sample to room temperature after the sintering process is completed to achieve rapid cooling in the physical state.
The equipment adopts the gas path structure of the inner tube inlet and the outer tube outlet, so that the reaction atmosphere can fully and evenly contact the processed samples.
It is a common equipment for growing large-size two-dimensional graphene by CVD method. The temperature measuring element is in direct contact with the sample to ensure the accuracy of the sample temperature.
Characteristics
1. Double layer steel structure.
2. Max speed of temperature rising up to 100.C/S.
3. Double layer tube structure, the sample exposes in the atmosphere much more Constantly.
4.Measure the temperature of the sample surface directly, more accuracy.
5.The chamber can move from one side to another side according to users’ preset, this will meet more lab applications.
6.Rich expansion interface, to meet the needs of various types of tests.
7. High-purity Al2O3 fiber refractory insulation material saves energy to the greatest extent.
Applications
RTA(Rapid Thermal Annealing);
Graphene and other vapor deposition, epitaxial growth of carbon nanotubes, etc.
RTO; RTN (Rapid Thermal Oxidation/Rapid Thermal Nitridation);
RTP Annealing for Semiconductor Industry;
Silicidation;
Diffusion;
Implant Annealing;
Contact Alloying;
Crystallization and Densification.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | HR1100-110IT |
|---|---|
| Power supply | 380V, 15KW |
| Rated temperature | 1100.C (For long-term use, an external water cooling device must be connected) |
| Continue temperature | 100-1000.C (Continuous use must be connected to an external water cooling device) |
| Heating rate | Suggested ≤ 100.C/S |
| Temperature accuracy | +/- 1.C |
| Thermocouple | S type single platinum rhodium |
| Heating element | Infrared tube heating |
| Length of heating zone | 200mm |
| Constant temperature zone | 100mm |
| Tube material | High purity quartz |
| Tube size | D110*L380mm |
| Control system | PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for over-heated and broken thermal couple, and leakage. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Presetting curve | 15 presetting curve |
| Protection setting | Over temperature alarm, over current protection, broken thermocouple protection |
| Sealing system | Stainless steel vacuum flange Vacuum level ≤5Pa (mechanical pump) |
| Pressure Measurement and Monitoring | By employing a digital vacuum gauge, the vacuum level inside the furnace tube can be displayed more intuitively, ensuring a more accurate representation of experimental results. |
| Expansion port | Vacuum measurement and FFC gas supply |
| Dimension | 800(L) * 750(W) * 540(H)mm |
| Weight | 90KGS |
| Warranty | One-year warranty, lifetime support (excluding consumable parts such as furnace tubes, O-rings ) |
| Certificate | CE, ISO9001 |
