High Purity Quartz Tube for High Temperature Tube Furnace
Introduction: Quartz tube is a special industrial technical glass made of silica, which is a very good basic material. It is usually used in a tubular electric furnace with a heating temperature below 1200°C. Quartz tubes can be divided into “qualified tubes” → “primary tubes” → “superior tubes” → “dehydroxylation...
Introduction of Quartz Tube
Quartz tube is a special industrial technical glass made of silica, which is a very good basic material. It is usually used in a tubular electric furnace with a heating temperature below 1200°C.
Quartz tubes can be divided into “qualified tubes” → “primary tubes” → “superior tubes” → “dehydroxylation tubes” according to different performances. The quartz tubes sold by our company are the highest grade dehydroxylation tubes, and the service life and temperature resistance are the best among all quartz tubes.
Application
ZYLAB High purity quartz tube special for tube furnaces.
Main Features
1. High temperature resistance.
The softening point temperature of quartz glass is about 1730°C. Most manufacturers provide excellent-grade quartz tubes that can be used for a long time at 1100°C. Our quartz tubes not only can be used for a long time at 1150°C, but also can be used for a short time (within 5h) at 1200℃.
2.Corrosion resistance.
Except for hydrofluoric acid, the dehydroxylated quartz tube hardly chemically reacts with other acids. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel. Especially its chemical stability at high temperatures is any other engineering materials that are incomparable.
3.Resistant to rapid cold and heat, long service time.
The thermal expansion coefficient of the dehydroxylated quartz tube we produce is extremely small and can withstand drastic temperature changes. The quartz glass is heated to about 1200°C and will not burst when placed in normal temperature water.

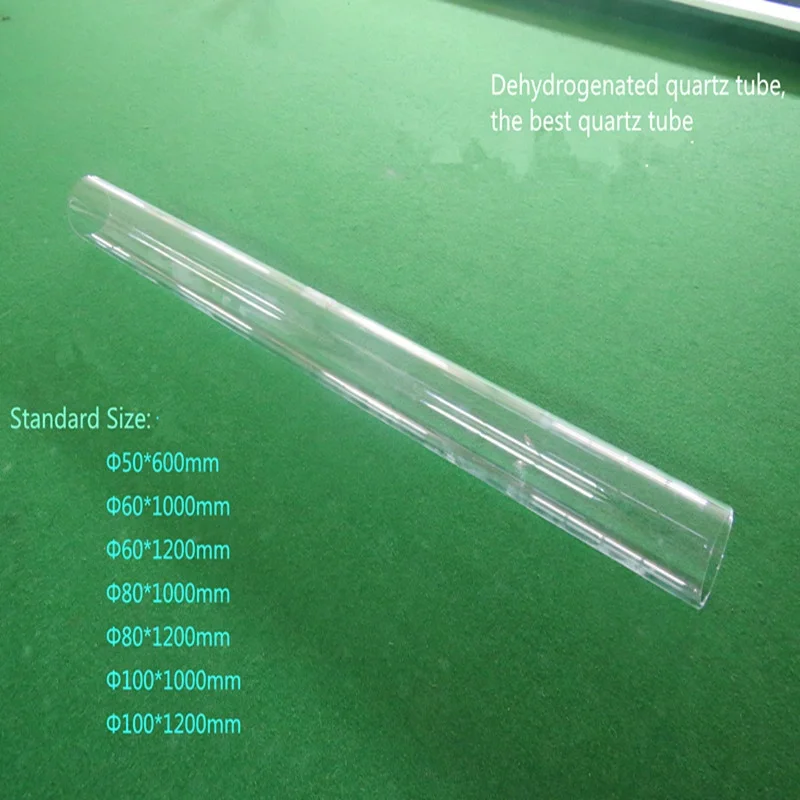

Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Φ25*600*1.5mm | Φ25*1000*2mm | ||
|---|---|---|---|
| Φ50*600*2.5mm | Φ50*1000*2.5mm | Φ50*1200*3mm | Φ50*1400*2.5mm |
| Φ60*600*2.5mm | Φ60*1000*3mm | Φ60*1200*3mm | Φ60*1400*3mm |
| Φ80*1000*3mm | Φ80*1200*3mm | Φ80*1400*3mm | |
| Φ100*1000*3.5mm | Φ100*1200*3.5mm | Φ100*1400mm | Φ100*1500mm |
| Φ125*1200*3.5mm | Φ128*1200*3.5mm | Φ110*380*3.5mm | Φ80*450*3.5mm |
| Φ152*1100*4mm | Φ152*1660*4mm | Φ215*1660*5mm | φ200*400mm |

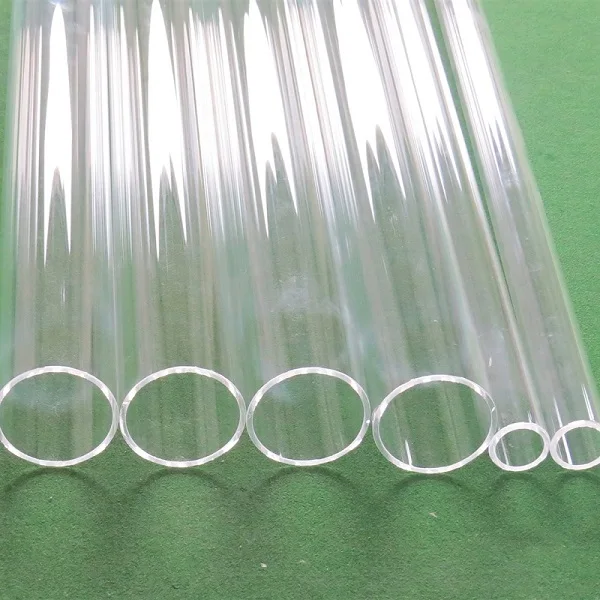

High Purity Quartz Tube for High Temperature Tube Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
