High Purity Quartz Boat for Tube Furnace
ZYLAB High Purity Quartz Boats are specifically designed for use in tube furnaces, providing exceptional performance in high-temperature environments. Available in both single-ear and double-ear designs, these quartz boats are ideal for laboratory applications such as crystal growth, ceramic sintering, and metallic...
Product Details
ZYLAB High Purity Quartz Boats are specifically designed for use in tube furnaces, providing exceptional performance in high-temperature environments.
Available in both single-ear and double-ear designs, these quartz boats are ideal for laboratory applications such as crystal growth, ceramic sintering, and metallic material handling in controlled atmospheres.
Made from high-purity quartz, these boats are engineered to withstand prolonged temperatures up to 1100°C and are resistant to most acids and alkalis, ensuring reliable performance in challenging processes.
Material: High Purity Quartz
Shape: Single Ear and Double Ear Designs
Max Temperature Resistance: Up to 1450°C
Chemical Stability: Resistant to most acids, alkalis, and molten metals
Thermal Shock Resistance: Withstands rapid temperature changes
Customization: Available in custom sizes and configurations upon request
For more information, custom orders, or technical support, please contact us.
Applications
- Crystal growth in semiconductor and material research
- Ceramic sintering and other high-temperature material processing
- Handling of metallic and non-metallic materials in tube furnaces
- Laboratory experiments requiring precise material manipulation under extreme heat
- Vacuum and controlled atmosphere furnaces
Why Choose ZYLAB High Purity Quartz Boat?
- High Purity Quartz ensures minimal contamination in sensitive experiments
- Durability and Reliability for high-temperature and high-pressure environments
- Single and Double Ear Designs offer versatility for various applications
- Customized Solutions tailored to specific laboratory and industrial needs
- Technical Support for assistance with custom designs and applications
More Laboratory Crucibles
High-purity Alumina (Al2O3) Crucible for Tube Furnace
High Purity Boron Nitride (BN) Crucible
High Purity MgO Crucible for Lab
Graphite Crucible for Laboratory Applications
Click to view the comparison of laboratory crucibles, including quartz, magnesium oxide, boron nitride, and graphite crucibles, to help you choose the right one for your experimental needs.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.

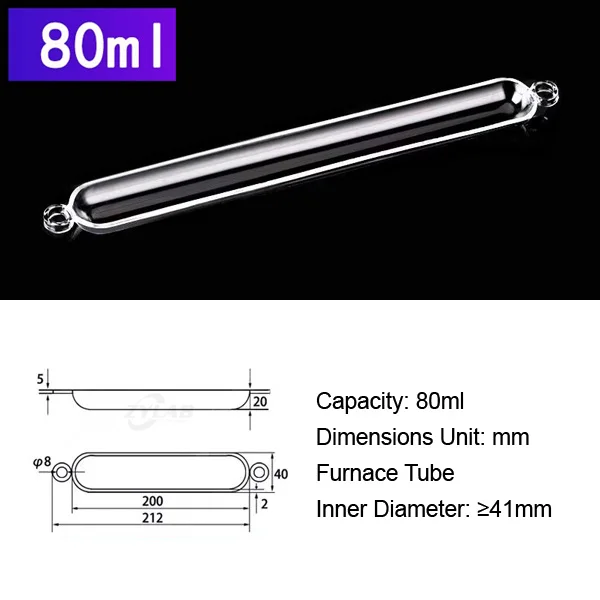

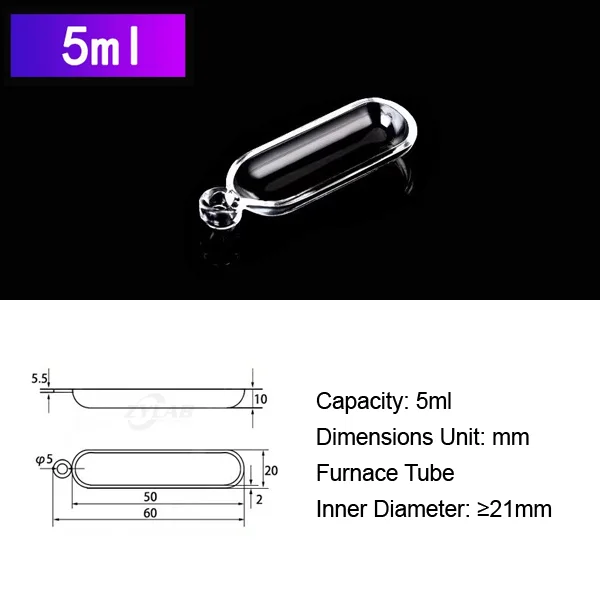

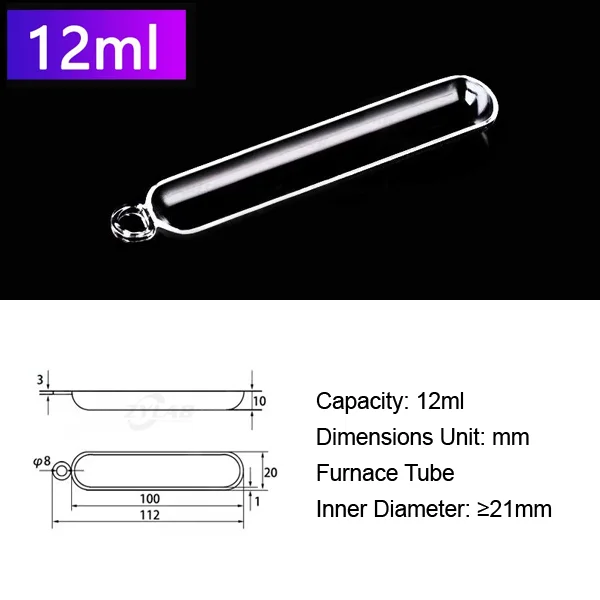

| ZYLAB Quartz Boat Specifications (UoM：mm) | |||
|---|---|---|---|
| 30 × 10 × 5 | 50 × 10 × 5 | 50 × 15 × 7.5 | 50 × 20 × 10 |
| 50 × 25 × 12 | 50 × 30 × 15 | 100 × 10 × 5 | 100 × 15 × 7 |
| 100 × 20 × 10 | 100 × 25 × 12 | 100 × 30 × 15 | 100 × 40 × 20 |
| 100 × 45 × 22 | 100 × 50 × 25 | 150 × 70 × 35 | 200 × 25 × 12 |
| 200 × 40 × 20 | 80 × 18 × 9 |
