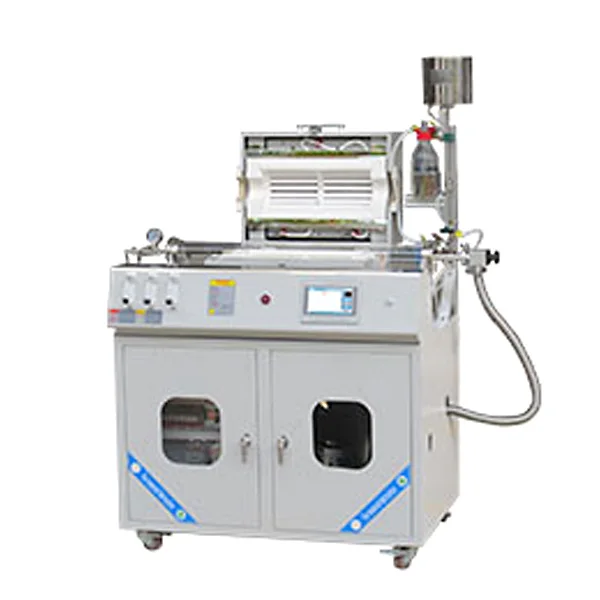

1200°C Hydrogen Reduction Sintering Furnace
The Hydrogen Reduction Sintering Furnace is a specialized equipment developed for higher education institutions, research institutes, and industrial enterprises. It is designed for sintering, melting, and analyzing metals, non-metals, and other compound materials under atmospheric and vacuum
Introduction
The Hydrogen Reduction Sintering Furnace is a specialized equipment developed for higher education institutions, research institutes, and industrial enterprises. It is designed for sintering, melting, and analyzing metals, non-metals, and other compound materials under atmospheric and vacuum conditions.
The Hydrogen Reduction Sintering Furnace consists of the following components:
Sintering System
Electrical Control System
Inlet and Outlet Gas Systems
Vacuum System
Ignition System
Features
1.Suitable for both low vacuum and atmosphere sintering.
2.Stable and reliable control, user-friendly operation, and comprehensive safety measures.
3.Utilizes advanced PID self-learning fuzzy control for high temperature control precision, maintaining accuracy within ±1℃.
4.Furnace lining made of high-purity alumina lightweight fiber material for enhanced insulation and energy efficiency.
5.Data storage function capable of retaining crucial sintering parameters for up to 30 days (8 hours of operation per day).
6.Formula storage feature with the ability to save more than 100 preset formulas.
7.Unique ignition device ensures complete hydrogen combustion and prevents external air from entering the furnace tube, significantly improving the safety of hydrogen usage.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | O1200-80TID3FW-150 |
|---|---|
| Power supply | 220V 50HZ, 5.5kw |
| Thermocouple | K type 420mm |
| Max.temp | 1150℃ |
| Heating size | Φ150*400mm |
| Heating rate | 10℃/min |
| Float flowmeter range | 0.1-0.8L/min |
| Furnace tube | High purity quartz tube, capacity 4L |
| Vacuum pump | 4C KF25 |
| Intelligent control system | 1.Intuitive 7-inch touchscreen. 2.Enhanced safety with pressure protection control. 3.Easy configuration of sintering process curves. 4.Convenient scheduled sintering for unattended operation based on preset curves. |
| Temperature accuracy | ±1℃ |
| Weight | About 210KG |
| Warranty | One-year, with lifelong support (consumables such as furnace tubes and O-rings are not covered within the warranty scope). |

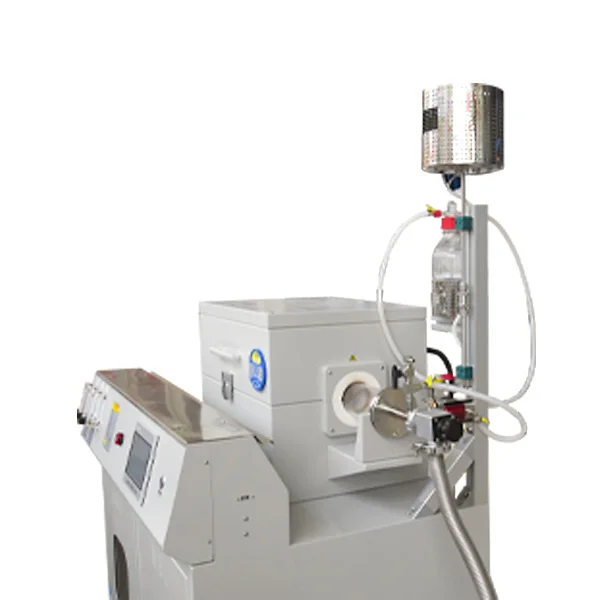

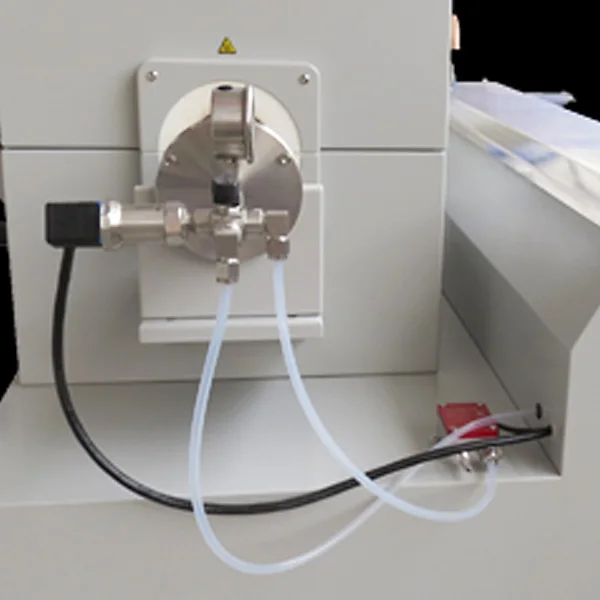

1200°C Hydrogen Reduction Sintering Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Fluidized Bed Calcination Furnace for Powder and Fine Particle Materials
1200°C Dual-Zone Vertical Fluidized Bed CVD (FBCVD) Furnace with Automatic Feeding and Discharging System
Vertical High Temperature Tube Furnace – 1500°C / 1700°C for Laboratory and R&D
Vacuum Atmosphere Hybrid Box/Tube Furnace for Precision Heat Treatment
1200°C Hydrogen Rotary Tube Furnace for Metallurgical Research
Advanced Continuous Pyrolyzers for Biomass and Organic Solid Waste Thermal Processing & Sintering
1700°C Vertical Atmosphere Controlled Quenching Furnace for High-Performance Heat Treatment
Customizable Tube Furnace with Gas Control System – Precision Atmosphere Processing
Ordering 1200°C Hydrogen Reduction Sintering Furnace
What is 1200°C Hydrogen Reduction Sintering Furnace typically used for?
The Hydrogen Reduction Sintering Furnace is a specialized equipment developed for higher education institutions, research institutes, and industrial enterprises. It is designed for sintering, melting, and analyzing metals, non-metals, and other compound materi
Can 1200°C Hydrogen Reduction Sintering Furnace be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with 1200°C Hydrogen Reduction Sintering Furnace?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for 1200°C Hydrogen Reduction Sintering Furnace?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is 1200°C Hydrogen Reduction Sintering Furnace packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
