High Purity Graphite Crucible for Laboratory Applications
ZYLAB graphite crucibles are made from high-purity graphite material, featuring excellent thermal conductivity, corrosion resistance, and high-temperature stability. These crucibles are designed for laboratory and industrial applications requiring superior performance in melting, casting, and high-temperature...
Product Details
ZYLAB graphite crucibles are made from high-purity graphite material, featuring excellent thermal conductivity, corrosion resistance, and high-temperature stability.
These crucibles are designed for laboratory and industrial applications requiring superior performance in melting, casting, and high-temperature processing. As a result, they are ideal for handling precious metals, rare earth materials, alloys, and other high-purity materials under harsh conditions.
Material: High Purity Graphite
Purity: ≥ 99%

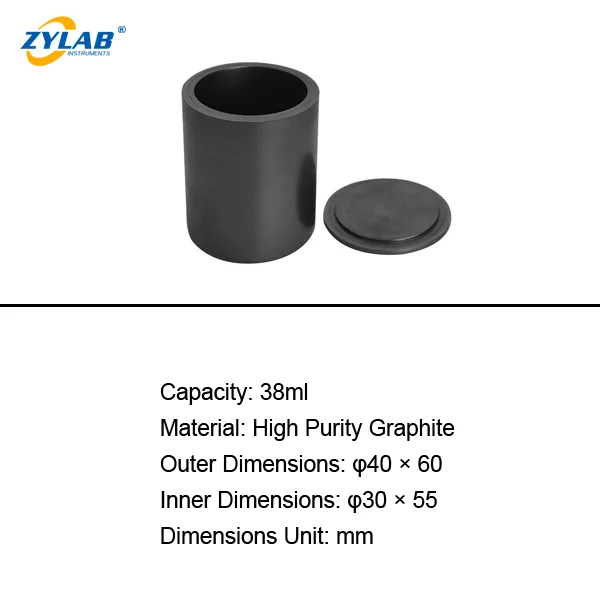

Shape Options: Round / Square
Max Working Temperature: Up to 3000°C in vacuum or inert atmosphere
Capacity: Customizable
For more information, custom orders, or technical support, please contact us.
Applications
- Metal melting (gold, silver, copper, aluminum, platinum, etc.)
- Precious metal refining and recovery
- Laboratory sample preparation
- High-temperature sintering and chemical analysis
- Semiconductor and photovoltaic industries
Why Choose ZYLAB Graphite Crucible?
- High Purity and Consistency: Produced using advanced technology ensuring uniform density and purity
- Precision Manufacturing: Accurate dimensions for compatibility with various lab and industrial equipment
- Global Shipping and Technical Support: Fast delivery and professional after-sales service
- Trusted by Research Institutions and Industries Worldwide
More Laboratory Crucibles
High-purity Alumina (Al2O3) Crucible for Tube Furnace
High Purity Boron Nitride (BN) Crucible
High Purity MgO Crucible for Lab
Quartz Boat for Tube Furnace
Click to view the comparison of laboratory crucibles, including quartz, magnesium oxide, boron nitride, and graphite crucibles, to help you choose the right one for your experimental needs.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Square Graphite Crucible Dimensions | ||
|---|---|---|
| Capacity | External Dimensions (mm) | Internal Dimensions (mm) |
| 0.9ml | 24 × 15 × 9.2 | 18 × 9 × 6 |
| 1.3ml | 24 × 22 × 12 | 18 × 16 × 7 |
| 2.1ml | 47 × 24 × 8 | 40 × 15 × 4 |
| 2.5ml | 30 × 24 × 12 | 24 × 18 × 8 |
| 5ml | 98 × 18 × 12 | 80 × 8 × 8 |
| 5ml | 55 × 37 × 20 | 45 × 14 × 10 |
| 8ml | 55 × 37 × 20 | 45 × 24 × 10 |
| 10ml | 60 × 30 × 15 | 50 × 20 × 10 |
| 12ml | 53 × 37 × 20 | 40 × 20 × 15 |
| 18ml | 68 × 50 × 26 | 47 × 25 × 16 |
| 15ml | 60 × 50 × 20 | 45 × 35 × 10 |
| 23ml | 70 × 57 × 20 | 50 × 37 × 10 |
| 37ml | 70 × 67 × 26 | 50 × 47 × 16 |
| 35ml | 100 × 30 × 30 | 90 × 18 × 22 |
| 35ml | 85 × 45 × 30 | 65 × 30 × 20 |
| 51ml | 120 × 40 × 30 | 100 × 25 × 24 |
| 60ml | 100 × 50 × 25 | 90 × 40 × 20 |
| 65ml | 90 × 60 × 20 | 80 × 50 × 17 |
| 65ml | 125 × 50 × 30 | 105 × 35 × 20 |
| 75ml | 135 × 42 × 32 | 115 × 32 × 22 |
| 105ml | 160 × 50 × 38 | 140 × 30 × 28 |
| 105ml | 125 × 60 × 40 | 105 × 40 × 30 |

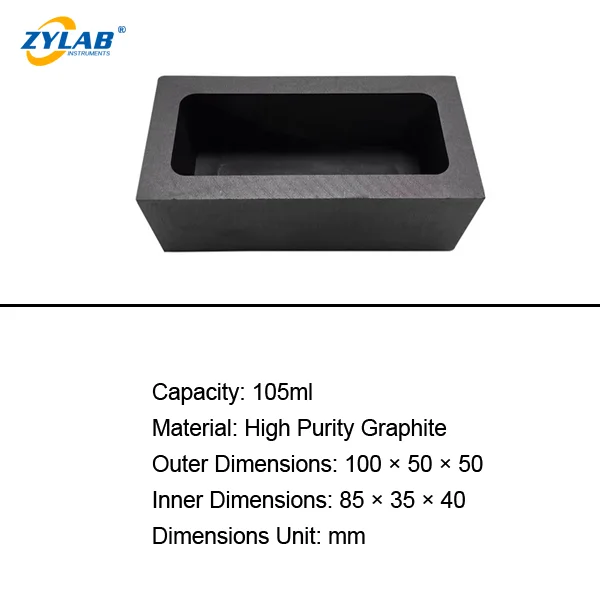

| 105ml | 100 × 50 × 50 | 85 × 35 × 40 |
| 135ml | 120 × 60 × 50 | 100 × 40 × 40 |
| 152ml | 180 × 55 × 45 | 155 × 35 × 32 |
| 170ml | 125 × 80 × 40 | 105 × 60 × 30 |
| 253ml | 180 × 70 × 50 | 160 × 50 × 40 |
| 379ml | 150 × 100 × 50 | 130 × 80 × 40 |
| 500ml | 180 × 100 × 50 | 160 × 80 × 40 |
