1200.C 1L Mini Burnout Furnace for Jewelry
With its unbeatable price/performance ratio, the compact burnout furnace is optimally suited for burnout in the dental/jewelry laboratory. Quality features like the dual shell housing, its compact, lightweight design make this burnout furnace a reliable partner for your dental/jewelry
Introduction
With its unbeatable price/performance ratio, the compact burnout furnace is optimally suited for burnout in the dental/jewelry laboratory. Quality features like the dual shell housing, its compact, lightweight design make this burnout furnace a reliable partner for your dental/jewelry application.
In addition, this mini burnout furnace has a scientific and reasonable drop-down door structure, and the materials can be taken out and placed directly on the furnace door to avoid burns on the workbench.

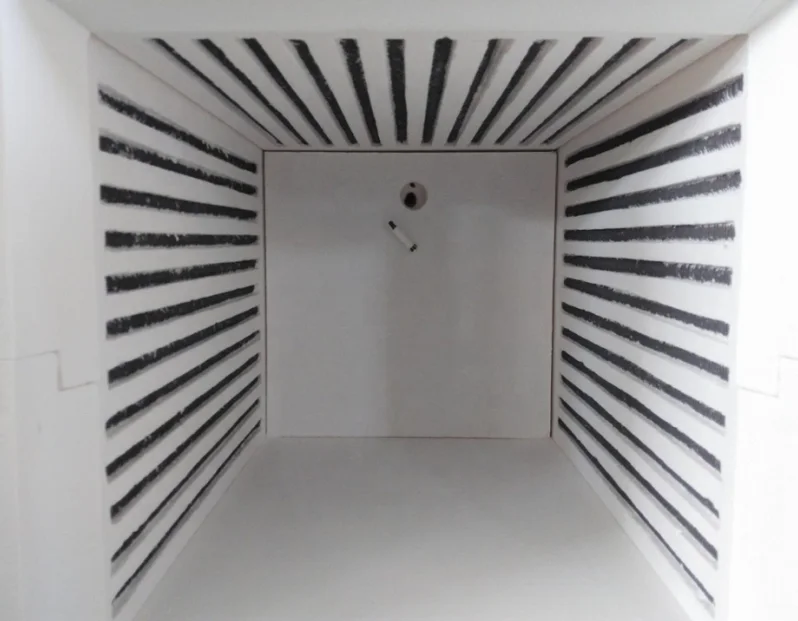

And it uses a molybdenum-iron-chromium-aluminum alloy heating wire coated with an antioxidant material. Slightly exposed vacuum forming wire layout method, evenly distributed heating on three sides, effectively enhances the uniformity of the temperature field in the furnace, and greatly improves the high-temperature service life of the heating element.
Main Features
1.Max. Temperature 1200.C, working temperature RT — 1100C.
2. 30 segments programmable and auto control.
3. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
4 By using special lining import from Japan and top quality resistance wire, protected against chemical contamination at the best and longer service life.
5.Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.

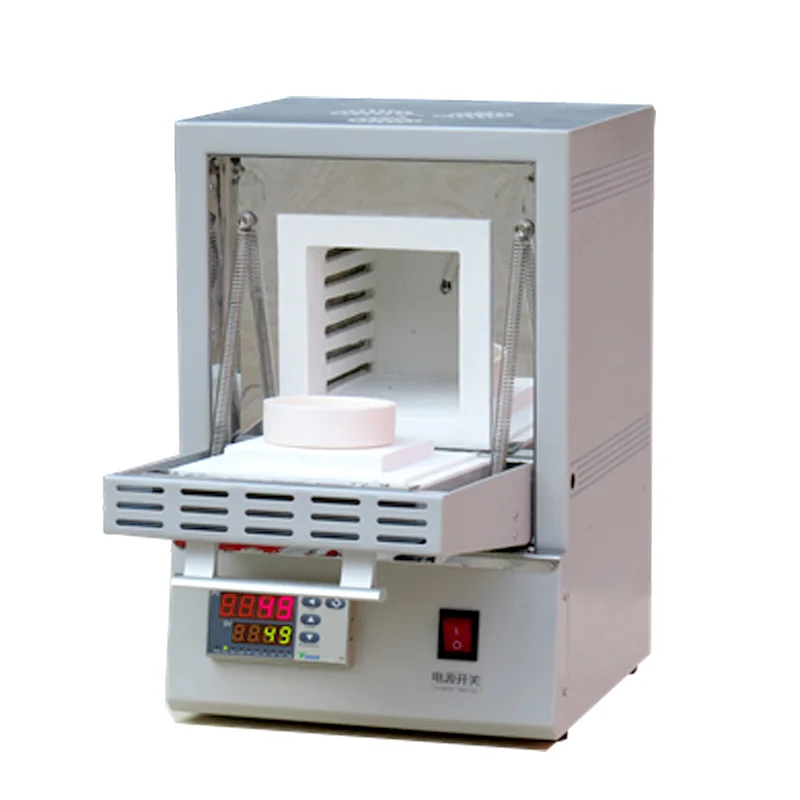

6. Scientific and reasonable hinged door(Drop-down Door) that can be used as additional loading and unloading space.
7. Vent hole carefully designed in the top is the perfect solution to the waste gas during material sintering.
8. Low power consumable, exquisite structure and light weight, it is the ideal burnout furnace for labs and production in factory.
Applications
Perfect for used in Jewelry industrial or dental laboratories for burnout, heating, etc.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200-10IC |
|---|---|
| Chamber size (working space) | 100×100×100(mm) |
| Max Working Temperature | 1200.C (<1 hours) |
| Continue Working Temperature | Rt ~ 1100.C |
| Furnace Structure | •1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Furnace Lining | Special lining import from Japan, will not pollute the product |
| Heat Element | Top quality resistance wire |
| Heating Rate | 0~20.C/min |
| Temperature Control | • PID automatic control and auto-tune function. •30 programmable segments for precise control. • Built in protection for over-heated and broken Thermal couple. • Larger digital control panel (48 x 96 mm) for easy operation. |
| Thermal Couple | K type |
| Temperature Accuracy | ±1.C |
| Rated Power | 1KW |
| Working Voltage | AC 110/208V-240V, 50/60 Hz (as requirement) |
| Dimension | 260(W)*400(H)*280(D) (mm) |
| Quantity / Net weight | 1set / 10kgs |
| Warranty | 12 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
1200.C 1L Mini Burnout Furnace for Jewelry In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Continuing Operating Temperature 1100.C Atmosphere Furnace
Continuing Operating Temperature 1600.C Atmosphere Furnace
Continuing Operating Temperature 1400.C Atmosphere Furnace
Large High-Temperature Controlled Atmosphere Furnace
1700.C 36L Heat Treatment Furnace
Small Desktop 1500.C Jewelry Furnace
1200.C Bench-top 12L Burnout Furnace
Intelligent 1200.C 4.5L Burnout Furnace
Ordering 1200.C 1L Mini Burnout Furnace for Jewelry
What is 1200.C 1L Mini Burnout Furnace for Jewelry typically used for?
With its unbeatable price/performance ratio, the compact burnout furnace is optimally suited for burnout in the dental/jewelry laboratory. Quality features like the dual shell housing, its compact, lightweight design make this burnout furnace a reliable partne
How quickly can 1200.C 1L Mini Burnout Furnace for Jewelry be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship 1200.C 1L Mini Burnout Furnace for Jewelry within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Can 1200.C 1L Mini Burnout Furnace for Jewelry be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with 1200.C 1L Mini Burnout Furnace for Jewelry?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering 1200.C 1L Mini Burnout Furnace for Jewelry?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Quote For 1200.C 1L Mini Burnout Furnace for Jewelry
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
