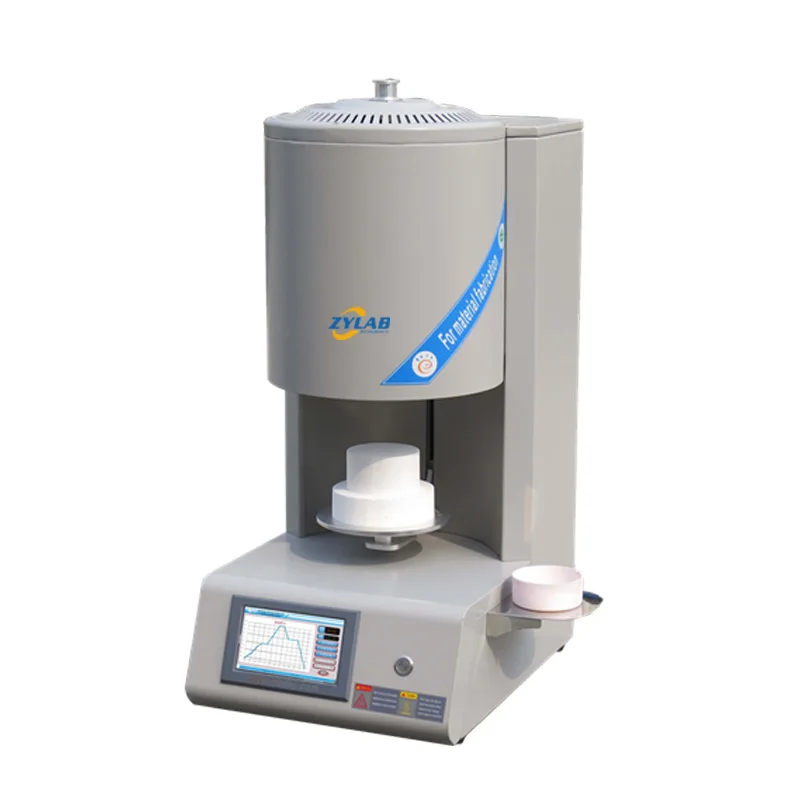

Bottom Loading Lab Sintering Furnace 1600°C
This Bottom Loading Lab Sintering Furnace 1600°C is widely used in university laboratories and scientific research institutes for sintering, testing, annealing, melting,etc heat treatment. Electric lifts design greatly simplify the loading step, much safer. Compact and practical, and beautiful design won the praise of...
Introduction
This Bottom Loading Lab Sintering Furnace 1600°C is widely used in university laboratories and scientific research institutes for sintering, testing, annealing, melting,etc heat treatment.
Electric lifts design greatly simplify the loading step, much safer. Compact and practical, and beautiful design won the praise of customers, such as heating elements distributed all around – its more constant temperature field, Round heating chamber can place three layers of crucible , automatic bottom loading and lifting structure. latex hole carefully designed is the perfect solution to the waste gas during material sintering.
High quality touch-screen control system makes operation more simple, intuitive and fast. In addition, 15 curves can be stored varies with temperature sintering curve.
Features
1. Max. Temperature 1700C, working temperature 800-1600C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining and heating elements made of pure type molydenum disilicide, products are protected against chemical contamination at the best and longer service life.
6. Heating elements ring distribution, the temperature is more uniform to obtain better effect.
7. Automatic bottom loading and lifting structure. Silent bilateral lifting system to ensure the stability of the lifting system.
8. Latex hole carefully designed is the perfect solution to the waste gas during material sintering.
9. Low power consumable, exquisite structure and light weight, it is the ideal bottom loading furnace for material research labs.
Which Kinds of Industry Can Use This Sintering Furnace 1600°C?
College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications
Bottom loading furnaces are widely used in various industries for their ease of loading and unloading from the bottom. Here are some key applications:
- Material Science: For sintering, annealing, and other thermal treatments of materials.
- Metallurgy: Used in metal processing and heat treatment.
- Chemical Engineering: For reactions, calcination, and other high-temperature processes.
- Ceramics: Suitable for firing and sintering ceramic materials.
- Laboratory Research: Applied in scientific studies and experiments requiring controlled high-temperature environments.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | B1700-12IT |
|---|---|
| Furnace structure | •1800 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size (working space) | Dia100*120mm |
| Max. temperature | 1700 ℃(<1hours) |
| Working temperature | 800-1600 ℃(continuing) |
| Intelligent Touch Screen Temperature controller | •PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. • Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. • Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating rate | 0-20 ℃ /min(Suggest: 10°C/min) |
| Thermocouple | B type |
| Temperature accuracy | +/- 1 ℃ |
| Heating element | M1800 high purity MoSi2 heating element |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 1.8 Kw |
| Dimension | 400(W)*870(H)*540(D)mm |
| Quantity / Net weight | 1set / 75kgs |
| Warranty | 12 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | CE, ISO9001 |
Bottom Loading Lab Sintering Furnace 1600°C In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
1300°C Lab Furnace with Safe Door Opening at High Temperature
High Vacuum Tungsten Wire Furnace | Precision Heat Treatment & Sintering
2200°C Vacuum Tungsten Sintering Furnace | Precision Heat Treatment Equipment
Large-Capacity Bottom-Loading Furnace with Precision Temperature Control for Sintering Applications
High-Temperature Bottom Loading Sintering Furnace – Precision Sintering with Convenient Material Handling
Clean Chamber Vacuum Furnace with Bottom Loading Design
Clean Bottom Loading Furnace
1700.C 4L Bottom Loading Sintering Furnace
Ordering Bottom Loading Lab Sintering Furnace 1600°C
What is Bottom Loading Lab Sintering Furnace 1600°C typically used for?
This Bottom Loading Lab Sintering Furnace 1600°C is widely used in university laboratories and scientific research institutes for sintering, testing, annealing, melting,etc heat treatment. Electric lifts design greatly simplify the loading step, much safer. Co
How quickly can Bottom Loading Lab Sintering Furnace 1600°C be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Bottom Loading Lab Sintering Furnace 1600°C within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Can Bottom Loading Lab Sintering Furnace 1600°C be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Bottom Loading Lab Sintering Furnace 1600°C?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering Bottom Loading Lab Sintering Furnace 1600°C?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Quote For Bottom Loading Lab Sintering Furnace 1600°C
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
