High Purity Boron Nitride (BN) Crucible for High-Temperature Applications
The ZYLAB Boron Nitride Crucible is a high-performance ceramic container designed for high-temperature and corrosive environments. Made from high purity boron nitride (BN) with a purity greater than 99%, this crucible offers exceptional thermal stability, excellent chemical resistance, and superior non-wetting...
Product Details
The ZYLAB Boron Nitride Crucible is a high-performance ceramic container designed for high-temperature and corrosive environments.
Made from high purity boron nitride (BN) with a purity greater than 99%, this crucible offers exceptional thermal stability, excellent chemical resistance, and superior non-wetting properties. It is an ideal choice for melting, evaporation, and material processing under vacuum or inert gas atmospheres.
Material: High Purity Boron Nitride (BN)
Purity: ≥99%

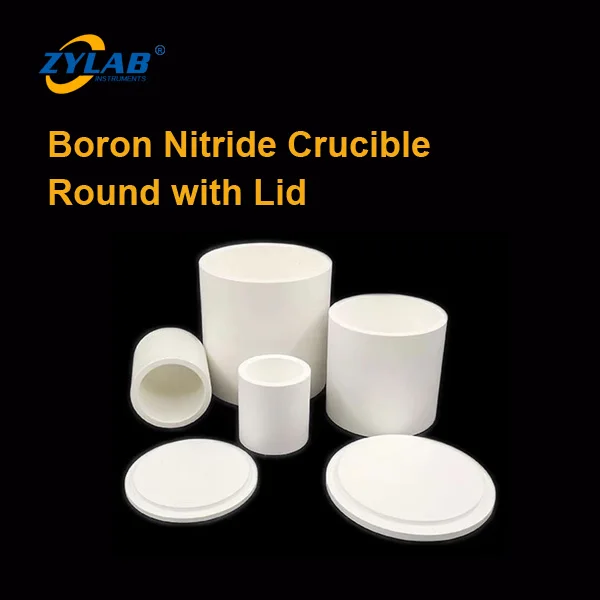

Shape: Round / Square, With or Without Lid
High Temperature Resistance: Up to 2000°C in Vacuum or Inert Gas Atmosphere
For more information, custom orders, or technical support, please contact us.
Key Features
- High Purity Material: 99% Boron Nitride ensures excellent thermal and chemical stability.
- High-Temperature Resistance: Operates up to 2000°C in vacuum or inert environments.
- Excellent Thermal Shock Resistance: Low thermal expansion minimizes cracking during rapid heating and cooling cycles.
- Non-Wetting Surface: Ideal for working with molten metals like aluminum, magnesium, and zinc—materials do not stick to the crucible.
- Good Electrical Insulation: Suitable for applications requiring high thermal conductivity and electrical insulation.
- Corrosion Resistance: Resists most molten metals, acids, alkalis, and organic solvents.
- Custom Sizes and Shapes: Available in round or square shapes, with optional lids. Customization for different dimensions is supported.
Applications
- Melting and casting of reactive and non-reactive metals (Aluminum, Magnesium, Zinc, etc.)
- High-temperature processing in semiconductor and electronic industries
- Vacuum and inert gas sintering
- Crystal growth experiments
- Rare earth metal refining
- Laboratory research and material testing

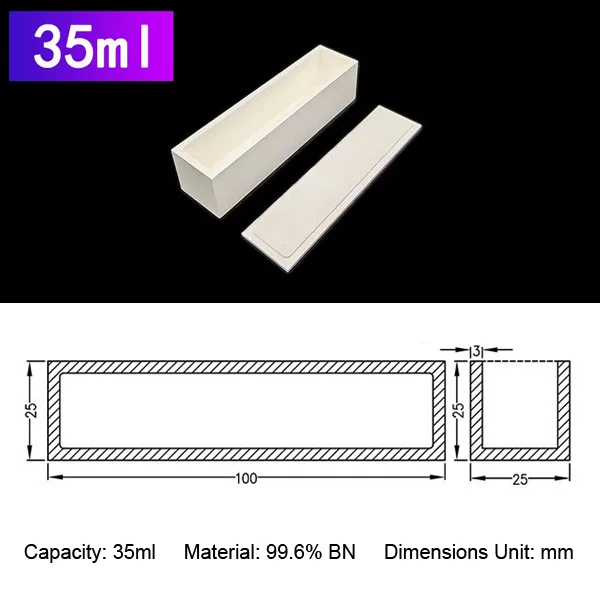

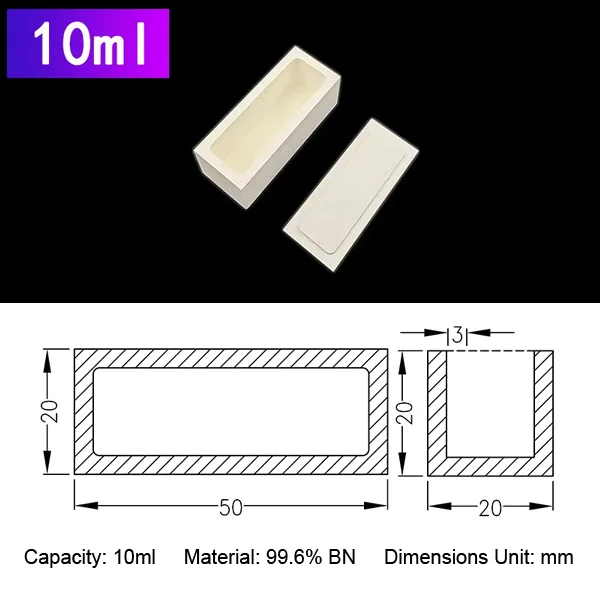

Specifications for Square Boron Nitride Crucible
| Square Boron Nitride Crucible (UoM：mm) | |||
|---|---|---|---|
| 50×15×15 | 50×20×20 | 45×22×15 | 60×30×15 |
| 60×30×20 | 100×40×20 | 120×20×20 | 100×50×30 |
More Laboratory Crucibles
Ceramic Crucible For Lab Muffle Furnace
High-purity Alumina (Al2O3) Crucible for Tube Furnace
High Purity Round Magnesium Oxide Crucible
Click to view the comparison of laboratory crucibles, including quartz, magnesium oxide, boron nitride, and graphite crucibles, to help you choose the right one for your experimental needs.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.

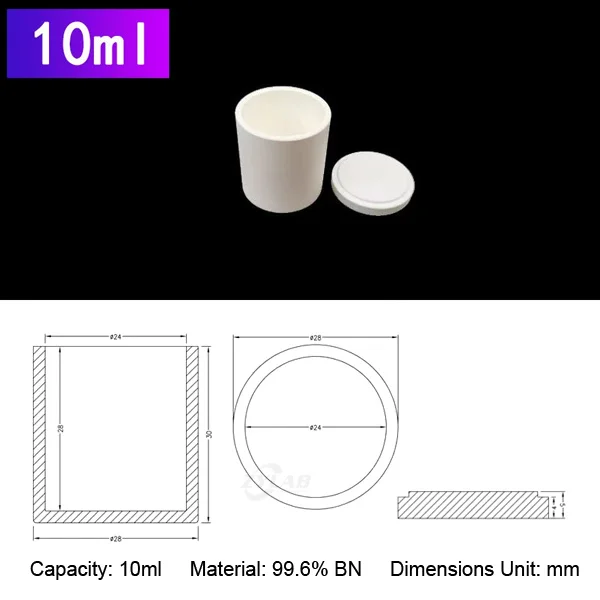

| Round Boron Nitride Crucible (UoM：mm) | |||
|---|---|---|---|
| 0.5ml (φ9×19) | 1.8ml (φ13×25) | 2ml (φ16×20) | 3ml (φ13×40) |
| 3ml (φ20×20) | 5ml (φ24×24) | 5ml (φ36×13) | 5ml (φ15×50) |
| 6ml (φ16×50) | 10ml (φ30×25) | 10ml (φ28×30) | 20ml (φ40×25) |
| 20ml (φ32×32) | 24ml (φ36×37) | 50ml (φ47×45) | 100ml (φ58×58) |
