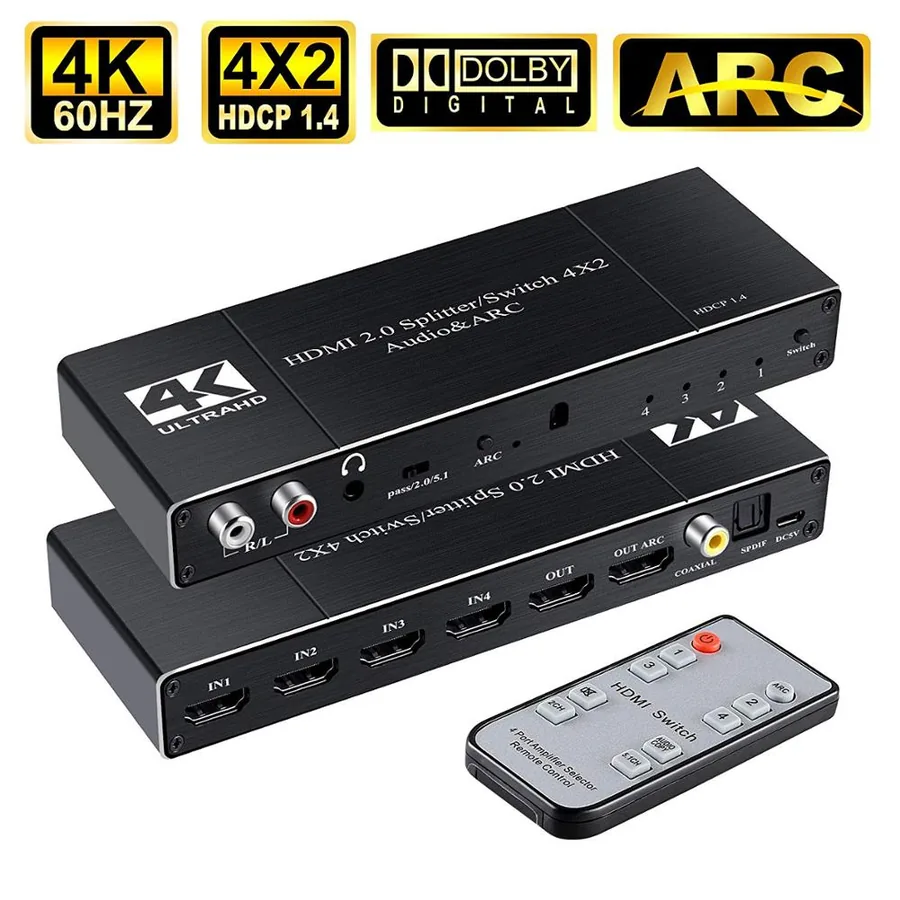

4x2 HDMI2.0 Switch Splitter Audio & ARC
4x2 HDMI2.0 Switch Splitter Audio & ARC 4 in 2 Out
Send a drawing or a sample photo on WhatsApp or by email and we will match it. Replies within 12 hours.
Used in these solutions
Product Overview
Description
This HDMI Switch support 4 HDMI Inputs to 2 HDMI Output, can be applied for connection, signal
amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV,LCD,Projector, as well as an Audio/Video receiver. The excellent quality allows you to experience the fun brought by the infusion of science and technology into life
Features
- Support HDMI 2.0/HDCP1.4
- Support highest resolution up to 3840*2160/60Hz,3D
- Support deep color 8/10/12 bit
- Support 4 HDMI audio outputs, 3.5mm earphone jack and optical output,Coaxial x 1, R/L Audio output
- Support video format:8/10/12 bit deep color
- Support audio format:LPCM/DTS/Dolby-AC3
- Max bandwidth :340MHz
- Max baud rate :6 Gbps
- Three Switch Modes:Automatically switch when device is on ; Manually switch by pressing button; Manually switch by IR remote
- Input cable distance: 4k≤10m HDMI 2.0 standard cable
- Output cable distance:4k≤10m HDMI 2.0 standard cable
- Connect the HDMI cable with HDTV first
- Set up the resolution of signal source to the 1080p
- Connect the HDMI cable with the VGA OR DVI Display finally
- If connect the HDTV/DIV/VGA Display at the same time, the VGA and DVI Display will be the 720p, can not 1080p.
- If you will use HDTV/DVI/VGA display output, please follow the steps
Who It Is For
- AV integrators building meeting rooms, classrooms and control rooms
- Digital signage operators feeding several screens from one player
- Broadcast and live streaming teams capturing or distributing HDMI feeds
- Distributors and importers supplying installers with rack-mount AV hardware
- OEM buyers sourcing HDMI distribution hardware under their own label
Problems It Solves
- A single source has to reach more screens than it has outputs
- The screen is further away than an HDMI cable can reliably drive
- Several sources compete for one display and need switching or a multi-view layout
- A video wall needs one image split across a grid of panels
- A source and a display disagree on resolution, colour space or audio format
Typical Applications
- Conference and huddle rooms
- Classrooms and lecture theatres
- Retail and transport digital signage
- Control rooms and video walls
- Live event and streaming racks
- Hotel and hospitality AV

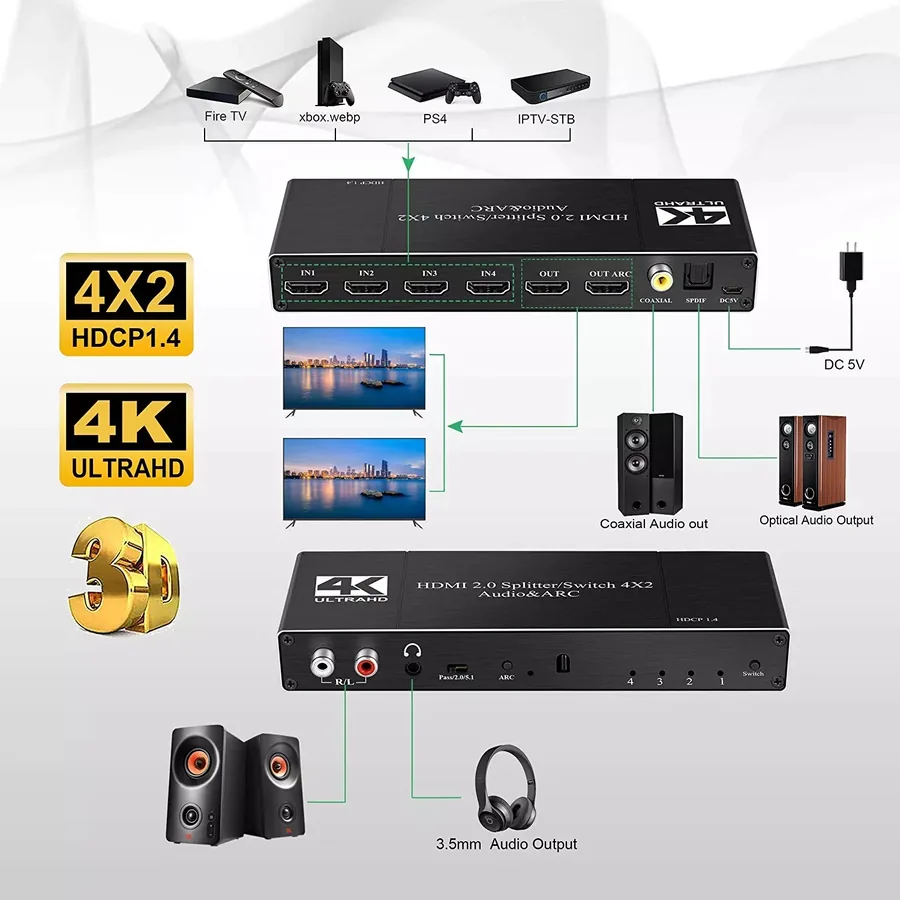

Connection Diagram
The application drawing supplied with this model.
Buying And Customisation
Model, length, connector type, quantity and destination. A photo or drawing on WhatsApp is enough to start.
We reply within 12 hours with availability, the specification we can hold and an indicative price.
Packing details, MOQ, payment terms and lead time are agreed per order. Own-brand packaging is available.
Order status is tracked through production and shipping, and our team stays online 24×7 after delivery.
We can research and design special cables according to your requirements and help you to protect your patents. Tell us the board dimensions, schemes, BOM and critical routing requirements and we will work to them.
