Key Benefits
- Produces inner and outer bags simultaneously, cutting packaging time per unit by half compared to sequential machines
- Ultrasonic sealing avoids heat damage to coffee aroma and maintains a narrow, clean seal edge
- Volumetric cup filling delivers consistent 5 to 15 g per bag with no overfill or underfill
- PLC control with human machine interface allows simple setup and real-time monitoring
- SUS304 stainless steel parts in food contact zones meet food safety standards
- Stepper motor controls outer bag length positioning for accurate, repeatable bag sizing
Application Scenarios
- Coffee roasters packaging small-batch specialty beans for direct-to-consumer e-commerce
- Contract packers handling multiple coffee brands with different bag sizes and fill weights
- Roasters transitioning from manual packing to automated inner and outer bag sealing
- Packaging facilities needing nitrogen flushing integration to extend shelf life of roasted coffee
Who It Is For
- Coffee roasters moving from manual packing to in-house automated bagging
- Contract packers serving multiple coffee brands with short batch runs
- Brands requiring a sealed, retail-ready coffee bag with a professional appearance
- Buyers replacing older machines that use heat sealing and risk aroma degradation
Problems It Solves
- Manual inner and outer bag sealing takes twice the time and increases labor cost
- Heat sealing damages delicate coffee aromatics and can cause film scorching
- Inconsistent fill weight leads to customer complaints and product giveaway
- Lack of nitrogen flushing shortens shelf life of roasted coffee in ambient conditions
- Poor bag length accuracy causes misalignment in packaging lines and label placement
Technical Features
- Ultrasonic sealing for inner and outer bags with no heat or adhesive
- Volumetric cup filling system for 5 to 15 g per bag accuracy
- Stepper motor controls outer bag length positioning for stable and accurate sealing
- PLC control with human machine interface for easy operation and monitoring
- All food contact parts made of SUS304 stainless steel
- Reserved connector for nitrogen flushing machine integration
- Optional flat cut, date printer, and easy tear device for added functionality
Specifications
| Machine model | C19D |
|---|---|
| Machine type | Drip Coffee Packaging Machine Series |
| Bag type | Ultrasonic sealing |
| Packing material | PLA/Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper |
| Feeding system | Volumetric cup filler |
| Package range | 5-15 g per bag |
| Inner bag size | L: 50-75 mm, W: 50-90 mm |
| Outer bag size | L: 85-120 mm, W: 75-100 mm |
| Inner bag film width | 180 mm |
| Outer bag film width | 200 mm |
| Packing speed | 40-60 bags/min |
| Power supply | Single phase, 220V, 50Hz, 3.7kW |
| Machine weight | 600 kg |
| Machine dimension | 1200 x 900 x 1900 mm (L x W x H) |
Packing Materials It Runs
- PLA/Paper/Plastic film for compostable coffee bags
- Plastic/Aluminum/Plastic film for moisture and light barrier
- Paper/Aluminum/Plastic film for premium retail packaging
- Filter paper for inner bags in direct contact with coffee
How the Machine Works
- 1Film unwinding and inner bag forming
- 2Volumetric cup filling with 5 to 15 g per bag accuracy
- 3Inner bag ultrasonic sealing and cutting
- 4Outer bag forming and ultrasonic sealing
- 5Bag discharge and optional date printing or easy tear feature
Quality Control Before Shipment
- F
- i
- l
- l
- i
- n
- g
- w
- e
- i
- g
- h
- t
- v
- e
- r
- i
- f
- i
- e
- d
- a
- g
- a
- i
- n
- s
- t
- 5
- t
- o
- 1
- 5
- g
- t
- a
- r
- g
- e
- t
- d
- u
- r
- i
- n
- g
- t
- e
- s
- t
- r
- u
- n
- s
- S
- e
- a
- l
- i
- n
- t
- e
- g
- r
- i
- t
- y
- i
- n
- s
- p
- e
- c
- t
- e
- d
- o
- n
- u
- l
- t
- r
- a
- s
- o
- n
- i
- c
- s
- e
- a
- m
- s
- b
- e
- f
- o
- r
- e
- s
- h
- i
- p
- m
- e
- n
- t
- F
- o
- o
- d
- c
- o
- n
- t
- a
- c
- t
- p
- a
- r
- t
- s
- c
- o
- n
- f
- i
- r
- m
- e
- d
- a
- s
- S
- U
- S
- 3
- 0
- 4
- s
- t
- a
- i
- n
- l
- e
- s
- s
- s
- t
- e
- e
- l
- a
- n
- d
- n
- o
- n
- -
- t
- o
- x
- i
- c
- M
- a
- c
- h
- i
- n
- e
- t
- e
- s
- t
- e
- d
- w
- i
- t
- h
- c
- u
- s
- t
- o
- m
- e
- r
- '
- s
- c
- o
- f
- f
- e
- e
- b
- e
- f
- o
- r
- e
- d
- i
- s
- p
- a
- t
- c
- h
- o
- n
- r
- e
- q
- u
- e
- s
- t
Certifications
- ISO
- CE
Customization Options
- Choice of inner and outer bag size within the 50-75 mm and 85-120 mm range
- Film type selected from PLA/Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, or filter paper
- Optional flat cut, date printer, or easy tear device added at time of order
- Nitrogen flushing connector reserved for future integration with nitrogen machine
- Power supply configured to 220V 50Hz single phase as standard, other voltages available on request
How It Compares
| Manual inner and outer bag sealing | The C19D automates both steps and runs 40 to 60 bags per minute, but requires a fixed footprint and trained operator |
|---|---|
| Heat-sealed coffee bag machine | Ultrasonic sealing avoids film scorching and preserves coffee aroma, but requires an air supply and higher initial component cost |
| Single-layer bag machine | The C19D produces sealed inner and outer bags for better protection and shelf life, but uses more film and requires more setup time |
Use Guide
- 1Connect a clean dry air supply and single phase 220V 50Hz power outlet
- 2Load the film roll matched to your chosen inner and outer bag size and film type
- 3Set the volumetric cup to the desired fill weight between 5 and 15 g
- 4Adjust the stepper motor for outer bag length positioning to match your bag size
- 5Run a test batch of 10 bags and verify fill weight, seal integrity, and bag length
- 6Install optional devices such as date printer or easy tear feature as needed

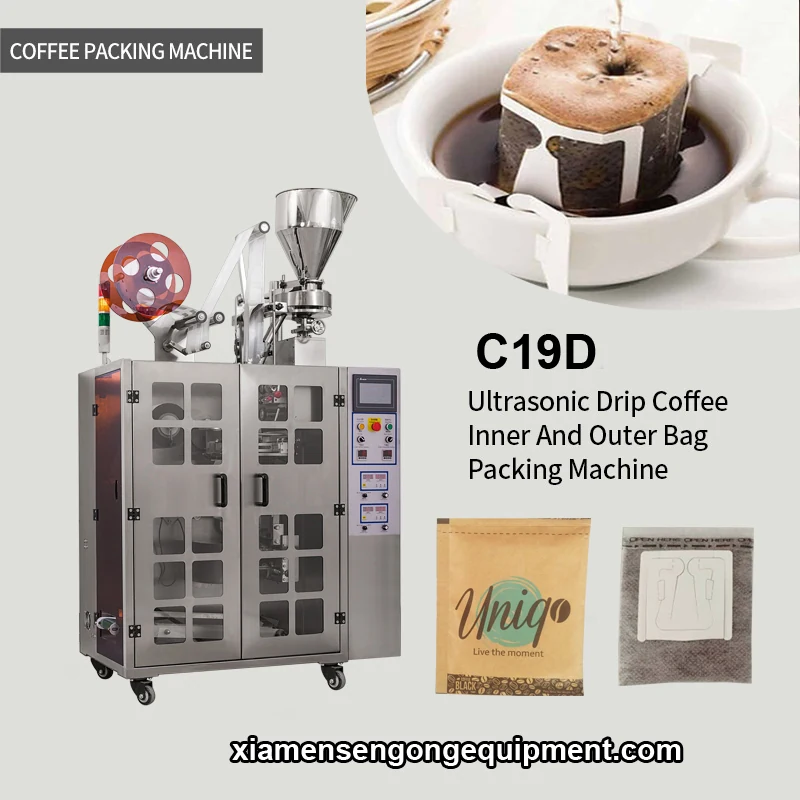

C19D Ultrasonic Drip Santos Coffee Bag Packing Machine FAQ
What is the fill weight range for the C19D?
5 to 15 g per bag, delivered by a volumetric cup filler with consistent accuracy.
How fast does the machine run?
40 to 60 bags per minute, depending on bag size, film type, and coffee flow rate.
Can it run compostable film?
Yes. It supports PLA/Paper/Plastic film for compostable coffee bags.
Is nitrogen flushing possible?
Yes. The machine has a reserved connector to link with a nitrogen making machine for flushing.
What power supply does it need?
Single phase 220V 50Hz, 3.7kW. We can adjust the voltage and plug type for your market.
What are the dimensions and weight?
The machine measures 1200 x 900 x 1900 mm and weighs 600 kg, so plan for forklift access and doorway clearance.
Is the machine certified?
Sengong is certified to ISO and CE. Certificates are available by email or WhatsApp on request.
