Key Benefits
- Produces inner and outer bags simultaneously, reducing line time compared to sequential packing
- Ultrasonic sealing ensures a clean, narrow seal without heat damage to the film or coffee aroma
- Volumetric cup filling delivers consistent weight across 5 to 15 g per bag with minimal giveaway
- Stepper motor controls outer bag sealing position with high accuracy and stability
- SUS304 stainless steel parts in direct contact with coffee meet food safety standards
- Built-in connector for nitrogen flushing extends shelf life by reducing oxidation
Application Scenarios
- Coffee roasters packaging small batches of single-origin drip coffee for retail or direct-to-consumer sale
- Contract packers producing branded coffee bags for multiple clients with quick format changeover
- Roasters upgrading from manual packing to automated inner and outer bag formation
- Brands requiring a premium look with a visible inner filter bag and sealed outer wrapper
Who It Is For
- Coffee roasters moving from hand packing to in-house automated inner and outer bagging
- Contract packers serving multiple coffee brands with different bag sizes and formats
- Brands that need a sealed outer layer to protect coffee from moisture and light
- Buyers replacing a two-machine setup with a single integrated inner and outer bagging line
Problems It Solves
- Manual inner and outer bagging is slow and inconsistent in fill weight and seal quality
- Heat sealing damages sensitive coffee aromatics and causes film degradation at the seam
- Lack of nitrogen flushing leads to faster oxidation and shorter shelf life
- Inconsistent bag length and positioning on outer wrappers affect packaging line stability
- Non-food-grade materials or parts risk failing food safety audits
Technical Features
- Ultrasonic sealing for inner and outer bags with no heat or adhesive required
- Volumetric cup filling system for 5 to 15 g per bag with consistent weight
- Stepper motor controls outer bag sealing length and positioning with high accuracy
- PID temperature controller for precise heat control during sealing
- PLC control system with human machine interface for easy operation and monitoring
- All food contact parts made of SUS304 stainless steel for hygiene and durability
- Optional flat cut, date printer, easy tear device, and nitrogen flush connector
Specifications

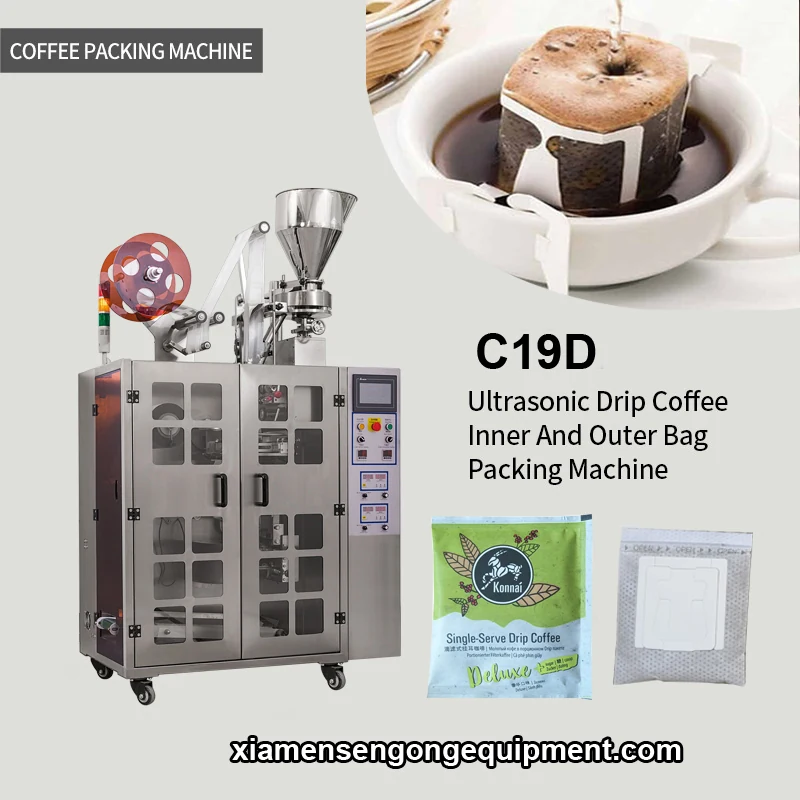

| Machine model | C19D |
|---|---|
| Machine type | Drip Coffee Packaging Machine Series |
| Bag type | Ultrasonic sealing |
| Packing material | PLA/Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper |
| Feeding system | Volumetric cup filler |
| Package range | 5-15 g per bag |
| Inner bag size | L: 50-75 mm, W: 50-90 mm |
| Outer bag size | L: 85-120 mm, W: 75-100 mm |
| Inner bag film width | 180 mm |
| Outer bag film width | 200 mm |
| Packing speed | 40-60 bags/min |
| Power supply | Single phase, 220V, 50Hz, 3.7 kW |
| Machine weight | 600 kg |
| Machine dimension | 1200 x 900 x 1900 mm (L x W x H) |
Packing Materials It Runs
- PLA/Paper/Plastic film for compostable coffee bags
- Plastic/Aluminum/Plastic film for moisture and light barrier
- Paper/Aluminum/Plastic film for premium packaging with barrier properties
- Filter paper for the inner bag to allow water flow during brewing
How the Machine Works
- 1Film unwinding and inner bag formation
- 2Volumetric cup filling with coffee granules or powder
- 3Inner bag sealing using ultrasonic technology
- 4Outer bag forming and positioning
- 5Outer bag sealing with stepper motor control
- 6Cutting and discharge of finished bag
Quality Control Before Shipment
- F
- i
- l
- l
- w
- e
- i
- g
- h
- t
- v
- e
- r
- i
- f
- i
- e
- d
- a
- g
- a
- i
- n
- s
- t
- t
- h
- e
- 5
- t
- o
- 1
- 5
- g
- t
- a
- r
- g
- e
- t
- d
- u
- r
- i
- n
- g
- t
- e
- s
- t
- r
- u
- n
- s
- S
- e
- a
- l
- i
- n
- t
- e
- g
- r
- i
- t
- y
- c
- h
- e
- c
- k
- e
- d
- o
- n
- b
- o
- t
- h
- i
- n
- n
- e
- r
- a
- n
- d
- o
- u
- t
- e
- r
- b
- a
- g
- s
- b
- e
- f
- o
- r
- e
- s
- h
- i
- p
- m
- e
- n
- t
- F
- o
- o
- d
- c
- o
- n
- t
- a
- c
- t
- p
- a
- r
- t
- s
- c
- o
- n
- f
- i
- r
- m
- e
- d
- a
- s
- S
- U
- S
- 3
- 0
- 4
- s
- t
- a
- i
- n
- l
- e
- s
- s
- s
- t
- e
- e
- l
- a
- n
- d
- n
- o
- n
- -
- t
- o
- x
- i
- c
- M
- a
- c
- h
- i
- n
- e
- t
- e
- s
- t
- e
- d
- w
- i
- t
- h
- c
- u
- s
- t
- o
- m
- e
- r
- '
- s
- c
- o
- f
- f
- e
- e
- b
- e
- f
- o
- r
- e
- d
- i
- s
- p
- a
- t
- c
- h
- o
- n
- r
- e
- q
- u
- e
- s
- t
Certifications
- ISO
- CE
Customization Options
- Choice of inner and outer bag size within the specified range for your product
- Option to add flat cut, date printer, easy tear device, or nitrogen flush connector
- Power supply adjusted for destination market voltage and plug type
- Film width and bag size configured to match your packaging design
How It Compares
| Single-layer coffee bag machine | The C19D produces both inner and outer bags, offering better protection and a premium look, but requires more setup and space |
|---|---|
| Heat-sealed coffee bag machine | Ultrasonic sealing avoids film scorching and maintains film integrity, but requires an air supply and precise control |
| Manual inner and outer bagging | The C19D automates the entire process and ensures consistent weight and seal quality, but needs a fixed power and air supply |
Use Guide
- 1Connect a clean dry air supply and a single phase 220V 50Hz power outlet
- 2Load the inner and outer film rolls matching your chosen bag size and material
- 3Set the volumetric cup to the desired fill weight between 5 and 15 g
- 4Adjust the outer bag sealing length and positioning using the stepper motor controls
- 5Run a test batch of 10 bags and verify fill weight, seal quality, and bag size
- 6Install optional devices like date printer or nitrogen flush connector as needed
C19D Drip Filter Santos Coffee Packaging Machine FAQ
What is the fill weight range for the C19D?
The machine fills coffee between 5 and 15 grams per bag using a volumetric cup filler.
How fast does it run?
The C19D packs 40 to 60 bags per minute, depending on bag size and coffee flow rate.
Can it seal both inner and outer bags at once?
Yes. The machine automatically forms and seals both the inner filter bag and the outer wrapper in one continuous process.
Is nitrogen flushing available?
Yes. The machine has a reserved connector to link with a nitrogen making machine for flushing nitrogen into the bag.
What power supply does it need?
The machine runs on single phase 220V 50Hz, 3.7 kW. We can adjust the voltage and plug type for your market.
What materials can it run?
The C19D can use PLA/Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, and filter paper.
How much space and lifting capacity do I need?
The machine measures 1200 x 900 x 1900 mm and weighs 600 kg, so plan for forklift access and a stable floor.
