Key Benefits
- Produces Coatepec-style drip bags with inner filter and outer sealed layer in one continuous process
- Ultrasonic sealing avoids heat damage to delicate coffee aroma and maintains a narrow seal edge
- Stepper motor controls outer bag sealing for accurate and stable bag length positioning
- Volumetric cup filling delivers consistent fill weight across 5 to 15 g per bag
- Runs eco-friendly films including PLA, paper, and paper-aluminum-plastic laminates without compromising seal integrity
- Can be connected to a nitrogen flushing system to extend shelf life of roasted coffee
- PLC control with human machine interface allows easy setup and operation with minimal training
Application Scenarios
- Coffee roasters packaging small-batch single-origin beans in Coatepec-style drip bags for direct-to-consumer e-commerce
- Contract packers handling multiple coffee brands with short runs and frequent format changes
- Roasters transitioning from manual packing to automated inner and outer bag sealing
- Brands requiring compostable or biodegradable packaging with a visible filter layer for retail appeal
Who It Is For
- Coffee roasters who need to pack Coatepec-style drip bags with inner filter and outer seal
- Contract packers serving multiple coffee brands with different bag sizes and materials
- Producers moving from manual or semi-automated packing to full automation
- Brands that require nitrogen flushing or compostable packaging for sustainability claims
Problems It Solves
- Manual inner and outer bag packing is slow and inconsistent in fill weight and seal alignment
- Heat sealing damages delicate coffee aroma and can melt thin films like PLA or paper
- Inconsistent bag length from manual or mechanical positioning leads to misaligned labels and poor packaging appearance
- Lack of nitrogen flushing capability reduces shelf life of roasted coffee in retail packs
- Using non-food-grade materials risks failing food safety audits and retailer compliance checks
Technical Features
- Ultrasonic sealing for inner and outer bags with no heat or adhesive required
- Stepper motor controls outer bag sealing for accurate and stable bag length positioning
- Volumetric cup filling system for consistent 5 to 15 g per bag output
- PLC control with human machine interface for easy operation and setup
- All product contact parts made of SUS304 stainless steel for food safety compliance
- High specification components including imported cylinders for stable performance
- Reserved connector for nitrogen flushing system to extend coffee shelf life
- Optional devices available: flat cut, date printer, easy tear feature
Specifications

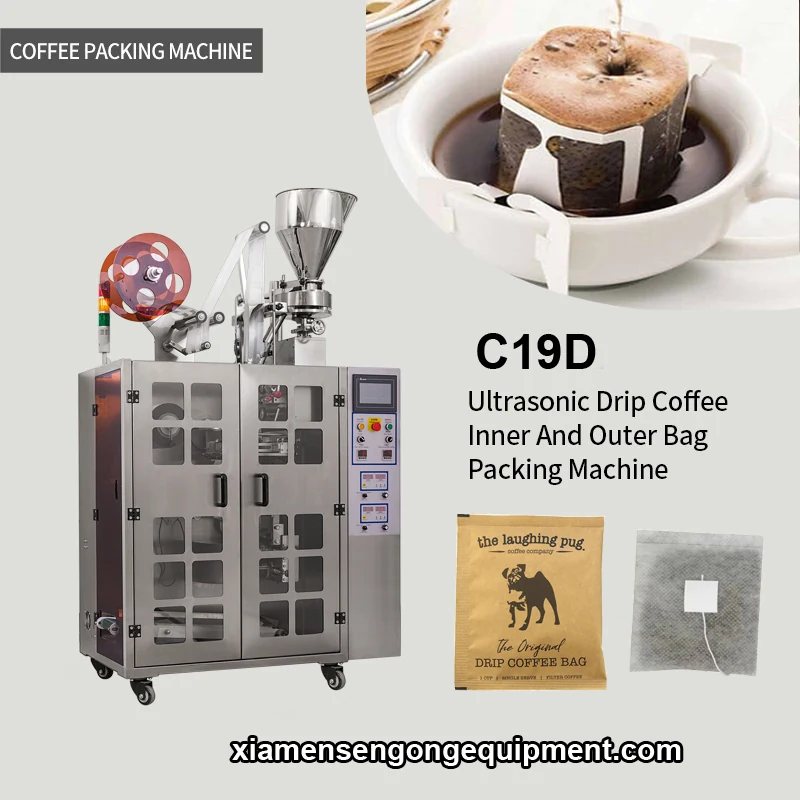

| Machine model | C19D |
|---|---|
| Machine type | Drip Coffee Packaging Machine Series |
| Bag type | Ultrasonic sealing |
| Packing material | PLA/Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper |
| Feeding system | Volumetric cup filler |
| Package range | 5-15 g per bag |
| Inner bag size | L:50-75 mm, W:50-90 mm |
| Outer bag size | L:85-120 mm, W:75-100 mm |
| Inner bag film width | 180 mm |
| Outer bag film width | 200 mm |
| Packing speed | 40-60 bags/min |
| Power supply | Single phase, 220V, 50Hz, 3.7 kW |
| Machine weight | 600 kg |
| Machine dimension | 1200 x 900 x 1900 mm (L x W x H) |
Packing Materials It Runs
- PLA/Paper/Plastic film for compostable and biodegradable drip bags
- Plastic/Aluminum/Plastic laminate for moisture and light barrier
- Paper/Aluminum/Plastic laminate for premium retail packaging
- Filter paper for the inner coffee bag layer
How the Machine Works
- 1Film unwinding and inner bag forming
- 2Volumetric cup filling with 5 to 15 g per bag accuracy
- 3Inner bag ultrasonic sealing and cutting
- 4Outer bag forming and positioning
- 5Outer bag ultrasonic sealing with stepper motor control
- 6Bag discharge and optional nitrogen flushing
Quality Control Before Shipment
- F
- i
- l
- l
- w
- e
- i
- g
- h
- t
- c
- h
- e
- c
- k
- e
- d
- a
- g
- a
- i
- n
- s
- t
- t
- h
- e
- 5
- t
- o
- 1
- 5
- g
- r
- a
- n
- g
- e
- d
- u
- r
- i
- n
- g
- t
- e
- s
- t
- r
- u
- n
- s
- S
- e
- a
- l
- i
- n
- t
- e
- g
- r
- i
- t
- y
- i
- n
- s
- p
- e
- c
- t
- e
- d
- o
- n
- b
- o
- t
- h
- i
- n
- n
- e
- r
- a
- n
- d
- o
- u
- t
- e
- r
- b
- a
- g
- s
- b
- e
- f
- o
- r
- e
- s
- h
- i
- p
- m
- e
- n
- t
- F
- o
- o
- d
- c
- o
- n
- t
- a
- c
- t
- p
- a
- r
- t
- s
- v
- e
- r
- i
- f
- i
- e
- d
- a
- s
- S
- U
- S
- 3
- 0
- 4
- s
- t
- a
- i
- n
- l
- e
- s
- s
- s
- t
- e
- e
- l
- a
- n
- d
- n
- o
- n
- -
- t
- o
- x
- i
- c
- M
- a
- c
- h
- i
- n
- e
- t
- e
- s
- t
- e
- d
- w
- i
- t
- h
- c
- u
- s
- t
- o
- m
- e
- r
- '
- s
- c
- o
- f
- f
- e
- e
- a
- n
- d
- f
- i
- l
- m
- b
- e
- f
- o
- r
- e
- d
- i
- s
- p
- a
- t
- c
- h
- o
- n
- r
- e
- q
- u
- e
- s
- t
Certifications
- ISO
- CE
Customization Options
- Choice of inner and outer bag size within the specified range for L and W dimensions
- Option to add flat cut, date printer, or easy tear device as needed
- Reserved connector for nitrogen flushing system, ready for integration
- Power supply configured to 220V 50Hz single phase, or adjusted for destination market on request
How It Compares
| Manual inner and outer bag packing | The C19D replaces a hand-filling team and ensures consistent fill weight and seal alignment, but requires a fixed floor space of 1200 x 900 mm and trained operator |
|---|---|
| Heat-sealed drip bag machine | Ultrasonic sealing avoids film scorching and maintains a narrow seal edge, but requires an air supply and stepper motor control |
| Single-layer coffee bag machine | The C19D produces both inner and outer bags in one line, improving efficiency, but requires more setup time for dual film handling |
Use Guide
- 1Connect a clean dry air supply and single phase 220V 50Hz power outlet
- 2Load the inner and outer film rolls matching the 180 mm and 200 mm widths
- 3Set the inner and outer bag size within the 50-75 mm and 85-120 mm length range
- 4Enter target fill weight between 5 and 15 g and calibrate the volumetric cup with your coffee
- 5Run ten sample bags and check fill weight, seal integrity, and bag length before batch start
- 6Use the reserved connector to link with a nitrogen flushing system if shelf life extension is required
C19D Drip Bag Coatepec Coffee Filter Ecofriendly Machine FAQ
What is the fill weight range for the C19D?
5 to 15 grams per bag, with consistent accuracy using the volumetric cup filler.
How fast does it run?
40 to 60 bags per minute, depending on bag size, fill weight, and coffee flow rate.
Can it run compostable films like PLA?
Yes. It runs PLA/Paper/Plastic, Paper/Aluminum/Plastic, and other eco-friendly films.
Is nitrogen flushing possible?
Yes. The machine has a reserved connector to link with a nitrogen making machine for flushing.
What power supply does it need?
Single phase 220V 50Hz, 3.7 kW. We can adjust the voltage and plug type for your destination market.
What floor space and lifting access do I need?
The machine measures 1200 x 900 x 1900 mm and weighs 600 kg, so plan for forklift access and doorway clearance.
Does it have a date printer or easy tear feature?
Yes. These are optional devices that can be added during setup.
