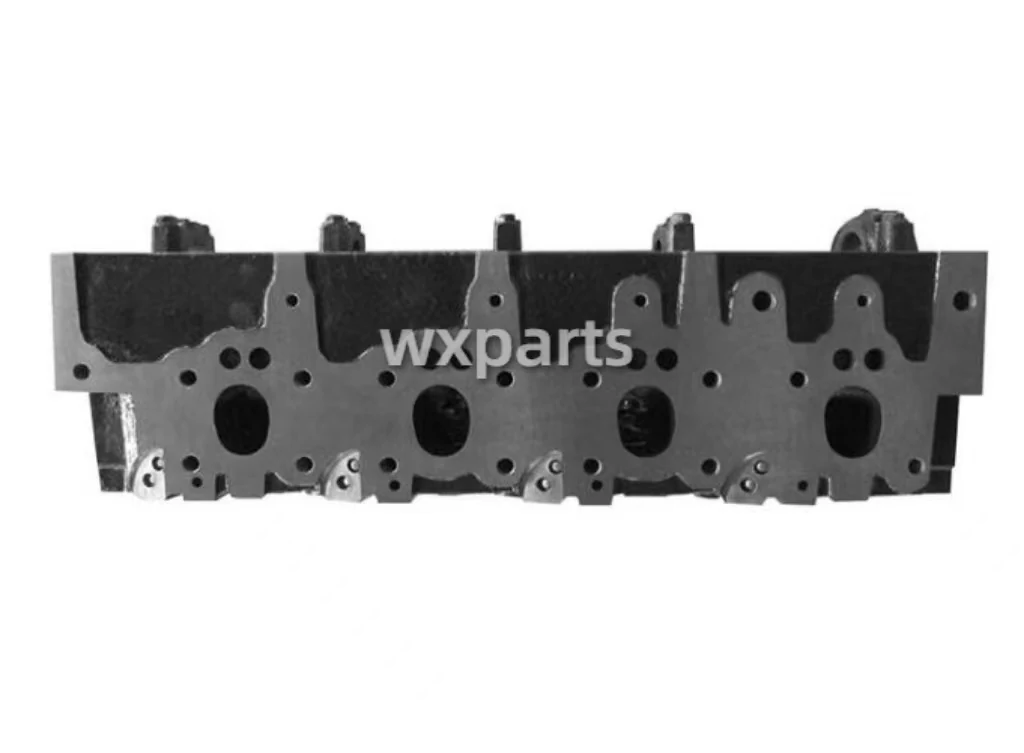

Toyota Hilux 3L Cylinder Head 11101-54131
Toyota Hilux 3L Cylinder Head 11101-54131 is supplied against OEM reference 11101-54131 for Toyota Hilux.
Cylinder Head for Toyota Hilux
Toyota Hilux 3L Cylinder Head 11101-54131 is supplied against OEM reference 11101-54131 for Toyota Hilux. It belongs to engine parts. The function of the cylinder head is to seal the cylinder, form a combustion space with the piston, and withstand high temperature and high pressure gas. Our cylinder heads have sufficient strength and rigidity to ensure cylinder sealing, withstand gas forces caused by mechanical loads and withstand very high thermal loads due to contact with high temperature gases. The minimum order is one piece, packed neutral or under your own brand, with ISO9001 certification.
- OEM 11101-54131
- Category: Engine System Parts
- ISO9001
- MOQ 1 piece
What You Get With This Reference
- One piece can be ordered first to check fitment before a workshop commits to a container
- Listed against OEM reference 11101-54131 so the part is confirmed before it is packed
- Replaces a cracked or over-skimmed head instead of forcing a full engine change
Why Buyers Order It
- Heads sold without a clear casting or OEM reference often arrive with the wrong valve angle or port layout
- A head that has been skimmed too many times can no longer be reused, and a replacement is the only way to keep the engine in service
- Dealer lead times on diesel heads are long, which keeps a truck or pickup off the road
- Finding this reference for Toyota Hilux locally often means a long wait or a used part of unknown history.
Where This Part Is Used and Who Buys It
Application Scenarios
- Stocking fast-moving diesel heads for a workshop that rebuilds engines locally
- Rebuilding a light truck engine after an overheating failure
- Keeping a pickup fleet running when the original head is cracked between the valve seats
Who It Is For
- Fleet workshops maintaining Toyota Hilux
- Machine shops rebuilding diesel engines locally
- Aftermarket parts distributors building a pickup and light truck range
- Traders consolidating mixed parts orders from Yiwu
Technical Data From the Product Record
| OEM No. | 11101-54131 |
|---|---|
| Engine | 3L |
| Matched Model | Toyota Hilux |
| Place of Origin | China |
| MOQ | 1 Pc |
| Shelf Life | 1 Year |
| Certification | ISO9001 |
| Packing | Neutral or custom packaging |
Only values recorded against this reference are listed. Send the number from your old part if you need a dimension that is not shown.
What the Part Is Built To Do
- Casting matched to the listed engine family
- Supplied bare unless a complete assembly is agreed in writing
- Engine: 3L
- Machined deck face for gasket sealing
- Valve guide and seat bores finished to accept standard service parts
Symptoms That Point Here
- White exhaust smoke and coolant loss with no visible external leak
- Bubbles in the radiator or a pressurised cooling system on a cold start
- Compression dropping on one cylinder after an overheating event
- Oil and coolant mixing into a milky residue under the filler cap
How It Compares With the Alternatives
Compared with a skimmed second-hand head
A used head has already lost deck height and its remaining service life is unknown, while a replacement head starts from full deck thickness.
Compared with a complete replacement engine
Changing the head keeps the original block, mounts and ancillaries in place and costs a fraction of an engine swap.
Fitting and Service Notes
- Check block deck flatness before fitting a new head; a warped block will distort a good head.
- Torque the head bolts in the sequence and stages given in the workshop manual, and re-check valve clearance after the first heat cycle.
- Confirm the engine code stamped on the block, not only the vehicle model, before ordering.
- Replace the head gasket, head bolts and any stretched studs at the same time.
