4 inch grommet-mount round lamp, SMD 2535 7 LED

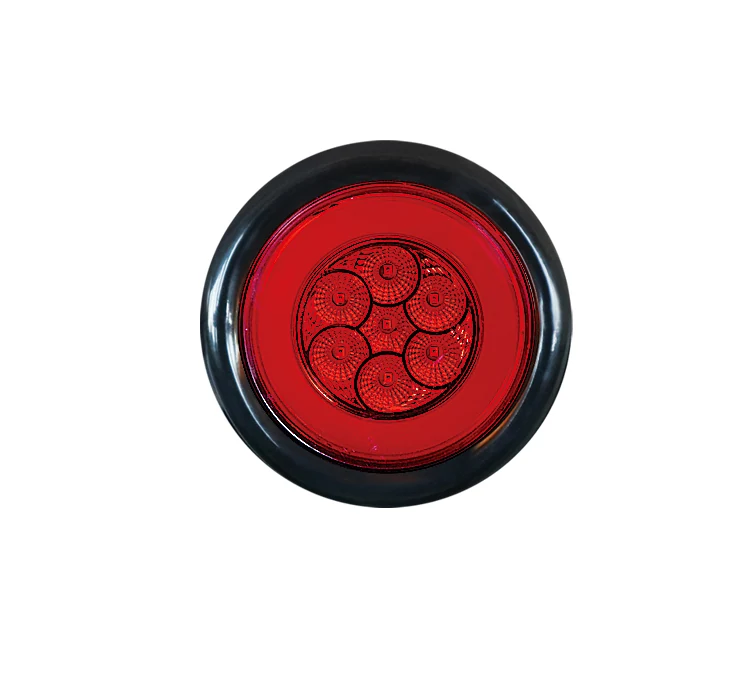

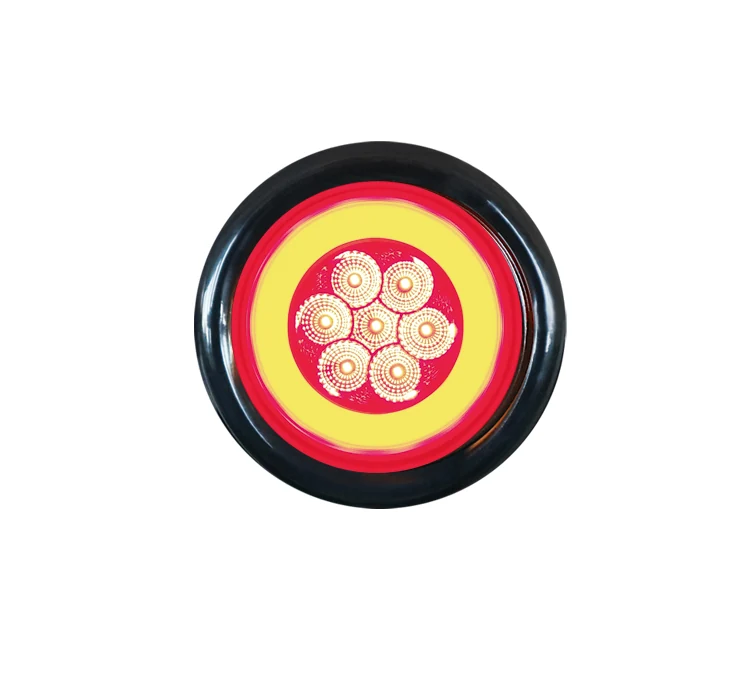

The baseline 4 inch round lamp of the range: seven SMD 2535 diodes behind an engineered lens, dropped into a rubber grommet so the lamp floats clear of panel vibration. It covers stop, tail and turn on a 4 inch aperture that most trailer builders already cut.
Trailer builders and parts distributors who move 4 inch round lamps in volume and want the plain, lowest-diode-count version.
PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Stop, Tail, Turn |
| Mounting Type | Rubber Grommet |
| Light Size | 4” |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | 4 Inch Round LED Stop Turn Tail Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
Grommet-mount lamps are aged on the test rack and checked for output and colour before packing; each batch is 100% inspected before delivery.
Lowest diode count in the 4 inch family — step up to the 9LED or 14LED versions for more output, or the F3 Piranha versions for the sealed 3-pin plug.
Fit the grommet into the 4 inch aperture first, then press the lamp home
Use the matching plug rather than cutting into the lamp lead
Check stop, tail and turn separately after wiring
SMD 2535, seven per lamp.
The lamp is specified as grommet mount; grommet supply is confirmed on order.
Yes, the source specification lists DOT approval with STI lens marking.
100 pcs for stock orders.
Yes, logo printing and private labelling are available.
