Audio Mixers · F7-USB

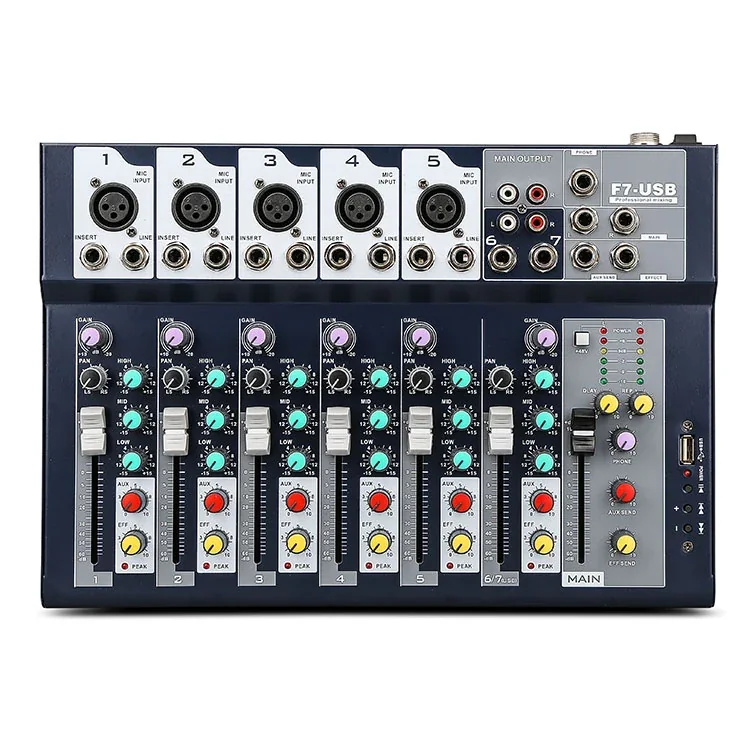

F7-USB 7-Input Compact Stereo Mixer With Effects
Seven inputs with effects and published bench figures at 29 USD — the value point of the range.
Price excludes shipping. Freight is quoted for your destination once quantity is confirmed.
Product Overview
The F7-USB is the model that does the most for the least. Seven inputs cover a small band or a presentation rig, effects are on board, and unlike most desks at this price the specification is published: 20 Hz to 25 kHz within +/-1 dB, 0 to +40 dB of microphone gain, 120 dB E.I.N., and three EQ bands at defined centre frequencies. At 29 USD with a hundred-piece minimum it is the obvious volume line for a distributor who still wants numbers on the box.
Problems It Solves
Buyers at this price are usually forced to choose between a cheap desk with no published data and a documented desk at twice the money. The F7-USB is documented at the cheap price.
Who It Is For
Distributors who need a high-volume entry model that still survives a technical question, and brand owners filling the sub-30-dollar slot in a catalogue.
Key Benefits
Why Buyers Choose the F7-USB
Seven inputs at the value price
Three more inputs than the F4-USB for eight dollars more.
Published bench figures
Frequency response, gain range, signal-to-noise and EQ centre frequencies are all stated.
On-board effects
A vocal can be treated without an outboard unit.
48V phantom power
Condenser microphones work without an external supply.
Compact stereo format
Small enough for a desk or a shallow case but still a stereo console.
Technical Features
- Seven inputs
- 48V phantom power
- On-board effects
- USB connectivity
- Three-band EQ at 80 Hz, 2500 Hz and 12 kHz
- Electronically balanced mic and line inputs
Application Scenarios
- Small live venues and bars
- School and community hall PA
- Rehearsal rooms
- Home and project studios
- Portable presentation rigs
Specifications
Published Specification for the F7-USB
All figures above are published by the factory on the F7-USB product listing.
| Parameter | Value |
|---|---|
| Mic input | Electronically balanced, discrete input configuration |
| Mic frequency response | 20 Hz to 25 kHz, +/-1 dB |
| Mic gain range | 0 dB to +40 dB |
| Mic signal to noise | 120 dB E.I.N. |
| Line input | Electronically balanced |
| Line frequency response | 20 Hz to 25 kHz, +/-1 dB |
| Line gain range | -20 dB to +20 dB |
| Line signal to noise | 95 dB |
| Stereo channel response | 20 Hz to 25 kHz, +/-1 dB |
| Stereo gain range | Line -20 dB to +10 dB |
| Stereo signal to noise | Line 95 dB |
| EQ low | 80 Hz, +/-15 dB |
| EQ mid | 2500 Hz, +/-15 dB |
| EQ high | 12 kHz, +/-15 dB |
Manufacturing and Quality
How This Desk Is Built and Checked
The F7-USB is assembled in Enping using surface-mount technology, in the same plant that builds our wireless systems. The factory's instrumentation includes Motorola high-frequency wireless testing instruments, an HP high-frequency signal source, Fourier analysers and frequency sweep instruments.
Factory audit is acceptable for buyers who need to verify the process in person.
TBC Certification marks such as CE and RoHS are not published on the factory catalogue for this model. Confirm the certification you need on your enquiry before ordering.
Customisation Options
- Own-brand silkscreen and logo
- Retail and export packaging to your artwork
- Mains version built for the destination market
- Bundled kits with microphones from our own range
Compared With Our Other Models
The F7-USB and the F4-USB share the same published bench specification; the F7-USB adds three inputs and effects for eight dollars. Step up to the CT-80S at 44 USD for an eighth input, tighter +/-0.5 dB channels and published output and headphone figures.
Use Guide
- Set gain with the channel at working level, aiming just below clipping on the loudest passage.
- Treat the three EQ bands as cuts first — 80 Hz down will clear more mud than 12 kHz up will add air.
- Apply effects to vocal channels only and leave spoken word dry.
- Use balanced connections on longer cable runs; the mic and line inputs are electronically balanced.
- Leave headroom on the main fader so the mix can be lifted without re-gaining every channel.
Related Industries
Related Guides
FAQ
F7-USB — Frequently Asked Questions
What is the frequency response?
20 Hz to 25 kHz within +/-1 dB on the mic, line and stereo channels.
What is the microphone gain range and noise figure?
0 dB to +40 dB of gain with a 120 dB E.I.N. signal-to-noise figure. Line inputs run -20 dB to +20 dB at 95 dB.
Where are the EQ bands centred?
80 Hz low, 2500 Hz mid and 12 kHz high, each with +/-15 dB of range.
What is the price and minimum order?
29.00 USD per piece at a minimum order of one hundred pieces, excluding shipping.
How does it differ from the F4-USB?
Same published bench specification, three more inputs and on-board effects, for eight dollars more per piece.
