Solar Power System 5KW-100KW

10KW Home Solar System All-in-One PV Off Grid Kit with Solar Power Equipment

10KW Complete Home Solar System Off Grid Type (Solar in Priority/Grid-connected) With Lithium/Lead Acid Battery as Backup Powered by Solar Panels

Request A Quote Email Us

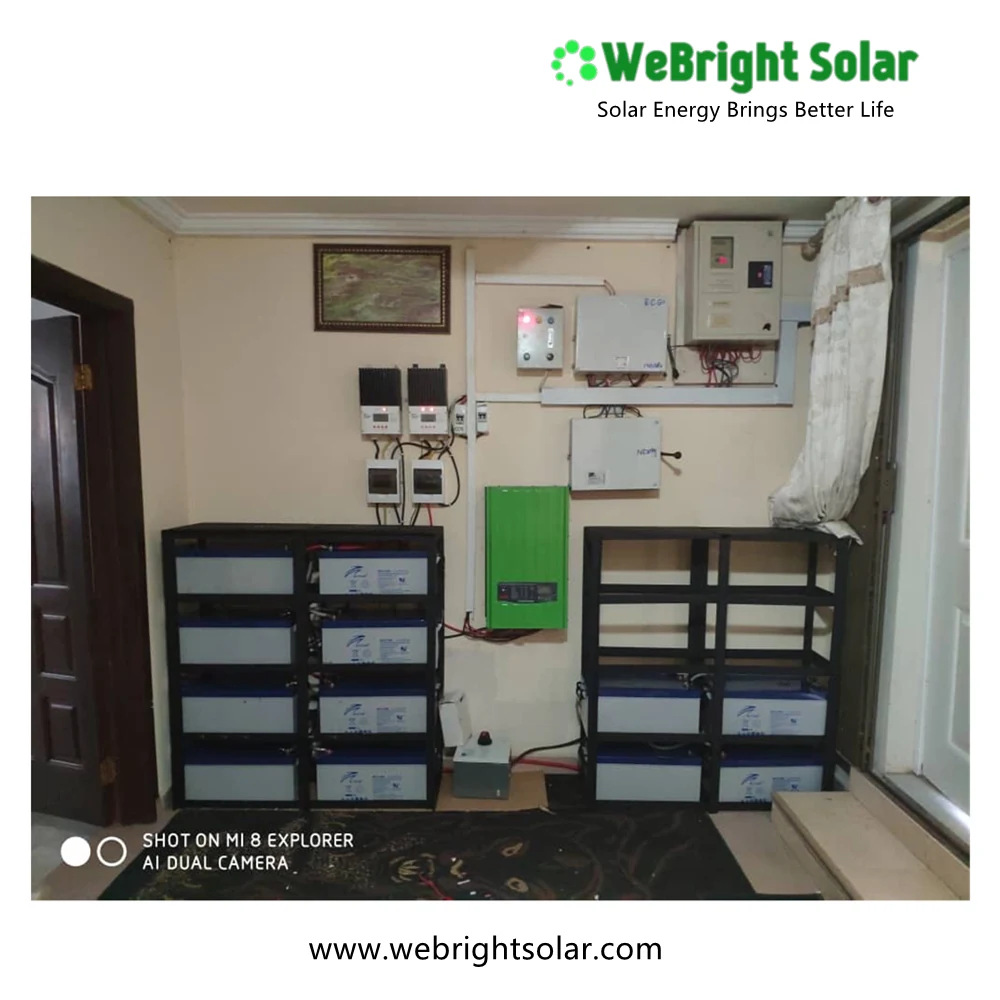

Wall-mounted solar inverter and charge controllers above two racks of batteries in an indoor room.

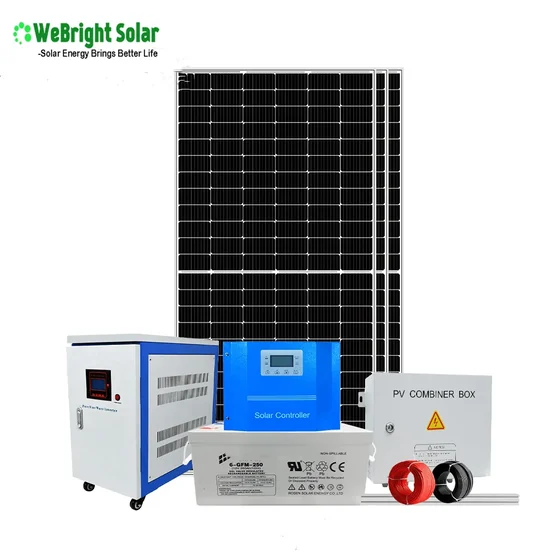

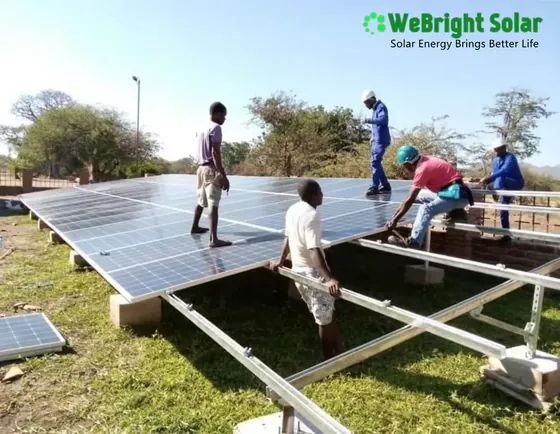

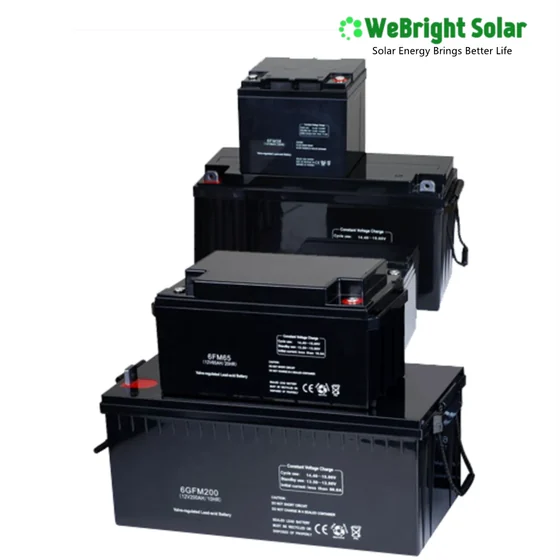

Composite image of solar panel, inverter, controller, battery, and combiner box with a company logo.Five men installing solar panels onto a metal mounting frame outdoors.A pallet stacked with solar panels, separated by cardboard dividers and wrapped in protective film.A stack of four black rectangular lead-acid batteries of varying sizes on a white background.White smart PV combiner box with yellow warning symbol and bottom connection ports.Coiled red and black solar cables with MC4 connectors on a white background.
Product Overview

What This Product Is

A 10KW off-grid solar kit for a home that has no grid connection or cannot rely on the one it has. It ships as a matched set: 32 pieces of 350W poly or mono modules, two 48V 80A MPPT or PWM charge controllers, a 10KW 48Vdc off-grid inverter, a 16-piece 12V 250Ah GEL or AGM battery bank, with the combiner box, mounting structure, cable, connectors and tool bag already in the box. The battery voltage, controller and inverter are chosen to work together, so the installer commissions the system instead of proving component compatibility on site.

Key Benefits

What You Get

  • Runs a small home entirely on stored solar energy with no grid connection required
  • Panel string voltage matched to the 48Vdc inverter and controller before shipment
  • Battery bank sized at 16 pieces of 12V 250Ah so capacity is adjustable at order stage
  • Two combiner boxes with switches breaker and SPD supplied instead of sourced separately
  • Installation tool bag with MC4 spanner, crimping pliers and wire stripper included
Who It Is For

Buyers and Sites

  • Solar installers building complete residential systems from one delivery
  • Importers and wholesalers supplying off-grid households in unstable-grid markets
  • Small families and couples with average household power use
  • Homeowners in small houses who want a battery-backed supply rather than panels alone
Application Scenarios

Where It Is Installed

  • Detached houses in areas with no utility connection at all
  • Small family homes on a weak rural feeder with daily outages
  • Holiday houses and farm dwellings that need power without a diesel generator
  • Replacement of a generator-only supply where fuel delivery is unreliable
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • Off-grid inverter rated 10KW at 48Vdc battery voltage
  • Two 48V 80A MPPT or PWM charge controllers selectable at order stage
  • Pure sine wave output suitable for motor and compressor loads
  • PV array feeds two 4-input 1-output combiner boxes with switches breaker and SPD
  • PERC modules available with PID resistance and high salt and ammonia resistance
  • Mounting structure in aluminium or galvanised steel for pitched roof flat roof or ground
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power10KW
Battery Voltage48Vdc
Solar Modules32 pieces 350W poly or mono
Charge Controller2 pieces 48V 80A MPPT or PWM
Battery Bank16 pieces 12V 250Ah GEL or AGM, adjustable
Combiner Box2 pieces 4 inputs 1 output with switches breaker and SPD
PV Cable4 rolls 100m/roll single-core 4mm2 and 6mm2
Connectors40 pairs MC4, 30A 1000V compatible
Cable Rating600VDC UL or 1000VDC TUV, 55A and 70A
Module Warranty25 years at 80% power output
MountingAluminium or galvanised steel, pitched roof flat roof or ground
Tools1 bag with MC4 spanner crimping pliers and wire stripper
Materials

What It Is Made Of

  • Monocrystalline or polycrystalline silicon modules, PERC cells available
  • GEL or AGM lead-acid battery cells, lithium available on request
  • Anodised aluminium or hot-dip galvanised steel mounting rails
  • Single-core PV cable in 4mm2 and 6mm2 cross section, black standard and red optional
Manufacturing and Preparation

Before It Ships

  • Load profile review against the 10KW inverter rating
  • Array and battery bank matched to the 48Vdc bus
  • Mounting structure selected for pitched roof flat roof or ground
  • Kit assembled and function tested before packing
  • Inverter panels bracket and battery packed in wooden boxes for export
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery capacity changed between 200Ah and 250Ah or switched to lithium
  • Charge controller changed between MPPT and PWM
  • Module type changed between mono poly and PERC in blue or black
  • Mounting structure drawn to the roof or ground condition with CAD drawings
  • Inverter output set for single phase or three phase EU or US standard
Comparison

How It Compares With the Alternatives

Grid-tie solar systemWorks with no grid present, but needs a battery bank that a grid-tie system does not
Solar hybrid energy systemSimpler and cheaper, but cannot fall back to the grid when the battery is low
Buying panels inverter and battery separatelyFixed configuration and less freedom on brands, in exchange for a bus voltage that already matches
Diesel generatorNo fuel logistics and no running noise, but the battery bank is replaced after around 15 years
Use Guide

Getting It Working on Site

1

Size the daily load first, then confirm the 10KW inverter covers the largest starting load

2

Mount the array so all 32 modules share the same orientation and shading condition

3

Land the array on the combiner box before the controller, keeping the SPD earth bonded

4

Bring the battery bank to a matched state of charge before first commissioning

5

Keep the battery room ventilated and check bank voltage on a regular schedule

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Project References

Related Products

Others in Solar Power System 5KW-100KW

White and black cabinet style solar energy storage unit with green text on a white background
ESS

5kWh All in One Solar Energy Storage System for Home Use

5kWh Solar Energy Storage System Off Grid Type for Home Use All-in-One Inverter + Hybrid Inverter Power by Sol

View product →
Two large white industrial inverters mounted on a wall with cabling
Solar Power System 5KW-100KW

Residential Solar Power System 20KW Grid-tie PV Solar Energy System for Home Use

Grid-tie Type Warranty: 5-year/10-year PV Inverter Powered by Solar Panel, 25-year Warranty 10KW/20KW Complete

View product →
Digital rendering of two solar panels standing vertically against a white background.
Solar Power System 5KW-100KW

3KW 24V Solar Power System Off Grid Complete Solar Kit for Home Use

Off Grid/Stand-alone Type 3KW Complete Solar Power System One-Stop Power Supply Solution With Lithium/Lead Aci

View product →
PV combiner box and solar charge controller mounted on a wall
Solar Power System 5KW-100KW

2KW Off Grid Solar System Residential Solar Kit for Home Use

2KW Solar Power System Off Grid Kit for Home Use With Lithium/Lead Acid Battery Charging by Solar Panels

View product →
FAQ

Questions About the 10KW Home Solar System All-in-One PV Off Grid Kit with Solar Power Equipment

What size house does a 10KW off grid system suit?

It is aimed at small homes with average power use, typically small families or couples. Larger villas are usually served by the 30KW or 100KW systems instead.

Does the kit include the battery?

Yes. The standard configuration is 16 pieces of 12V 250Ah GEL or AGM battery, and the capacity is adjustable when you order.

Can I use lithium battery instead of GEL?

Yes. Lithium LiFePO4 packs can replace the lead-acid bank. Tell us the battery type before we fix the controller and inverter settings.

How long do the modules hold their output?

The modules carry a 25 year warranty at 80% power output, and are PID resistant with high salt and ammonia resistance.

Can the mounting structure be made for my roof?

Yes. Mounting is customised from CAD drawings for pitched roof, flat roof, soil or cement ground installation.

What types of batteries are compatible with this 10KW off-grid solar system?

The system supports 12V 250Ah GEL/AGM batteries and 48V 50Ah/100Ah/150Ah/200Ah Li-ion batteries. Battery type is adjustable as per configuration.
