Solar Power System 5KW-100KW

Residential Solar Power System 20KW Grid-tie PV Solar Energy System for Home Use

Grid-tie Type Warranty: 5-year/10-year PV Inverter Powered by Solar Panel, 25-year Warranty 10KW/20KW Complete Solar Power System Rresidential/Commercial Use House Electricity Bill Saving

Request A Quote Email Us

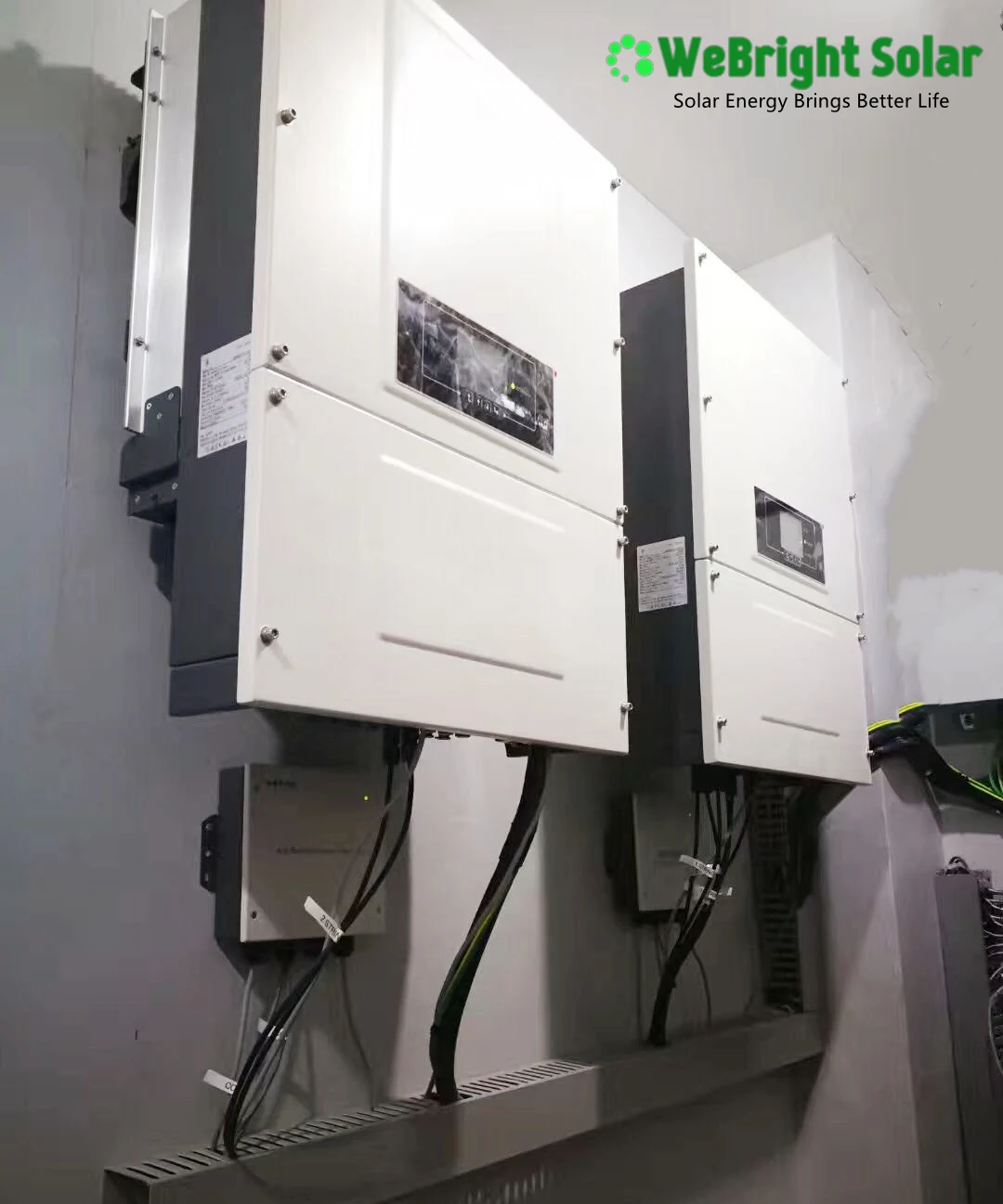

Two large white industrial inverters mounted on a wall with cabling
White solar inverter unit with a black digital display panel and connection ports on the bottom.Digital rendering of two solar panels standing vertically against a white background.3D render of a solar panel mounting structure on concrete blocks.White smart PV combiner box with yellow warning symbol and bottom connection ports.Coiled red and black solar cables with MC4 connectors on a white background.
Product Overview

What This Product Is

A 20KW grid-tie solar power system for homes with reliable grid access. It includes up to 60 pieces of 450W mono solar panels, two 10KW 3-phase grid-tie inverters, dual MPPT controllers, a 2-input 1-output combiner box with switches, breaker and SPD, mounting structure, 200 meters of 4mm2 and 6mm2 PV cable, 30 pairs of MC4 connectors, and a tool bag with installation tools. The system is designed to feed surplus power back to the grid via net metering, reducing electricity bills without requiring battery storage.

Key Benefits

What You Get

  • Reduces electricity bills by feeding surplus solar power back to the grid through net metering
  • Uses the utility grid as a virtual battery with no maintenance or replacement costs
  • No need for battery storage, simplifying system design and lowering upfront cost
  • Two 10KW 3-phase inverters provide redundancy and scalable power handling
  • Dual MPPT controllers allow independent tracking of two panel strings for maximum yield
  • Combiner box with SPD, switches and breaker included to prevent overvoltage and short circuits
Who It Is For

Buyers and Sites

  • Homeowners seeking to lower electricity bills with grid-tied solar
  • Solar installers supplying complete grid-tie systems with minimal on-site configuration
  • EPC contractors managing residential solar projects with standardised system designs
  • Importers and wholesalers supplying grid-tie systems to markets with net metering policies
  • Residential end users who want a system that works with the grid instead of replacing it
Application Scenarios

Where It Is Installed

  • Homes with stable grid access that want to reduce electricity bills through net metering
  • Homes where battery storage is not needed and grid export is allowed by local utility
  • Properties with high daytime electricity use and surplus generation during peak sun hours
  • New builds or retrofits where a complete, pre-configured solar system is preferred over component sourcing
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • Grid-tie inverter rated 10KW 3-phase, compatible with EU and US standards
  • Dual MPPT controllers with maximum input 15A per MPPT and 350V-850V DC range
  • PV array connected through a 2-input 1-output combiner box with switches, breaker and SPD
  • Solar panels available in mono or poly, blue or black, 330W to 560W, with PERC option
  • DC input voltage up to 1000V, rated at 600V for safe operation under standard conditions
  • Mounting structure customised for pitched roof, flat roof, soil or cement ground
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power20KW
Combiner Box2 inputs 1 output with switches breaker and SPD
MPPT ControllersDual MPPT, 15A per MPPT, 350V-850V input
Grid-tie Inverters2 pieces 10KW 3-phase
Mounting SupportAluminium or galvanised steel, customised for roof or ground
PV Cable200 meters single-core 4mm2 and 6mm2
Connectors30 pairs MC4, 30A 1000V compatible
Tools1 bag with MC4 spanner crimping pliers and wire stripper
Module Warranty25 years at 80% power output
Inverter Warranty5-year or 10-year, depending on model
Configuration

What Is in the Shipment

The packing list follows this table item by item.

ItemModelDescriptionQuantity
1Solar PanelsMono modules 450W OptionalMax 60 pieces
2Combiner Box2-inputs 1-output(Switches, Breaker, SPD)4 pieces
3MPPTDual MPPT, Max input 15A per MPPT, 350V-850V2 pieces
4Battery//
5Grid-tie PV Inverter10KW 3-phase2 pieces
6Mounting SupportAluminum/Galvanized steel; Customized; Pitched / flat roof, ground1 set
7CableSingle-core 4mm2 and 6mm2 PV cable200 meters
8ConnectorMC4 connector30 pairs
9Tools Bag5 kinds of PV installation tools-MC4 spanner, Crimping pliers, wire stripper1 bag
Materials

What It Is Made Of

  • Monocrystalline or polycrystalline silicon solar modules, PERC cells available
  • Anodised aluminium or hot-dip galvanised steel mounting rails
  • Single-core PV cable in 4mm2 and 6mm2 cross section, black standard
  • MC4 connectors rated 30A 1000V, compatible with PV system voltage and current
Manufacturing and Preparation

Before It Ships

  • Review the home’s daily load and grid connection capacity to confirm 20KW system suitability
  • Design panel layout and string configuration to match the 350V-850V input range of the MPPT controllers
  • Select mounting structure type based on roof pitch, flat roof, soil or cement ground
  • Assemble the system with panels, combiner box, inverters, cables and connectors before packing
  • Test inverter and controller communication and DC input readiness before shipment
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Change panel type between mono and poly, blue or black, 330W to 560W
  • Switch inverter output from single phase to three phase, EU or US standard
  • Modify mounting structure with CAD drawings for pitched roof, flat roof, soil or cement ground
  • Replace standard cable with longer length or different gauge if required
Comparison

How It Compares With the Alternatives

Off-grid solar systemNo battery bank needed, but cannot operate during grid outage
Hybrid solar systemLower cost and simpler, but cannot store energy for use when the grid is down
Buying components separatelyPre-matched voltage and current ratings reduce on-site compatibility issues
Diesel generatorNo fuel cost or noise, but only works when the grid is available
Use Guide

Getting It Working on Site

1

Confirm the grid connection can accept 20KW of export power before installation

2

Connect the two panel strings to the dual MPPT inputs to maximise yield

3

Land the combiner box output to the inverter input with proper grounding and SPD bonding

4

Verify inverter communication and grid sync before energising the system

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Project References

Related Products

Others in Solar Power System 5KW-100KW

White and black cabinet style solar energy storage unit with green text on a white background
ESS

5kWh All in One Solar Energy Storage System for Home Use

5kWh Solar Energy Storage System Off Grid Type for Home Use All-in-One Inverter + Hybrid Inverter Power by Sol

View product →
Digital rendering of two solar panels standing vertically against a white background.
Solar Power System 5KW-100KW

3KW 24V Solar Power System Off Grid Complete Solar Kit for Home Use

Off Grid/Stand-alone Type 3KW Complete Solar Power System One-Stop Power Supply Solution With Lithium/Lead Aci

View product →
PV combiner box and solar charge controller mounted on a wall
Solar Power System 5KW-100KW

2KW Off Grid Solar System Residential Solar Kit for Home Use

2KW Solar Power System Off Grid Kit for Home Use With Lithium/Lead Acid Battery Charging by Solar Panels

View product →
Open electrical cabinets containing red solar inverters and battery banks mounted on a wall.
Solar Power System 5KW-100KW

10KW Off Grid Solar System for Home Use All-in-One Solar Power System

10KW Complete Solar Energy System Off Grid Type With Lithium Battery / Lead Acid Battery Powered by Solar/Batt

View product →
FAQ

Questions About the Residential Solar Power System 20KW Grid-tie PV Solar Energy System for Home Use

What is the purpose of a 20KW grid-tie system?

It generates solar power for home use and feeds surplus electricity back to the grid, reducing electricity bills through net metering.

Does the kit include the battery?

No. This is a grid-tie system, so it does not include a battery bank. It relies on the grid as a virtual battery.

What is included in the tool bag?

The tool bag contains an MC4 spanner, crimping pliers, and a wire stripper for PV cable and connector installation.

Are the inverters single phase or three phase?

The inverters are 3-phase, suitable for residential and commercial applications with three-phase grid access.

How is the system packed for shipping?

The inverter, solar panels, mounting bracket, and other components are packed in wooden boxes for export loading.

Can the mounting structure be customised for my roof?

Yes. The mounting structure is customised based on CAD drawings for pitched roof, flat roof, soil, or cement ground installation.
