Solar Power System 5KW-100KW

2KW Off Grid Solar System Residential Solar Kit for Home Use

2KW Solar Power System Off Grid Kit for Home Use With Lithium/Lead Acid Battery Charging by Solar Panels

Request A Quote Email Us

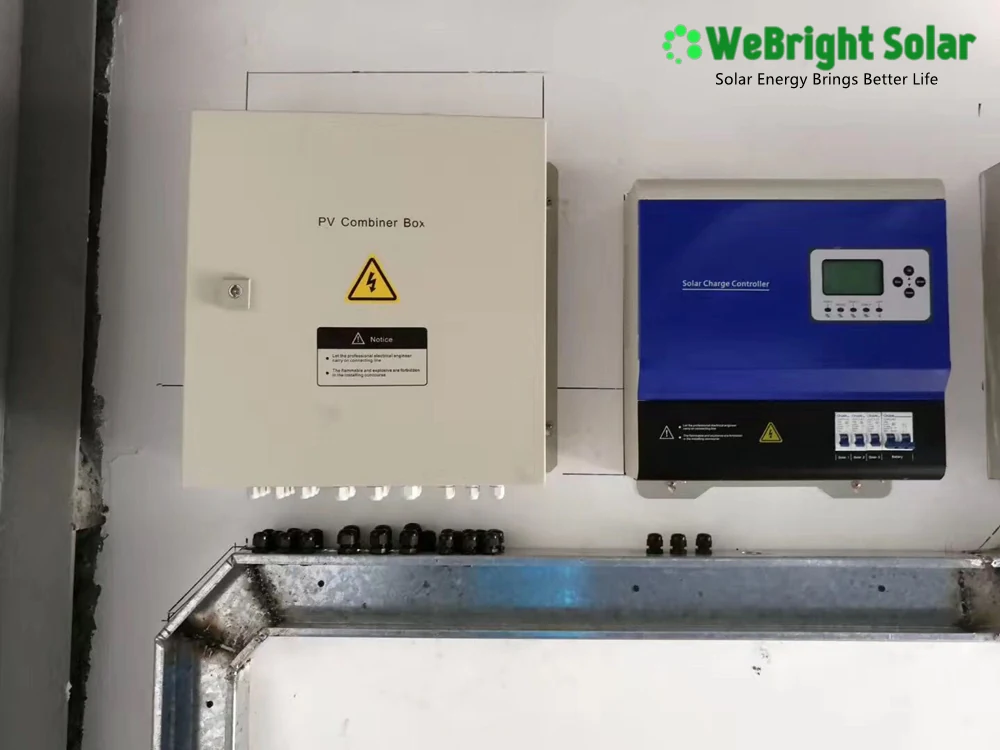

PV combiner box and solar charge controller mounted on a wall

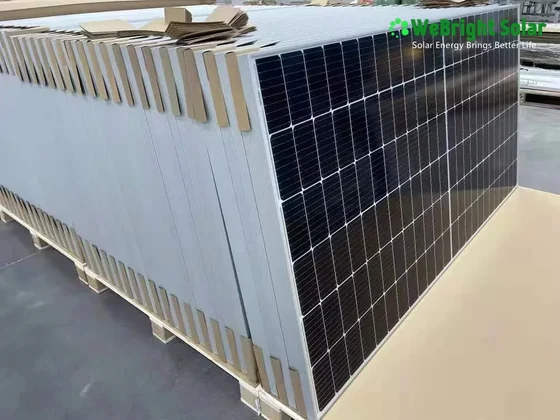

Blue solar charge controller with LCD screen and digital buttons.A pallet stacked with solar panels, separated by cardboard dividers and wrapped in protective film.
Product Overview

What This Product Is

A 2KW off-grid kit for a small home with no reliable grid connection. It ships as a matched set: 6 pieces of 350W poly or mono solar modules, a 24V 80A MPPT or PWM charge controller, a 2KW 24Vdc off-grid inverter, and a 4-piece 12V 200Ah or 250Ah GEL or AGM battery bank, with the combiner box, mounting structure, cable, connectors and tool bag already included. The battery voltage, controller and inverter are chosen to work together, so the installer commissions the system instead of proving compatibility on site.

Key Benefits

What You Get

  • Runs a small home entirely on stored solar energy with no grid connection required
  • Panel string voltage matched to the 24Vdc inverter and controller before shipment
  • Battery bank sized at 4 pieces of 12V 200Ah or 250Ah so capacity is adjustable at order stage
  • Combiner box with switches, breaker and SPD supplied instead of sourced separately
  • 200 meters of 4mm2 and 6mm2 PV cable and 5 pairs of MC4 connectors in the same shipment
  • Installation tool bag with MC4 spanner, crimping pliers and wire stripper included
Who It Is For

Buyers and Sites

  • Solar installers building complete residential systems from one delivery
  • Importers and wholesalers supplying off-grid households in unstable-grid markets
  • Small families and couples with average household power use
  • Homeowners in small houses who want a battery-backed supply rather than panels alone
Application Scenarios

Where It Is Installed

  • Detached houses in remote areas with no utility connection at all
  • Small family homes on a weak rural feeder with frequent outages
  • Holiday houses and farm dwellings that need power without a diesel generator
  • Replacement of a generator-only supply where fuel delivery is unreliable
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • Off-grid inverter rated 2KW at 24Vdc battery voltage
  • MPPT or PWM charge controller at 24V 80A selectable at order stage
  • Pure sine wave output suitable for motor and compressor loads
  • PV array feeds a 4-input 1-output combiner box with switches, breaker and SPD
  • PERC modules available with PID resistance and high salt and ammonia resistance
  • Mounting structure in aluminium or galvanised steel for pitched roof, flat roof or ground
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power2KW
Battery Voltage24Vdc
Solar Modules6 pieces 350W poly or mono
Charge Controller24V 80A MPPT or PWM
Battery Bank4 pieces 12V 200Ah or 250Ah GEL or AGM, adjustable
Combiner Box4 inputs 1 output with switches, breaker and SPD
PV Cable200 meters single-core 4mm2 and 6mm2
Connectors5 pairs MC4, 30A 1000V compatible
Cable Rating600VDC UL or 1000VDC TUV, 55A and 70A
Module Warranty25 years at 80% power output
MountingAluminium or galvanised steel, pitched roof, flat roof or ground
Tools1 bag with MC4 spanner, crimping pliers and wire stripper
Configuration

What Is in the Shipment

The packing list follows this table item by item.

ItemModelDescriptionQuantity
1Solar PanelsPoly/Mono modules 350W Optional6 pieces
2Combiner Box4-inputs 1-output(Switches, Breaker, SPD)1 piece
3Charge controller24V 80A MPPT/PWM type1 piece
4Battery12V 200Ah/250Ah GEL/AGM type（Adjustable)4 pieces
5Off-grid Inverter2KW 24Vdc1 piece
6Mounting SupportAluminum/Galvanized steel; Customized; Pitched / flat roof, ground1 set
7CableSingle-core 4mm2 and 6mm2 PV cable200 meters
8ConnectorMC4 connector5 pairs
9Tools Bag5 kinds of PV installation tools-MC4 spanner, Crimping pliers, wire stripper1 bag
Materials

What It Is Made Of

  • Monocrystalline or polycrystalline silicon modules, PERC cells available
  • GEL or AGM lead-acid battery cells, lithium available on request
  • Anodised aluminium or hot-dip galvanised steel mounting rails
  • Single-core PV cable in 4mm2 and 6mm2 cross section, black standard and red optional
Manufacturing and Preparation

Before It Ships

  • Load profile review against the 2KW inverter rating
  • Array and battery bank matched to the 24Vdc bus
  • Mounting structure selected for pitched roof, flat roof or ground
  • Kit assembled and function tested before packing
  • Inverter, panels, mounting bracket and battery packed in wooden boxes for export
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery capacity changed between 200Ah and 250Ah or switched to lithium
  • Charge controller changed between MPPT and PWM
  • Module type changed between mono, poly and PERC in blue or black
  • Mounting structure drawn to the roof or ground condition with CAD drawings
  • Inverter output set for single phase or three phase EU or US standard
Comparison

How It Compares With the Alternatives

Grid-tie solar systemWorks with no grid present, but needs a battery bank that a grid-tie system does not
Solar hybrid energy systemSimpler and cheaper, but cannot fall back to the grid when the battery is low
Buying panels, inverter and battery separatelyFixed configuration and less freedom on brands, in exchange for a bus voltage that already matches
Diesel generatorNo fuel logistics and no running noise, but the battery bank is replaced after around 15 years
Use Guide

Getting It Working on Site

1

Size the daily load first, then confirm the 2KW inverter covers the largest starting load

2

Mount the array so all 6 modules share the same orientation and shading condition

3

Land the array on the combiner box before the controller, keeping the SPD earth bonded

4

Bring the battery bank to a matched state of charge before first commissioning

5

Keep the battery room ventilated and check bank voltage on a regular schedule

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Project References

Related Products

Others in Solar Power System 5KW-100KW

White and black cabinet style solar energy storage unit with green text on a white background
ESS

5kWh All in One Solar Energy Storage System for Home Use

5kWh Solar Energy Storage System Off Grid Type for Home Use All-in-One Inverter + Hybrid Inverter Power by Sol

View product →
Two large white industrial inverters mounted on a wall with cabling
Solar Power System 5KW-100KW

Residential Solar Power System 20KW Grid-tie PV Solar Energy System for Home Use

Grid-tie Type Warranty: 5-year/10-year PV Inverter Powered by Solar Panel, 25-year Warranty 10KW/20KW Complete

View product →
Digital rendering of two solar panels standing vertically against a white background.
Solar Power System 5KW-100KW

3KW 24V Solar Power System Off Grid Complete Solar Kit for Home Use

Off Grid/Stand-alone Type 3KW Complete Solar Power System One-Stop Power Supply Solution With Lithium/Lead Aci

View product →
Open electrical cabinets containing red solar inverters and battery banks mounted on a wall.
Solar Power System 5KW-100KW

10KW Off Grid Solar System for Home Use All-in-One Solar Power System

10KW Complete Solar Energy System Off Grid Type With Lithium Battery / Lead Acid Battery Powered by Solar/Batt

View product →
FAQ

Questions About the 2KW Off Grid Solar System Residential Solar Kit for Home Use

Does the kit include the battery?

Yes. The standard configuration is 4 pieces of 12V 200Ah or 250Ah GEL or AGM battery, and the capacity is adjustable when you order.

What is included besides the main components?

A 4-input combiner box, 200 meters of 4mm2 and 6mm2 PV cable, 5 pairs of MC4 connectors, the mounting structure and a tool bag with MC4 spanner, crimping pliers and wire stripper.

Can the 2KW off grid solar system be used with both lithium and lead-acid batteries?

Yes, the system supports both lithium LiFePO4 and lead-acid GEL/AGM batteries. Battery type must be specified to adjust controller and inverter settings accordingly.

What types of solar panels are available for this off-grid kit?

The kit offers optional poly or mono blue/black panels with high efficiency and PERC technology, including PID-resistant panels with high salt and ammonia resistance.

Is the inverter compatible with both single-phase and three-phase power systems?

Yes, the 2KW off-grid inverter supports both single-phase and three-phase output with input voltage ranging from 12V to 1000V.

What is the maximum input voltage and current rating for the PV combiner box?

The PV combiner box is rated for 1000VDC and 70A, with 4 inputs and 1 output, including switches, breaker, and SPD for surge protection.

Request a Quote for the 2KW Off Grid Solar System Residential Solar Kit for Home Use

Send your load list or drawing on WhatsApp or by email and an engineer will reply with pricing, the configuration and the packing details.
