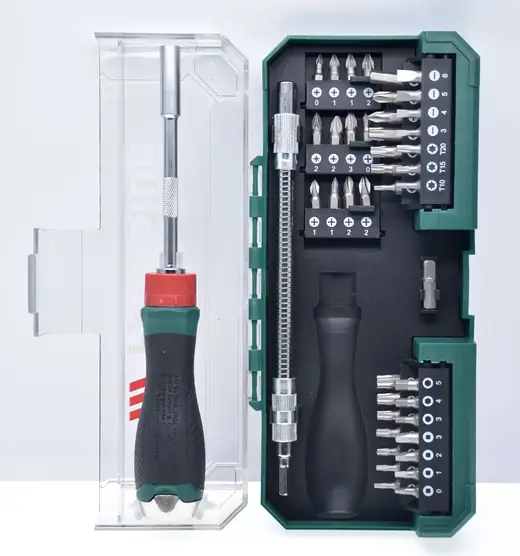

43pcs Ratchet Screwdriver Bit Set - view 2

Screwdriver Bit and Socket Sets · Item No 65181

43pcs Ratchet Screwdriver Bit Set

Name: 43pcs Ratchet Screwdriver Bit Set
Brand: Umax Tools
SKU: 65181

Ratchet Handle With Flexible Shaft and 40 Chrome Vanadium Bits

The 43pcs Ratchet Screwdriver Bit Set pairs a 235mm 45-tooth ratchet handle with 40 sandblasted CRV bits and a 210mm flexible hose, so one tool covers slotted, Phillips, Pozidriv, Torx, security Torx, hex and square fasteners. The ratchet delivers 15Nm of torque and the flexible shaft reaches fasteners a straight driver cannot. Everything ships in a PP case with a PET cover, which keeps the assortment intact on a retail shelf and after the first job.

Request A Quote Email About This Item

Key Benefits

Why Buyers Choose This Item

One handle replaces a drawer of single drivers, which cuts the number of SKUs a buyer has to stock
45-tooth ratchet works in a 8 degree swing, so fasteners in a recess can still be turned
Sandblasted CRV bits hold their edge better than plated pressed bits on Torx and Pozidriv heads
The 210mm flexible hose reaches behind panels and inside cabinets without removing the assembly

Problems It Solves

Loose bits get lost between jobs when they are not held in a fitted case
Fixed-length drivers cannot reach fasteners set behind a panel or inside a cabinet
Mixed-quality bits round out Torx and Pozidriv heads and cause warranty complaints

Application

Where It Is Used and Who It Is For

Application Scenarios

Furniture and flat-pack assembly where the same driver meets PH, PZ and hex fasteners in one build
Appliance and electronics service where security Torx with holes is needed
General household maintenance sold through a supermarket tool aisle

Who It Is For

Supermarket buyers building an own-brand screwdriver programme
Hardware importers who need one ratchet set to anchor a bit assortment
Maintenance crews that want a single case instead of loose bits

Technical Features

What Is Built Into This Product

Ratchet handle 235mm total length with 126mm and 36.5mm handle diameters
45-tooth ratchet mechanism rated at 15Nm
Connector 110mm x 7.5mm diameter and flexible hose 210mm x 13mm diameter
25mm square bead joint accepts all 25mm bits in the set
40 bits in CRV with a sandblasted surface finish

Specifications

Published Specification For Item 65181

Item No	65181
Pieces	43
Handle Length	235 mm
Ratchet Teeth	45
Torque	15 Nm
Flexible Hose	210 mm x 13 mm dia
Connector	110 mm x 7.5 mm dia
Bit Length	25 mm
Bit Material	CRV, sandblasted
Bit Assortment	7pcs PH0-PH3, 7pcs PZ0-PZ3, 7pcs Torx T8-T40, 7pcs holed Torx T8-T40, 4pcs hex H3-H6, 4pcs slotted 3.0x0.6 to 6.0x1.0, 4pcs square S0-S3
Case	PP box with PP and TPR handle, PET cover

Materials

Chrome vanadium bits
PP case with PP and TPR handle
PET cover

Manufacturing and Packing Steps

Bit forming and heat treatment
Sandblasting
Ratchet assembly and torque check
Case packing

Quality and Customisation

How This Item Is Quoted and Confirmed

Quality Control

Specifications are quoted against item number 65181
Samples are confirmed before the main order
Packing format and carton quantity are agreed in writing before production
Any change to a specification is re-confirmed before production starts

Customisation Options

Bit assortment can be quoted to a buyer specification
Case colour and insert layout to be confirmed per order

Comparison with other options
Loose bit set without a ratchet handle	The set arrives ready to work, so the buyer does not have to add a separate driver line to the same order
Fixed screwdriver set of the same piece count	The ratchet and flexible shaft cover recessed and offset fasteners that a fixed driver cannot reach

Use Guide

Getting the Best From This Tool

Push the bit into the 25mm bead joint until it clicks before applying torque
Use the flexible hose for access only, then finish tightening with the rigid connector
Return each bit to its moulded slot so the assortment stays complete

FAQ

Questions About 43pcs Ratchet Screwdriver Bit Set

What torque can the ratchet handle take

The ratchet is rated at 15Nm. For higher torque use a socket wrench rather than a bit driver.

Are the bits 1/4 inch hex

The bits are 25mm long and fit the 25mm square bead joint supplied with this set.

Can the bit assortment be changed for our market

Yes, the mix of PH, PZ, Torx, hex and square bits can be quoted to your specification. Send the list you need on WhatsApp and we will confirm.
