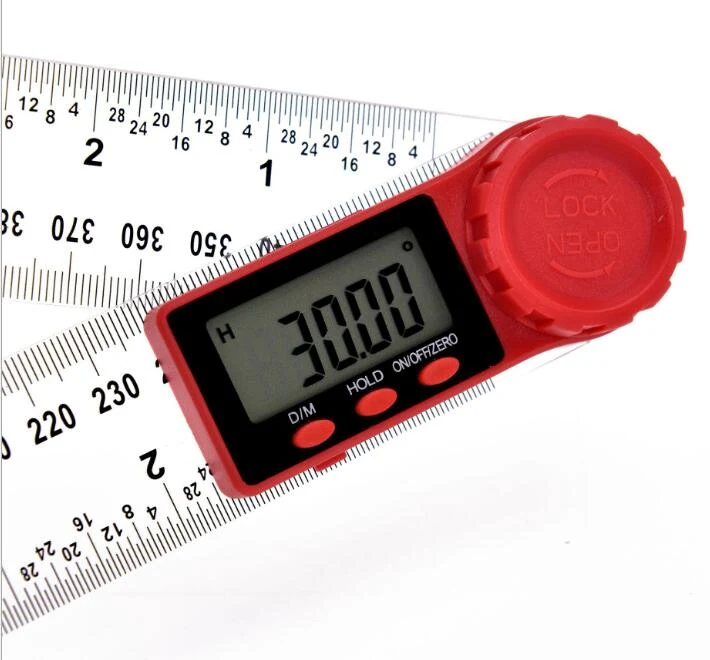

200mm Angle Finder With Ruler

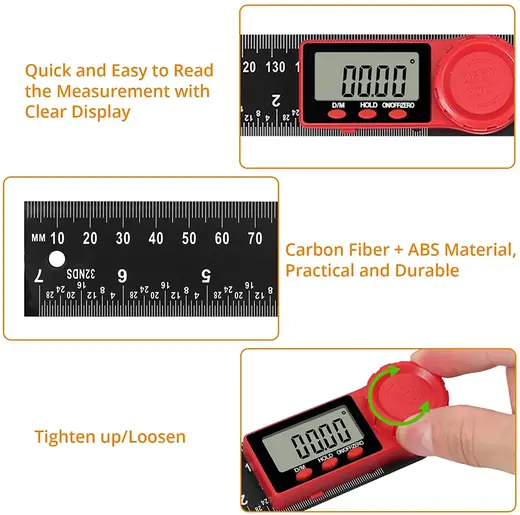

200mm Angle Finder With Ruler - view 2

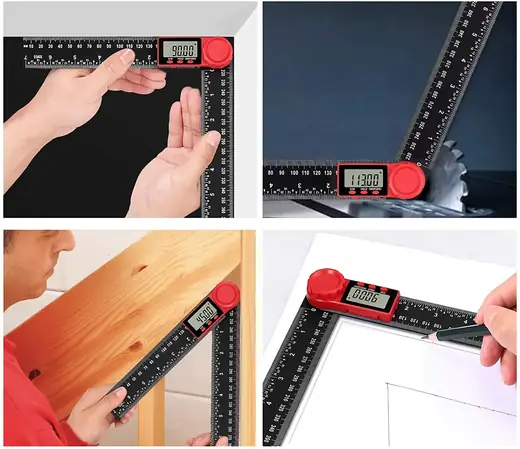

200mm Angle Finder With Ruler - view 3

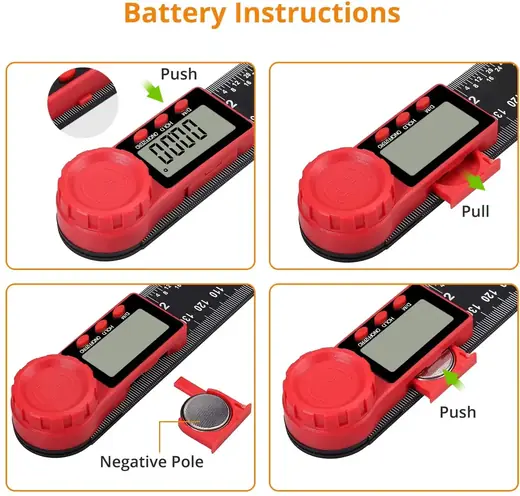

200mm Angle Finder With Ruler - view 4
Measuring and Layout Tools · Item No 52398

200mm Angle Finder With Ruler

Digital Protractor and Ruler Reading 0-360 Degrees at 0.05 Resolution

A two-in-one digital ruler and protractor that measures 0 to 360 degrees at 0.05 degree resolution and doubles as a 200mm rule. The nylon glass fibre body carries a locking screw to hold an angle, hold and zero functions, and a 3V button cell with auto power off. It is CE and RoHS approved.

Request A Quote Email About This Item
Key Benefits

Why Buyers Choose This Item

  • Reads an existing angle directly instead of transferring it with a bevel
  • Locking screw holds the angle so it can be carried to the saw
  • Hold and zeroing functions allow a relative angle to be measured from any face
  • Auto power off protects the button cell between measurements

Problems It Solves

  • Walls are rarely square, so a fixed square gives the wrong cut
  • A sliding bevel loses its setting on the way to the saw
  • Reading a printed protractor scale by eye introduces error
Application

Where It Is Used and Who It Is For

Application Scenarios

  • Cutting skirting and architrave to a wall angle that is not 90 degrees
  • Setting a mitre saw from an existing corner
  • Checking angles on fabricated steelwork

Who It Is For

  • Importers supplying builders merchants and tool retail
  • Carpenters and shopfitters
  • Fabricators setting up cuts
Technical Features

What Is Built Into This Product

Specifications

Published Specification For Item 52398

Item No52398
Item TypeProtractor and ruler
Measurement Range0-360 degrees
Resolution0.05 degrees
Measure Range0-200 mm (0-300 mm optional)
MaterialNylon glass fibre
ColourBlack and red
Ruler Width35 mm
Ruler Thickness1.9 mm
Power3V button cell, included
ApprovalsCE, RoHS

Materials

  • Nylon glass fibre

Manufacturing and Packing Steps

  1. Body moulding
  2. Electronics assembly
  3. Calibration
  4. Packing
Quality and Customisation

How This Item Is Quoted and Confirmed

Quality Control

  • Specifications are quoted against item number 52398
  • Samples are confirmed before the main order
  • Packing format and carton quantity are agreed in writing before production
  • Any change to a specification is re-confirmed before production starts

Customisation Options

  • 200mm or 300mm ruler length, confirmed per order
Comparison with other options
A sliding bevelThe digital display gives a number that can be dialled into a saw, a bevel only transfers the angle physically
Use Guide

Getting the Best From This Tool

  1. Zero the tool on a known flat face before taking a relative angle
  2. Tighten the locking screw before moving the tool from the work to the saw
  3. Remove the cell if the tool is stored unused for a long period
Industries

Industries That Buy This Item

Construction and Finishing Trades

Walls and floors are rarely true, so cuts have to be taken from the surface itself

FAQ

Questions About 200mm Angle Finder With Ruler

What is the resolution
0.05 degrees over a 0 to 360 degree range.
Is a battery included
Yes, a 3V button cell is supplied and the unit powers off automatically.
Is a 300mm version available
The measure range is 0-200mm with 0-300mm optional. Confirm the length with us when you order.
Related Products

Other Items In Measuring and Layout Tools

75cm Multi Function Alum Level
Measuring and Layout Tools

75cm Multi Function Alum Level

Item No 53541

Request a Quotation For 200mm Angle Finder With Ruler

Tell us the quantity and destination market. We reply with price, packing options and carton quantity against item number 52398.
