  3. 230V Wireless 868Mhz 6W Weekly Programmable Heating Digital RF Thermostat for Boiler

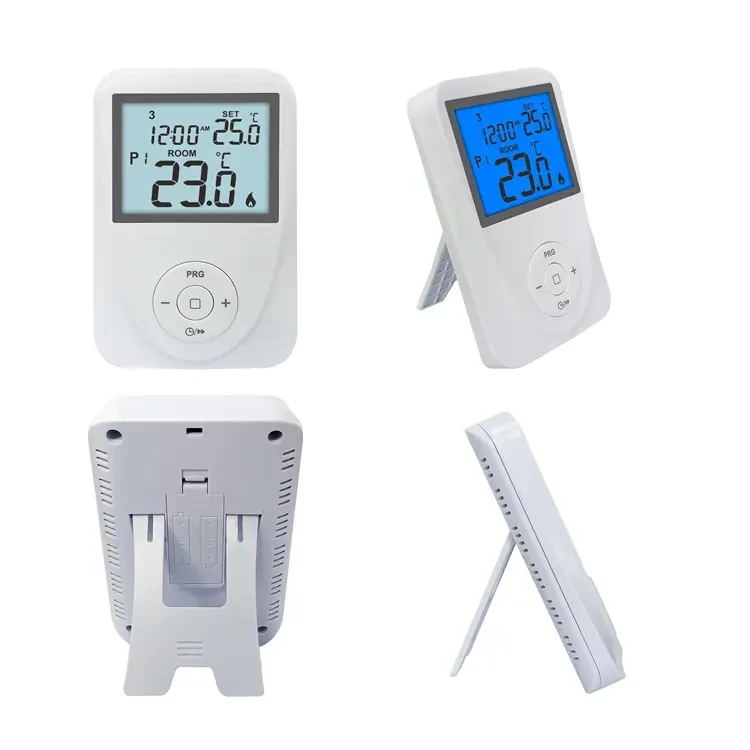

ST2602RF 868MHz wireless weekly programmable boiler thermostat
Premier Thermostat 230V Premier Thermostat Gas Boiler Thermostat Programmable Thermostat

230V Wireless 868Mhz 6W Weekly Programmable Heating Digital RF Thermostat for Boiler

ST2602RF is the wireless version of ST2602, part of the Premier range. It links on 868 MHz and draws 6W at the receiver, running 7 day, 5/2 day and 24 hour programmes with six time and six temperature steps per day. Holiday mode holds a lower temperature during long absences, switching sensitivity is adjustable, and the unit ships with a factory pre-set programme.

Request A Quote Email For A Datasheet

Key Benefits

  • Wireless programming with six steps per day, which most RF pairs do not offer
  • Holiday mode holds a lower temperature without erasing the programme
  • Factory pre-set programme means the unit works from the moment it is bound
  • Adjustable switching sensitivity suits slow responding heating systems
  • Premier range build with anti-flammable PC and ABS housing

Problems It Solves

  • Wireless stats limited to a single setpoint or two periods
  • Empty properties heated at full setpoint or not at all
  • Cable routes blocked in finished buildings
  • Installers programming every unit from scratch on site

Who It Is For

  • Heating installers on retrofit work
  • Owners of second and holiday homes
  • Merchants stocking a premium RF pair
  • OEM buyers wanting a programmable wireless flagship

Technical Features

  • Wireless RF link on 868 MHz, 230V, 6W
  • 7 day, 5/2 day and 24 hour programmable with 6 time and 6 temperature steps per day
  • Heating and cooling operation with a large clear LCD
  • Manual override mode and holiday mode
  • Switching sensitivity adjustable
  • Room temperature calibration adjustment and low battery indicator
  • White or blue backlight
  • Anti-flammable PC and ABS housing, 400 g, supplied with one instruction sheet

Specifications

ModelST2602
BacklightWhite/
MaterialAnti-flammable PC, Anti-flammable ABS+
Weight400g
Package Included1Wireless Thermostat 1Instruction

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

  • Second homes and holiday properties left empty between visits
  • Houses where the boiler is out of cable reach
  • Underfloor heating needing a slower cycle rate
  • Properties wanting scheduled heating without new wiring

Quality Control

  • Each transmitter and receiver pair bound and range tested
  • Pre-set programme verified before packing
  • Holiday mode and override behaviour checked on batch samples

Customisation Options

  • Factory pre-set programme to the buyer's specification
  • Backlight white or blue
  • Front label, logo and housing marking
  • Manual and carton in the buyer's language
Comparison

How It Compares

ST2602 wired version
ST2602RF removes the cable between the room and the boiler while keeping the same six step programme and holiday mode.
Simpler RF pairs such as E3RF-L
ST2602RF adds full scheduling, holiday mode and adjustable switching sensitivity.
Use guide

Installing And Commissioning

Step 1

Wire the receiver at the boiler and confirm the 230V supply

Step 2

Power the room unit and confirm it has bound to the receiver

Step 3

Check the factory pre-set programme against the property's occupancy

Step 4

Set holiday mode before the property is left empty

Step 5

Raise switching sensitivity for slow heating systems

Answers

230V Wireless 868Mhz 6W Weekly Programmable Heating Digital RF Thermostat for Boiler: Buyer Questions

What frequency does the ST2602RF use?

868 MHz, with a 6W receiver at 230V.

How many programme steps per day?

Six times and six temperatures per day, in 7 day, 5/2 day or 24 hour mode.

What does holiday mode do?

It holds a lower temperature for a set period and then returns to the stored programme.

Does it arrive pre-programmed?

Yes, with a factory pre-set programme that we can write to your specification.

What is the housing material?

Anti-flammable PC and anti-flammable ABS plus PC.

What is in the box?

One wireless thermostat and one instruction sheet.
