Exhaust Header

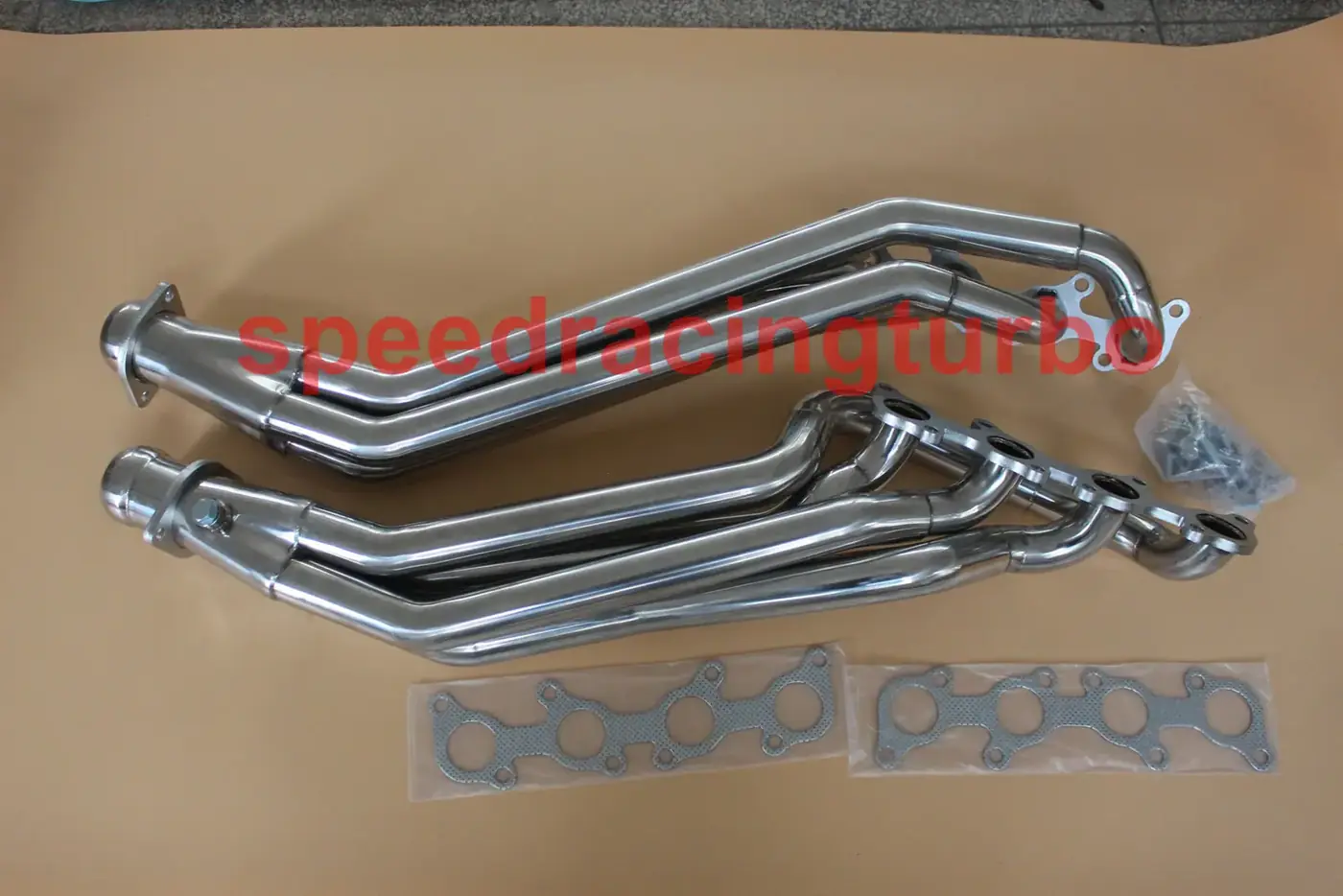

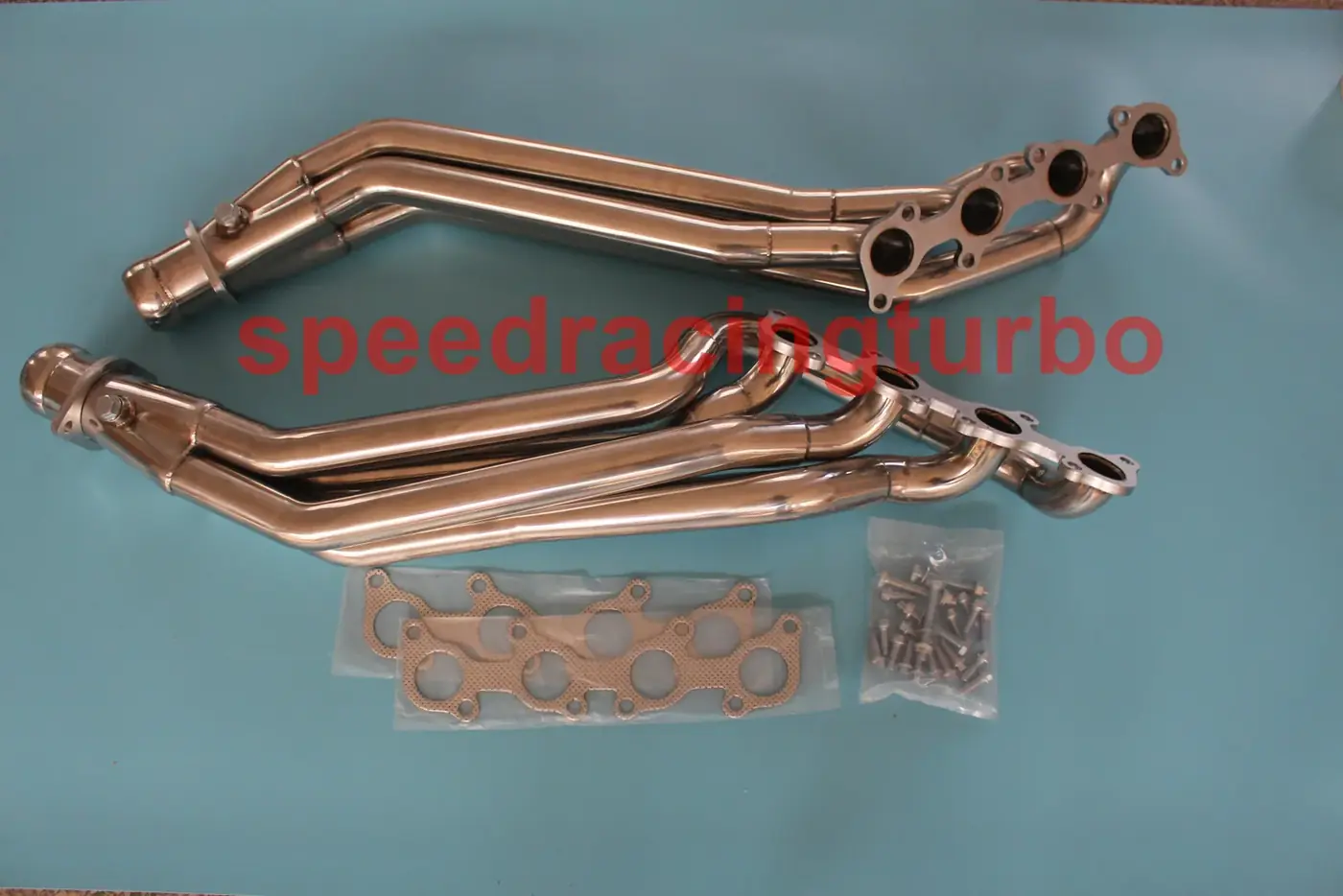

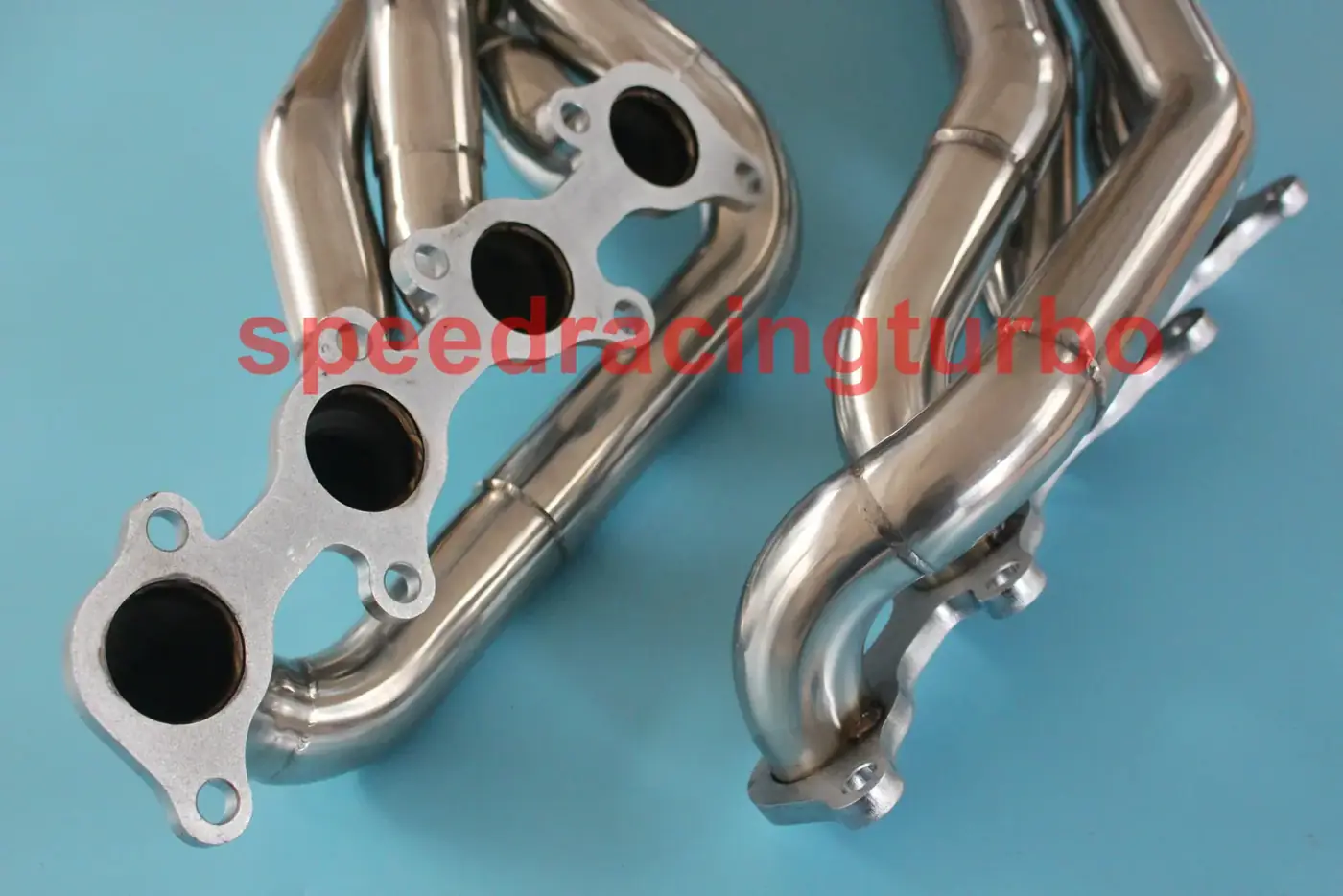

LONG TUBE HEADER EXHAUST MANIFOLD FOR 11-16 FORD MUSTANG GT 5.0/302 V8 STAINLESS
A 4-1 long tube header exhaust manifold for the 2011-2016 Ford Mustang GT 5.0L V8 engine, built from stainless steel with a 1.75 inch inlet and 2.5 inch outlet. It replaces the factory exhaust manifold with a direct bolt-on design and ships complete with all necessary hardware, gaskets, and O2 sensor provisions. Fitment is specific to the 2011-2016 model years and does not cover the 2015 Mustang GT.
- MaterialStainless Steel
- Inlet Size1.75 inch
- Outlet Size2.5 inch
- Design4-1 Long Tube
What You Get
Key Benefits
- 4-1 long tube design increases exhaust flow and reduces back pressure at high RPM
- 1.75 inch inlet and 2.5 inch outlet improve turbine spool and engine breathing
- TIG double side welding ensures strong, leak-free joints under heat and vibration
- CNC machined flange provides a flat sealing surface to prevent exhaust leaks
- O2 sensor insertions are pre-installed to maintain factory emissions monitoring
- Stainless steel construction resists rust and heat cycling better than cast iron
Why Buyers Switch
Problems It Solves
- Factory exhaust manifolds restrict flow and limit high-RPM power output
- Cast iron manifolds crack under heat cycling and fail after extended use
- Aftermarket headers without O2 sensor provisions require cutting and welding
- Generic headers need custom fabrication and increase shop labour time
- Missing gaskets or bolts delay installation and cause customer returns
Where It Is Used
Application Scenarios
- Performance shops upgrading 2011-2016 Mustang GTs for track or street use
- Distributors stocking vehicle-specific headers for the Ford Mustang GT 5.0L V8 market
- Online sellers needing a photographed, fitment-verified header with a clean product listing
- Tuning shops installing headers that match factory routing without custom fabrication
Buyers
Who It Is For
- Performance parts distributors buying Mustang GT exhaust hardware by the pallet
- Diesel and truck accessory wholesalers serving muscle car enthusiasts
- Independent installation shops that require bolt-on headers with full hardware kits
Construction
Technical Features
- 4-1 long tube header design with 1.75 inch primary inlets and 2.5 inch collector outlet
- TIG double side welded joints for structural integrity and leak resistance
- CNC machined flange for precise fit and flat sealing surface
- Pre-drilled O2 sensor insertions for factory sensor compatibility
- Complete kit includes one pair of headers, gaskets, bolts, and all necessary hardware
- Bolt-on fitment follows factory routing and does not require modifications
Data
Specifications
| Material | Stainless Steel |
|---|---|
| Inlet Size | 1.75 inch |
| Outlet Size | 2.5 inch |
| Design | 4-1 Long Tube |
| Welding | TIG Double Side Welded |
| Flange | CNC Machined |
| O2 Sensor | Pre-installed Insertions |
| Package | 1x Pair of Headers, Gaskets, Bolts, Hardware |
| Fitment | 2011-2016 Ford Mustang GT 5.0L V8 (excluding 2015 model) |
| Exclusion | Does not fit 2015 Ford Mustang GT or other engine variants |
Material
Materials
- Stainless steel tube
- CNC machined flange
- Metal gasket material
- Stainless steel bolts and hardware
Manufacturing
How It Is Made
Tube bending to match factory header routing
CNC machining of flange for flat sealing face and precise bolt pattern
TIG welding of flanges to tubes with double side seam for strength
Installation of O2 sensor insertions at factory locations
Final inspection of fit and finish before packaging
Checks
Quality Control
- Flange bolt pattern verified before welding
- Weld seams inspected for pinholes and gaps along the full joint
- Sealing face checked for flatness and surface defects
- O2 sensor holes verified for correct alignment and size
- Final fit check against factory manifold pattern before packing
Private Label
Customisation Options
- Private label packaging and barcode labels available on request
- Bulk cartons provided for container orders instead of individual retail boxes
Comparison
Compared With The Alternatives
| Factory exhaust manifold | The stock manifold is designed for emissions compliance and lower noise, this header improves flow and power at the cost of higher exhaust note |
|---|---|
| Cast iron aftermarket header | Cast iron is cheaper but cracks under heat cycling; stainless steel holds up through repeated thermal stress |
| Universal header kit | Universal kits require cutting, welding, and custom fitting; this one bolts on directly with no modifications |
Installation
Use Guide
- Confirm the vehicle is a 2011-2016 Ford Mustang GT 5.0L V8 and not the 2015 model
- Disconnect the battery and let the engine cool before removing the factory manifold
- Replace the factory gasket and use the included metal gaskets for a leak-free seal
- Install bolts in a crisscross pattern to avoid warping the flange
- Torque all bolts to factory specifications after installation
More In This Family
Related Products
Answers
Questions About This Part
Does this fit a 2015 Ford Mustang GT?
No. The part is designed for 2011-2016 Ford Mustang GT 5.0L V8 models and does not fit the 2015 model.
What size are the inlet and outlet tubes?
Inlet is 1.75 inch, outlet is 2.5 inch. The collector size matches the factory exhaust system.
Are the O2 sensors included or do I need to reuse the factory ones?
The header includes pre-drilled O2 sensor insertions. You will need to reuse the factory sensors or install new ones.
What is included in the package?
One pair of headers, metal gaskets, bolts, and all necessary hardware for a direct bolt-on installation.
Is professional installation required?
Yes. Professional installation is highly recommended due to the precision fit and torque requirements.
Can we get private label packaging?
Yes. Private label packaging and barcode labels are available on request. Bulk cartons are also provided for container orders.
Is this legal for street use?
Emissions regulations vary by region. We do not claim emissions compliance for this part. Check local laws before resale or installation.
