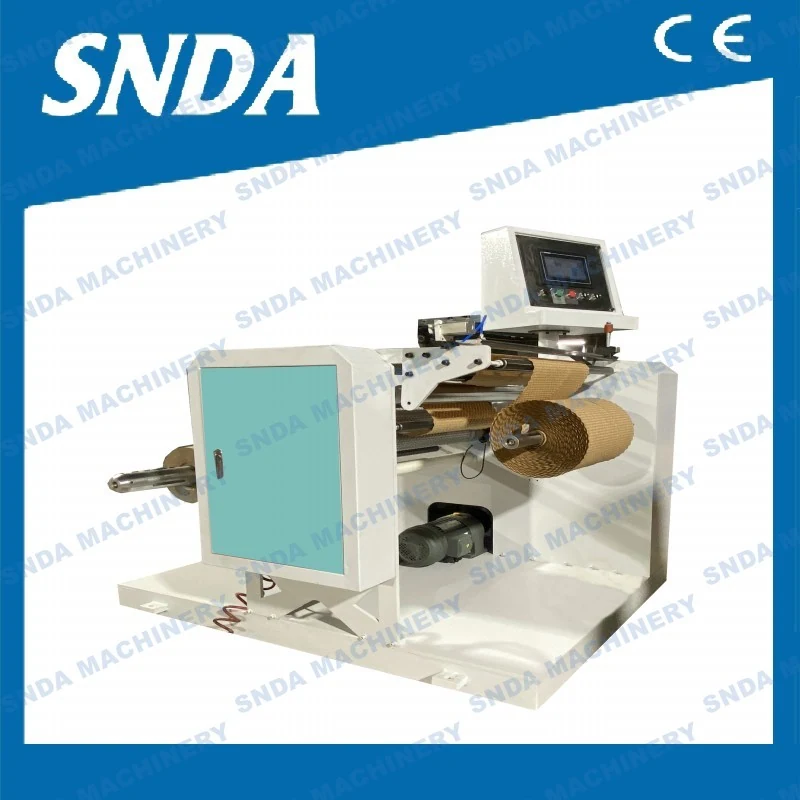

Mini Paper Bubble Making Machine
The SD-PB600 converts 125gsm or 180gsm kraft paper made from 100% waste paper into embossed paper bubble wrap in a single pass. The machine forms air-cell-like structures that provide cushioning for fragile items during shipping. This allows a packaging producer to make its own paper cushioning instead of buying finished rolls, which reduces cost and avoids plastic restrictions. The machine is designed for small to medium production runs and fits into compact factory spaces.
- Replaces plastic bubble wrap with a 100% recyclable paper cushion that meets retailer restrictions on plastic packaging
- Produces paper bubble wrap in one continuous process: unwinding, forming, and rewinding
- Working speed of 50 m/min allows consistent output for small to mid-sized production needs
- Compact size of 1200 x 800 x 1300 mm makes it suitable for facilities with limited floor space
- Uses 100% waste paper as raw material, reducing input cost and supporting sustainability goals
Why Buyers Choose It
- Plastic bubble wrap is being rejected by end customers in export markets due to environmental regulations
- Buying finished paper bubble wrap adds a supplier margin and requires inventory management
- Manual wrapping of fragile goods is slow and inconsistent across shifts
- Lack of space prevents larger machines from being installed in small production areas
- High cost of plastic cushioning is passed on to the end customer or reduces margins
Who Runs This Machine
- Small to mid-sized packaging converters with limited space and budget
- E-commerce packers needing a low-cost alternative to plastic bubble wrap
- Paper mills or traders adding a converting step to their existing kraft paper supply
- Fulfilment operators running short production runs of custom cushioning
Where This Machine Is Used

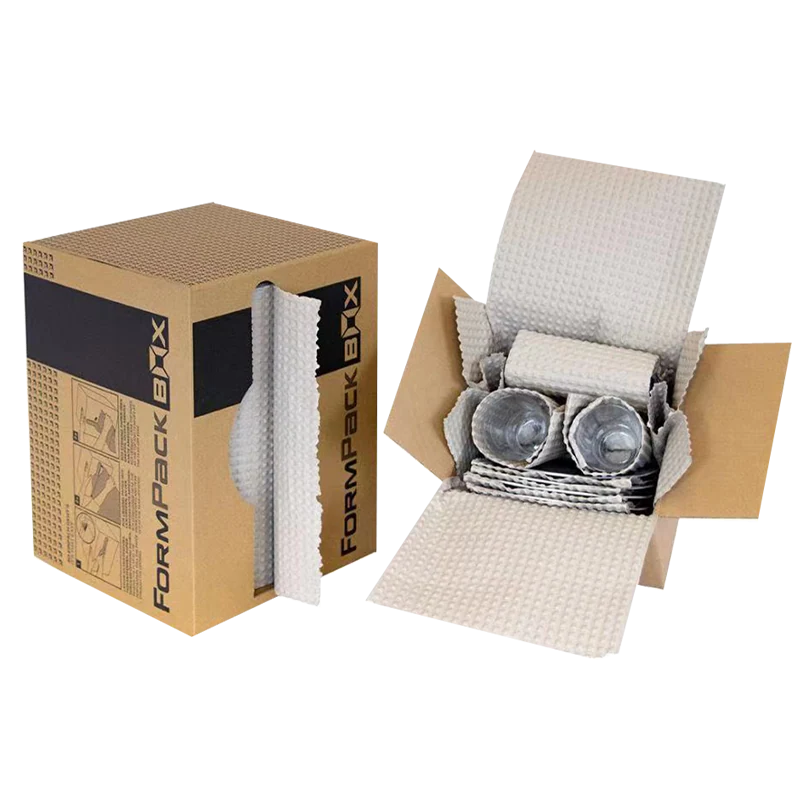

- Protective packaging producers converting kraft paper reels into paper bubble wrap for e-commerce orders
- Small-scale converters adding a paper cushioning line without a large capital investment
- Packers replacing plastic bubble wrap in shipments to markets that restrict single-use plastics
- Fulfilment centres running short runs of custom cushioning for high-value or fragile items
- Paper slitting houses adding value by producing paper bubble wrap from their existing kraft inventory
Features And Specifications
Technical features

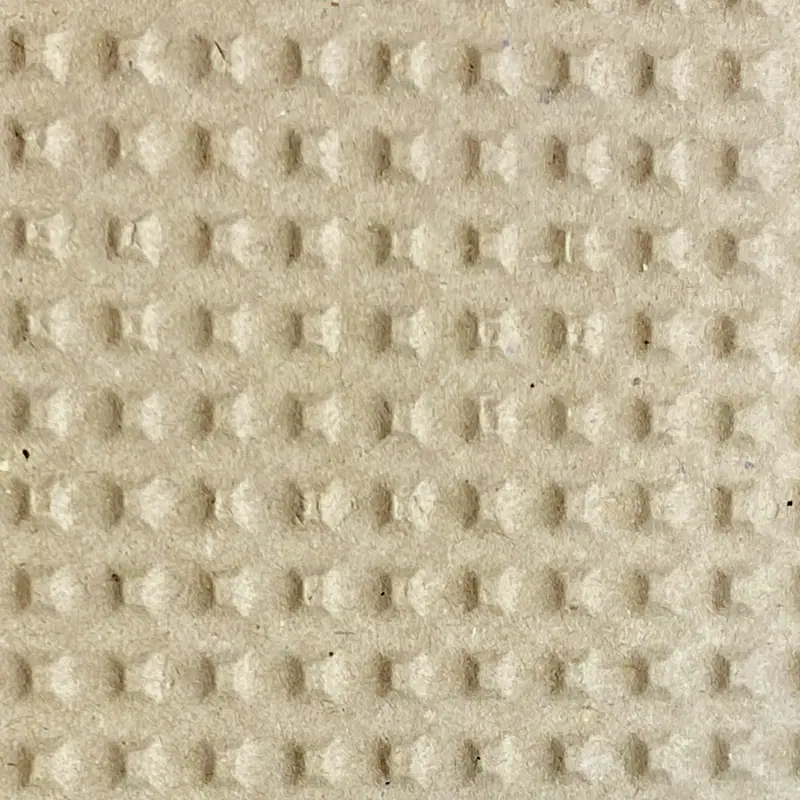

- Forms embossed paper bubble wrap from 125gsm or 180gsm kraft paper made from 100% waste paper
- Single-pass process for unwinding, forming, and rewinding without intermediate handling
- Inflatable air shafts on both unwinding and rewinding ends for easy reel loading
- Adjustable working speed up to 50 m/min for consistent output at low to medium volume
- Compact machine size of 1200 x 800 x 1300 mm suitable for small workshops
- 2kW power supply standard, with option to build to local voltage and frequency
Specifications
| Machine model | SD-PB600 |
|---|---|
| Max material width | 600 mm |
| Paper thickness | 125gsm, 180gsm |
| Machine working speed | 50 m/min |
| Unwinding diameter | Max. 600 mm |
| Rewinding diameter | Max. 300 mm |
| Unwinding shaft | 3 inch inflatable air shaft |
| Rewinding shaft | 3 inch inflatable air shaft |
| Machine size | 1200 x 800 x 1300 mm (L x W x H) |
| Power | 2 kW |
| Machine weight | 300 kg |
How The Machine Runs
Materials
- 125gsm or 180gsm kraft paper made from 100% waste paper
- 100% recyclable paper cushioning material
- Optional laminated backing layer for improved durability (not specified in facts)
Quality Control
- Inflatable air shafts ensure even tension and prevent paper damage during unwinding and rewinding
- Consistent forming pressure maintains uniform bubble size and structure across the roll
- Machine tested with customer paper before shipment to verify performance
- Roll diameter is limited to 300 mm to prevent core deformation during handling
Customisation
- Power supply can be built to the voltage and frequency of the destination country
- Unwinding and rewinding shafts are 3 inch standard, but can be adjusted if core size changes

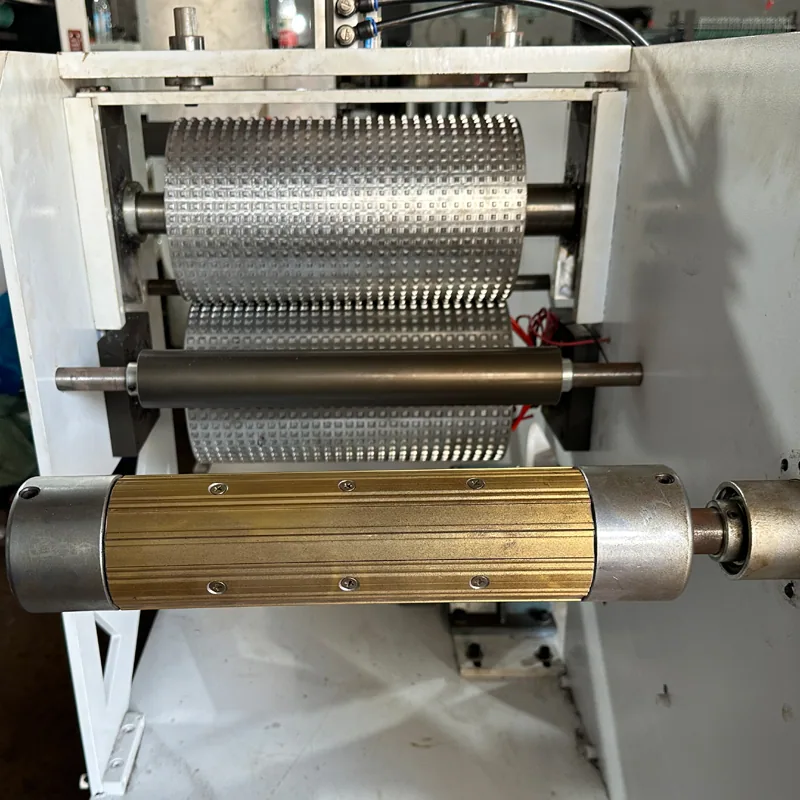

- Forming die can be modified for different bubble patterns if required
- Optional laminating unit can be added inline for improved durability (not included in base model)
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying finished paper bubble wrap rolls | Converting in house removes the supplier margin but requires inventory of kraft paper and machine operation |
|---|---|
| Plastic bubble wrap machines | Paper bubble wrap is recyclable and accepted in markets restricting plastic, though it is heavier and less compressible than plastic film |
| Larger paper bubble machines | This machine has a smaller footprint and lower power use, but is limited to 50 m/min and 600 mm width |
Running It On Your Floor
- Ensure the kraft paper reel is within 600 mm diameter and 125gsm or 180gsm thickness before loading
- Mount the reel on the 3 inch inflatable air shaft and inflate to secure the roll
- Start the machine at low speed and adjust the forming pressure to avoid crushing the paper
- Check the first few metres of formed wrap for consistent bubble formation and alignment
- Stop the machine when the roll reaches the desired length to avoid over-rewinding
Mini Paper Bubble Making Machine FAQ
What paper thickness can the machine run
It is designed for 125gsm or 180gsm kraft paper made from 100% waste paper.
How fast does it run in production
The machine operates at a fixed speed of 50 m/min, suitable for small to medium production volumes.
What power supply do you build it for
Standard is 2kW, and we build to the voltage and frequency of your country on request.
What is the footprint and weight for installation planning
The machine is 1200 x 800 x 1300 mm and weighs 300 kg, so plan a level floor and access for moving.
Can it use 100% recycled paper
Yes, the machine is designed to run 100% waste paper as raw material, which is 100% recyclable.
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
