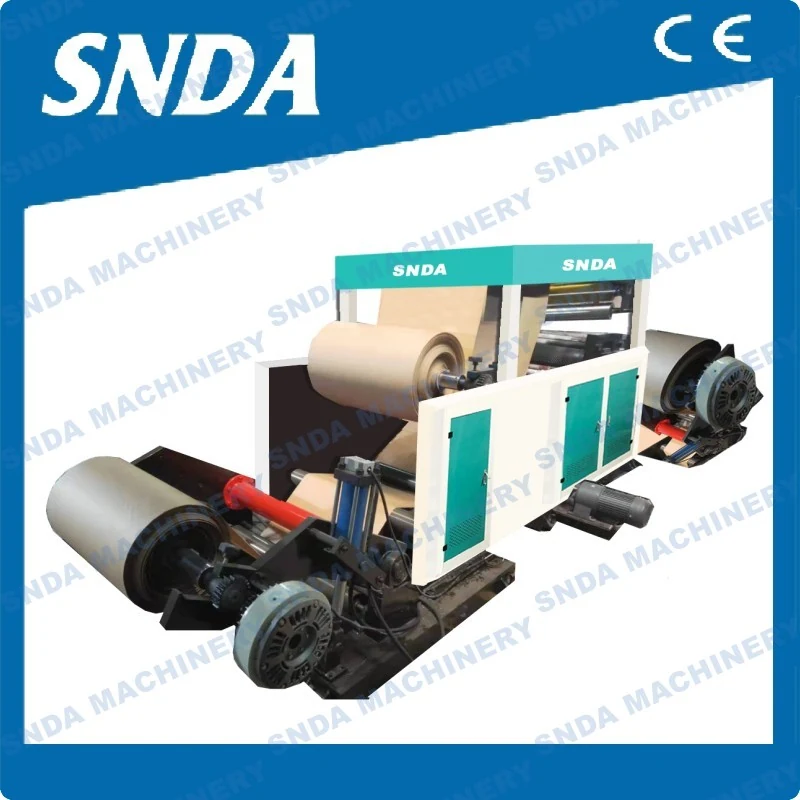

Kraft Bubble Paper Forming Machine with Laminating inline
The SD-PB1300 forms embossed bubble paper from kraft paper reels and laminates a flat backing layer inline to improve strength and air retention. The machine processes a top layer of kraft paper through heated concave-convex rollers to form bubbles, then applies a second paper layer to the back for structural support. This creates a cushioning material suitable for e-commerce packaging and protective wrapping, replacing plastic bubble wrap in markets where it is restricted.
- Produces laminated kraft bubble paper with improved strength and air retention compared to single-layer versions
- Inline lamination prevents bubble collapse and maintains cushioning performance during handling
- Adjustable embossing patterns allow custom cell designs for different protection needs
- Speed range of 0 to 50 m/min allows matching output to production line capacity
- Eliminates the need to buy finished kraft bubble paper, reducing material cost and lead time
Why Buyers Choose It
- Plastic bubble wrap is being rejected by retailers and end customers in key export markets
- Single-layer kraft bubble paper lacks sufficient strength and air retention for effective cushioning
- Buying finished laminated bubble paper from suppliers adds cost and delays replenishment
- Manual cushioning is inconsistent and too slow for high-volume packaging operations
- Inconsistent roll lengths and weak bubble structure lead to product damage in transit
Who Runs This Machine
- Packaging producers converting kraft paper reels into laminated bubble paper for sale
- E-commerce operators running automated bagging lines that require roll-fed cushioning
- Paper slitting houses adding a forming and laminating step to their existing operations
- Contract packers supplying protective packaging to consumer goods brands
Where This Machine Is Used
- Protective packaging producers replacing plastic bubble wrap with paper-based cushioning for export markets
- E-commerce fulfilment centres requiring consistent roll-fed bubble wrap for automated packing lines
- Paper converters adding a value-added step to kraft paper reels by producing laminated bubble paper
- Packers of electronics, glassware and fragile consumer goods needing reliable cushioning without plastic
- Manufacturers of paper envelopes and bags using kraft bubble paper as a structural component
Features And Specifications
Technical features
- Heated concave-convex rollers form bubbles using vertical upper and lower rollers

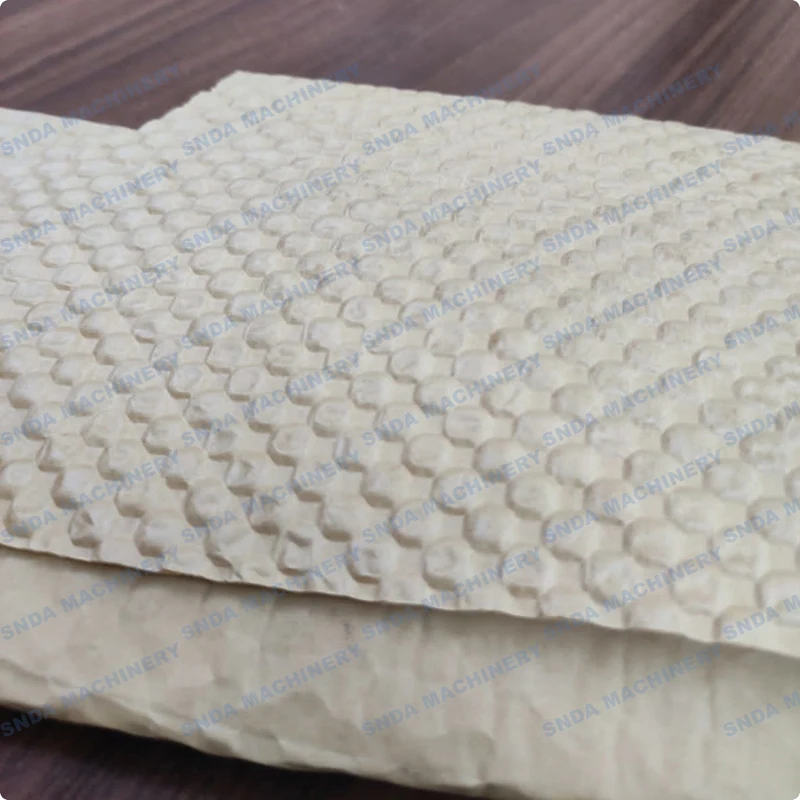

- Embossing patterns include semi-circular ball, wave, three-dimensional hexagon, four-pointed star, and custom options
- Pressure adjustment via screw pressurization or reducer pressurization
- Frequency conversion speed regulation from 0 to 50 m/min

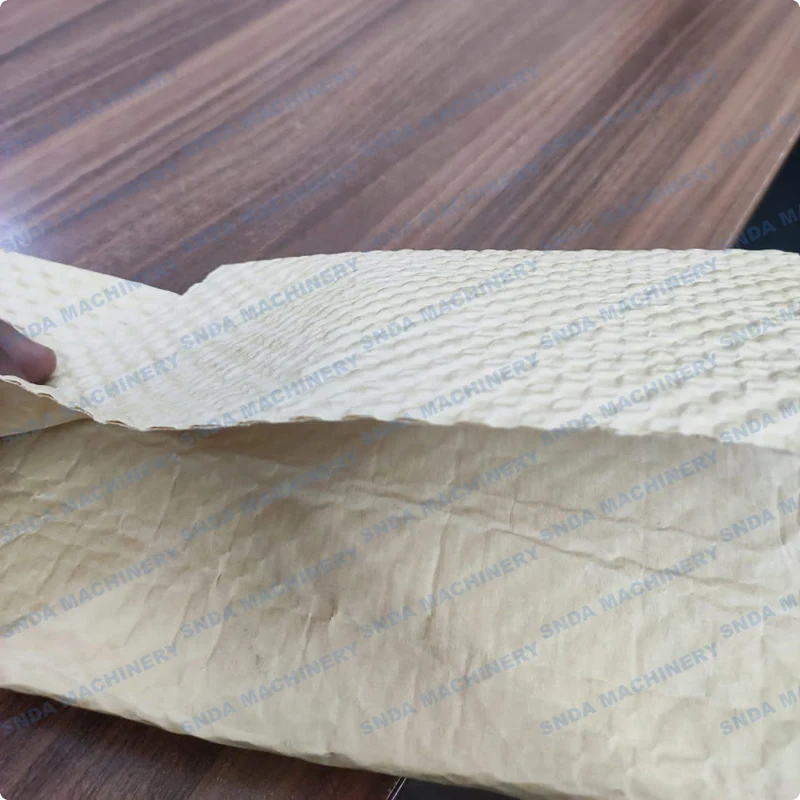

- Inline laminating unit applies a flat backing layer to the reverse side of the bubble paper
- Heating system used during lamination to secure the bond between layers
- Rewinding unit collects finished paper in roll form

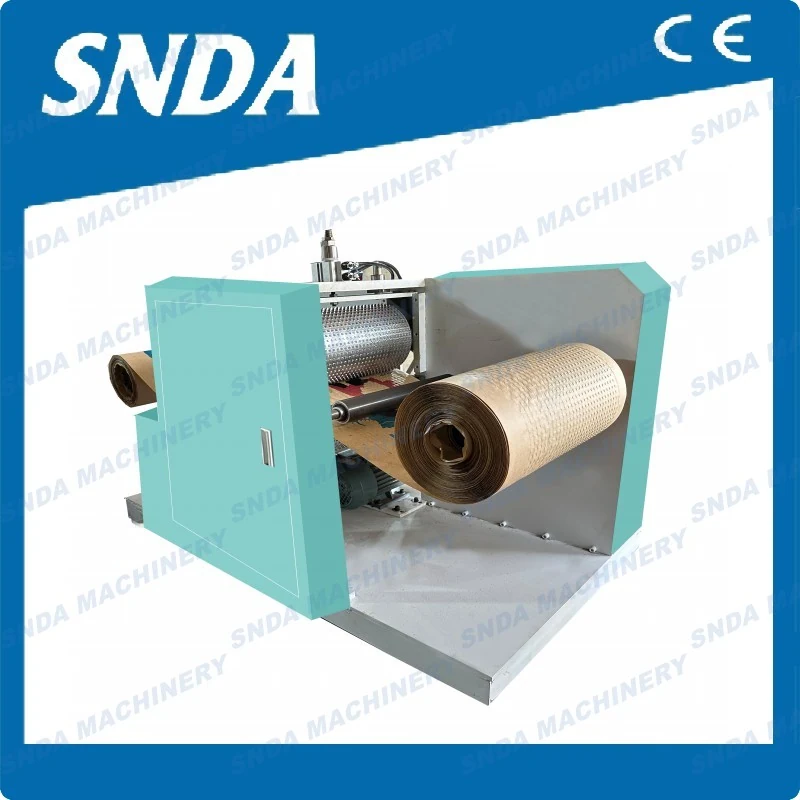

- Optional automatic cutting and stacking system available for sheeted output
Specifications
| Machine model | SD-PB1300 |
|---|---|
| Max material width | 1600 mm |
| Min paper weight | 120 gsm |
| Working speed | 0-50 m/min adjustable |
| Embossing roller length | 1400-1600 mm |
| Lamination layer | Flat paper applied to back side of bubble layer |
| Warranty | One year for the whole machine |
How The Machine Runs
Materials
- Kraft paper reels from 120 gsm and above
- Flat paper backing layer for laminating the reverse side
- Optional custom embossing patterns based on customer drawings
- Adhesive for laminating process (supplied separately or integrated)
Quality Control
- Heated embossing rollers maintain consistent bubble formation across the width
- Lamination bond strength verified during test runs with customer paper
- Speed and pressure settings calibrated to prevent web misalignment or layer separation
- Machine tested with customer material before shipment to confirm output quality
- Roll length and tension monitored during rewinding to avoid wrinkles or slippage
Customisation
- Embossing patterns can be customized beyond standard options including semi-circular ball, wave, hexagon, and star
- Roller diameter and length adjusted to match specific paper width requirements
- Power supply built to the voltage and frequency of the destination country
- Rewinding shaft size and configuration tailored to customer core stock
- Automatic cutting and stacking system added inline upon request
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying finished laminated kraft bubble paper | Converting in house removes the supplier margin but requires investment in machine and kraft reel inventory |
|---|---|
| Single-layer kraft bubble paper machine | Inline lamination improves strength and air retention, making it more effective as a cushioning material |
| Plastic bubble wrap machines | Paper-based bubble is recyclable and accepted in markets restricting plastic, though it is heavier per square metre |
Running It On Your Floor
- Ensure the kraft paper reel is loaded securely on the unwinding stand with proper alignment
- Set the desired speed using the frequency converter before starting the run
- Adjust pressure on the embossing rollers to match paper thickness and desired bubble size
- Verify the lamination bond quality on the first few metres of output
- Keep embossing rollers clean to maintain consistent pattern formation and avoid paper tearing
Kraft Bubble Paper Forming Machine with Laminating inline FAQ
What paper weight can the machine handle
It is designed for kraft paper with a minimum weight of 120 gsm.
What embossing patterns are available
Standard patterns include semi-circular ball, wave, three-dimensional hexagon, and four-pointed star. Custom patterns can be made.
Can the machine laminate a backing layer
Yes, the machine has an inline laminating unit that applies a flat paper layer to the back of the bubble paper.
What is the working speed range
The machine operates from 0 to 50 m/min, adjustable via frequency conversion.
Do you offer automatic cutting and stacking
Yes, an automatic cutting and stacking system can be added inline as an option.
What power supply do you build for
Standard is 380 V three phase. We build to the voltage and frequency of your country on request.
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
