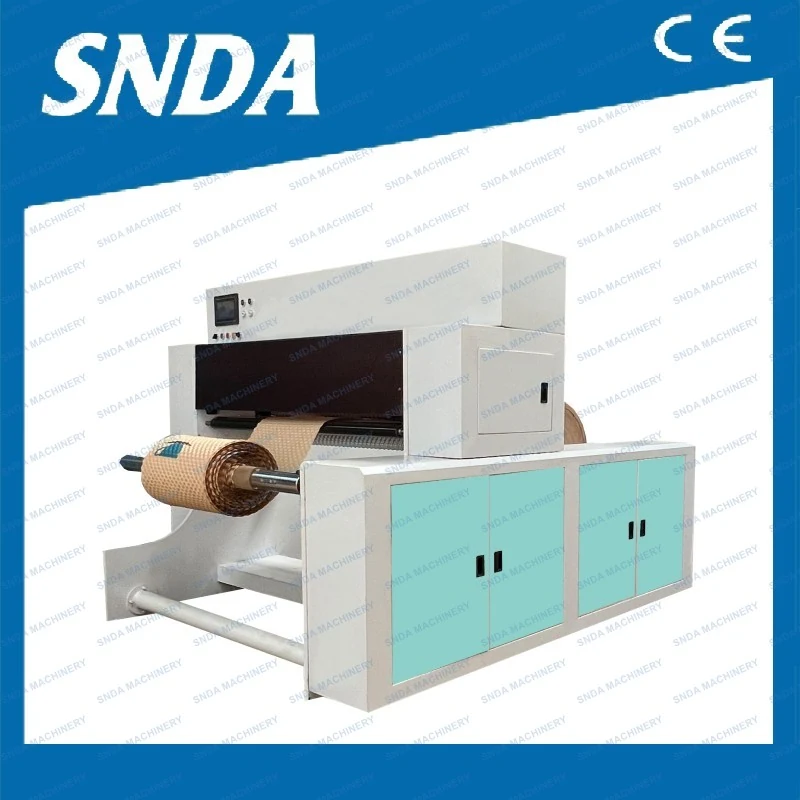

Kraft Paper Bubble Making Machine

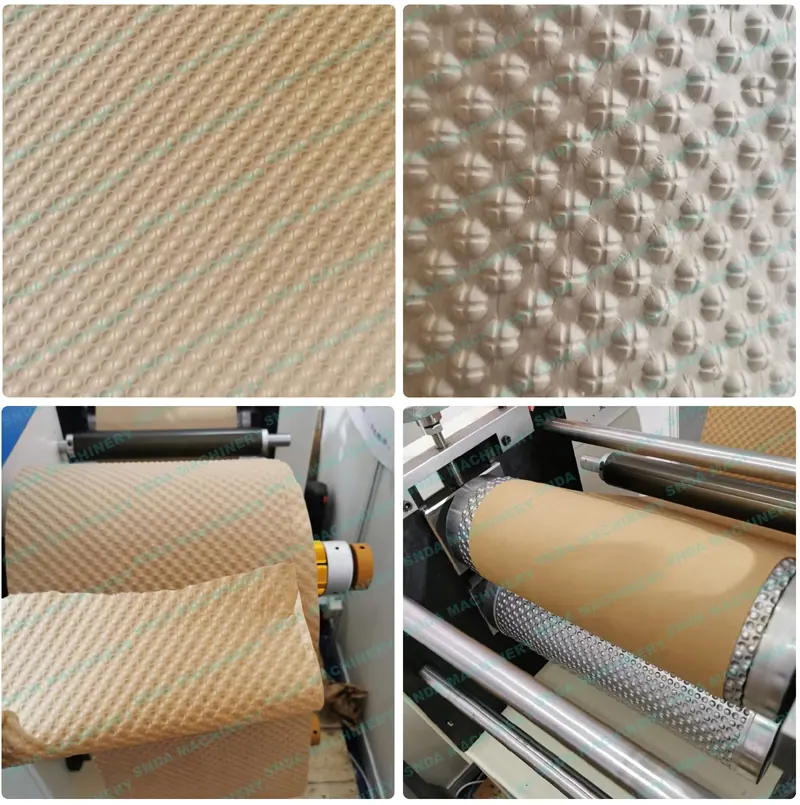

The SD-PB600 converts a reel of kraft paper into embossed bubble cushioning paper in a single pass. The machine uses vertical upper and lower concave-convex rollers to press semi-circular, wave, three-dimensional hexagon, or four-pointed star patterns into the paper. This creates a paper-based cushioning material that can replace plastic bubble wrap in e-commerce and industrial packaging, with the option to laminate a soft white backing layer. The process is continuous, so a packaging producer can make its own protective paper instead of buying finished rolls.
- Replaces plastic bubble wrap with a paper cushion that is recyclable and accepted by retailers restricting plastics
- Unwinding, embossing, and rewinding happen in one process so one operator can run the line
- Working speed is adjustable from 0 to 50 m/min so output can be matched to downstream demand
- Automatic meter counting stops the machine at the set length and keeps roll lengths consistent
- Converting your own kraft reels removes the margin paid to a paper bubble supplier
Why Buyers Choose It
- Plastic cushioning is being refused by retailers and end customers in export markets
- Bought-in paper bubble carries a converter margin and long replenishment lead times
- Manual wrapping of fragile goods is slow and inconsistent between operators
- Roll length variation causes short rolls and customer complaints
Who Runs This Machine
- Packaging converters that already buy kraft paper in reels and want to add a cushioning product
- Paper mills and trading companies adding a value-added converting step
- Fulfilment operators packing several thousand fragile orders a day
Where This Machine Is Used
- Protective packaging producers making paper bubble rolls for e-commerce fulfilment centres
- Packers protecting electronics, glassware, and ceramics that scratch easily in transit
- Converters supplying paper bubble cushioning to furniture and appliance manufacturers
- Export packers replacing imported plastic bubble film with a locally converted paper cushion
Features And Specifications
Technical features

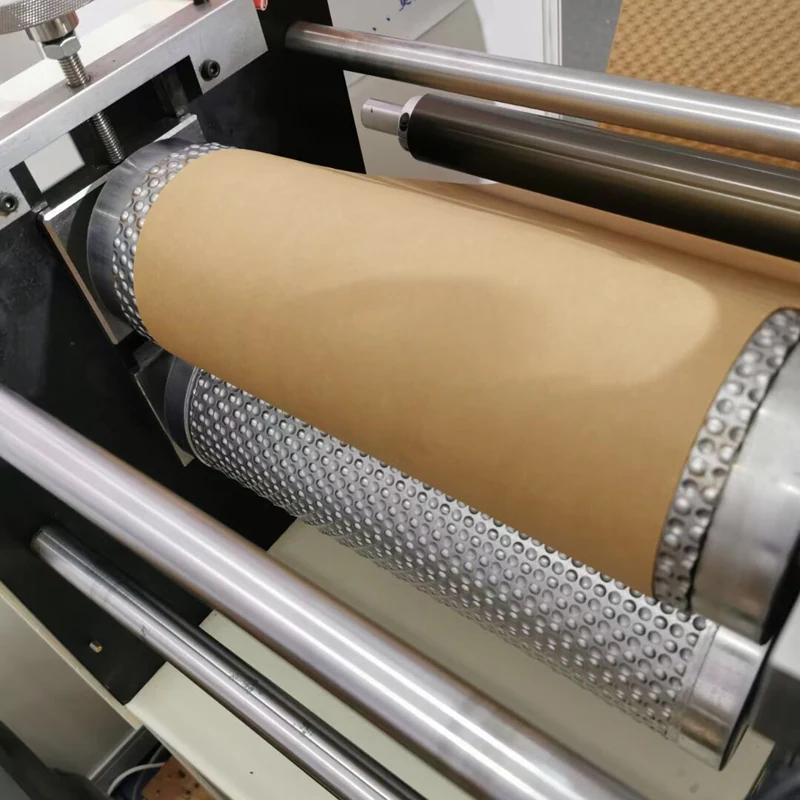

- Uses vertical upper and lower concave-convex rollers for embossing

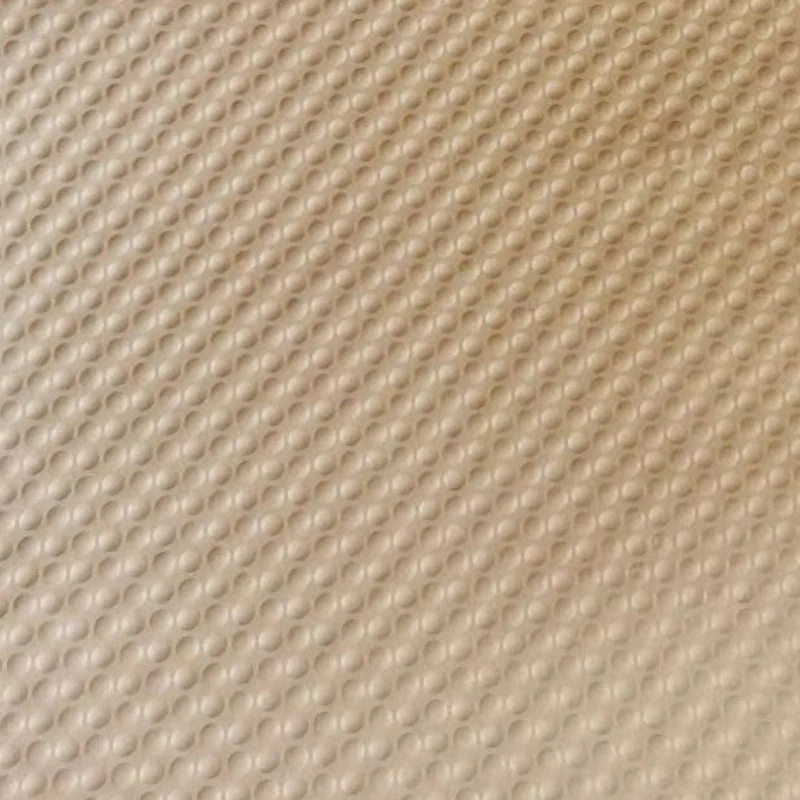

- Embossing patterns include semi-circular ball, wave, three-dimensional hexagon, four-pointed star, and custom options
- Pressure adjustment via screw pressurization or reducer pressurization
- Frequency conversion speed regulation from 0 to 50 m/min
- Main motor driven through an inverter for stepless speed control
- Automatic ultrasonic web guide controller keeps the unwinding web centred
- Web tension held by magnetic powder brake and clutch
- Automatic meter counting device stops the machine when the set length is reached
Specifications
| Machine model | SD-PB600 |
|---|---|
| Machine working speed | 0-50 m/min adjustable |
| Unwinding shaft | 3 inch inflatable air shaft |
| Power supply | 380 V 3 phase or to customer requirement |
| Module roller specifications | Φ380-420 × 1400-1600 mm |
How The Machine Runs
Materials
- Kraft paper reels from 60 gsm minimum
- Optional soft white paper backing layer for laminated bubble liner
- Wrapping paper and shock absorbing paper
Quality Control
- Web guide and magnetic powder brake keep tension stable so embossing depth stays even across the reel
- Meter counter verifies finished roll length before the roll leaves the machine
- Machines are test run with customer paper before shipment
Customisation
- Embossing roller patterns can be customized to match your design requirements
- Power supply built to the voltage and frequency of the destination country
- Rewinding shaft supplied in 1, 1.5, 2, or 3 inch to suit your core stock
- Roll to sheet cutting unit added inline on request
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying finished paper bubble rolls | Converting in house removes the supplier margin but you carry the kraft reel inventory and the machine investment |
|---|---|
| Plastic bubble wrap machines | Paper bubble is recyclable and accepted where plastics are restricted, though it is heavier per square metre than air-filled film |
| Paper Bubble Cutting Machine | This machine forms the embossed bubble web; the cutting machine converts finished bubble paper into sheets or pads |
Running It On Your Floor

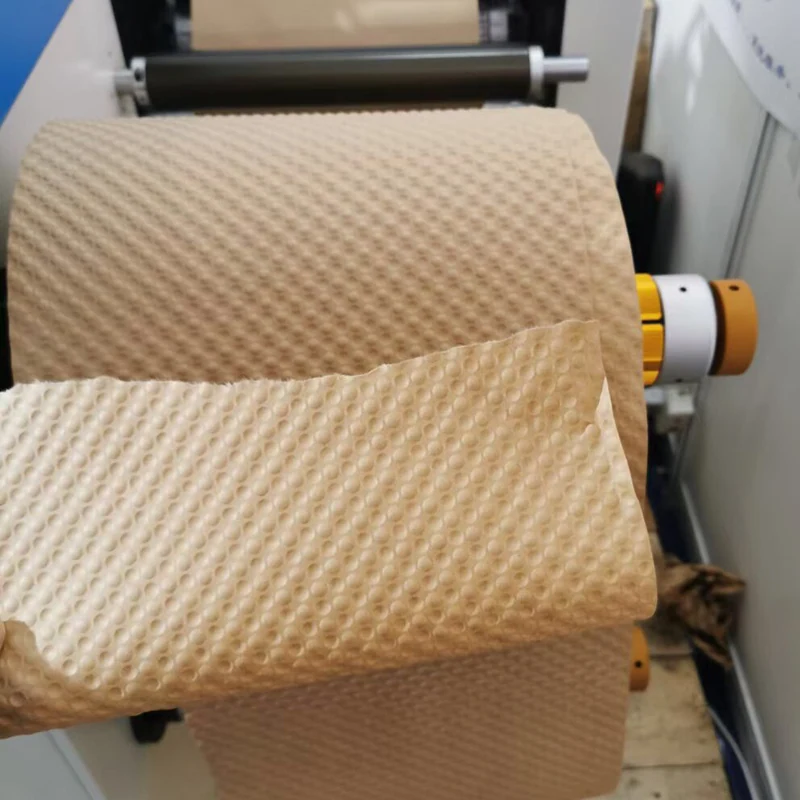

- Load a kraft reel up to 1200 mm diameter and 1 ton onto the inflatable air shaft
- Set the target roll length on the meter counter before starting the run
- Start slow and raise speed with the inverter until the web tracks steadily
- Check embossing depth and pattern clarity on the first metres before committing the reel
- Keep the embossing rollers clean of paper dust to protect the cutting edge
Kraft Paper Bubble Making Machine FAQ
What paper weight can the machine run
It is designed for kraft paper from a minimum of 60 gsm.
How fast does it run in production
Working speed is adjustable from 0 to 50 m/min; the practical rate depends on paper weight and how steadily the web tracks.
What power supply do you build it for
Standard is 380 V three phase, and we build to the voltage and frequency of your country on request.
What is the footprint and weight for installation planning
The machine is 2600 x 1350 x 1300 mm and weighs 1500 kg, so plan a level floor and access for a forklift.
Can it cut finished paper bubble into sheets
Roll to sheet cutting is an option on this machine and it can also be matched with our paper wrapper.
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
