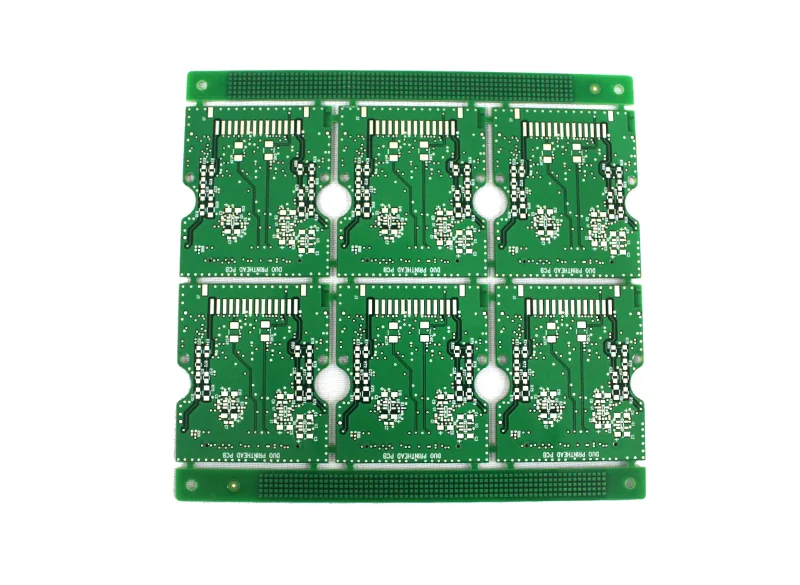

FR4 HDI PCB Silver
Send Gerber on RS-274X and drill 3.3 metric trailing, zipped. Quote in 1 day.
Product Overview
PCB (Printed Circuit Board), also known as printed circuit board (PCB) in Chinese, is an important electronic component, the support of electronic components, and the carrier of electrical connection of electronic components.
PCB circuit boards can be divided into single panel, double panel, four-layer board, six-layer board and other multi-layer circuit boards according to the number of layers.
The company’s products are widely used in industrial control, communication, medical treatment, vehicle, security, military, instrumentation, aerospace and other high-tech fields.
Specifications
| Item | Specification |
|---|---|
| Material | FR4 fiberglass board |
| Layer | Six-Layer Circuit Board |
| Plate Thickness | 1.6 Thickness |
| Copper thickness | 1oz |
| Surface treatment process | silver precipitation |
| Weld Resistance Character Color | Green and White Characters |
| Minimum linewidth/spacing | 8/7.3 mil |
| Minimum hole | 0.25mm |
| Technical characteristics | three-level standards |
Materials We Run
Rogers, Arlon, Taconic, TP-2, Megtron, Neclo, Isola, F4B, Taiyao TUC, Taiguang EMC, Tenghui VT, Shengyi SY, Lianmao ITEQ, Nanya NOUYA, DuPont Kapton, Taihong, Hongren, Xinyang, etc.
Surface Finishing
We have experience on processing HAL, LF-HAL, ENIG, Immersion Tin/Silver, Flash hard/soft gold, OSP surface finishing, SMOBC. Carbon Ink and Peel able Mask.
Quality Control
Outgoing inspection is carried out to IPC-A-600G or customer specification. Finished product complies with IPC-A-600 and IPC-6012.
| Equipment | Model | Made in |
|---|---|---|
| AOI Testor | Discovery8000 | Israel |
| AOI Overhaul Stand | VeriSmart | Israel |
| Special Testing Machine | HV300 | China |
| Flying probe E-testor | FX4000 | China |
| Impedance Testor | Tektronix DSA8200 | USA |
| Micro-section Analysis System | / | China |
Related Products
FR4 HDI PCB Silver — FAQ
What is FR4 HDI PCB Silver built on
What surface finish is used
What is the minimum hole size on this board
Can this board be customised
Is there a minimum order quantity
How fast can boards be delivered
How quickly will I get a quote
What file format should I send
Send Your Drawing
Upload is not needed — email the zipped Gerber and drill files and an engineer will review them.
