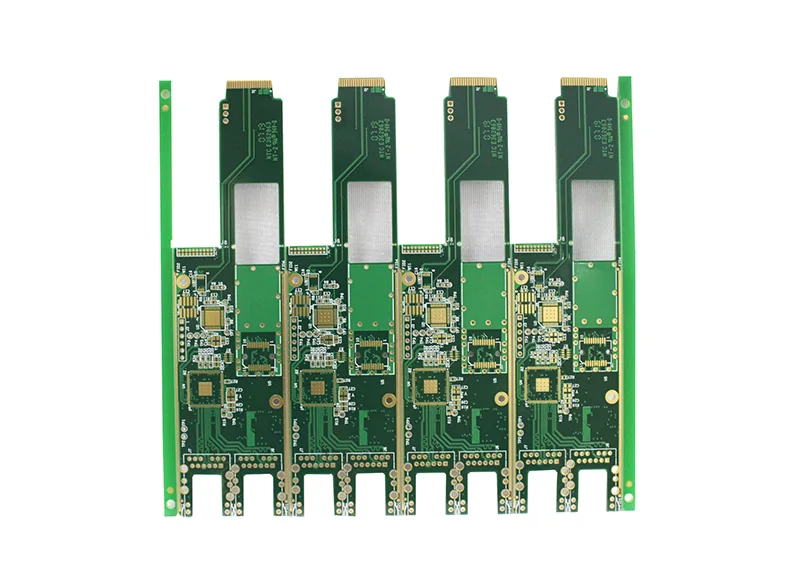

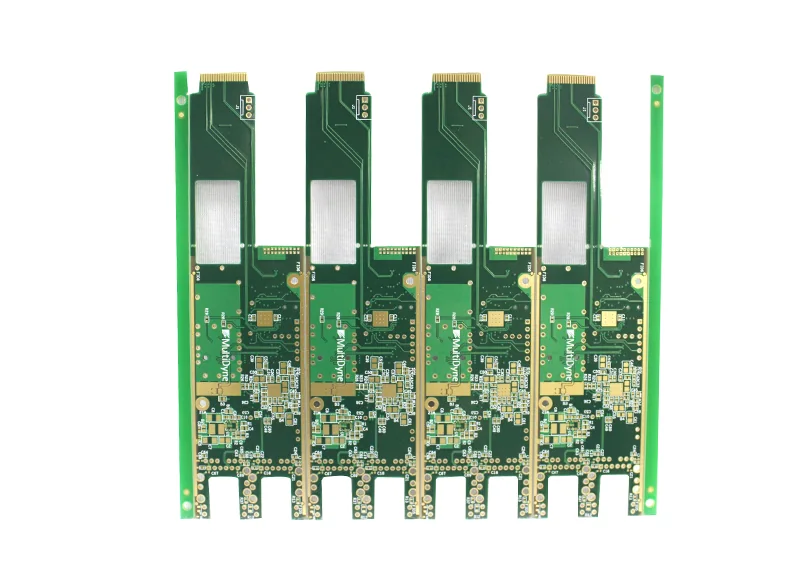

FR4 HDI PCB ENIG – view 1FR4 HDI PCB ENIG – view 2

HDI PCB

FR4 HDI PCB ENIG

Base MaterialFR-4
Board thickness1.6 mm
Min. Hole Size0.25 mm
Surface FinishingENIG
MaterialFR4 CEM1 CEM3 Hight TG
Supplier TypeOEM
Request a quote Ask for a sample

Send Gerber on RS-274X and drill 3.3 metric trailing, zipped. Quote in 1 day.

Product Overview

PCB (Printed Circuit Board), also known as printed circuit board (PCB) in Chinese, is an important electronic component, the support of electronic components, and the carrier of electrical connection of electronic components.

PCB circuit boards can be divided into single panel, double panel, four-layer board, six-layer board and other multi-layer circuit boards according to the number of layers.

The company’s products are widely used in industrial control, communication, medical treatment, vehicle, security, military, instrumentation, aerospace and other high-tech fields.

Specifications

ItemSpecification
MaterialFR4 fiberglass board
Layer6-Layer Circuit Board
Plate Thickness1.6 Thickness
Copper thickness1oz
Surface treatment processgold precipitation
Weld Resistance Character ColorGreen and White Characters
Minimum linewidth/spacing7/4.99mil
Minimum hole0.25mm
Technical FeaturesGold finger position for gold sinking bevel

Materials We Run

Rogers, Arlon, Taconic, TP-2, Megtron, Neclo, Isola, F4B, Taiyao TUC, Taiguang EMC, Tenghui VT, Shengyi SY, Lianmao ITEQ, Nanya NOUYA, DuPont Kapton, Taihong, Hongren, Xinyang, etc.

Surface Finishing

We have experience on processing HAL, LF-HAL, ENIG, Immersion Tin/Silver, Flash hard/soft gold, OSP surface finishing, SMOBC. Carbon Ink and Peel able Mask.

Quality Control

Outgoing inspection is carried out to IPC-A-600G or customer specification. Finished product complies with IPC-A-600 and IPC-6012.

EquipmentModelMade in
AOI TestorDiscovery8000Israel
AOI Overhaul StandVeriSmartIsrael
Special Testing MachineHV300China
Flying probe E-testorFX4000China
Impedance TestorTektronix DSA8200USA
Micro-section Analysis System/China

All inspection equipment

Related Products

Customized HDI FR4 High-TG PCB Special PCBCustomized HDI FR4 High-TG PCB FR4 HDI PCB Silver HDI PCBFR4 HDI PCB Silver

FR4 HDI PCB ENIG — FAQ

What is FR4 HDI PCB ENIG built on
Base material and full build data are listed in the specification table on this page, exactly as supplied by the factory.
What surface finish is used
ENIG. We also process HAL, LF-HAL, ENIG, Immersion Tin/Silver, Flash hard/soft gold, OSP and SMOBC, plus carbon ink and peelable mask.
What is the minimum hole size on this board
0.25 mm. Across the plant the smallest hole is 0.1mm with an aspect ratio of 16:1.
Can this board be customised
Yes. Supplier type is OEM and the plant runs 1~48 layer with no MOQ limited, so layer count, thickness, copper weight, solder mask colour and surface finish can all be changed to your drawing.
Is there a minimum order quantity
No MOQ limited. Prototypes, quick turn and high volume production are all accepted.
How fast can boards be delivered
At the fastest, 24hr for L2, 48hr for L4~L6 and 72hr for L8 or more. Monthly capacity is 30,000 sq.meter and 4,500 varieties.
How quickly will I get a quote
Quote in 1 day.
What file format should I send
Gerber RS-274×2.5 English leading and drill format 3.3 metric trailing, compressed as .rar or .zip. For quick CAM processing please send Gerber on RS-274X.

Send Your Drawing

Upload is not needed — email the zipped Gerber and drill files and an engineer will review them.

Email an engineer Contact details
