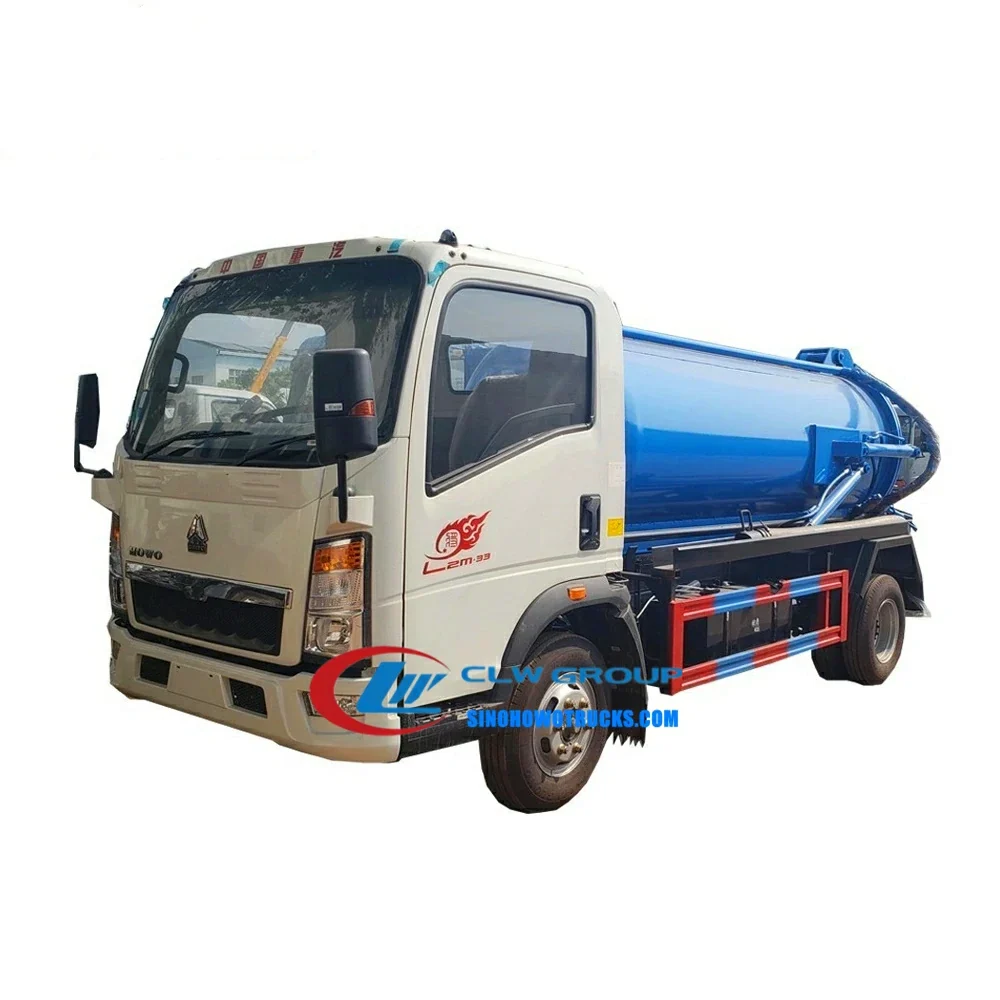

Sinotruk HOWO 5000 litre sewer pump truck in urban service with rear tank cover open and vacuum pump visible

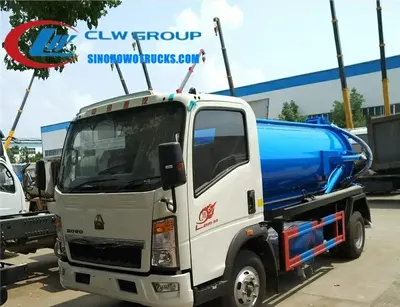

Side view of the HOWO sewage tanker showing the 8.25R20 tubeless tires and hydraulic tank lift system

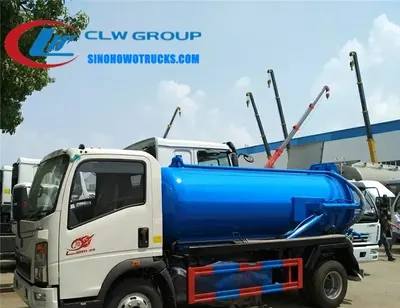

Rear view of the sewer truck with the openable rear cover and access door for cleaning and inspection

Sinotruk Howo 5000liters sewer pump truck Brunei

Name: Sinotruk Howo 5000liters sewer pump truck Brunei
Brand: Sinotruk HOWO

The Sinotruk HOWO 5000 litre sewer pump truck is a vacuum sewage suction vehicle built on a 6x4 HOWO chassis with a Cummins ISF3.8S3168 engine. It is designed for municipal sanitation departments and waste contractors that need to extract sludge, mud and debris from manholes, water wells and sediment pits in urban and rural areas. The truck can fully suction 5000 litres in under 5 minutes and discharge the load in 8 minutes, making it suitable for high-frequency cleaning operations in dense city networks and remote locations without sewer infrastructure.

Request A Quote Email Specification

Key Benefits

5000 litre capacity tank with 6-8 mm carbon steel or stainless steel 304 construction for long service life
Vacuum pump achieves suction lift over 6 metres and operates at 1400 r/min with a minimum of 800 r/min
Suction reach up to 80 metres horizontally and 9 metres vertically from a single access point
Hydraulic tank lift and openable rear cover allow full access for cleaning and inspection
Manual, pneumatic and hydraulic operation modes reduce operator fatigue and improve control
Cummins 168 HP engine with Euro2 emission standard ensures reliable performance in tropical and dusty environments
15 years of spare parts and technical support available for long-term fleet maintenance

Buyer Profile

Who It Is for

Municipal sanitation and public works departments buying through government tenders
Waste management contractors supplying services to residential and commercial zones
Construction companies managing site drainage and excavation sludge
Industrial park operators maintaining internal drainage and sump systems
Contractors hired to clean stormwater and sewage infrastructure on a scheduled basis
Remote area operators needing a reliable vacuum truck for intermittent use

Operating Problems

Problems It Solves

Manholes and sump pits that are too deep or narrow for manual cleaning
Long wait times for waste removal due to low-capacity or slow suction trucks
Lack of access roads or turning space for larger vacuum trucks in narrow city streets
Frequent breakdowns from poor vacuum pump performance or weak tank construction
Inadequate suction depth or horizontal reach that forces multiple setup points
No local support for spare parts or repairs after the initial warranty period

Where It Works

Application Scenarios

Municipal sanitation departments managing urban sewer systems with limited access points
Rural and remote communities without central sewage treatment facilities
Construction sites and quarries where sludge and mud must be removed from temporary pits
Industrial parks with multiple drainage and sump points requiring frequent cleaning
Emergency response teams clearing blocked storm drains during heavy rainfall events
Waste contractors operating on contract for public works or private property maintenance

Engineering

Technical Features

Cummins ISF3.8S3168 turbocharged and intercooled engine with high-pressure common rail injection
6-speed manual gearbox DC6J65TC with one reverse gear for stable operation
Vacuum pump rated at 1400 r/min, minimum operating speed 800 r/min, vacuum >500 mmHg
Suction lift capacity exceeds 6 metres and horizontal reach up to 80 metres
Vertical suction depth up to 9 metres from a single access point
Tank can be hydraulically lifted and rear cover opened for full inspection and cleaning
Small Veyron single pump or large Veyron double pump options for different flow rates
Manual, pneumatic and hydraulic operation modes for flexible control in tight spaces
Alloy fuel tank with 150L capacity for extended operational range
8.25R20 all radial tubeless tires, 7 pieces, for durability on rough terrain

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x4
Engine	Cummins ISF3.8S3168, 168 HP, Turbo-charged and Inter-cooled
Gearbox	DC6J65TC, 6 forwards and 1 reverse
Overall Size	8430 x 2500 x 3290 mm
Wheelbase	4500 mm
Tank Capacity	5000 L
Tank Material	Q345 carbon steel or 304 stainless steel
Suction Lift	Over 6 metres
Suction Horizontal Reach	Up to 80 metres
Suction Vertical Depth	Up to 9 metres
Suction Time	Less than 5 minutes for full tank
Blowdown Time	Single 8 minutes
Max Speed	95 km/h
Tare Weight	7000 kg
Loading Capacity	8000 kg
Front Axle Capacity	1×5000 kg
Rear Axle Capacity	1×10000 kg
Approach Angle	19 degrees
Departure Angle	11 degrees
Fuel Tank	150 L alloy fuel tank
Tires	8.25R20 all radial tubeless, 7 pieces
Cabin	2080 cabin, two seats, one sleeper, A/C, left-hand drive
Cab Tilt	70 degrees hydraulically tiltable forward
Pump Type	Small Veyron single or large Veyron double pump
Lead Time	20 days after advance payment
Shipping Mode	Ro-ro, bulk ship or container from China main port
Payment	T/T 30 percent deposit, 70 percent before delivery

Build Materials

Materials

Q345 carbon steel tank with 6-8 mm body thickness, 8 mm head, 5 mm partition
304 stainless steel tank available on request with same thickness specifications
Alloy fuel tank with 150L capacity for corrosion resistance and weight savings
8.25R20 all radial tubeless tires for durability on unpaved and urban roads
Aluminium alloy components on the pump room and access doors for reduced weight
Hydraulic system with sealed valves and fittings for long-term vacuum integrity

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank drawing
Tank shell is cut, rolled and welded with internal clapboards to control surge and vibration
Tank is pressure tested and leak tested before leaving the welding shop
Vacuum pump, PTO, transmission shaft and pipe network are installed and aligned
Hydraulic lift system and rear cover mechanism are assembled and tested
Pump room and access lockers are fitted with sealing strips and locking hardware
Body is shot blasted, primed and finished in customer colour with logo applied free of charge
Full suction and blowdown tests are conducted on the factory apron before shipment
Photos and videos of the completed truck are sent to the buyer before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank complies with GB39.5 general specification for sewage and vacuum vehicles
Vacuum pump performance verified at 1400 r/min with suction lift and vacuum pressure measured
Pressure and non-destructive testing available in house for pressure vessel projects
Photos and videos of the finished truck are sent to the buyer before balance payment
All components are checked for correct fit, alignment and function before final assembly

Build to Order

Customization Options

Tank capacity from 3000 L to 30000 L available to match site requirements
Tank material can be changed from carbon steel to stainless steel 304
Left or right hand drive chassis to match local traffic regulations
Cabin colour and truck livery applied free of charge
Logo and branding applied free of charge on request
Pump type and pipe network layout can be adjusted to match site access and flow needs
Production to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

4000 litre vacuum truck	Smaller capacity means more trips per day but better maneuverability in narrow streets
Semi-trailer sewage tanker	Higher capacity but requires a separate tractor and more space for turning
Standard water tanker with pump added	Not designed for vacuum suction and cannot handle solid sludge or mud effectively

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Use only the manhole or pump inlet for filling; keep the air breather valve clear
Do not exceed 7 metres suction lift; expect full tank in under 5 minutes at optimal conditions
Engage the PTO and start the vacuum pump before moving if suction is required on the go
Drain the tank and flush the pipes after use in freezing or high-salinity environments
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this sewer pump truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank be made from stainless steel instead of carbon steel?

Yes. The standard tank is Q345 carbon steel and stainless steel 304 is available. Tell us the water quality and storage duration and we will confirm the material.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the pump type be changed?

Yes. We offer small Veyron single pump or large Veyron double pump options. Specify your flow and pressure needs at order stage.
