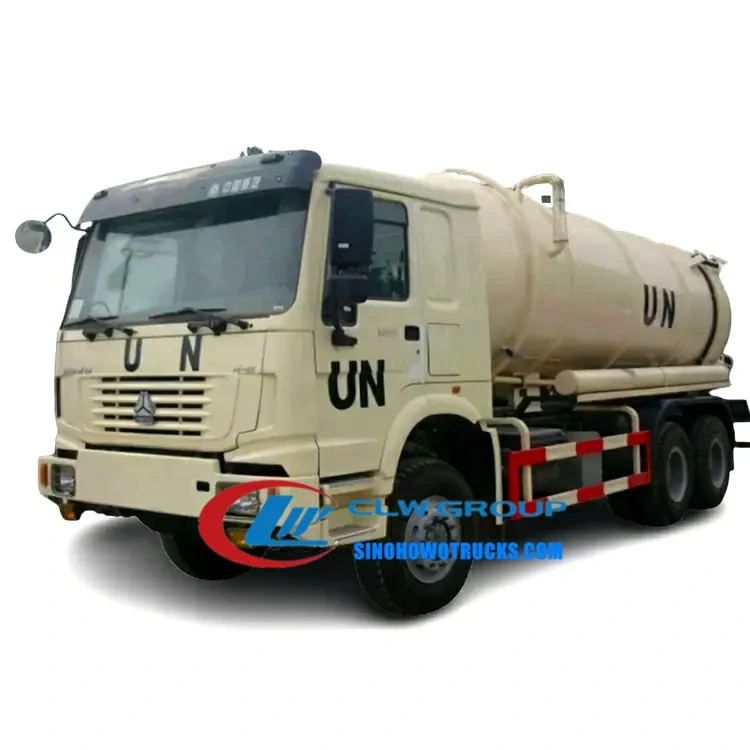

The 6WD Sinotruk HOWO off-road 10,000 litre sludge pump truck is built for municipal sanitation and waste collection in remote or unpaved areas where standard vehicles cannot operate. It is designed for frequent use in rural and peri-urban regions with poor road infrastructure, handling liquid waste, sludge, fecal matter, and small solid debris. The truck uses a 6x4 HOWO chassis with a 371 HP diesel engine and a high-efficiency Italian Jurop PN84D vacuum pump to extract waste from septic tanks, cesspits, and open drains. It is deployed by public works departments and waste contractors in countries like Ethiopia where access roads are limited and reliable waste transport is critical.
| Chassis | 6WD Sinotruk HOWO, 4x2 left or right hand drive |
|---|---|
| Engine | SINO Truck Diesel WD615.46, 371 HP, Euro II |
| Gearbox | HW13710, 10 forwards and 2 reverse |
| Overall Size | 9300 x 2500 x 3500 mm |
| Wheelbase | 4300+1350 mm |
| Curb Weight | 9500 kg |
| Loading Weight | 10,000 kg |
| Tank Capacity | 12 cubic meters |
| Tank Material | Q235 high tension steel, 5mm thickness |
| Pump Type | Italian Jurop PN84D vacuum suction pump |
| Vacuum Pressure | -0.092 MPa |
| Suction Range | 40-60 m horizontal, ≤8 m vertical |
| Extraction Time | ≤5 minutes for full tank |
| Discharge Time | ≤4 minutes per row |
| Control Method | Electric and manual control |
| Operating Position | Cab and front of tank |
| Tire Size | 11R22.5, all tubeless, 6 pieces with 1 spare |
| Cabin | HW76 standard, RHD, 1 sleeper, air conditioner, 3 passengers |
| Lead Time | 20 days after deposit |
| Shipping Mode | Ro-ro, bulk ship or container from China main port |
| 4x2 sludge truck with 6000L tank | Lower load capacity and less off-road capability but easier to maneuver in tight urban spaces |
|---|---|
| Standard sewage tanker with fixed discharge | No middle tipper system, so partial discharge and longer cleaning cycles |
| Used imported truck with no local support | Higher long-term cost due to lack of spare parts and technical service availability |
Generally 20 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.
Yes. The standard is 12 cubic meters, but we can build from 3,000L to 30,000L based on your waste volume and site requirements.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.
Yes. The standard is Italian Jurop PN84D, but we can supply other vacuum pumps based on your site conditions and maintenance preferences.
Send us your destination port and we will quote price, lead time and freight.
