Home/ All Trucks/ HOWO Water Tanker Truck/Sinotruk Howo 20t water tender trucks Philippines

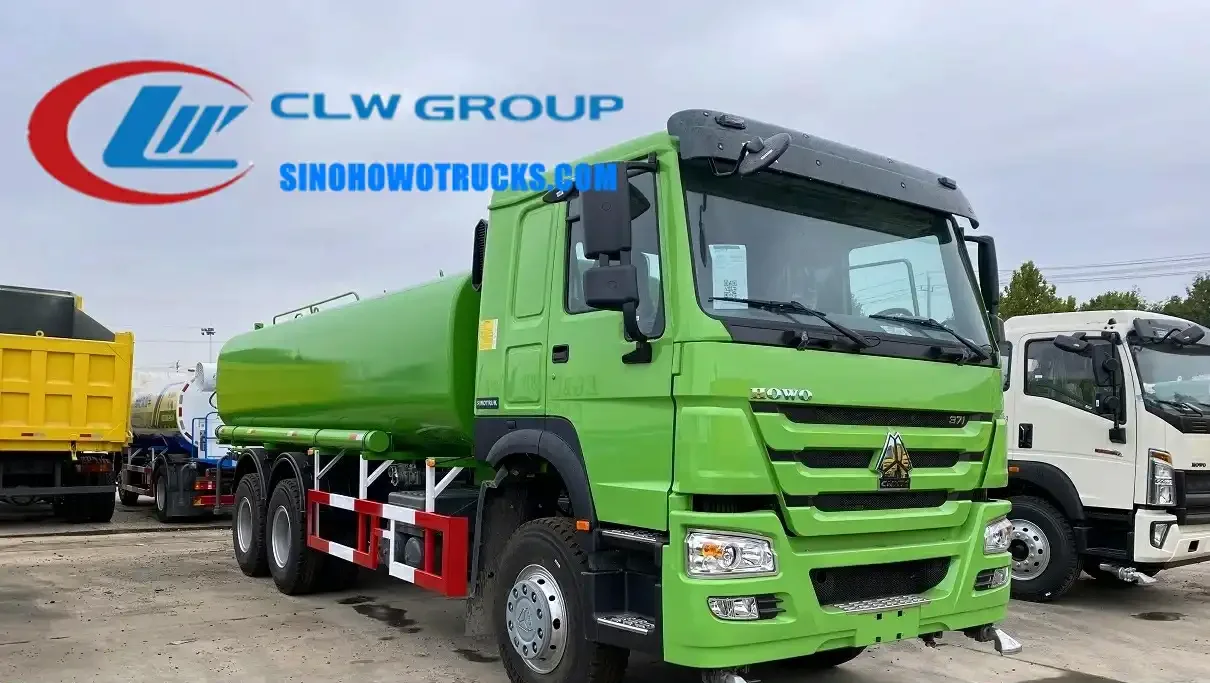

Sinotruk HOWO 6x4 20t water tender truck in red with rear spray nozzles and high cannon mounted on platform

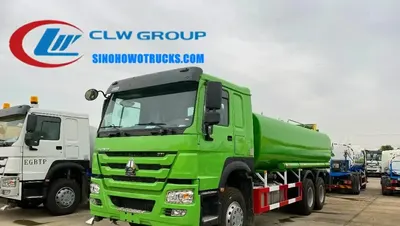

Side view of the HOWO water tanker showing front and side spray nozzles and stainless steel tank

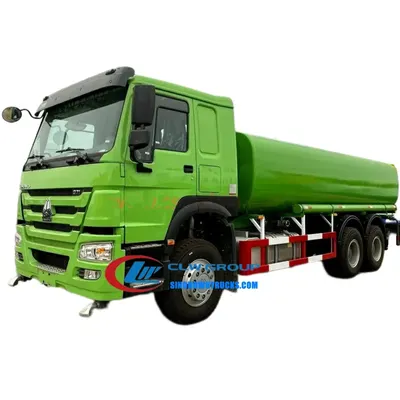

Rear view of the HOWO water truck with high-pressure cannon and working platform

Sinotruk Howo 20t water tender trucks Philippines

Name: Sinotruk Howo 20t water tender trucks Philippines
Brand: Sinotruk HOWO

The Sinotruk HOWO 20t water tender truck is a 6x4 heavy-duty water transport vehicle built on a ZZ1257 chassis with a 290 HP diesel engine and 10-speed manual gearbox. It is designed for transporting and supplying water in construction, agriculture, drought relief, and municipal sanitation applications. The truck carries up to 20 tonnes of water and can be configured with a potable water tank, road sprayers, or high-pressure water cannons. It is exported to the Philippines and other markets where reliable water delivery on rough terrain is required.

Request A Quote Email Specification

Key Benefits

6x4 HOWO chassis provides strong traction and load capacity on unpaved and uneven surfaces
290 HP WD615.87 diesel engine delivers reliable performance with no overhaul required within 500,000 km
10-speed manual gearbox (HW19710) ensures smooth gear changes under heavy load
Tank can be made of stainless steel or treated for non-toxic contact, suitable for potable water transport
Front, rear, and side spray nozzles allow for road cleaning and environmental sanitation
Rear working platform and high cannon enable watering of trees and vegetation in parks and plantations
12.00R20 tires with 10 spare wheels ensure long-distance operation in remote areas
Hydraulically damped adjustable driver’s seat and laminated windscreen improve operator comfort and safety

Buyer Profile

Who It Is for

Construction companies operating in remote or underdeveloped regions
Agricultural cooperatives managing large irrigation systems
Municipal sanitation departments responsible for street cleaning and environmental hygiene
Drought relief agencies and disaster response teams
Landscaping and park management contractors
Farmers and agribusinesses requiring mobile water and spray systems

Operating Problems

Problems It Solves

Lack of permanent water infrastructure in remote construction and farming sites
Inability to maintain consistent water supply for dust control and concrete operations
High cost and long lead times for importing water via tankers or pipelines
Poor road cleaning due to lack of mobile sprayers in urban and rural areas
Inefficient watering of high trees and green spaces without a mobile high-pressure system
Need for a single vehicle that can carry water, spray it, and apply pesticides without multiple units

Where It Works

Application Scenarios

Construction sites in the Philippines where water is needed for dust suppression and concrete mixing
Agricultural irrigation projects in rural areas with no access to permanent water supply
Drought relief operations in remote villages during dry seasons
Municipal road cleaning and dust control in urban and suburban areas
Landscaping and park maintenance requiring high-pressure water for tree watering
Pesticide spraying operations in large-scale farming fields using a dedicated spray system

Engineering

Technical Features

6x4 drive configuration with right hand drive for local traffic compliance
SINOTRUK WD615.87 6-cylinder diesel engine, 9.726L displacement, turbocharged and inter-cooled
Engine rated at 290 HP at 2200 rpm, 1160 N.m max torque, EURO II emission standard
HW19710 10 forward and 2 reverse gear manual gearbox
ZF8 hydraulic power steering for precise handling under load
Front axle HF9, rear axle HC16, approach angle 16°, departure angle 12°
12.00R20 tires with 10 spare wheels for extended operation
Water pump with high efficiency for fast filling and emptying
Rear working platform with high cannon for vertical water delivery
Side, front, and rear spray nozzles for road and surface cleaning
Laminated windscreen with cast-in radio aerial and air conditioning in cab
Hydraulically damped adjustable driver’s seat and rigid co-driver’s seat with heating and ventilation

Specifications

Technical Data


Chassis	SINOTRUK HOWO ZZ1257 6x4 right hand drive
Engine	WD615.87, 290 HP, 9.726L, diesel, 6 cylinders, turbocharged, inter-cooled
Gearbox	HW19710, 10 forwards and 2 reverse
Cab	HW76, single sleeper, air conditioner, laminated windscreen, radio aerial, adjustable seats
Loading Capacity	20 tonnes
Tires	12.00R20, 10+1 spare
Pump Type	High efficiency water pump for fast fill and discharge
Spray System	Front, rear, and side spray nozzles for road cleaning
High Cannon	Rear mounted for tree and vegetation watering
Cab Colour	Red, tank colour and logo free of charge
Lead Time	20 days
Shipping Port	China main port

Build Materials

Materials

Q235 carbon steel tank with internal anti-corrosion treatment
Stainless steel tank available on request for potable water applications
Aluminium alloy for spray nozzles and mounting brackets
Rubber sealing strips on spray and access doors for dust and water resistance
Laminated safety glass windscreen with integrated radio aerial
Heavy-duty steel frame and subframe for chassis and tank integration

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for alignment and frame integrity
Tank shell is cut, formed, and welded with internal baffles to reduce surge
Tank is pressure tested and internally treated for potable water if required
Pump and piping system is installed and aligned with the driveline
Spray nozzles, high cannon, and rear working platform are mounted and tested
Cab and body are assembled with all electrical and hydraulic connections
Vehicle is shot blasted, primed, and painted in fire service red or customer specified colour
All systems are tested on the factory apron including pump flow, spray reach, and tank seal

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Tank pressure and leak tests performed in-house to ensure structural integrity
Pump performance and spray reach verified under full load conditions
Photos and videos of the finished truck sent to the buyer before balance payment
Compliance with GB39.5 general specification for water tankers and transport vehicles
All components meet SINOTRUK original equipment standards

Build to Order

Customization Options

Tank material can be changed from carbon steel to stainless steel for potable water
Tank capacity adjusted to meet customer water volume requirements
Spray system configured with front, rear, or side nozzles based on site needs
High cannon mounted for vertical water delivery to trees and green spaces
Pesticide spraying system added for agricultural use
Free tank colour and logo application as per customer request

Comparison

How It Compares With the Alternatives

4x2 water tanker with 10000 L tank	Lower cost and better turning radius but insufficient capacity for large construction or irrigation sites
Water tanker with only front spray	Limited cleaning coverage but simpler maintenance and lower initial cost
Used imported water truck	Lower upfront cost but higher long-term maintenance and parts availability issues in remote areas

Operating Notes

Use Guide

Confirm right hand drive configuration at order stage as it cannot be changed after production
Fill the tank only through the manhole or pump inlet to avoid contamination
Use the high cannon only when the vehicle is on level ground and the platform is secured
Operate the spray system only after checking all nozzles and hoses for blockages
Drain the tank and flush the pump after use in saline or chemical water to prevent corrosion
Free technical training is available at the factory before shipment for operators and maintenance staff

Buyer Questions About This Truck

What is the lead time for this water tender truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and customization options.

Can the tank be made of stainless steel for drinking water?

Yes. The standard tank is Q235 carbon steel, but stainless steel is available. Specify water quality and storage duration for confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Is the truck right hand drive?

Yes. The chassis is configured as right hand drive to match Philippine traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the spray system be customized?

Yes. Specify whether you need front, rear, side, or all three spray nozzles, and we will configure the system accordingly.
