Home/ All Trucks/ HOWO Water Tanker Truck/6×6 Sinotruk Howo 20t off road water tender truck for sale nigeria

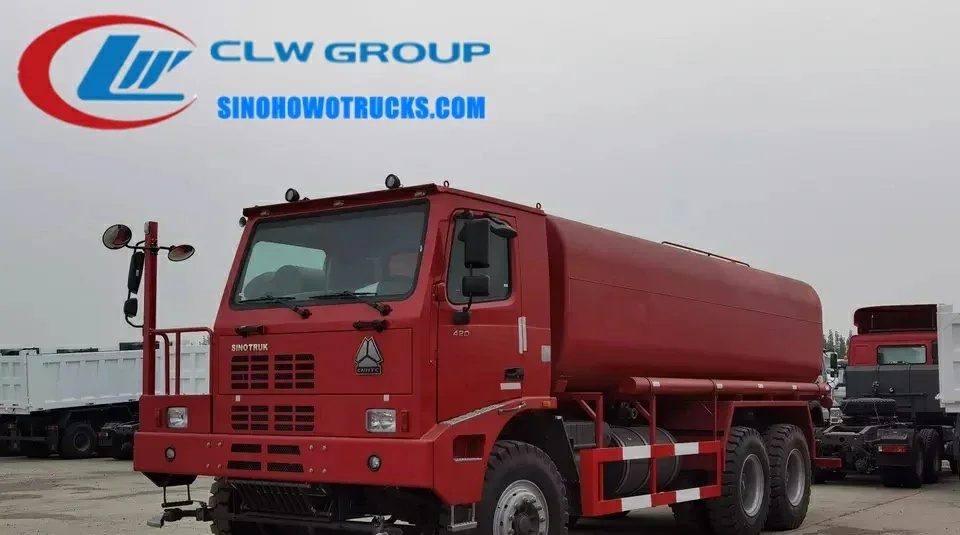

6x6 Sinotruk HOWO 20t off road water tender truck in field operation with rear spray system active

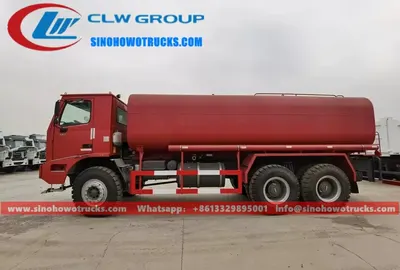

Side view of the 6x6 HOWO water tanker showing the 12.00R20 tires and rear working platform

Rear view of the 6x6 HOWO water truck with high cannon mounted on the platform

6×6 Sinotruk Howo 20t off road water tender truck for sale nigeria

Name: 6×6 Sinotruk Howo 20t off road water tender truck for sale nigeria
Brand: Sinotruk HOWO

The 6x6 Sinotruk HOWO 20t off road water tender truck is a 20 cubic metre water carrier built on a heavy duty 10 wheel chassis for use in construction, mining, drought relief, and agricultural irrigation. It is designed for operation on unpaved roads, rough terrain, and remote sites where water supply infrastructure is absent. The truck transports potable water when the tank is treated or made from stainless steel, and can also deliver water for road cleaning, dust suppression, and plant irrigation. It is supplied to contractors, government agencies, and rural water services in regions such as Nigeria with limited access to water networks.

Request A Quote Email Specification

Key Benefits

6x6 chassis with 4600+1350 mm wheelbase provides high traction and stability on unpaved and uneven terrain
290 HP diesel engine with Steyr technology delivers reliable performance and long service life up to 500,000 km without overhaul
20 cubic metre tank capacity supports multiple water delivery cycles before refilling
Dual circuit compressed air brakes and spring energy parking brake ensure safe operation on steep gradients
12.00R20 tires with high load rating support heavy payloads on rough roads and construction sites
Aluminum fuel tank (400L) reduces weight and improves fuel efficiency
10-speed manual gearbox allows precise control in low-speed operations and steep inclines

Buyer Profile

Who It Is for

Government water supply departments in developing regions with limited infrastructure
Mining and quarry operators requiring water for dust control and processing
Construction contractors managing large civil engineering projects
Agricultural cooperatives and irrigation managers in dryland farming areas
Disaster relief agencies deploying mobile water supply units
Municipalities operating road cleaning and environmental sanitation fleets

Operating Problems

Problems It Solves

Lack of water infrastructure in remote or rural areas where fixed pipelines are not feasible
Frequent refills needed when using smaller capacity water trucks
Poor traction and instability on unpaved roads due to weak chassis or axle configurations
Short engine and drivetrain life from operating under heavy loads in harsh conditions
Inadequate braking performance on steep gradients and loaded downhill runs
High fuel consumption from inefficient engines and heavy unsprung weight

Where It Works

Application Scenarios

Construction sites in remote areas with no access to water mains or hydrants
Mining operations in arid zones requiring frequent water supply for dust suppression
Drought relief missions in rural communities where water trucks must reach isolated villages
Agricultural irrigation in large-scale farming operations with no permanent water infrastructure
Road maintenance teams needing to clean and spray streets in urban and rural areas
Emergency water supply during natural disasters or infrastructure failures

Engineering

Technical Features

6x6 Sinotruk HOWO chassis with 10 wheel drive configuration for maximum off road capability
WD615.87 6-cylinder inline diesel engine with turbocharging and intercooling
10 forward speeds and 2 reverse gears for optimal control in varied terrain
Dual circuit compressed air service brake system with spring energy parking brake
ZF8118 steering system for precise handling at low and high speeds
Front axle HF9 and rear axle HC16 for balanced load distribution and durability
12.00R20 tires with high load index suitable for rough terrain and long hauls
28V-1500kw alternator and 2x12V/165Ah batteries for reliable electrical system performance
Water pump with high efficiency for rapid filling and emptying of the tank
Rear working platform and high cannon for targeted watering of trees and vegetation

Specifications

Technical Data


Chassis	6x6 Sinotruk HOWO 10 wheel drive
Engine	WD615.87, 6 cylinder inline, turbocharged, intercooled, diesel
Transmission	HW19710, 10 forward speeds, 2 reverse
Wheelbase	4600 + 1350 mm
Overall Size	10300 x 2550 x 3400 mm
Water Tank Capacity	20 m³
Curb Weight	11060 kg
Max Speed	102 km/h
Approach Angle	15 degrees
Departure Angle	13 degrees
Fuel Tank Capacity	400 L aluminum
Brake System	Dual circuit compressed air, spring energy parking brake
Steering System	ZF8118
Front Axle	HF9
Rear Axle	HC16
Tire Size	12.00R20
Battery	2 x 12V/165Ah
Alternator	28V-1500kw
Starter	7
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel tank available on request for drinking water applications
Aluminum alloy fuel tank (400L) for reduced weight and corrosion resistance
Steel frame and chassis with galvanized and painted finish for durability
Aluminum embossed sheet for body panels to resist weathering and impact

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank design drawing
Tank shell is cut, rolled, and welded with internal clapboards to reduce water surge
Tank is pressure tested and leak tested before leaving the welding shop
Pump and piping system are installed and aligned with the driveline
Rear working platform, high cannon, and spray nozzles are mounted on the subframe
Body is shot blasted, primed, and painted in customer specified color
All systems are tested on the factory apron including pump flow, brake response, and electrical function
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Vehicle built to GB7965 performance requirements for water tankers
Tank tested for pressure and leaks before final assembly
Every truck undergoes 100 percent testing before delivery
Photos and videos of the finished truck are provided before the balance payment
In-house testing available for pressure vessel projects including non-destructive testing

Build to Order

Customization Options

Tank material can be changed from carbon steel to stainless steel upon request
Tank capacity can be adjusted to meet specific water delivery requirements
Tank color and logo applied free of charge to match customer branding
Left or right hand drive chassis available to match local traffic rules
Spray system configuration can be modified for front, rear, or side water distribution
Pump and piping layout can be adapted to customer equipment and operational needs

Comparison

How It Compares With the Alternatives

4x4 water tanker with 10 m³ tank	Lower cost and better maneuverability in urban areas but cannot carry enough water for remote or large-scale operations
6x4 water tender with 15 m³ tank	Less off road capability and reduced traction on steep or muddy terrain due to fewer driven axles
Water truck with a standard chassis and no rear working platform	Cannot perform targeted watering or road cleaning tasks without additional equipment

Operating Notes

Use Guide

Confirm the drive configuration and hand of drive at order stage to match local road regulations
Fill the tank only through the manhole or pump inlet; keep the air breather valve clear
Use the rear working platform and high cannon only when the truck is parked and stable
Operate the pump at full capacity only when the tank is at least 80 percent full to avoid cavitation
Drain the tank and pump after use in freezing conditions to prevent damage
Free technical training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this water tender truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and customization options.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the spray system be customized?

Yes. Send us your layout requirements for front, rear, or side spray and we will configure the nozzles and piping accordingly.
