Home/ All Trucks/ HOWO Water Tanker Truck/Sinotruk Howo 20t construction water truck Ethiopia

Sinotruk HOWO 6x4 construction water truck in red with 20m³ tank and green anti-aircraft gun mounted on the rear

Rear view of the HOWO water truck showing fan-shaped sprinkler and high-pressure water cannon

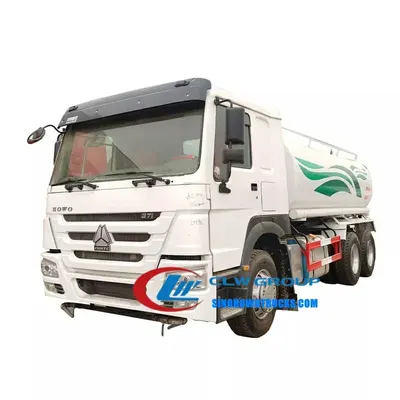

Side view of the water truck with front nozzle and side spray nozzles in operation

Sinotruk Howo 20t construction water truck Ethiopia

Name: Sinotruk Howo 20t construction water truck Ethiopia
Brand: Sinotruk HOWO

The Sinotruk HOWO 20t construction water truck is a 15m³ to 20m³ water transport vehicle built on a 6x4 HOWO chassis with a 336 HP diesel engine and 10-speed manual gearbox. It is designed for construction sites, agricultural irrigation, drought relief, and urban road cleaning in regions with limited water infrastructure. The truck delivers potable water when fitted with a stainless steel tank or non-toxic coating, and can spray water via front, side, rear, and high-pressure green anti-aircraft gun systems for dust suppression and plant watering. It is supplied to contractors, municipal services, and agricultural operators in countries including Ethiopia.

Request A Quote Email Specification

Key Benefits

6x4 HOWO chassis with 10 wheels provides stability and load capacity on rough construction and unpaved roads
336 HP SINO engine delivers reliable performance with no overhaul required within 500,000 km
15m³ to 20m³ tank capacity supports extended operations without frequent refills
Stainless steel 304 or carbon steel Q345 tank with anti-rust coating for potable water transport
Front nozzle reaches 15 metres, rear fan-shaped sprinkler covers over 20 square metres, green anti-aircraft gun sprays water column up to 28 metres
10-speed manual gearbox ensures efficient power delivery across varied terrain and load conditions
Free tank colour and logo application supports local branding and fleet identification

Buyer Profile

Who It Is for

Construction companies operating in remote or underdeveloped regions
Municipal public works departments managing road cleaning and dust control
Agricultural cooperatives and irrigation contractors in arid zones
Drought relief agencies and humanitarian logistics providers
Municipal water supply units needing mobile potable water transport
Private contractors supplying water to mining, quarrying, and industrial sites

Operating Problems

Problems It Solves

Lack of permanent water infrastructure in remote construction and farming areas
Frequent refills required by smaller capacity water trucks during long shifts
Inadequate dust suppression on unpaved roads leading to health and environmental issues
Inability to reach high trees or elevated green spaces with standard spray systems
Poor durability of light-duty water tankers on rough terrain and heavy loads
High maintenance costs from engines that require overhaul before 500,000 km

Where It Works

Application Scenarios

Construction sites in remote areas with no access to water mains or hydrants
Agricultural irrigation in drought-prone regions where water supply is intermittent
Urban road cleaning and dust suppression in cities with high particulate pollution
Emergency water delivery during droughts or natural disasters in rural communities
Plant and tree watering in parks, orchards, and green belts using high-pressure spray
Pesticide spraying operations when equipped with a pesticide spraying system

Engineering

Technical Features

6x4 HOWO chassis with 10 wheels for high load capacity and off-road stability
WD615.47/WD615.96E 6-cylinder water-cooled turbocharged diesel engine with 273kW/276kW output
HW19710 10-speed manual transmission for smooth gear shifting under load
Front axle HF9 and rear axle HC16 for balanced weight distribution
Drum air brake system for reliable stopping under full load
Front nozzle with optional duckbill design for targeted spray up to 15 metres
Rear fan-shaped sprinkler covers over 20 square metres for wide-area cleaning
Green anti-aircraft gun sprays water column up to 28 metres with adjustable rain settings
Side nozzles spray water over 6 metres for lateral road cleaning
Tank internal treatment includes standard anti-rust coating, optional non-toxic treatment for potable water
Tank thickness ranges from 4 to 6 mm for structural strength and corrosion resistance
Tank shapes available: square, oval, or rectangular to fit site space and loading requirements

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x4
Engine	273kW/276kW, 6-cylinder, turbocharged, inter-cooled, direct injection
Transmission	HW19710, 10-speed manual
Overall Size	10300 x 2500 x 3200 mm
Tank Capacity	15m³ / 18m³ / 20m³
Tank Material	Q345 carbon steel or 304 stainless steel
Tank Thickness	4-6 mm
Tank Shape	Square, oval, rectangular
Pump Type	Standard water pump, efficient in and out
Front Nozzle Reach	15 metres, optional duckbill
Rear Sprinkler Coverage	Over 20 square metres, fan-shaped
Green Anti-Aircraft Gun	Water column up to 28 metres, adjustable spray
Side Nozzle Reach	Over 6 metres
Max Speed	85 km/h
Fuel Tank Capacity	300 L
Tires	1200R22.5 and 1200R20
Braking System	Drum air brake
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Q345 carbon steel tank with standard anti-rust coating, suitable for industrial and agricultural water
304 stainless steel tank available for potable water transport and food-grade applications
Internal tank treatment includes non-toxic coating for drinking water use
Aluminium alloy or steel components used in spray nozzles and mounting brackets
Steel frame and chassis with high-strength welding for durability under heavy load

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for correct wheelbase and drive configuration
Tank shell is cut, formed, and welded using automated and manual techniques to match specified shape and capacity
Internal clapboards are installed to reduce water surge during movement
Tank is pressure tested and leak tested before coating and final assembly
Anti-rust or non-toxic coating is applied inside the tank according to customer specification
Pump, piping, and spray systems are installed and aligned with the driveline
Front, rear, side, and green anti-aircraft gun nozzles are mounted and tested for flow and reach
Body is assembled onto the chassis with structural welding and final alignment
Truck is painted in customer-selected colour with logo applied free of charge
Final 100 percent test includes pump flow, spray reach, and system integrity before delivery

Testing

Quality Control

All trucks undergo 100 percent testing before delivery
Tank pressure and leak tests conducted in-house with documented results
Pump performance and spray reach verified on factory test track
Photos and videos of the finished truck sent to buyer before balance payment
Compliance with GB standards for water tanker vehicles and structural safety
Engine and transmission tested under load to confirm reliability and performance

Build to Order

Customization Options

Tank capacity specified as 15m³, 18m³, or 20m³ to match site needs
Tank material changed from carbon steel to stainless steel 304 for potable water
Tank shape customized to square, oval, or rectangular based on space and loading constraints
Spray system configured with front, rear, side, and green anti-aircraft gun as required
Tank colour and logo applied free of charge to support fleet branding
Manufacture to customer technical drawings and specifications, including spray pattern and mounting points

Comparison

How It Compares With the Alternatives

4x2 water truck with 10m³ tank	Lower load capacity and shorter range but better fuel efficiency and easier to drive in tight urban areas
Water truck with only rear sprinkler	Limited to cleaning only the back path; lacks front and side spray for full road coverage
Water truck with no high-pressure gun	Cannot reach tall trees or elevated green spaces; limited to ground-level watering

Operating Notes

Use Guide

Confirm tank capacity and material (carbon steel or stainless steel) before ordering based on water type
Use only the manhole or pump inlet for filling; keep air breather valve clear to prevent tank vacuum
Do not exceed 85 km/h to maintain stability and engine longevity under full load
Engage the pump only after the engine reaches operating temperature to avoid damage
Drain the tank and flush the system after use in freezing conditions to prevent ice damage
Free technical training is available at the factory before shipment for operators and maintenance staff

Buyer Questions About This Truck

What is the lead time for this water truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank be made of stainless steel instead of carbon steel?

Yes. The standard tank is Q345 carbon steel. Stainless steel 304 is available for potable water transport. Specify your water quality and storage duration for confirmation.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Can the truck be supplied with a different tank capacity?

Yes. Available capacities are 15m³, 18m³, and 20m³. Choose the size that matches your site’s water demand and refill frequency.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF depending on your logistics preference.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the spray system be customized?

Yes. Specify whether you need front, side, rear, or high-pressure green anti-aircraft gun spray. We can configure the system to match your site cleaning or irrigation needs.
