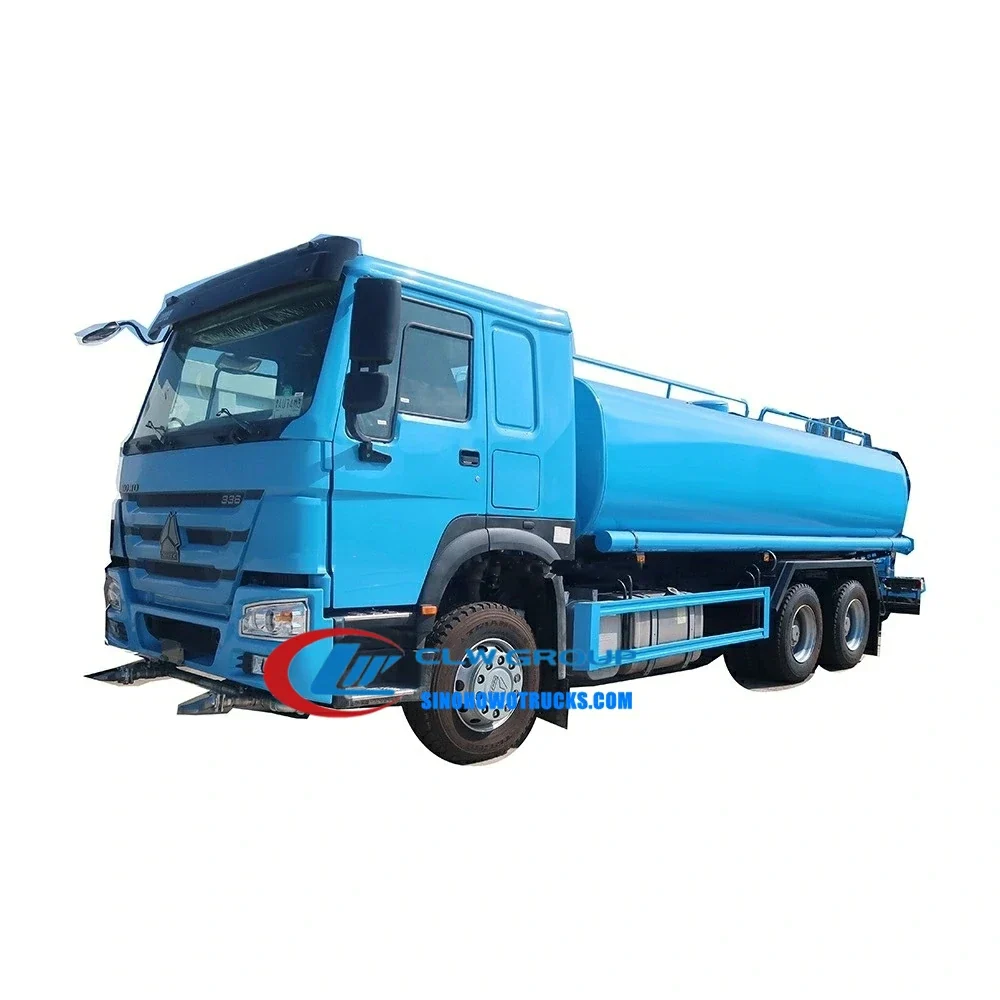

10 wheel Sinotruk HOWO 20000L water tank truck in Guyana with rear spray system and high cannon

Side view of the HOWO water sprinkler truck showing front and side spray nozzles

Rear view of the water cart with working platform and high-pressure water cannon

10 wheel Sinotruk Howo 20000L water tank truck Guyana

Name: 10 wheel Sinotruk Howo 20000L water tank truck Guyana
Brand: Sinotruk HOWO

The 10 wheel Sinotruk HOWO 20000L water tank truck is a 6x4 heavy-duty transport vehicle built on a robust HOWO chassis for delivering large volumes of water in construction, agriculture, drought relief, and urban sanitation. It carries 20,000 litres of potable or industrial water and can be equipped with front, rear, and side sprayers for road cleaning, or a high-pressure cannon for irrigation of trees and green spaces. The truck is designed for long service life and reliable operation in remote or unpaved environments.

Request A Quote Email Specification

Key Benefits

20000 litre Q235 carbon steel tank with non-toxic treatment suitable for potable water transport
6x4 HOWO chassis with 336 HP diesel engine provides strong traction and load capacity
CLW80QZF-60/90N water pump delivers high flow rate for fast filling and emptying
Rear working platform and high cannon allow for precise watering of trees and vegetation
Side, front, and rear spray nozzles enable effective road dust suppression and street cleaning
295/80R22.5 tires with 10+1 configuration support heavy payloads on rough terrain
24V electrical system with air brake and power steering improve control and safety

Buyer Profile

Who It Is for

Municipal public works departments managing urban water delivery and street cleaning
Agricultural contractors and irrigation companies operating in dry or remote regions
Construction firms working on large infrastructure projects without on-site water access
Drought relief agencies and humanitarian organizations supporting rural communities
National and regional water supply authorities for emergency water transport
Military or disaster response units needing mobile water supply in field deployments

Operating Problems

Problems It Solves

Lack of permanent water infrastructure in remote or rural construction and farming zones
Inadequate water supply for dust control on unpaved roads and construction sites
Slow or inefficient water delivery with small or low-capacity tankers
Inability to irrigate tall trees or large green areas with standard watering equipment
High downtime due to unreliable pumps or weak chassis in harsh operating conditions
Need for a single vehicle that can transport water, clean streets, and irrigate vegetation

Where It Works

Application Scenarios

Construction sites in remote areas with no access to municipal water supply
Agricultural irrigation projects in drought-prone regions with limited water infrastructure
Urban road cleaning and dust suppression in cities with high traffic and pollution
Drought relief operations in rural communities or disaster zones without water delivery systems
Maintenance of green spaces, parks, and roadside vegetation in arid or semi-arid climates
Military or emergency response units requiring mobile water supply in field operations

Engineering

Technical Features

6x4 HOWO chassis with 336 HP diesel engine and 10 speed manual gearbox
CLW80QZF-60/90N water pump with high flow rate and efficient suction
Rear working platform with high-pressure cannon for vertical water delivery
Side, front, and rear spray nozzles for road cleaning and dust suppression
Air brake system with power steering for safe handling under heavy load
295/80R22.5 tires with 10+1 configuration for high load and off-road durability
24V electrical system with A/C for operator comfort in hot climates

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x4
Engine	WD615.62 336 HP, 9.726 L, diesel, turbocharged, intercooled
Gearbox	HW13710, 10 forward, 2 reverse, manual
Overall Size	9520 x 2500 x 3048 mm
Wheelbase	4325 + 1350 mm
Tank Capacity	20000 L
Tank Material	Q235 carbon steel
Water Pump	CLW80QZF-60/90N (N/S)
Max Payload	30000 kg
Truck Weight	approx. 11970 kg
Drive Type	6x4, left or right hand drive
Emission Standard	EURO II (National II)
Brake	Air brake
Steering	ZF8098, power steering
Tire	295/80R22.5, 10+1
Cab	HW70 New type
Electric System	24V
A/C	Yes
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Q235 carbon steel tank with non-toxic interior treatment for potable water
Aluminium alloy components for pump housing and platform fittings
Rubber seals and gaskets on spray nozzles and manholes for leak prevention
High-strength steel frame and subframe for chassis and tank mounting

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against tank drawing
Tank shell is cut, rolled, and welded with internal clapboards to reduce surge
Tank is pressure tested and leak tested before internal coating or stainless steel installation
Water pump and piping are installed and aligned with the driveline and PTO
Spray nozzles, high cannon, and rear working platform are mounted and secured
Body is shot blasted, primed, and painted in customer colour or standard red
All systems are tested on the factory apron including pump flow, spray patterns, and brake function
Final inspection and photos/videos are sent to buyer before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank pressure and leak tests conducted in-house using standard methods
Pump flow rate and priming time verified under full load conditions
Photos and videos of the finished truck sent to buyer before balance payment
All components meet GB and ISO standards for industrial vehicle safety and performance

Build to Order

Customization Options

Tank material can be changed from carbon steel to stainless steel upon request
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Spray system layout and nozzle configuration adjusted to site-specific cleaning needs
Pump model and flow rate can be upgraded based on operational requirements
Manufacture to customer technical drawings and specifications

Comparison

How It Compares With the Alternatives

8x4 water tanker with 15000 L tank	Lower payload and capacity but better maneuverability in urban areas
Standard water truck without sprayers	Cannot perform road cleaning or dust suppression without additional equipment
Water truck with 200 HP engine	Lower power and torque limit performance on steep or muddy terrain

Operating Notes

Use Guide

Confirm left or right hand drive and chassis configuration before ordering
Fill the tank only through the manhole or pump inlet to prevent contamination
Use non-toxic cleaning agents inside the tank if storing potable water
Prime the pump at no more than 7 metres suction depth and expect full draft in under 50 seconds
Engage the PTO before operating the pump to avoid driveline damage
Drain the tank and flush the pump after use in freezing conditions to prevent damage

Buyer Questions About This Truck

What is the lead time for this water truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and equipment list.

Can the tank be made of stainless steel?

Yes. The standard tank is Q235 carbon steel. Stainless steel is available upon request. Provide water quality and storage duration for confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match local traffic regulations. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

Can the spray system be customized?

Yes. Send your layout requirements for front, rear, and side sprayers and we will configure the nozzles and piping accordingly.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core parts on some products are guaranteed for two years. Overseas engineers make regular return visits and provide technical training before delivery.
