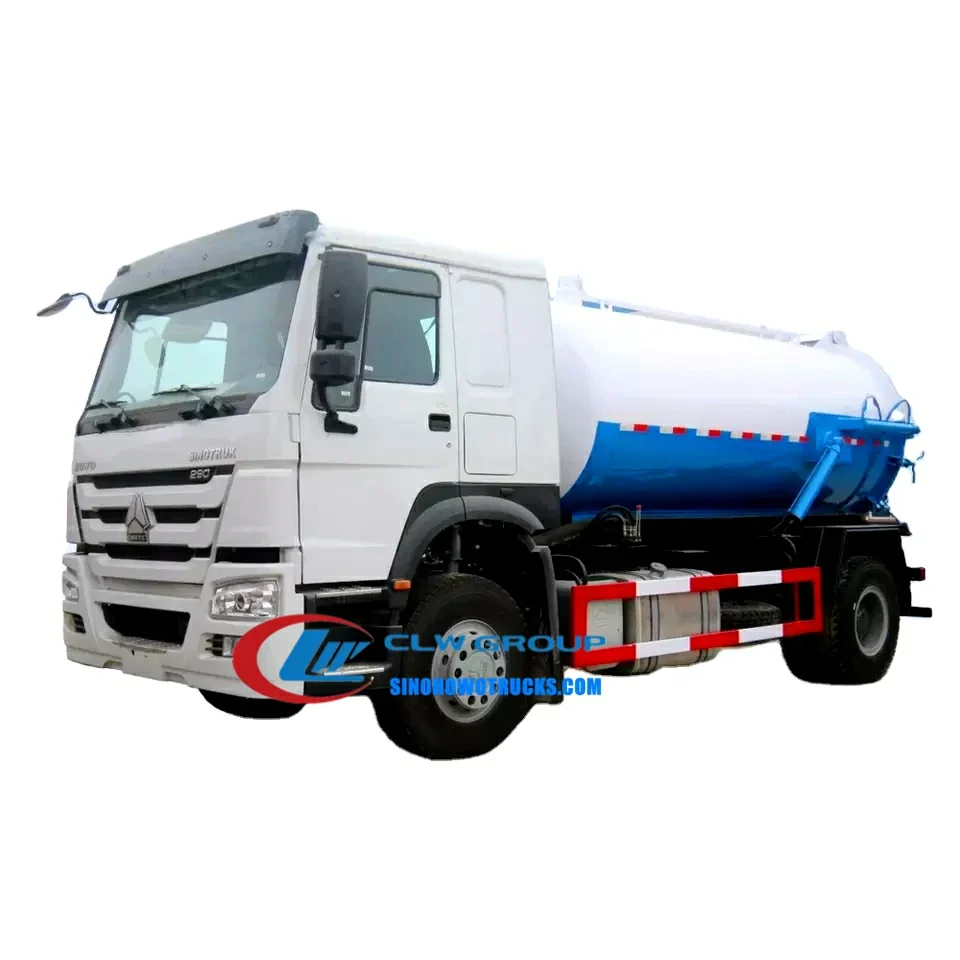

The Sinotruk HOWO 14,000 litre sewage pumper truck is a 4x2 vacuum tanker built on a ZZ1167M4611W chassis with a 290 HP diesel engine and 9 speed manual gearbox. It is designed for municipal sanitation departments, waste contractors and public works operators that need to collect and transport fecal sludge, septic waste, and solid debris from septic tanks, pit latrines, and blocked drains in urban and rural areas. The truck uses a China WEILONG 50QZXDH-68/7000 vacuum pump to achieve 68 litres per second suction at 7000 Pa, enabling rapid emptying of full tanks without manual labor.
| Chassis Model | ZZ1167M4611W |
|---|---|
| Chassis Brand | SINOTRUK |
| Drive Form | 4X2 |
| Engine Model | WD615.87 |
| Engine Power | 290 HP |
| Engine Emission | Euro 2 |
| Gearbox | HW13710, 9 forward 2 reverse |
| Overall Dimensions | 7990 x 2496 x 2958 mm |
| Wheelbase | 4600 mm |
| Front/Rear Wheel Track | 2022 / 1830 mm |
| Front/Rear Suspension | 1500 / 1890 mm |
| Approach/Departure Angle | 16° / 23° |
| Maximum Speed | 90 km/h |
| Cab Configuration | HW76 single row and a half |
| Cab Colour | White, other colours optional |
| Tank Volume | 10000 L |
| Tank Material | Carbon steel |
| Tank Thickness | 6 mm |
| Vacuum Pump Model | 50QZXDH-68/7000 |
| Pump Flow | 68 l/s |
| Pump Pressure | 7000 Pa (93%) |
| Pump Power | 5 kW |
| Pump RPM | 800 r/min |
| Tire Size | 12.00-20 steel wire |
| Tire Number | 6+1 nos |
| Front Axle | HF 7 tons |
| Rear Axle | ST 16 tons |
| Clutch | φ430 diaphragm clutch |
| Fuel Tank | 300 L iron oil tank |
| Steering | Power assisted steering |
| Steering Wheel | Left hand drive |
| Rated Voltage | 24V DC |
| Lead Time | 20 days |
| Shipping Mode | Ro-ro, bulk ship or container from China main port |
| 10,000 L vacuum truck with 266 HP engine | Smaller capacity but lower cost and easier to maneuver in narrow streets |
|---|---|
| Used imported vacuum truck | Higher initial cost but longer service life and full spare parts availability |
| Self-built vacuum tanker | Lower upfront cost but no factory testing, warranty or technical support |
Production time is 20 days after the advance payment is received. Delivery time depends on the shipping method chosen.
Yes. The standard tank is carbon steel. Stainless steel is available on request. Please specify the waste type and storage duration.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered as left or right hand drive to match your local traffic regulations. Confirm this at order stage.
By Ro-ro, bulk ship or container from a China main port. Trade terms can be EXW, FOB, CFR or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.
Yes. The standard pump is China WEILONG 50QZXDH-68/7000. Higher capacity models are available upon request.
Send us your destination port and we will quote price, lead time and freight.
